| Descripción |
|

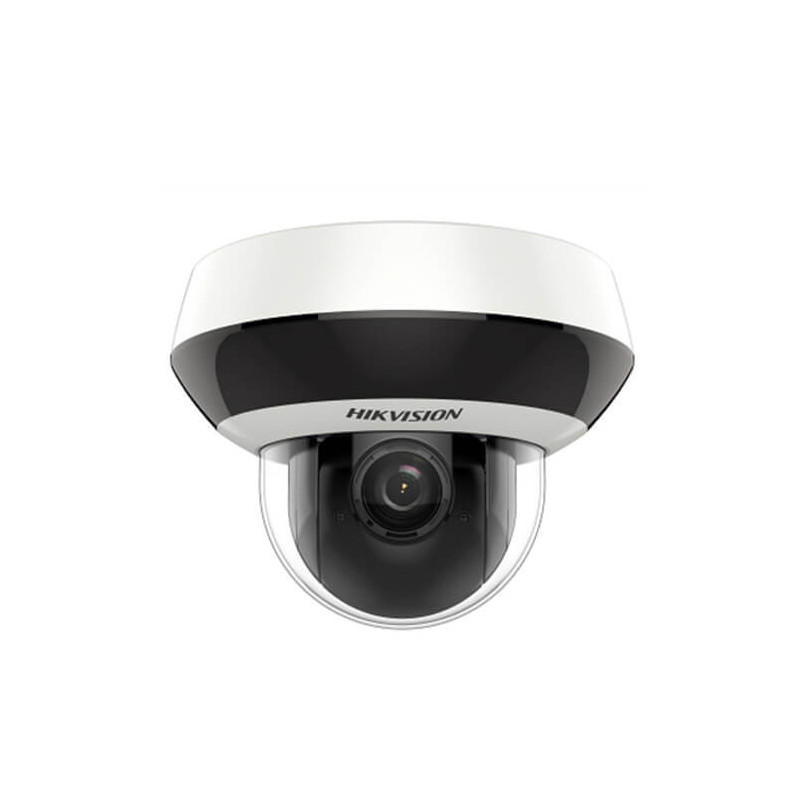

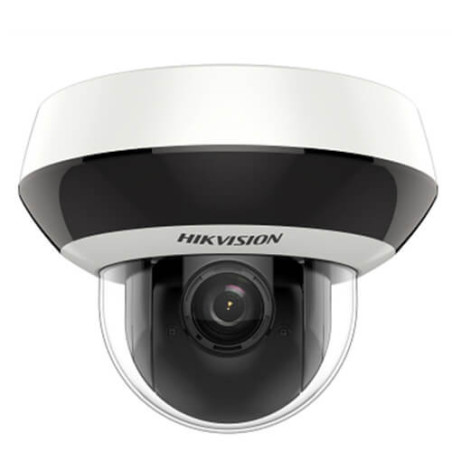

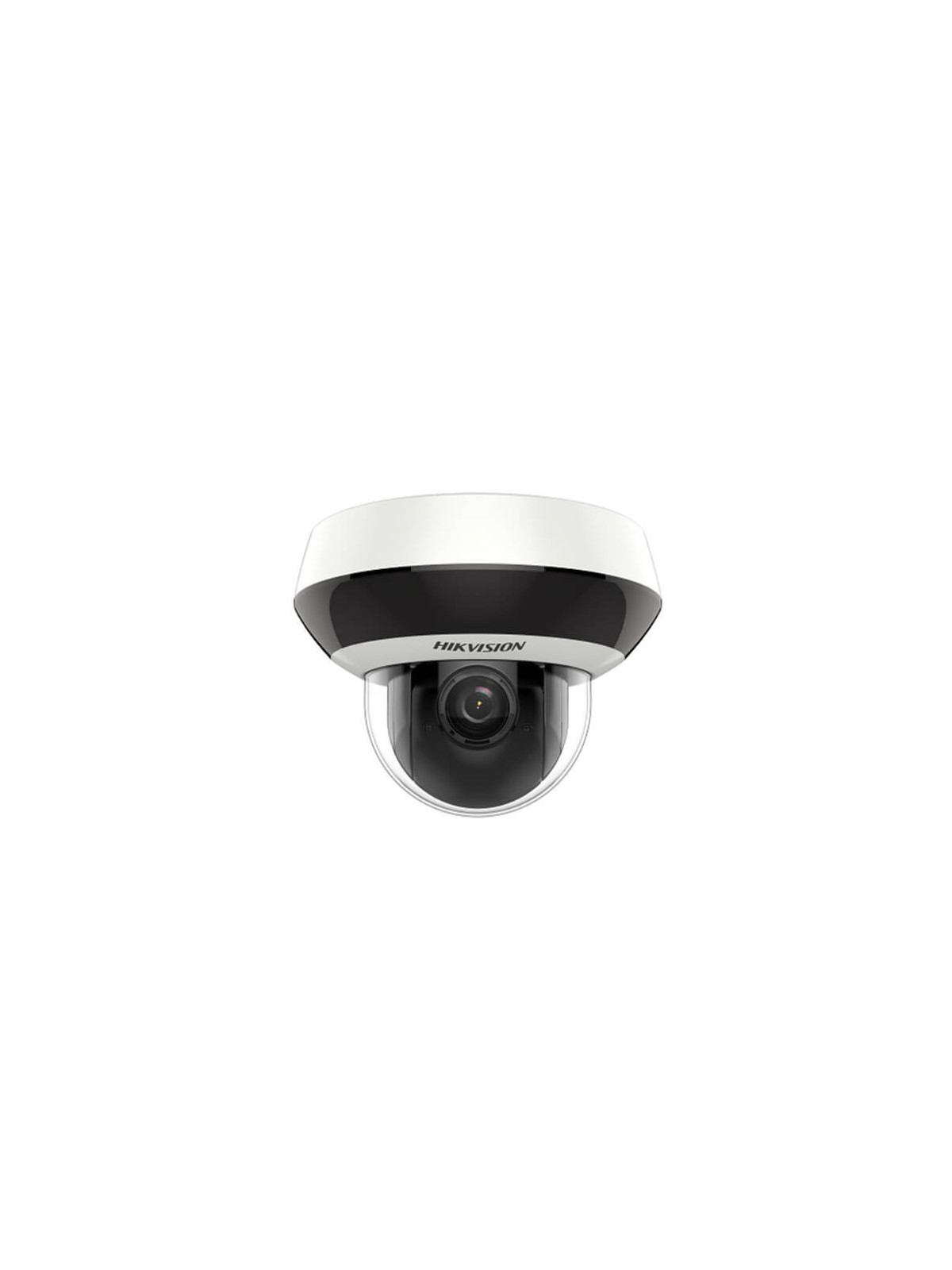

Domo PTZ IP Hikvision DS-2DE2A404IW-DE3 4MP IR20m 2.8-12mm Zoom4x H265+ POE SD WDR
Domo móvil exterior IP Hikvision, resolución 4MP, zoom ótico x 4, LEDS IR alcance 20m. Giro horizontal (Pan) 330º. Velocidad de giro 100°/s.
- High quality imaging with 4 MP resolution
- Excellent low-light performance via powered-by-DarkFighter technology
- Clear imaging against strong back lighting due to 120 dB WDR technology
- Pan and tilt ability enables camera to monitor zones of interest
- 4x optical zoom allows for closer viewing of subjects in expansive areas
- Up to 20m IR range ensures safety at night
- Water and dust resistant (IP66) and vandal proof (IK10)
|
|
| Características técnicas |
- Cámara
- Sensor de imagen - 1/2.8" Progressive Scan CMOS
- Max. Resolución - 2560 × 1440
- Iluminación mínima - Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux @ (F1.5, AGC ON), 0 Lux with IR
- Velocidad de obturación - 1/1 s to 1/30,000 s
- Día y Noche - IR cut filter
- Zoom - 4x optical, 16x digital
- Obturador lento - Yes
- Lente
- Longitud focal - 2.8 to 12 mm
- FOV - Horizontal FOV 96.796° to 31.68°, vertical FOV 51.16° to 17.798°, diagonal FOV 115.13° to 36.32°
- Enfoque - Auto, semi-auto, manual
- Apertura - Max. F1.5
- Velocidad del Zoom - Approx. 2 s
- Iluminador
- Tipo de luz suplementaria - IR
- Rango de luz suplementaria - IR Distance: up to 20 m
- Luz de suplemento inteligente - Yes
- IR Wavelength - 850 nm
- PTZ
- Rango de movimiento (pan) - 0° to 355°
- Rango de movimiento (tilt) - 0° to 90°
- Velocidad de movimiento horizontal (pan) - Pan speed: configurable from 0.1° to 100°/s; preset speed: 100°/s
- Velocidad de vertical (tilt) - Tilt speed: configurable from 0.1° to 100°/s, preset speed 100°/s
- Zoom proporcional - Yes
- Preajustes - 300
- Congelación preestablecida - Yes
- Acción del parque - Preset
- Posicionamiento 3D - Yes
- Pantalla de estado de PTZ - Yes
- Tarea programada - Preset, dome reboot, dome adjust
- Memoria de apagado - Yes
- Vídeo
- Main stream - 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720);
60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
- Sub-stream - 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288);
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
- Third Stream - 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288);
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
- Compresión de vídeo - Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264/MJPEG
- Tipo H.264 - Baseline Profile/Main Profile/High Profile
- Tipo H.265 - Main profile
- Codificación de video escalable (SVC) - H.264 and H.265 encoding
- Región de interés (ROI) - 8 fixed regions for each stream
- Audio
- Compresión de audio - G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM/AAC
- Audio Bitrate - 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)/16-64Kbps(AAC)
- Frecuencia de muestreo de audio - AAC: 16 kHz, 32 kHz, 48 kHz; MP2L2: 16 kHz, 32 kHz, 48 kHz; PCM: 8 kHz, 16 kHz, 32 kHz, 64 kHz
- Filtro de ruido ambiental - Yes
- Red
- Protocolos - IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
- Vista en vivo simultánea - Up to 20 channels
- API - Open Network Video Interface (Version 18.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
- Usuario/operador - Up to 32 users; 3 user levels: administrator, operator, and user
- Seguridad - Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
- Almacenamiento en red - NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
- Cliente - iVMS-4200, HikCentral Pro, Hik-Connect
- Navegador web - IE 10-11, Chrome 57+, Firefox 52+, Safari 11+
- Imagen
- Interruptor de parámetros de imagen - Yes
- Configuración de imagen - Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
- Interruptor día/noche - Day, Night, Auto, Schedule
- Wide Dynamic Range (WDR) - 120 dB
- SNR - ＞52dB
- Desempañar - Digital Defog
- Image Stabilization - No
- Mejora de la imagen - BLC, HLC, 3D DNR
- Máscara de privacidad - 24 programmable polygon privacy masks, mask color or mosaic configurable
- Enfoque regional - Yes
- Exposición regional - Yes
- Interfaz
- Ethernet Interface - 1 RJ45 10M/100M self-adaptive Ethernet port
- Almacenamiento a bordo - Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
- Micrófono incorporado - 1 built-in microphone, picking up sounds in the radius up to 5 meters
- Audio - 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%;
1 output (line out), line level, output impedance: 600 Ω
- Reiniciar - Yes
- Salida de alimentación - 12 VDC, max. 60 mA
- Evento
- Evento Básico - Motion detection, video tampering alarm, exception
- Evento inteligente - Face detection, line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
- Enlace de alarma - Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, and PTZ actions (such as preset)
- General
- alimentación - 12 VDC, Max. 9.2 W; PoE (802.3af)
- Dimensión - Ø 130.7 mm ×101.7 mm (Ø 5.15" × 4.00")
- - Approx. 530 g (1.17 lb.)
- Operating Condition - -20 °C to 60 °C (-4 °F to 140 °F). Humidity 90% or less (non-condensing)
- Función general - Mirror, password protection
- Certificaciones
- Protección - IP66 (IEC 60529-2013), IK10, TVS 4000V lightning protection, surge protection and voltage transient protection
- Escena de aplicación
- Escena de aplicación - -
|
|
|
