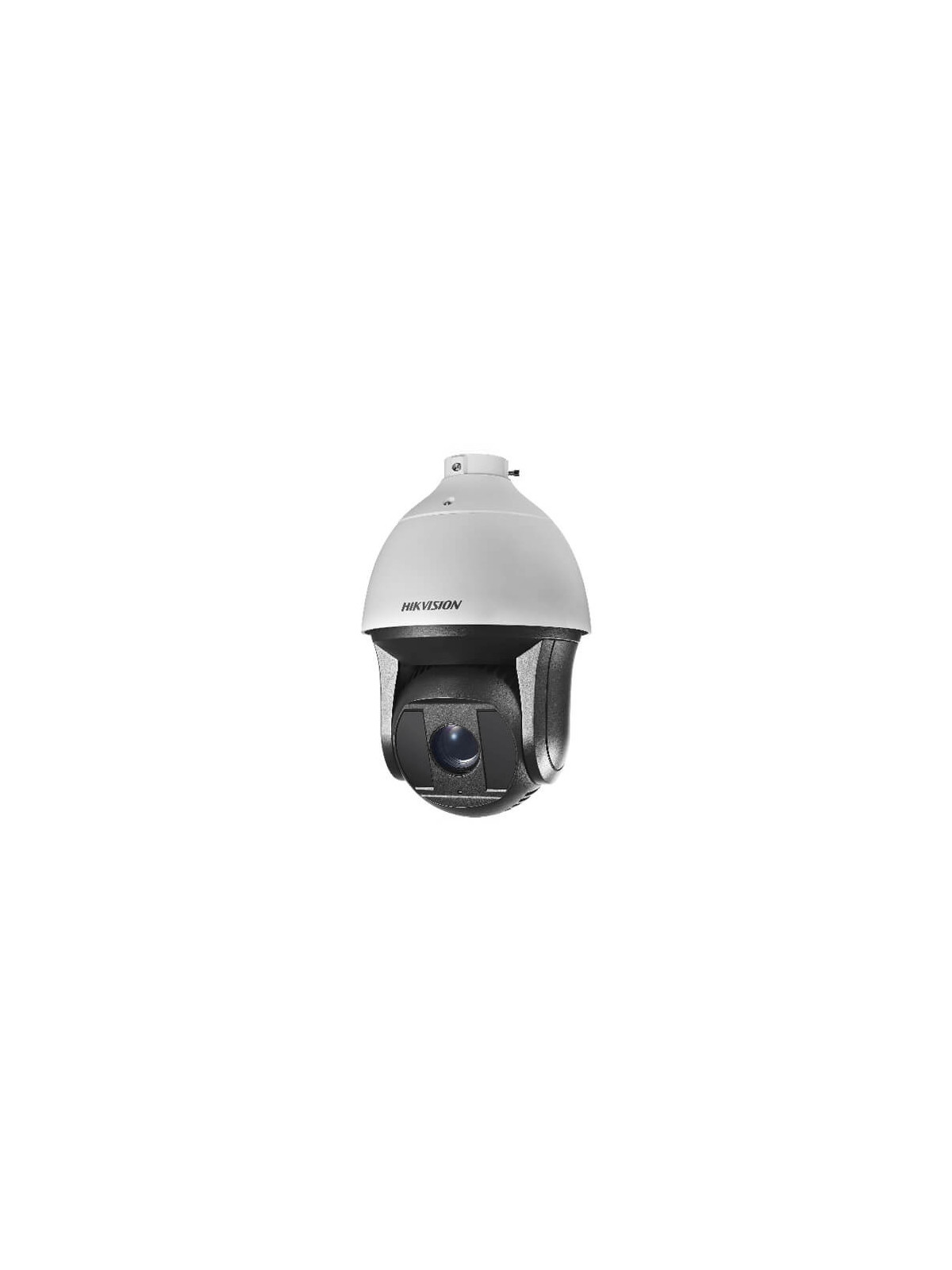

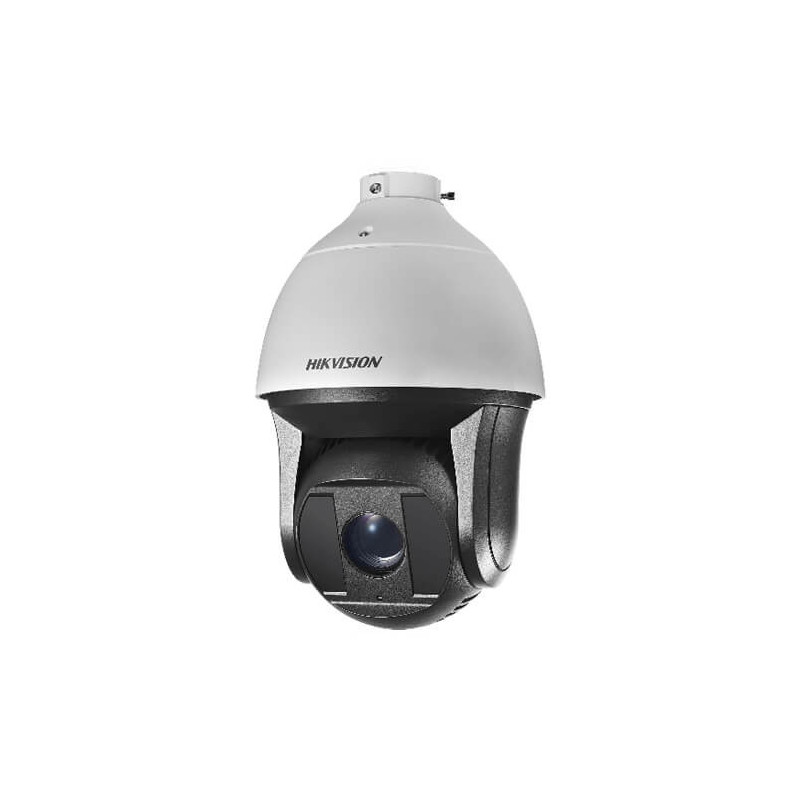

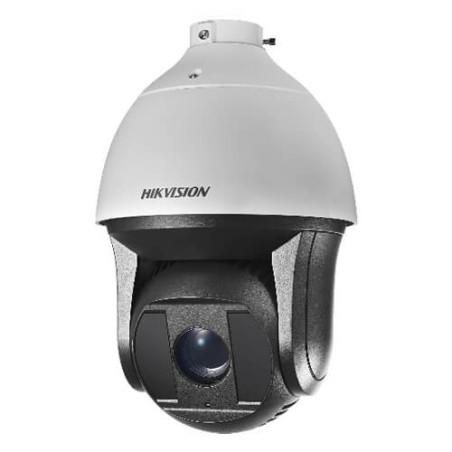

Domo PTZ IP Hikvision DS-2DE5232IW-AE 2MP IR150m 4.8-153mm Zoom32x H265+ Hi-POE SD WDR Audio Alarmas

Cantidad:

Stock:

Descripción

5-inch 2 MP 32X Powered by DarkFighter IR Network Speed Dome

1/2.8" Progressive Scan CMOS
High quality imaging with 2 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
32× optical zoom, 16× digital zoom
WDR, HLC, BLC, 3D DNR, Defog, Regional Exposure, Regional Focus, Rapid Focus
Up to 150 m IR distance
Accurate human and vehicle target classification and alarm based on deep learning algorithm
Face capture: Up to 5 faces captured at the same time

Características técnicas

Cámara
Sensor de imagen - 1/2.8＂ progressive scan CMOS
Iluminación mínima - 0 Lux with IR,color: 0.005Lux @ (F1.2，AGC ON) B/W: 0.001Lux @ (F1.2, AGC ON)
Velocidad de obturación - 1/1s-1/30000s
Obturador lento - yes
Enfoque - 半自动/手动/自动;semi-auto;manual;auto
Día y Noche - ICR
Interruptor día/noche - day, night, auto, scheduled-switch
BLC - yes
WDR - 120 dB WDR
HLC - yes
DNR 3D - yes
Desempañar - yes
EIS - yes
Exposición regional - yes
Enfoque regional - yes
Configuración de imagen - brightness;contrast;sharpness;saturation
Balance de blancos - auto;ATW;sodium lamp;indoor;fluorescent lamp;outdoor;MWB;Locked WB;Locked WB
Zoom Digital - 16x
Zoom óptico - 32x
Máscara de privacidad - up to 24 masks;polygon region ;mosaic mask ;mask color configurable
SNR - ＞52dB

Lente
Longitud focal - 4.8 mm to 153 mm, 32× Optical
Velocidad del Zoom - approx.4.2s
FOV - Horizontal field of view: 58.4° to 2.14° (wide-tele), Vertical field of view: 33.8° to 1.2° (wide-tele), Diagonal field of view: 65.6° to 2.46° (wide-tele)
Apertura - F1.2

PTZ
Rango de movimiento (pan) - 360°
Rango de movimiento (tilt) - -15° to 90° (auto flip)
Velocidad de movimiento horizontal (pan) - pan speed: configurable from 0.1° to 120°/s; preset speed: 120°/s
Velocidad de vertical (tilt) - tilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s
Zoom proporcional - yes
Preajustes - 300
Escaneo de patrulla - 8 patrols, up to 32 presets for each patrol
Patrón de escaneo - 4 pattern scans
Memoria de apagado - yes
Acción del parque - preset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan
Posicionamiento 3D - yes
Pantalla de estado de PTZ - yes
Congelación preestablecida - yes
Tarea programada - preset;pattern scan;patrol scan;auto scan;panorama scan;random scan;tilt scan;frame scan;dome reboot;dome adjust;aux output

Vídeo
Max. Resolución - 1920 × 1080
Stream Type - main stream;sub-stream;third stream
Main stream - 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-stream - 50Hz: 25fps (704 × 576, 640 × 480, 35 2× 288) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
Third Stream - 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Compresión de vídeo - H.265;H.264;MJPEG
Vídeo bitrate - 32 kbps to 16384 kbps
Tipo H.264 - Baseline Profile;Main Profile;High Profile;baseline profile;main profile;high profile
Tipo H.265 - Main Profile;main profile
H.264 + - yes
H.265 + - yes
SVC - yes
ROI - dynamic face tracking;主码流、子码流、第三码流支持8块ROI区域;fixed region;main stream, sub-stream and third stream respectively support eight fixed areas

Audio
Compresión de audio - G.711alaw;G.711ulaw;G.722.1;G.726;MP2L2;PCM
Audio Bitrate - MP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps, 192 kbps;MP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps;192kbps
Frecuencia de muestreo de audio - MP2L2: 16 kHz, 32 kHz, 48 kHz, PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz
Filtro de ruido ambiental - yes

Características inteligentes
Captura de la cara - yes
Evento Básico - audio exception;motion detection;video tampering alarm;exception
Evento inteligente - intrusion detection;line crossing detection;region entrance detection;region exiting detection;unattended baggage detection;object removal detection
Registro inteligente - ANR;Dual-VCA
Enlace de alarma - preset;patrol scan;pattern scan;memory card video recording;alarm output;sending email;notify surveillance center; upload to FTP

Red
Almacenamiento en red - NAS (NFS, SMB/ CIFS);ANR
Protocolos - IPv4/IPv6;HTTP;HTTPS;802.1x;Qos;FTP;SMTP;UPnP;SNMP;DNS;DDNS;NTP;RTSP;RTCP;RTP;TCP/IP;UDP;IGMP;ICMP;DHCP;PPPoE;Bonjour
API - Open-ended API, ONVIF (Profile S, Profile G), ISAPI, Hikvision SDK, Third-party management platform, ISUP;Hik-Connect
Vista en vivo simultánea - 20
Usuario/operador - 32
Smooth Streaming - yes
Medidas de seguridad - Authenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filter
Cliente - iVMS-4200;Hik-Connect
Navegador web - IE 8 to 11, Chrome 57+, Firefox 52+, Safari 12+

Interfaz
Interfaz de comunicación - 1 RJ45 10 M/100 M Ethernet interface; PoE (802.3at);RJ45, self-adaptive 10M/100M Ethernet port
Almacenamiento a bordo - support microSD/microSDHC/microSDXC cards;up to 256 GB
Entrada de alarma - 2 alarm inputs
Salida de alarma - 1 alarm output
Entrada de Audio - ;1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
Salida de audio - 1 audio output, line level, impedance: 600 Ω

General
alimentación - 24 VAC, Hi-PoE
Consumo de energía y corriente - Max. 30 W, including max. 10 W for IR
Condiciones de operación - humidity lower than 90%RH ;temperature: -30℃ to 65℃ (-22°F to 149°F)
Reiniciar - yes
Material - ADC 12, PC, PC+10% GF
Dimensiones - Φ 208 mm × 345 mm (Φ 8.19" × 13.58")
- Approx. 3.3 kg (7.28 lb)
