Descripción |

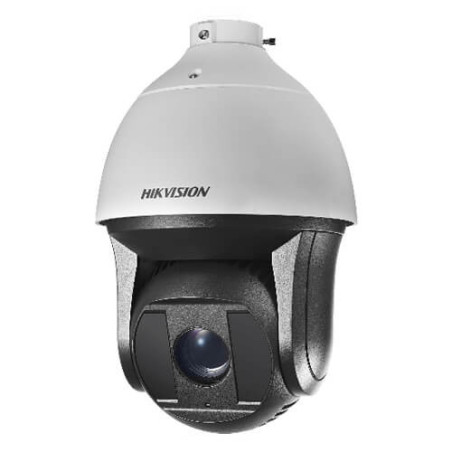

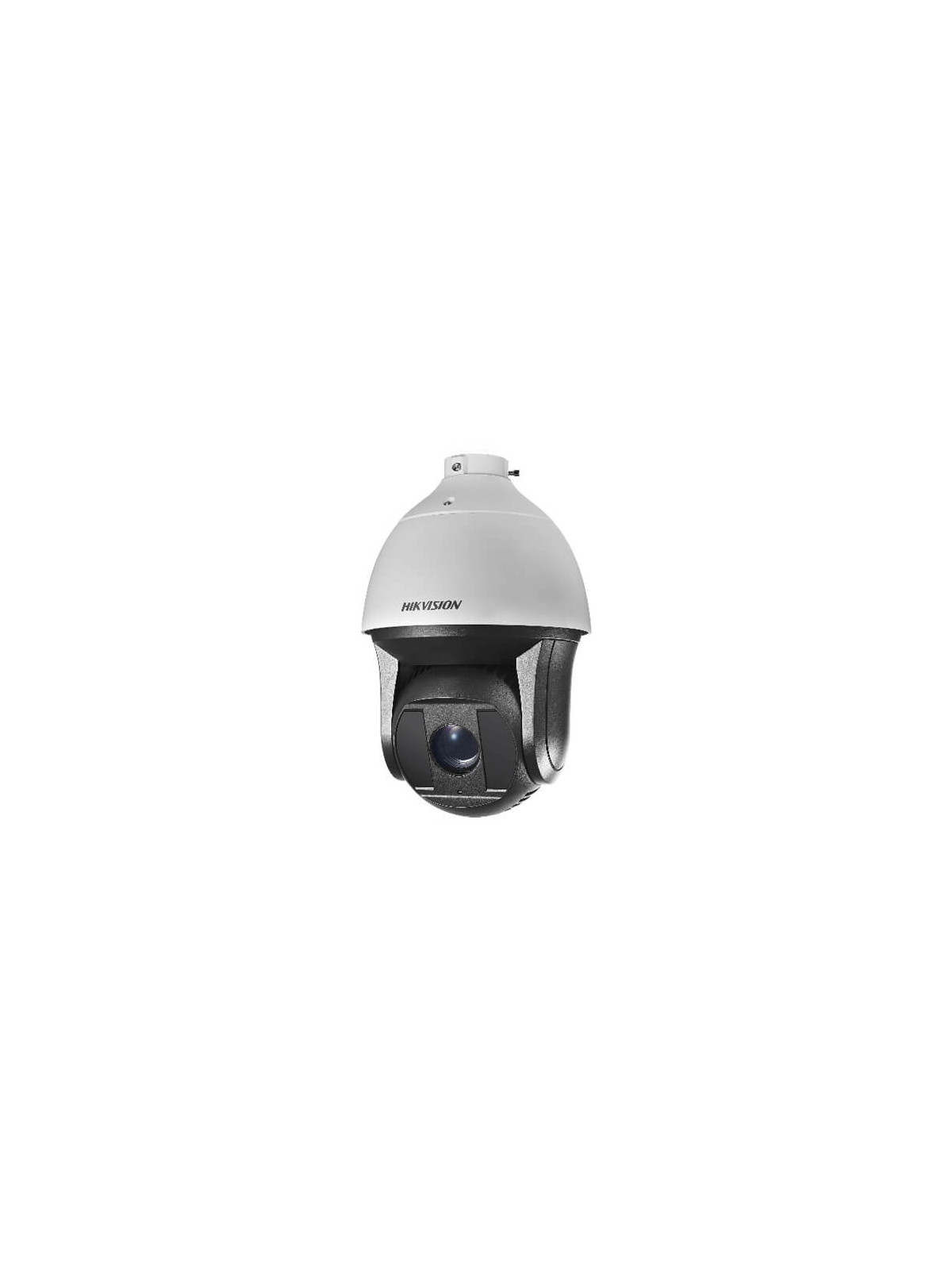

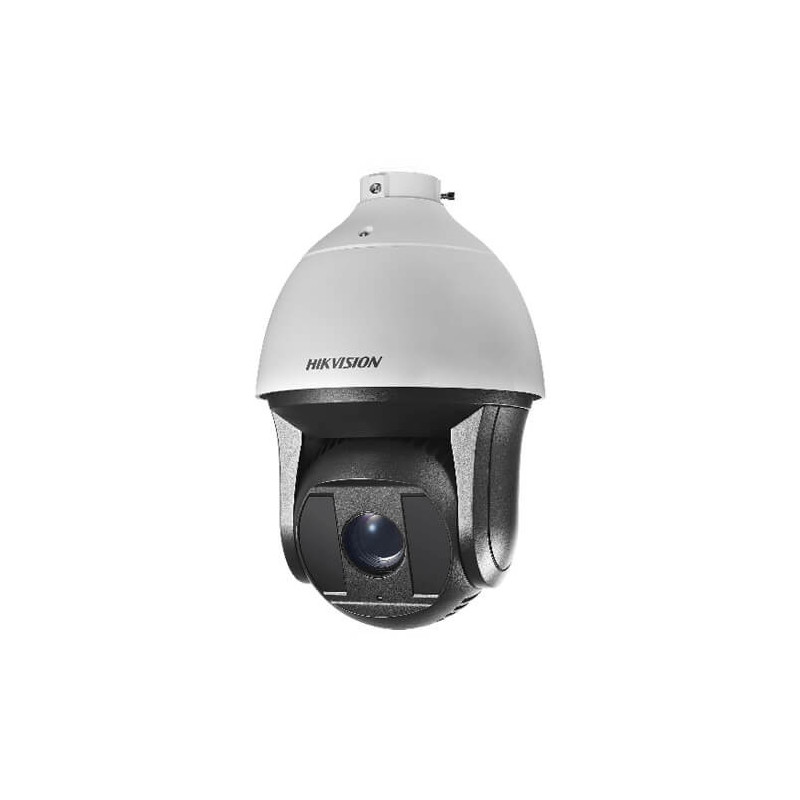

Domo PTZ IP Hikvision DS-2DE5432IW-AE 4MP IR150m 4.8-153mm Zoom32x H265+ Hi-POE SD WDR Audio Alarmas

5-inch 4 MP 32X Powered by DarkFighter IR Network Speed Dome
- 1/2.8" Progressive Scan CMOS
- High quality imaging with 4 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- 32× optical zoom, 16× digital zoom
- WDR, HLC, BLC, 3D DNR, Defog, Regional Exposure, Regional Focus, Rapid Focus
- Up to 150 m IR distance
- Accurate human and vehicle target classification, alarm, and linked tracking based on deep learning algorithm
- Face capture: Up to 5 faces captured at the same time
|
|
Características técnicas |
- Cámara
- Sensor de imagen - 1/2.8" progressive scan CMOS
- Iluminación mínima - 0 Lux with IR;color: 0.005Lux @ (F1.2,AGC ON) B/W: 0.001Lux @ (F1.2, AGC ON)
- Velocidad de obturación - 1/1s-1/30000s
- Obturador lento - yes
- Enfoque - semi-auto;manual;auto
- Día y Noche - ICR
- Interruptor día/noche - day, night, auto, scheduled-switch
- BLC - yes
- WDR - 120 dB WDR
- HLC - yes
- DNR 3D - yes
- Desempañar - yes
- EIS - yes
- Exposición regional - yes
- Enfoque regional - yes
- Configuración de imagen - saturation;brightness;contrast;sharpness
- Balance de blancos - MWB;indoor;outdoor;fluorescent lamp;sodium lamp;ATW;auto;Locked WB;Locked WB
- Zoom Digital - 16x
- Zoom óptico - 32x
- Máscara de privacidad - up to 24 masks;mosaic mask ;mask color configurable;polygon region
- SNR - >52dB
- Lente
- Longitud focal - 4.8 mm to 153 mm, 32× Optical
- Velocidad del Zoom - approx.4.2s
- FOV - Horizontal field of view: 54.3° to 2° (wide-tele),
Vertical field of view: 31.8° to 1.1° (wide-tele),
Diagonal field of view: 61.1° to 2.3° (wide-tele)
- Apertura - F1.2
- Iluminador
- Distancia IR - 150 m
- PTZ
- Rango de movimiento (pan) - 360°
- Rango de movimiento (tilt) - -15° to 90° (auto flip)
- Velocidad de movimiento horizontal (pan) - pan speed: configurable from 0.1° to 120°/s; preset speed: 120°/s
- Velocidad de vertical (tilt) - tilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s
- Zoom proporcional - yes
- Preajustes - 300
- Escaneo de patrulla - 8 patrols, up to 32 presets for each patrol
- Patrón de escaneo - 4 pattern scans
- Memoria de apagado - yes
- Acción del parque - preset;patrol scan;pattern scan;auto scan;tilt scan;random scan;frame scan;panorama scan
- Posicionamiento 3D - yes
- Pantalla de estado de PTZ - yes
- Congelación preestablecida - yes
- Tarea programada - preset;auto scan;random scan;frame scan;patrol scan;pattern scan;panorama scan;tilt scan;dome reboot;dome adjust;aux output
- Vídeo
- Max. Resolución - 2560 × 1440
- Stream Type - main stream;sub-stream;third stream
- Main stream - 50Hz: 25fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
- Sub-stream - 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288);
60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
- Third Stream - 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288);
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
- Compresión de vídeo - H.265;H.264;MJPEG
- Vídeo bitrate - 32 kbps to 16384 kbps
- Tipo H.264 - Baseline Profile;Main Profile;High Profile;baseline profile;main profile;high profile
- Tipo H.265 - Main Profile;main profile
- H.264 + - yes
- H.265 + - yes
- SVC - yes
- ROI - 主码流、子码流、第三码流支持8块ROI区域;dynamic face tracking;动态跟踪ROI;fixed region;main stream, sub-stream and third stream respectively support eight fixed areas
- Audio
- Compresión de audio - G.711alaw;G.711ulaw;G.722.1;G.726;MP2L2;PCM
- Audio Bitrate - MP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps;192kbps
- Frecuencia de muestreo de audio - MP2L2: 16 kHz, 32 kHz, 48 kHz, PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz
- Filtro de ruido ambiental - yes
- Características inteligentes
- Captura de la cara - yes
- Evento Básico - audio exception;motion detection;alarm input;alarm output;video tampering alarm;exception
- Evento inteligente - intrusion detection;line crossing detection;region entrance detection;region exiting detection;unattended baggage detection;object removal detection
- Seguimiento inteligente - manual tracking;event tracking;auto-tracking
- Registro inteligente - ANR;Dual-VCA
- Enlace de alarma - smart tracking;preset;patrol scan;pattern scan;memory card video recording;alarm output;sending email;notify surveillance center; upload to FTP
- Red
- Almacenamiento en red - NAS (NFS, SMB/ CIFS);ANR
- Protocolos - IPv4/IPv6;HTTP;HTTPS;802.1x;Qos;FTP;SMTP;UPnP;SNMP;DNS;DDNS;NTP;RTSP;RTCP;RTP;TCP/IP;UDP;IGMP;ICMP;DHCP;PPPoE;Bonjour
- API - ISAPI;Hikvision SDK;ONVIF (Profile S, Profile G, Profile T);ISUP;Hik-Connect
- Vista en vivo simultánea - 20
- Usuario/operador - 32
- Smooth Streaming - yes
- Medidas de seguridad - Authenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filter
- Cliente - iVMS-4200;Hik-Connect
- Navegador web - ;IE 8 to 11, Chrome 57+, Firefox 52+, Safari 12+
- Interfaz
- Interfaz de comunicación - RJ45, self-adaptive 10M/100M Ethernet port
- Almacenamiento a bordo - support microSD/microSDHC/microSDXC cards, up to 256 GB; support microSD/microSDHC/microSDXC cards;up to 256 GB
- Entrada de alarma - 2 alarm inputs
- Salida de alarma - 1 alarm output
- Entrada de Audio - 1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
- Salida de audio - 1 audio output, line level, impedance: 600 Ω
- General
- alimentación - 24 VAC; Hi-PoE
- Consumo de energía y corriente - Max. 30 W, including max. 10 W for IR
- Condiciones de operación - humidity lower than 90%RH ;temperature: -30℃ to 65℃ (-22°F to 149°F)
- Reiniciar - yes
- Material - ADC 12, PC+10% GF
- Dimensiones - Φ 208 mm × 345 mm (Φ 8.19" × 13.58")
- - Approx. 3.3 kg (7.28 lb)
- Certificaciones
- Protección - IP66 Standard, 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
|
|
|
