| Descripción |
|

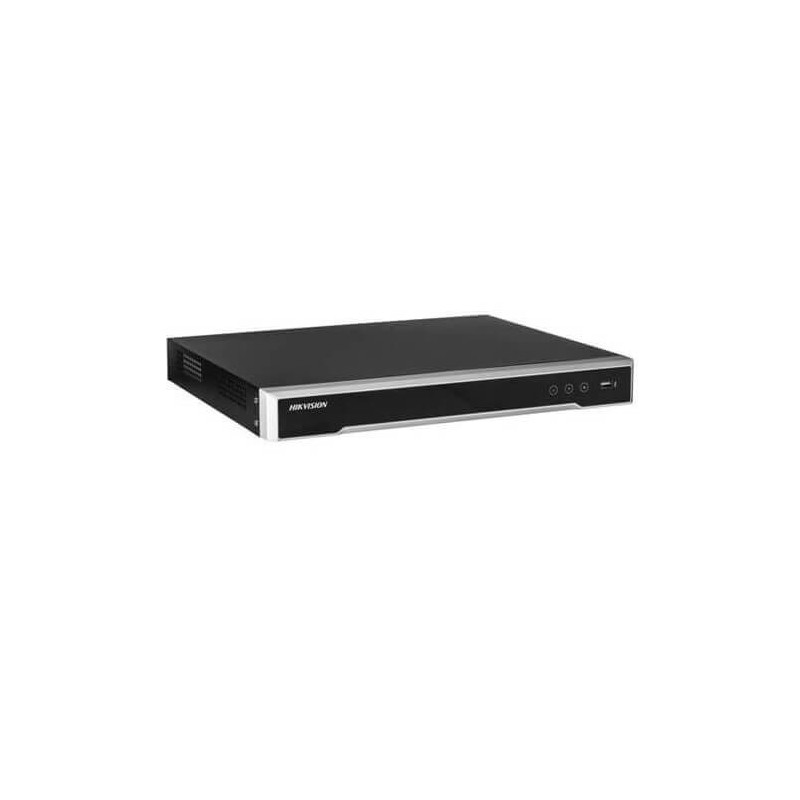

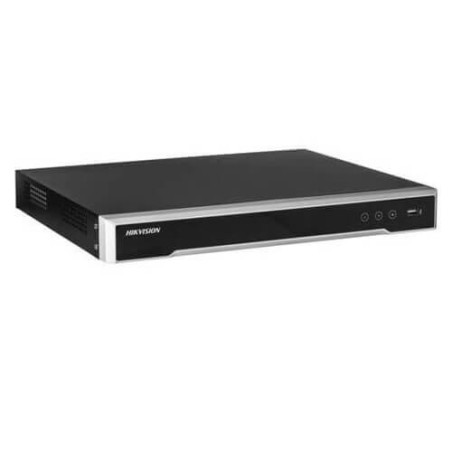

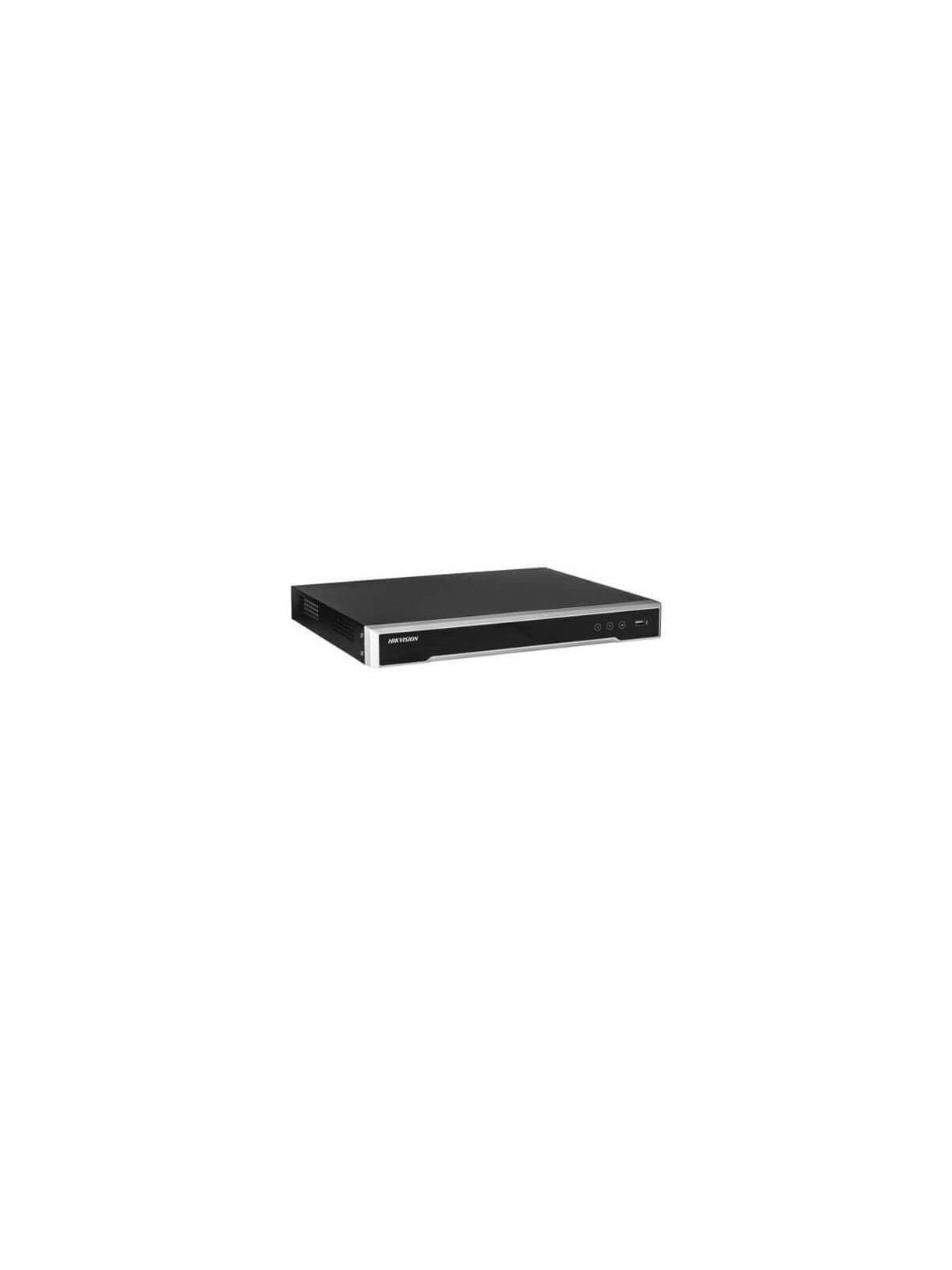

Grabador NVR Hikvision DS-7608NI-K2/8P 8ch 8MP 160Mbps H265 HDMI4K SATAx2 Alarmas POEx8
Grabador en red para 8 cámaras IP de resolución hasta 8MP Soporta codificación H.265 / H.264+ / H.264 / MPEG4.
- Sistema operativo dual, tecnología ANR.
- Ancho de banda de entrada 80Mbps, capacidad de transmisión 160Mbps.
- Capacidad de visualización 2 canales a 4K (8Mpx) y 8 canales a 1080P .
- Hasta 8 MP de resolución para la grabación.
- Salidas de monitor HDMI 4K y VGA (192x1080) independientes.
- Reproduccion simultanea de 4 canales.
- Audio:1 E/1S. Alarmas:4 E/1S.
- Admite máximo 1 Disco duro de 6TB (no incluido).
- 1 Tarjeta de red 10/100/1000Mbps.
- 2 puertoS USB 2.0.
- Incorpora Switch POE de 8 puertos 10/100Mbps, máxima potencia 120W.
|
|
| Características técnicas |
- IP video input - 8-ch
- Incoming/outgoing bandwidth - 80 Mbps ,160 Mbps
- HDMI output - 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- VGA output - 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- Audio output - 1-ch, RCA (Linear, 1 KΩ)
- Two-way audio input - 1-ch, RCA (2.0 Vp-p, 1kΩ)
- Decoding format - H.265/H.265+/H.264/H.264+/MPEG4
- Recording resolution - 8MP/6MP/ 5MP/4MP/ 3MP/1080p/ UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- Synchronous playback - 8-ch
- Capability - 2-ch @ 8 MP (25fps) / 4-ch @ 4MP (30fps) / 8-ch @ 1080p (30fps)
- Network protocols - TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
- Network interface - 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
- Interface - 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
- Power - ≤ 120 W
- Supported standard - IEEE 802.3 af/at
- SATA - 2 SATA interfaces
- Capacity - Up to 6 TB capacity for each HDD
- USB interface - Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
- Alarm in/out - 4/1
- Power supply - 100 to 240 VAC,≤ 180 W
- Consumption (without HDD) - ≤ 15 W (without enabling PoE)
- Working temperature - -10 °C to 55 °C (14 °F to 131 °F)
- Working humidity - 10 to 90 %
- Dimensions (W × D × H) - 385 × 315× 52 mm (15.2" × 12.4" × 2.0")
- Weight (without hard disk) - ≤ 3 kg (6.6 lb)
|
|
|
