| Descripción |
|

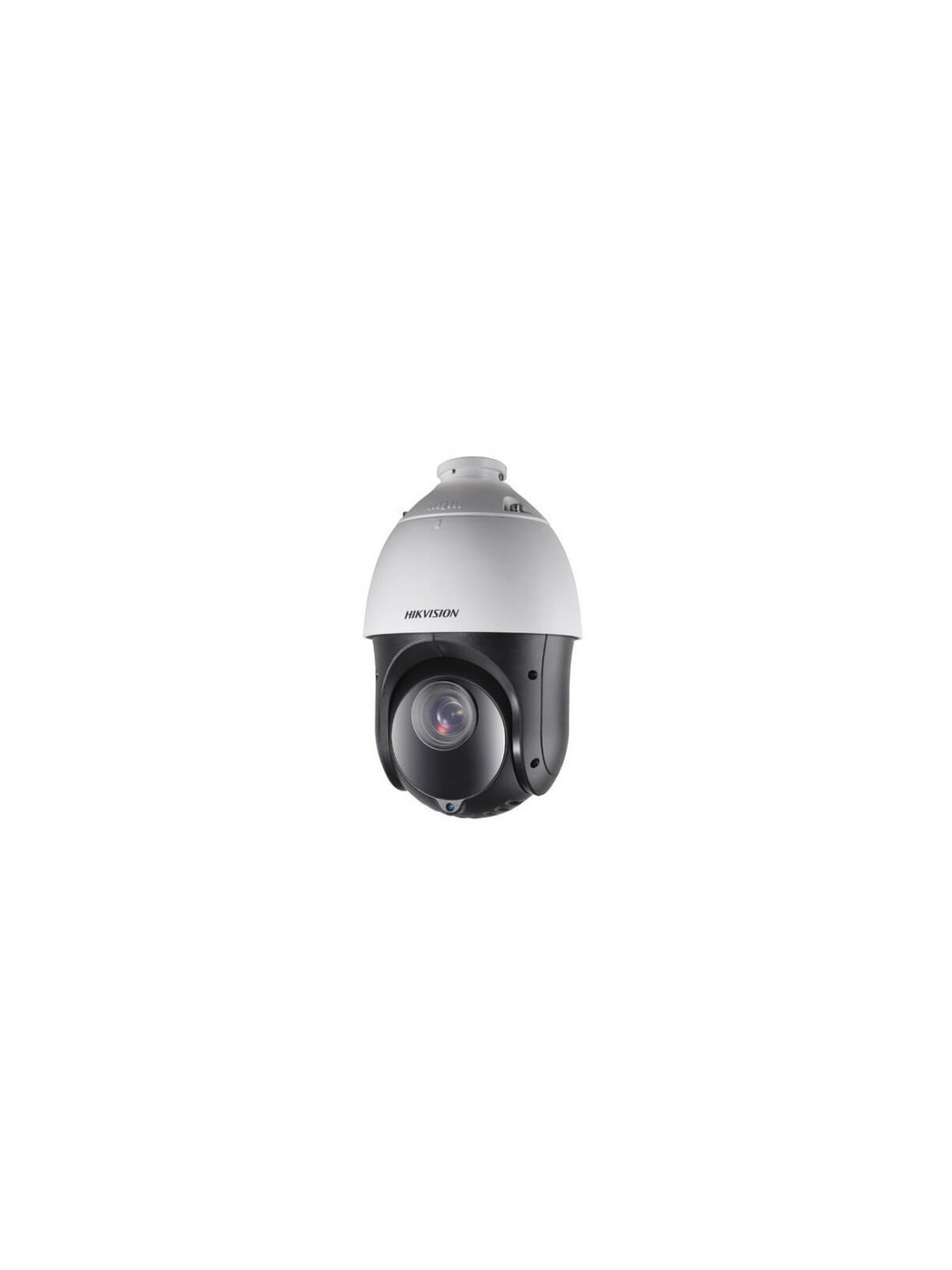

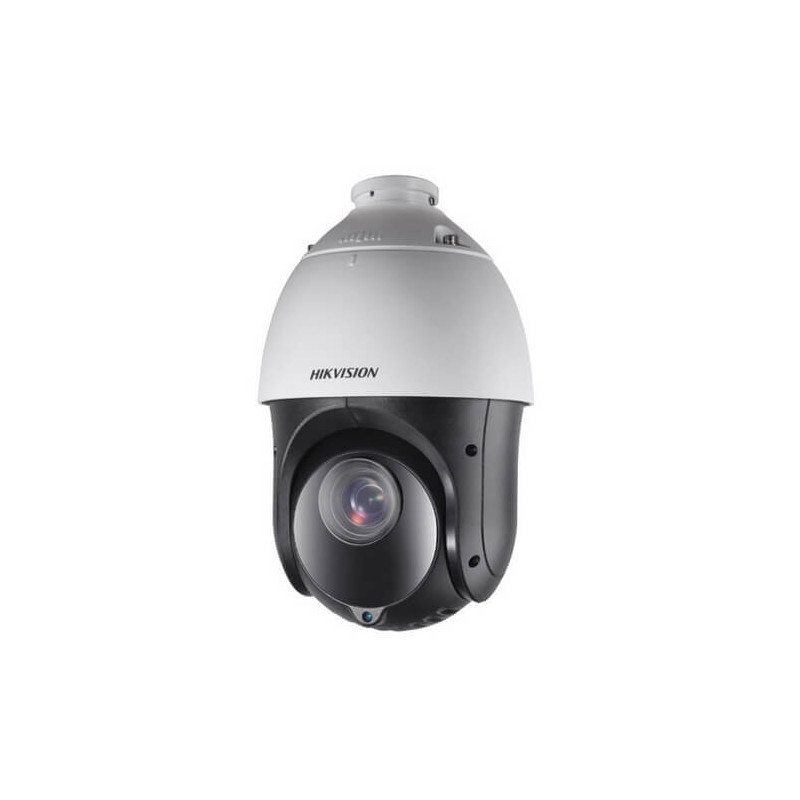

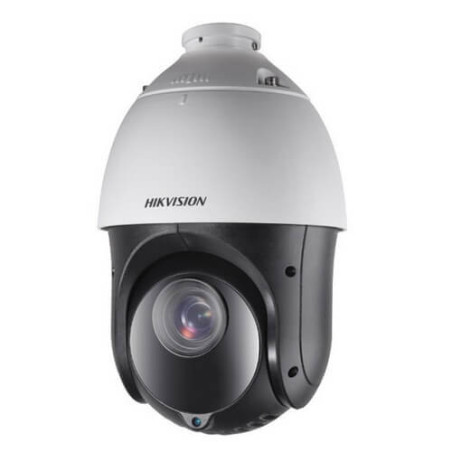

Domo PTZ IP Hikvision DS-2DE4425IW-DE 4MP IR100m 4.8-120mm Zoom25x H265+ POE SD WDR Audio Alarmas
4-inch 4 MP 25X Powered by DarkFighter IR Network Speed Dome
- 1/2.8" progressive scan CMOS
- High quality imaging with 4 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- 25× optical zoom and 16× digital zoom provide close up views over expansive areas
- WDR, HLC, BLC, 3D DNR, defog, regional exposure, regional focus
- Expansive night view with up to 100 m IR distance
- Support H.265+/H.265 video compression
|
|
| Características técnicas |
- Cámara
- Sensor de imagen - 1/2.8" progressive scan CMOS
- Iluminación mínima - color: 0.005Lux @ (F1.6，AGC ON); B/W: 0.001Lux @ (F1.6，AGC ON);0 Lux with IR
- Velocidad de obturación - 1 s to 1/30,000 s
- Obturador lento - yes
- Enfoque - semi-auto;manual;auto
- Día y Noche - ICR
- Interruptor día/noche - day, night, auto, scheduled-switch
- BLC - yes
- WDR - 120 dB WDR
- HLC - yes
- DNR 3D - yes
- Desempañar - yes
- EIS - no
- Exposición regional - yes
- Enfoque regional - yes
- Configuración de imagen - saturation;brightness;contrast;sharpness
- Interruptor de parámetros de imagen - yes
- Balance de blancos - MWB;indoor;outdoor;fluorescent lamp;sodium lamp;ATW;auto;Locked WB
- Zoom Digital - 16x
- Zoom óptico - 25x
- Máscara de privacidad - up to 24 masks;mask color configurable
- SNR - ＞52dB
- Lente
- Longitud focal - 4.8 mm to 120 mm, 25× Optical
- Velocidad del Zoom - approx. 3.6 s
- FOV - Horizontal field of view: 55° to 2.4° (wide-tele),
Vertical field of view: 33° to 1.4° (wide-tele),
Diagonal field of view: 61.5° to 2.8° (wide-tele)
- Apertura - F1.6
- Iluminador
- Distancia IR - 100 m
- PTZ
- Rango de movimiento (pan) - 360°
- Rango de movimiento (tilt) - -15° to 90° (auto flip)
- Velocidad de movimiento horizontal (pan) - pan speed: configurable from 0.1° to 80°/s; preset speed: 80°/s
- Velocidad de vertical (tilt) - tilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s
- Zoom proporcional - yes
- Preajustes - 300
- Escaneo de patrulla - 8 patrols, up to 32 presets for each patrol
- Patrón de escaneo - 4 pattern scans
- Memoria de apagado - yes
- Acción del parque - preset;patrol scan;pattern scan;auto scan;tilt scan;random scan;frame scan;panorama scan
- Posicionamiento 3D - yes
- Pantalla de estado de PTZ - yes
- Congelación preestablecida - yes
- Tarea programada - preset;auto scan;random scan;frame scan;patrol scan;pattern scan;panorama scan;tilt scan;dome reboot;dome adjust;aux output
- Vídeo
- Max. Resolución - 2560 × 1440
- Stream Type - main stream;sub-stream;third stream
- Main stream - 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
- Sub-stream - 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
- Third Stream - 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
- Compresión de vídeo - H.265;H.264;MJPEG
- Vídeo bitrate - 32 kbps to 16384 kbps
- Tipo H.264 - baseline profile;main profile;high profile
- Tipo H.265 - main profile
- H.264 + - yes
- H.265 + - yes
- SVC - yes
- ROI - fixed region;main stream, sub-stream and third stream respectively support eight fixed areas
- Audio
- Compresión de audio - G.711alaw;G.711ulaw;G.722.1;G.726;MP2L2;PCM
- Audio Bitrate - MP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps, 192 kbps
- Frecuencia de muestreo de audio - MP2L2: 16 kHz, 32 kHz, 48 kHz;PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz
- Filtro de ruido ambiental - yes
- Características inteligentes
- Evento Básico - motion detection;alarm input;alarm output;video tampering alarm;exception
- Evento inteligente - intrusion detection;line crossing detection;region entrance detection;region exiting detection;unattended baggage detection;object removal detection;audio exception detection;face detection
- Registro inteligente - ANR;Dual-VCA
- Enlace de alarma - memory card video recording;alarm output;sending email;notify surveillance center; upload to FTP;NAS video recording
- Red
- Almacenamiento en red - NAS (NFS, SMB/ CIFS)
- Protocolos - IPv4/IPv6;HTTP;HTTPS;802.1x;Qos;FTP;UPnP;SNMP;DNS;DDNS;NTP;RTSP;TCP/IP;UDP;IGMP;ICMP;DHCP;PPPoE;Bonjour;SMTP;RTCP;RTP;ISUP
- API - ISAPI;Hikvision SDK;Third-party management platform;Open-ended API;Hik-Connect;ISUP;Open Network Video Interface;CGI
- Vista en vivo simultánea - 20
- Usuario/operador - 32
- Medidas de seguridad - Authenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filter
- Cliente - iVMS-4200;Hik-Connect
- Navegador web - IE10-11, Chrome 57+, Firefox 52+, Safari 12+
- Interfaz
- Interfaz de comunicación - RJ45, self-adaptive 10M/100M Ethernet port
- Almacenamiento a bordo - support microSD/microSDHC/microSDXC cards;up to 256 GB
- Entrada de alarma - 1 alarm input
- Salida de alarma - 1 alarm output
- Entrada de Audio - 1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
- Salida de audio - 1 audio output, line level, impedance: 600 Ω
- General
- alimentación - 12 VDC;PoE (802.3at)
- Consumo de energía y corriente - Max. 18 W, including max. 1.6 W for heater and 9 W for IR
- Condiciones de operación - -30℃ to 65℃ (-22°F to 149°F) ;humidity lower than 90%RH
- Reiniciar - yes
- Demista - yes
- Material - ADC12
- Dimensiones - Ø 164.5 mm × 290 mm (Ø 6.48" × 11.42")
- - Approx. 2 kg (4.41 lb.)
- Certificaciones
- Protección - IP66 Standard, 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
|
|
|
