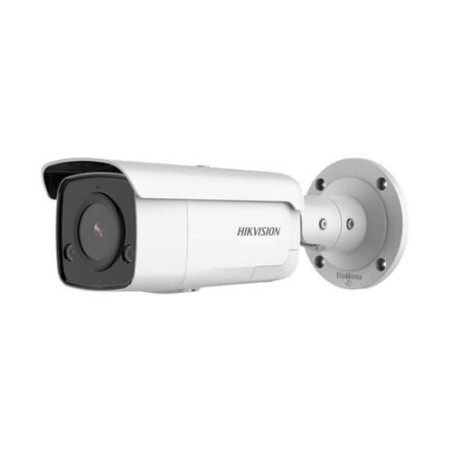

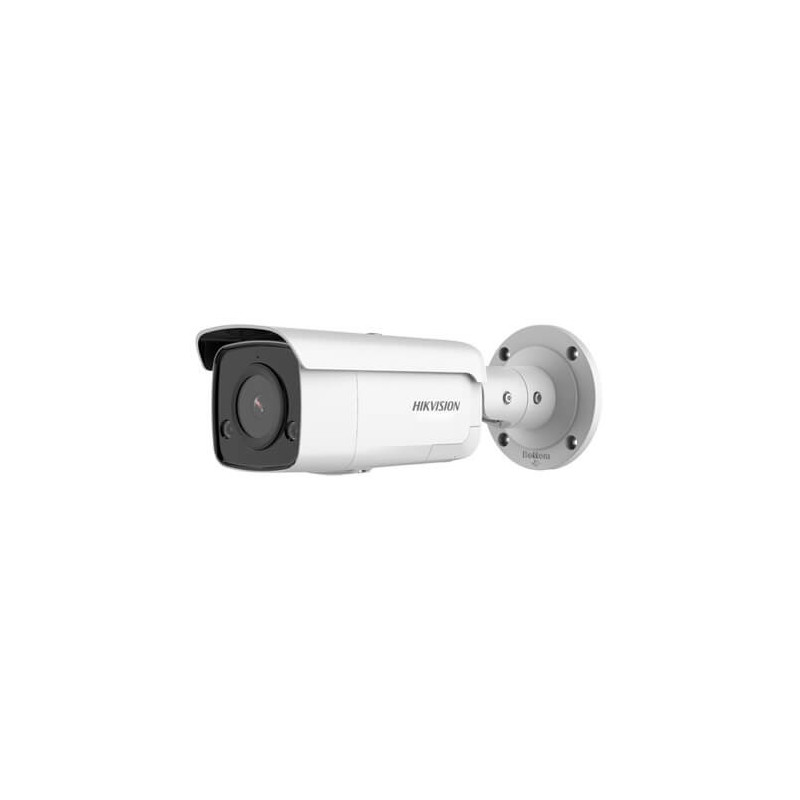

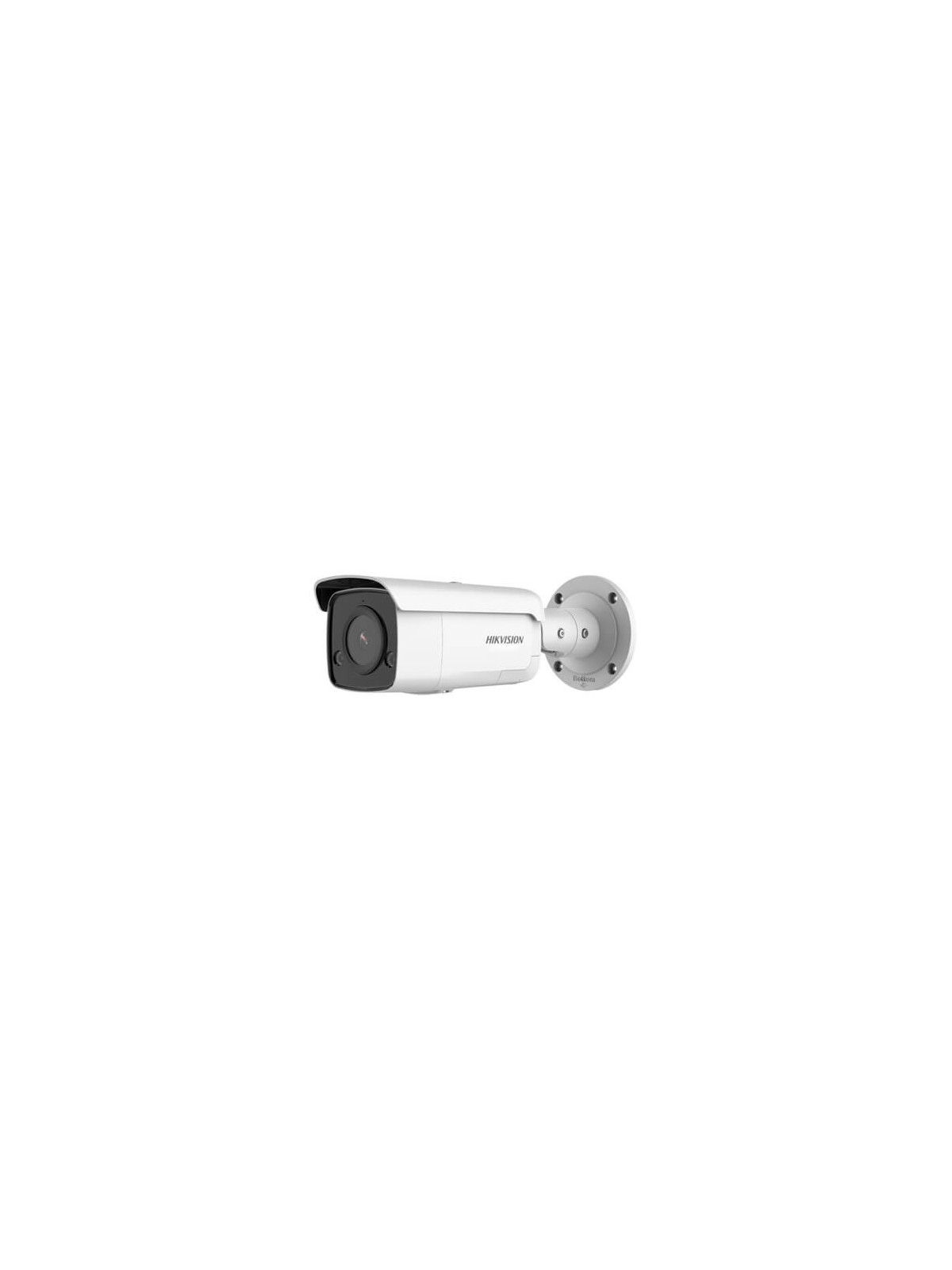

Cámara IP Hikvision DS-2CD2T86G2-ISU/SL 8MP PRO IR60m 2.8mm H265+ POE SD WDR Audio Alarmas Acusense

Cámara bullet IP Hikvision 2ª generación Acusense con nuevo algoritmo de clasificación humanos/vehículos, resolución 8MP,óptica fija 2.8mm, LEDS IR con alcance 60m. Analítica VCA X4: intrusión, cruce de línea, entrada/salida área. Captura facial. Luz estroboscópica y sonido audible. Instalación exterior, protección IP66.
- Audio: 1Entrada-1Salida, micrófono y altavoz integrados.
- Alarmas: 1Entrada-1Salida.
|
|
Características técnicas |
- Camera
- Image Sensor - 1/2.7" Progressive Scan CMOS
- Min. Illumination - Color: 0.003 Lux @ (F1.4, AGC ON)
- Shutter Speed - 1/3 s to 1/100,000 s
- Slow Shutter - Yes
- P/N - P/N
- Wide Dynamic Range - 120 dB
- Day & Night - ICR Cut
- Angle Adjustment - Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
- Lens
- Lens Type & FOV - 2.8 mm, horizontal FOV: 103°, vertical FOV: 55°, diagonal FOV: 123°
4 mm, horizontal FOV: 83°, vertical FOV: 45°, diagonal FOV: 98°
6 mm, horizontal FOV: 53°, vertical FOV: 29°, diagonal FOV: 62°
- Aperture - F1.4
- Lens Mount - M12
- Illuminator
- IR Range - Up to 60 m
- Wavelength - 850 nm
- Smart Supplement Light - Yes
- Visual Alarm - Yes
- Video
- Max. Resolution - 2592 × 1944
- Main Stream - 50Hz: 20fps (2592 × 1944)
25fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720)
60Hz: 20fps (2592 × 1944)
30fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720)
- Sub Stream - 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
- Third Stream - 50Hz: 25fps (1280 × 720, 640 × 480, 640 × 360, 360 × 240)
60Hz: 30fps (1280 × 720, 640 × 480, 640 × 360, 360 × 240)
- Video Compression - Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
- Video Bit Rate - 32 Kbps to 8 Mbps
- H.264 Type - Baseline Profile/Main Profile/High Profile
- H.265 Type - Main Profile
- H.264+ - Main Stream supports
- H.265+ - Main Stream supports
- Bit Rate Control - CBR/VBR
- Scalable Video Coding (SVC) - Yes
- Region of Interest (ROI) - 1 fixed region for each stream
- Audio
- Environment Noise Filtering - Yes
- Audio Sampling Rate - 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Audio Compression - G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3
- Audio Bit Rate - 64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8-320Kbps(MP3)
- Network
- Simultaneous Live View - Up to 6 channels
- API - ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
- Protocols - TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
- Smooth Streaming - Yes
- User/Host - Up to 32 users. 3 user levels: administrator, operator and user
- Security - Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE and digest authentication for ONVIF
- Network Storage - microSD/SDHC/SDXC card (256 GB) local storage, and NAS(NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- Client - iVMS-4200, Hik-Connect, Hik-Central
- Web Browser - Plug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
- Image
- Day/Night Switch - Day, Night, Auto, Schedule
- Image Enhancement - BLC, HLC, 3D DNR
- Image Parameters Switch - Yes
- Image Settings - Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
- Interface
- Alarm - 1 input, 1 output (max. 24 VDC, 1 A or max. 24 VAC, 1 A)
- Audio - 1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance:4.7 KΩ, interface type: non-equilibrium;
1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium;
1 built-in speaker, 1 built-in microphone
- On-board Storage - Built-in micro SD/SDHC/SDXC slot, up to 256 GB
- Hardware Reset - Yes
- Communication Interface - 1 RJ45 10M/100M self-adaptive Ethernet port
- Intelligent (Traditional Algorithm)
- Basic Event - Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error), scene change detection
- Intelligent (Deep Learning Algorithm)
- Face Capture - Yes
- Premier Protection - Line crossing detection, intrusion detection, region entrance detection, region exiting detection
- General
- Linkage Method - Upload to NAS/memory card, notify surveillance center, trigger record, trigger capture, strobe light, audible warning
*Note: External device is required.
- Web Client Language - 33 languages:
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General Function - Anti-flicker, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter
- Software Reset - Yes
- Storage Conditions - -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
- Startup and Operating Conditions - -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
- Power Supply - 12 VDC ± 25%; PoE: 802.3af, Class3
- Power Consumption and Current - 12 VDC, 0.88 A, max. 10.5 W; PoE: (802.3af, 36 V to 57 V), 0.34 A to 0.21 A, max. 12.5 W
- Power Interface - Ø5.5 mm coaxial power plug
- Material - Aluminum alloy body
- Camera Dimension - Ø105 × 287.6 mm (Ø4.1" × 11.3")
- Package Dimension - 386 × 156 × 155 mm (15.2" × 7.5" × 7.1")
- Camera Weight - Approx. 1120 g (2.5 lb.)
- With Package Weight - Approx. 1634 g (3.6 lb.)
- Approval
- EMC - FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
- Safety - UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014 ); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014 ); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
- Environment - CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
- Protection - Ingression protection: IP66 (IEC 60529-2013)
|
|
|
