Descripción |

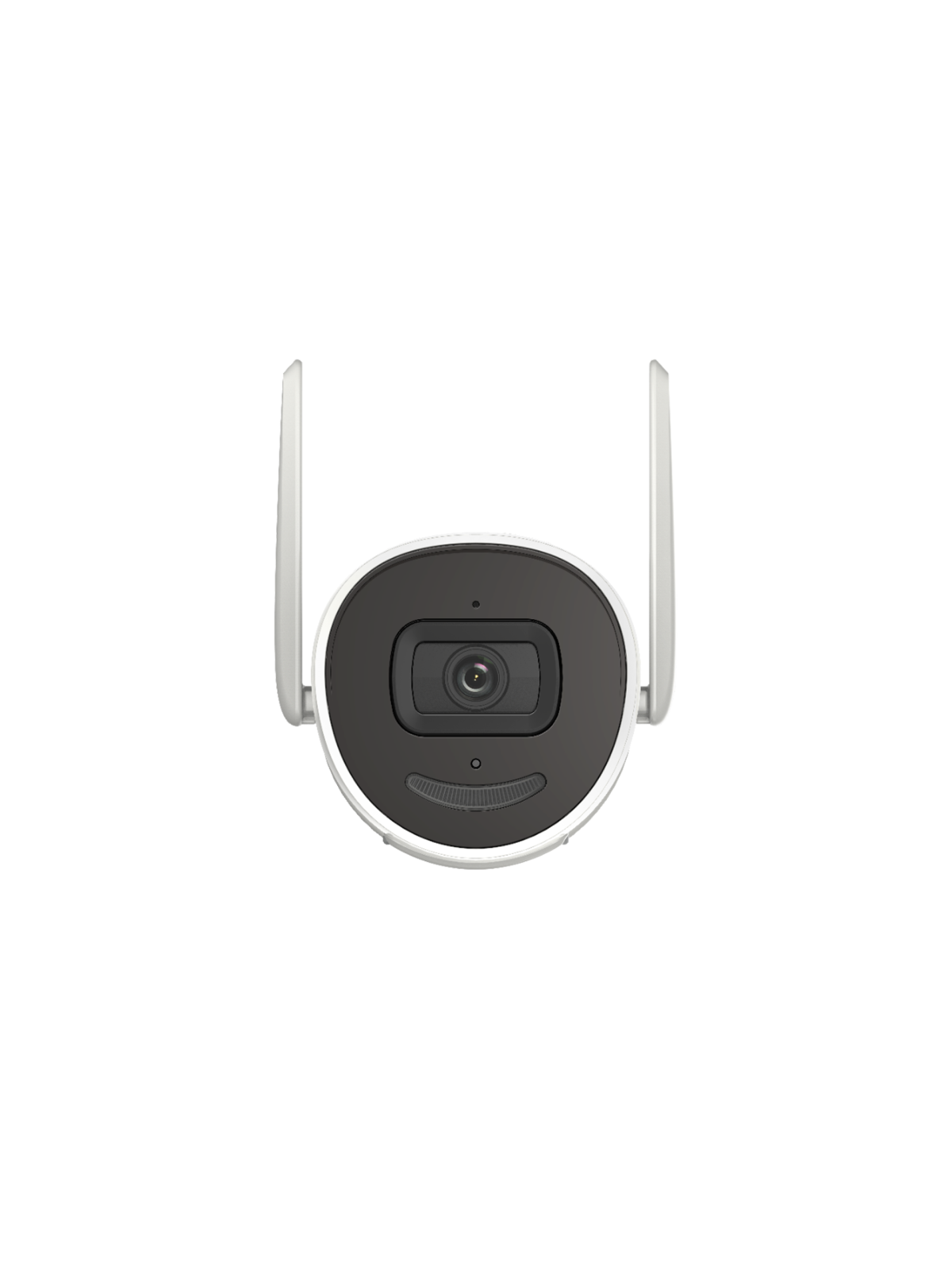

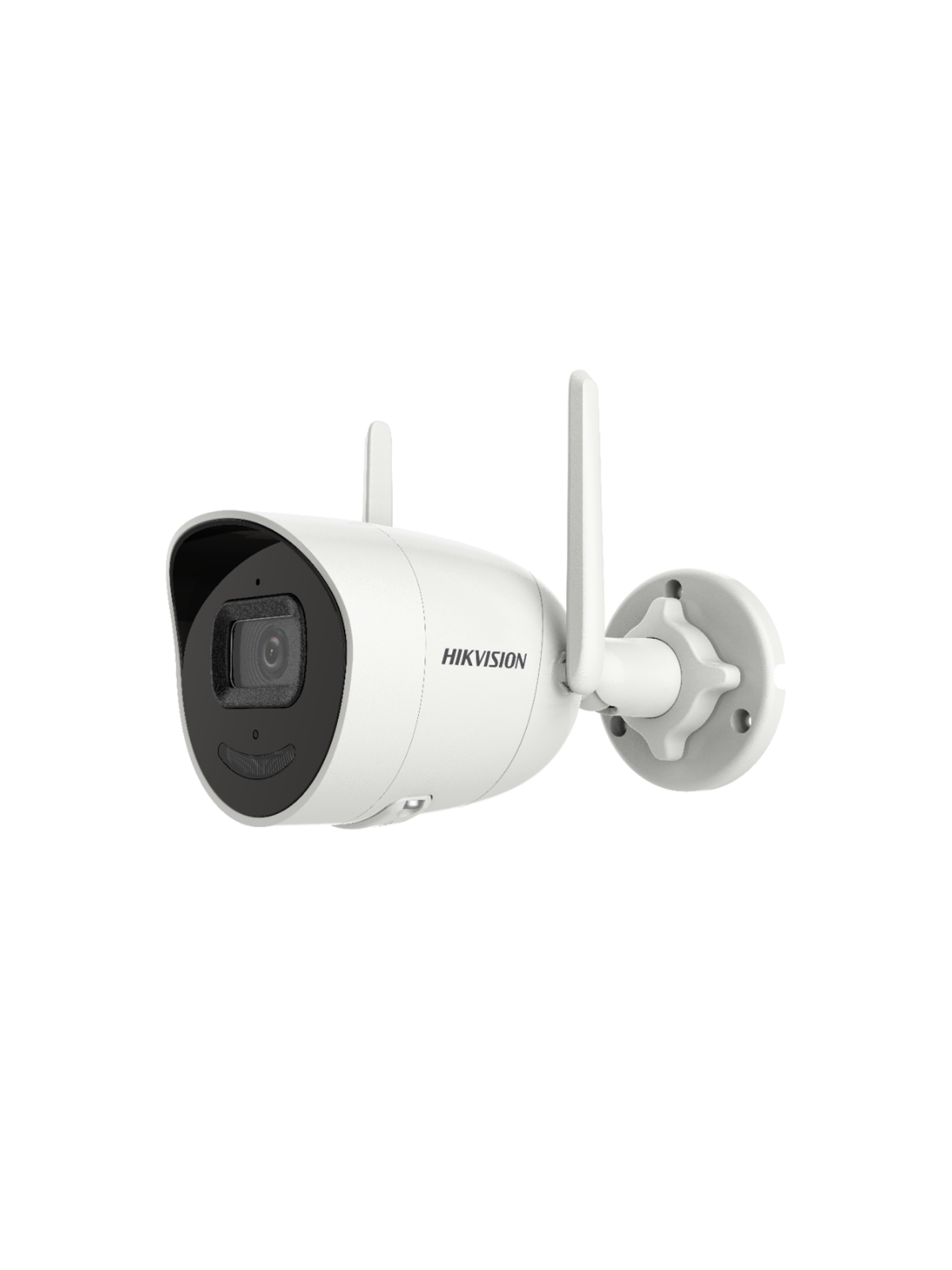

Cámara IP Hikvision DS-2CV2026G0-IDW/FUS 2MP PRO IR30m 2.8mm H265 POE SD WDR Wifi Audio Acusense

Cámara Hikvision bullet IP wifi y tecnología Acusense (clasificación humanos/vehículos), resolución de 2MP, óptica fija de 2.8mm, LEDS IR con alcance 30m.Luz estroboscópica y sonido audible. Micrófono y altavoz integrados. Fuente alimentación incluida.
|
|
Características técnicas |
- Camera
- Image Sensor - 1/2.8" Progressive Scan CMOS
- Min. Illumination - Color: 0.009 Lux @ (F1.6, AGC ON), 0 Lux with IR
- Shutter Speed - 1/3 s to 1/100,000 s
- Slow Shutter - Yes
- Wide Dynamic Range - 120 dB
- Day & Night - ICR Cut
- Angle Adjustment - Pan: 0° to 360°, tilt: 0° to90°, rotate: 0° to 360°
- Lens
- Lens Type & FOV - 2.8 mm, horizontal FOV: 101°, vertical FOV: 54°, diagonal FOV: 119°;
4 mm, horizontal FOV: 82°, vertical FOV: 44°, diagonal FOV: 97°
- Aperture - F1.6
- Lens Mount - M12
- Illuminator
- IR Range - Up to 30 m
- Wavelength - 850 nm
- Smart Supplement Light - Yes
- Visual Alarm - Yes
- Video
- Max. Resolution - 1920 × 1080
- Main Stream - 50Hz: 25 fps (1920 × 1080, 1280 × 720)
60Hz: 30 fps (1920 × 1080, 1280 × 720)
- Sub Stream - 50Hz: 25 fps (640 × 360)
60Hz: 30 fps (640 × 360)
- Video Compression - Main stream/Sub-stream: H.265/H.264
- Video Bit Rate - 32 Kbps to 8Mbps
- H.264 Type - BaseLine Profile/Main Profile
- H.265 Type - Main Profile
- Stream Type - Main stream and sub-stream
- Region of Interest (ROI) - 1 fixed region for main stream
- Audio
- Environment Noise Filtering - Yes
- Audio Sampling Rate - 8 kHz/16 kHz
- Audio Compression - G.711/G.722.1/G.726/MP2L2/PCM
- Audio Bit Rate - 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)
- Network
- Simultaneous Live View - Up to 6 channels
- API - ISAPI, SDK
- Protocols - TCP/IP, ICMP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP,R TCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, UDP, Bonjour, SSL/TLS
- User/Host - Up to 32 users
3 levels: administrator, operator and user
- Security - Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2
- Network Storage - NAS (NFS, SMB/CIFS)
- Client - Wired network: Hik-Connect, iVMS-4200
Wi-Fi: iVMS-4200
- Web Browser - Plug-in required live view: IE8+, Chrome41.0-44, Firefox30.0-51, Safari8.0-11
Plug-in free live view: Chrome 45.0+, Firefox 52.0+
- Wi-Fi
- Encryption Mode - 64/128-bit WEP, WPA-EAP/WPA2-EAP, WPA-PSK/WPA4-PSK
- Wi-Fi Protocol - IEEE802.11b, 802.11g, 802.11n
- Frequency Range - 2.4 GHz - 2.4835 GHz
- Channel Bandwidth - 20/40 MHz
- Modulation - 802.11b: CCK, QPSK, BPSK
802.11g/n: OFDM
- Wireless Range - Up to 120 m (The performance varies based on actual environment.)
- Image
- Day/Night Switch - Day/Night/Auto/Schedule
- Image Enhancement - BLC, HLC, 3D DNR
- Image Settings - Saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
- Interface
- On-board Storage - Built-in micro SD/SDHC/SDXC slot, up to 256 GB
- Hardware Reset - Yes
- Communication Interface - 1 RJ45 10M/100M self-adaptive Ethernet port
- Event
- Smart Event - Intrusion detection, line crossing detection, region entrance detection, region exiting detection
- Intelligent (Traditional Algorithm)
- Basic Event - Motion detection, flashing alarm light output, audible alarm output, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
- General
- Linkage Method - Upload to NAS/memory card, notify surveillance center, trigger record, trigger capture, strobe light, audiable warning
- Online Upgrade - Yes
- Firmware Version - V5.5.132
- General Function - One-key reset, anti-flicker, heartbeat, mirror, password protection, watermark, IP address filter, flash log, pixel counter
- Software Reset - Yes
- Storage Conditions - -30 °C to 60 °C (-22 °F to 140 °F)
- Startup and Operating Conditions - -30 °C to 60 °C (-22 °F to 140 °F)
- Power Supply - 12 VDC ± 25%, reverse polarity protection
- Power Consumption and Current - 12 VDC, 0.67 A, max. 8.0 W
- Power Interface - Ø5.5 mm coaxial power plug
- Material - Front cover: metal, back cover: plastic
- Camera Dimension - 175.6× 73.0 × 89.1mm (6.91" × 2.87" × 3.51")
- Package Dimension - 260 × 125 × 125 mm (10.24" × 4.92" × 4.92")
- Camera Weight - 450 g (0.99 lb.)
- With Package Weight - 770 g (1.70 lb.)
- Protection - Ingress protection: IP66 (IEC 60529-2013)
|
|
|
