Descripción |

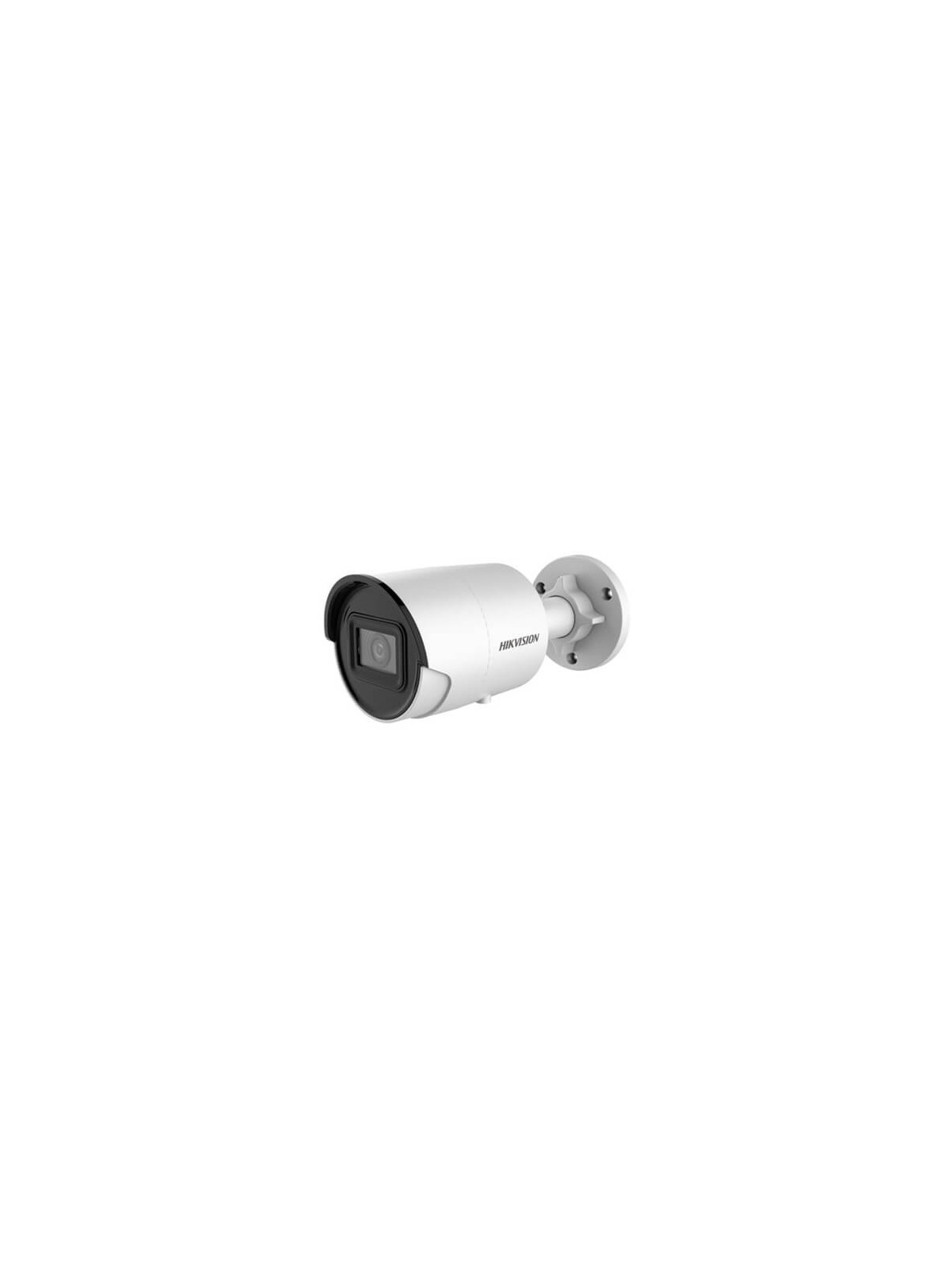

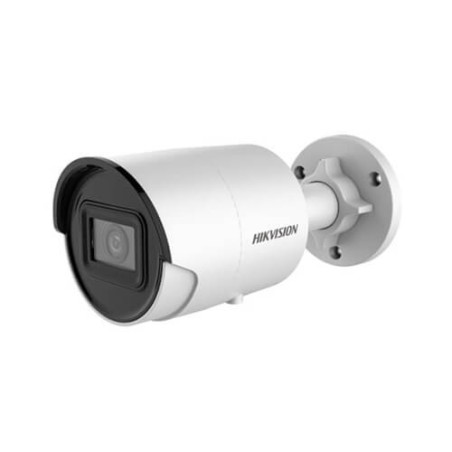

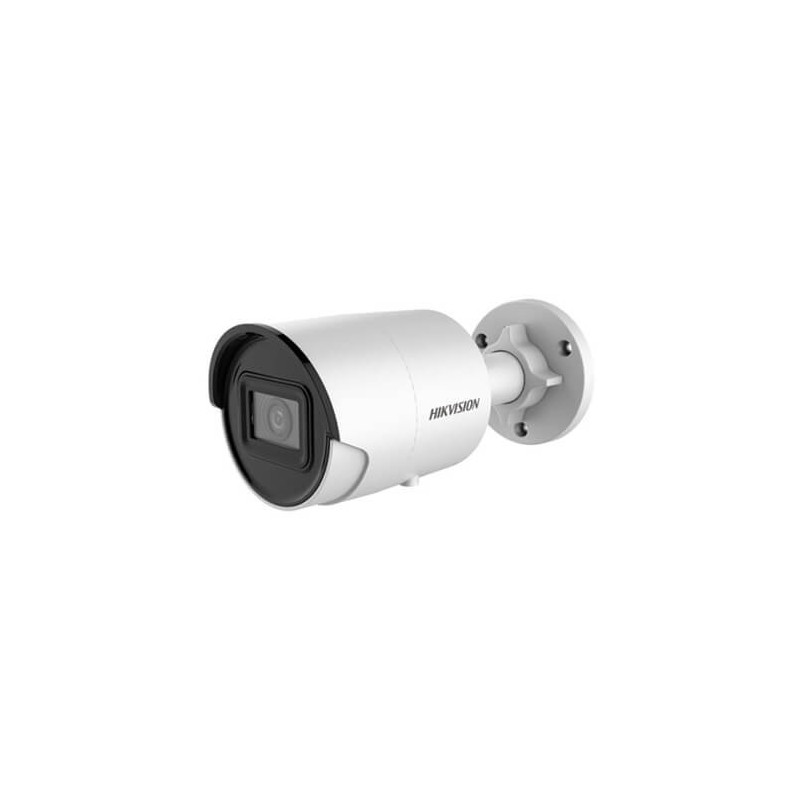

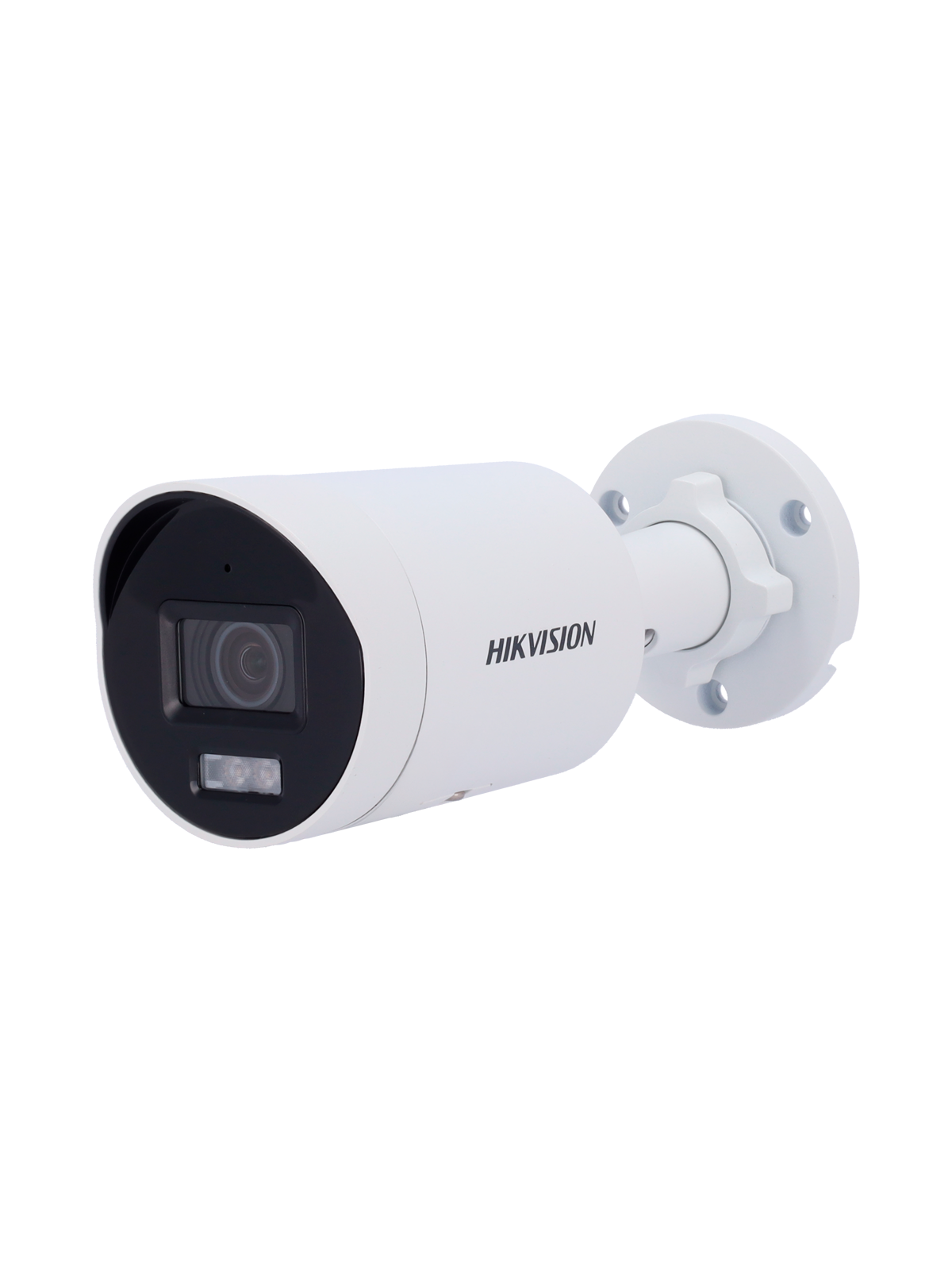

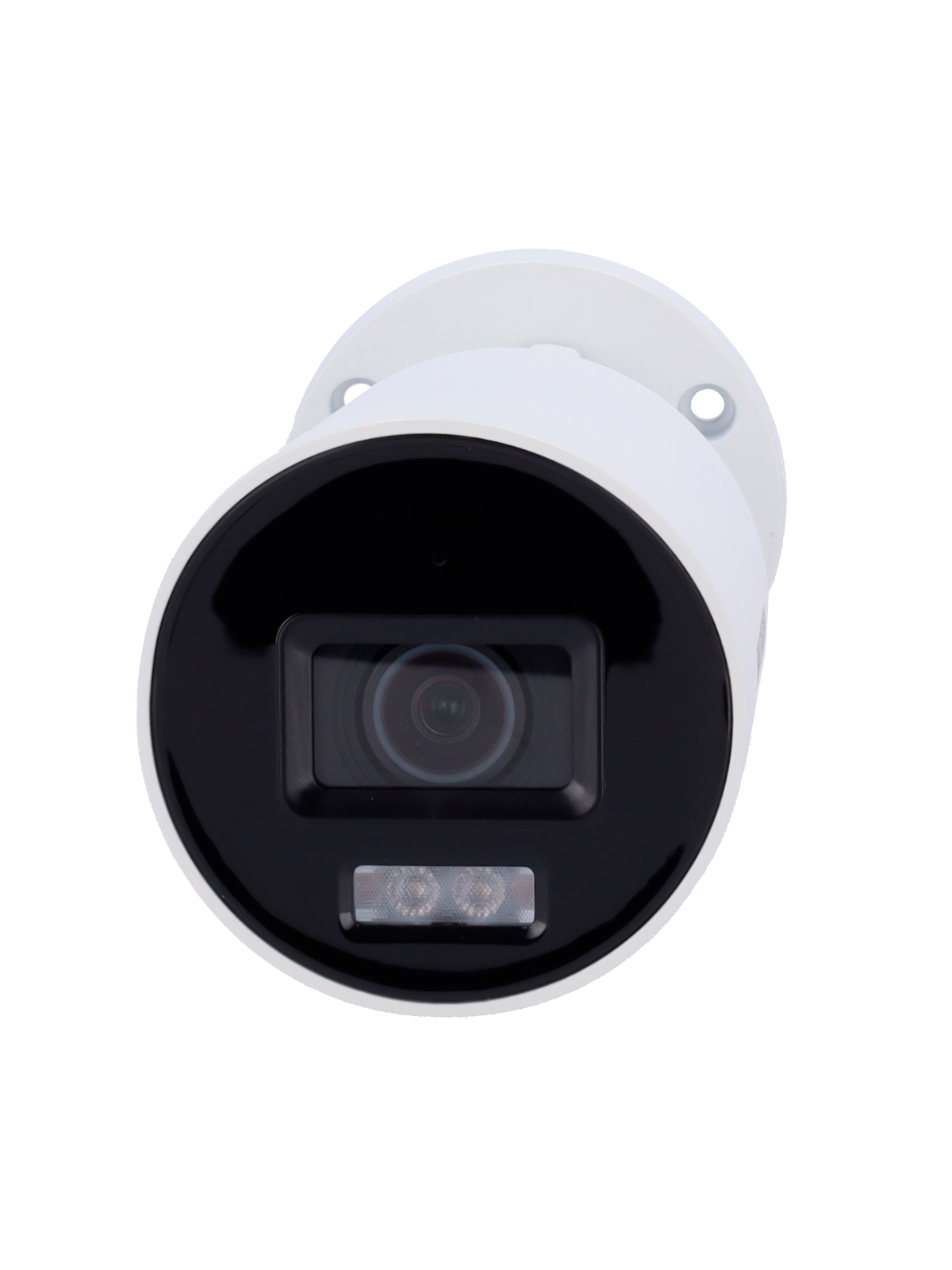

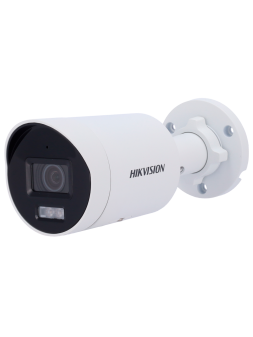

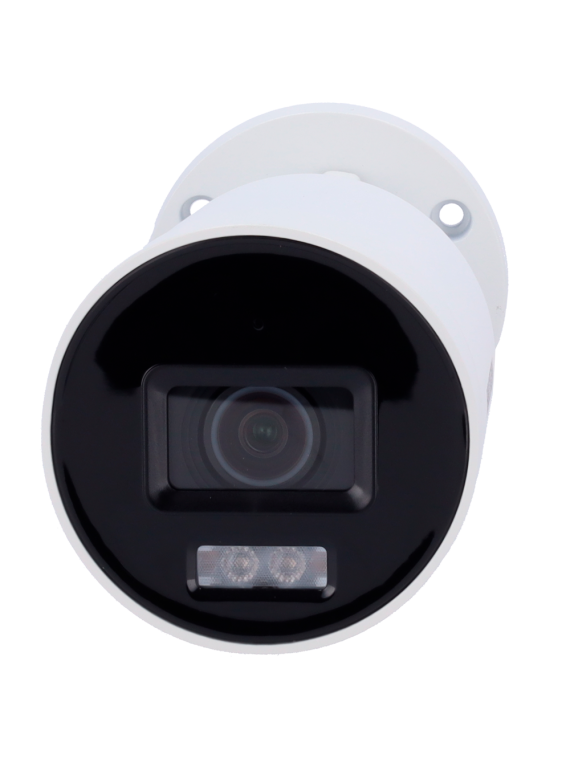

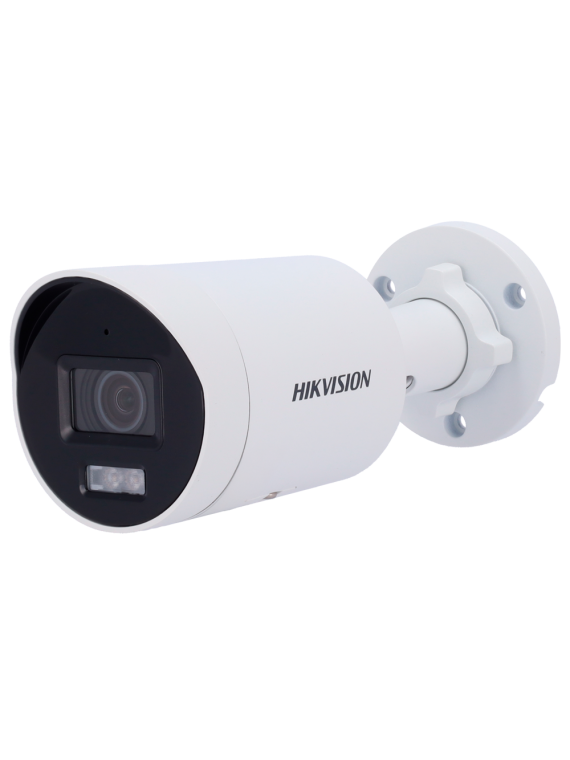

Cámara IP Hikvision DS-2CD2086G2-I 8MP PRO IR30m 2.8mm H265+ POE SD WDR Acusense

Cámara bullet de tecnología IP y resolución 8 Megapixeles (3840x2160 20IPS), con tecnología Acusense: detección inteligente de personas y/o vehículos. Óptica fija 2.8 mm. Compresión H.265+/H.265/H.264+/H.264. LEDS IR 30m. Con micrófono incorporado.
|
|
Características técnicas |
- Camera
- Image Sensor - 1/1.8" Progressive Scan CMOS
- Min. Illumination - Color: 0.003 Lux @ (F1.6, AGC ON), 0 Lux with IR
- Shutter Speed - 1/3 s to 1/100,000 s
- Slow Shutter - Yes
- P/N - Yes
- Wide Dynamic Range - 120dB
- Day & Night - ICR Cut
- Angle Adjustment - Pan: 0 to 360°, tilt: 0 to 90°, rotation: 0 to 360°
- Power-off Memory - Yes
- Lens
- Lens Type & FOV - 2.8 mm, horizontal FOV: 102°, vertical FOV: 55°, diagonal FOV: 120°
4 mm, horizontal FOV: 78°, vertical FOV: 43°, diagonal FOV: 92°
6 mm, horizontal FOV: 50°, vertical FOV: 27°, diagonal FOV: 59°
- Aperture - F1.6
- Lens Mount - M16
- Illuminator
- IR Range - 40 m
- Wavelength - 850nm
- Smart Supplement Light - Yes
- Video
- Max. Resolution - 3840 × 2160
- Main Stream - 50Hz: 20fps (3840 × 2160, 3072 × 1728)
25fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60Hz: 20fps (3840 × 2160, 3072 × 1728)
30fps (2688 × 1520, 1920 × 1080, 1280 × 720)
* When the main stream resolution is 3840 × 2160, max frame rate is 20 fps for all streams.
- Sub Stream - 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
- Third Stream - 50Hz: 25fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240)
- Video Compression - Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
- Video Bit Rate - 32 Kbps to 16 Mbps
- H.264 Type - BaseLine Profile, Main Profile, High Profile
- H.265 Type - Main Profile
- Stream Type - Main stream/sub-stream/third stream
- Scalable Video Coding (SVC) - Yes
- Region of Interest (ROI) - 1 fixed region for each stream
- Audio
- Environment Noise Filtering - -U: Yes
- Audio Sampling Rate - -U: 8 kHz,16 kHz, 32 kHz, 44.1 kHz, 48 kHz
- Audio Compression - -U: G.711/G.722.1/G.726/MP2L2/PCM/MP3
- Audio Bit Rate - -U: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3)
- Audio Type - -U: Mono sound
- Network
- Simultaneous Live View - Up to 6 channels
- API - ONVIF (PROFILE S, PROFILE G), ISAPI, SDK
- Protocols - TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
- Smooth Streaming - Yes
- User/Host - Up to 32 users. 3 user levels: administrator, operator and user
- Security - Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS 1.2
- Network Storage - microSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
- Client - iVMS-4200, Hik-Connect, Hik-Central
- Web Browser - Plug-in required live view: IE 8+,Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
- Image
- Day/Night Switch - Day/Night/Auto/Schedule
- Image Enhancement - BLC, HLC, 3D DNR
- Image Settings - Saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by clcient software or web browser
- Interface
- Audio - Built-in microphone

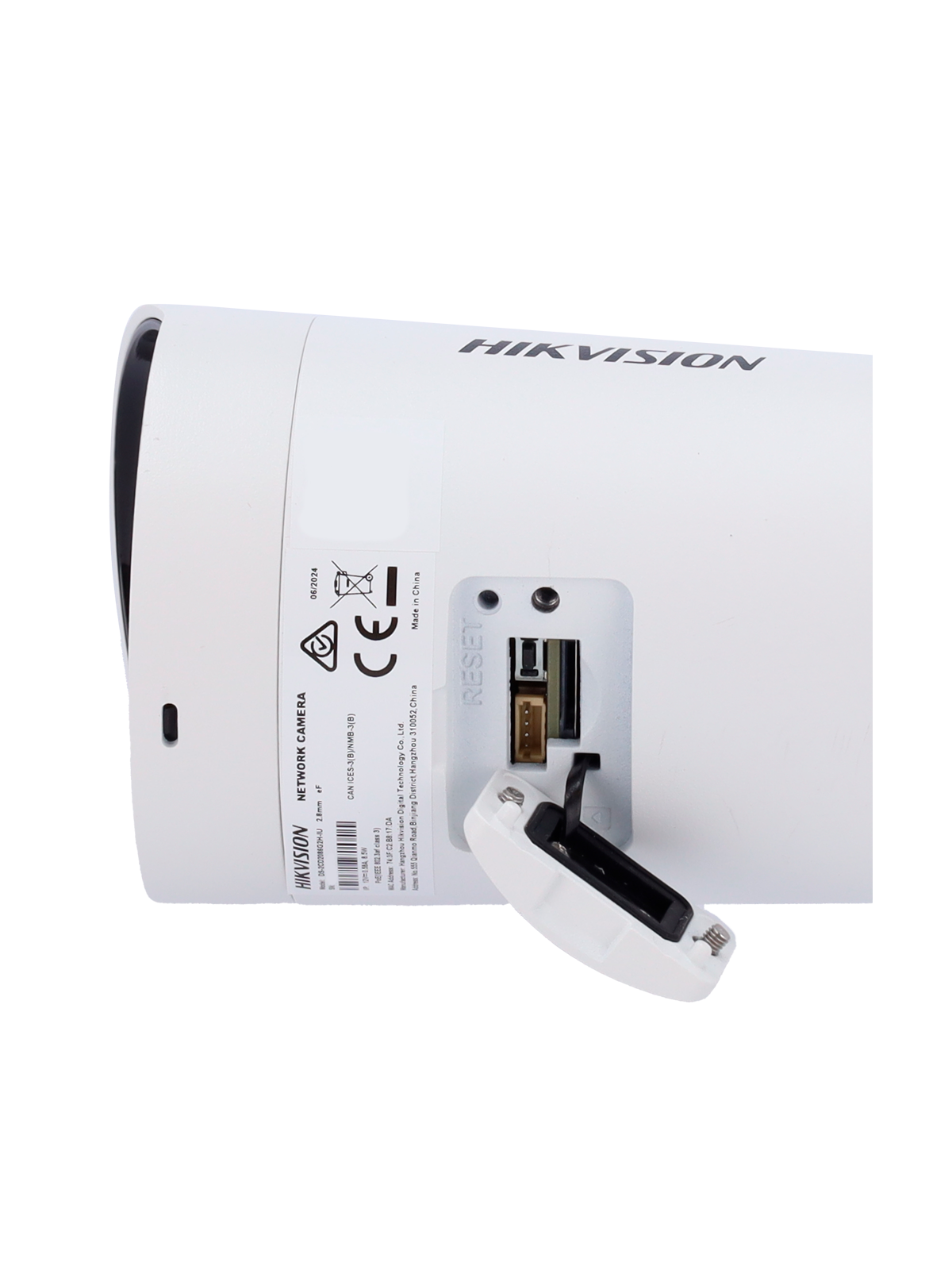

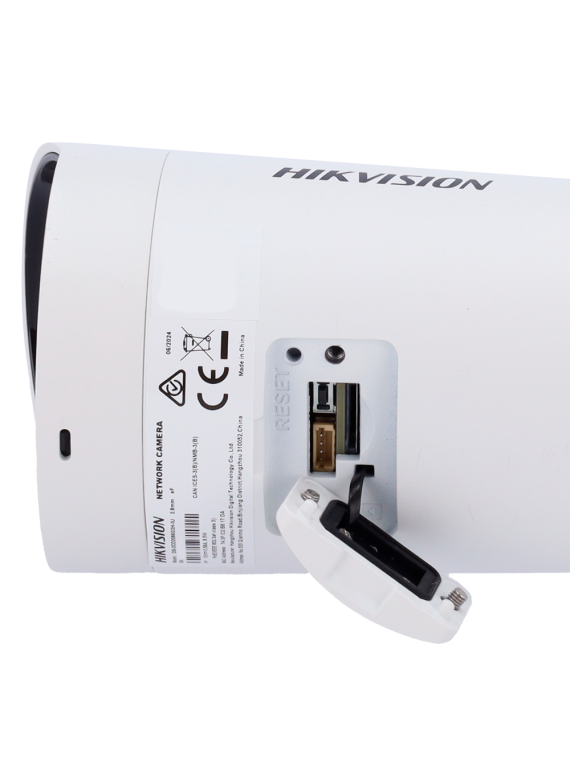

- On-board Storage - Built-in micro SD, up to 256 GB
- Hardware Reset - Yes
- Communication Interface - 1 RJ45 10M/100M self-adaptive Ethernet port
- Deep Learning Function
- Premier Protection - Line crossing detection, intrusion detection, region entrance detection, region exiting detection (Human&Vehicle classification)
- Intelligent (Traditional Algorithm)
- Basic Event - Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error), scene change detection
- General
- Web Client Language - 32 languages:
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
- General Function - Mirror, password protection, privacy mask, watermark, IP address filter, one-key reset, anti-flicker, three streams, heartbeat
- Software Reset - Yes
- Linkage Method - Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture
Trigger recording: memory card, network storage, pre-record and post-record
Trigger captured pictures uploading: FTP, HTTP, NAS, Email
Trigger notification: HTTP, ISAPI, alarm output, Email
- Storage Conditions - -30 °C to 60 °C (-22 °F to 140 °F).Humidity 95% or less (non-condensing)
- Startup and Operating Conditions - -30 °C to 60 °C (-22 °F to 140 °F).Humidity 95% or less (non-condensing)
- Power Supply - 12 VDC ± 25%; PoE: (802.3af, class 3)
- Power Consumption and Current - 12 VDC, 0.5 A, max. 6 W
PoE: (802.3af, 36V to 57V), 0.2 A to 0.13 A, max. 7.2 W
- Power Interface - Φ5.5 mm coaxial power plug
- Material - Metal
- Camera Dimension - Φ70 ×161.7 mm (Φ2.76" × 6.37")
- Package Dimension - 216 × 121 × 118 mm (8.5" × 4.8" ×4.6")
- Camera Weight - 500 g (1.1 lb.)
- With Package Weight - 710 g (1.6 lb.)
- Approval
- Protection - -I model:
Ingress protection: IP67 (IEC 60529-2013)
-IU model:
Ingress protection: IP66 (IEC 60529-2013)
- EMC - CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
- Safety - UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
- Environment - CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
|
|
|
