| Descripción |
|

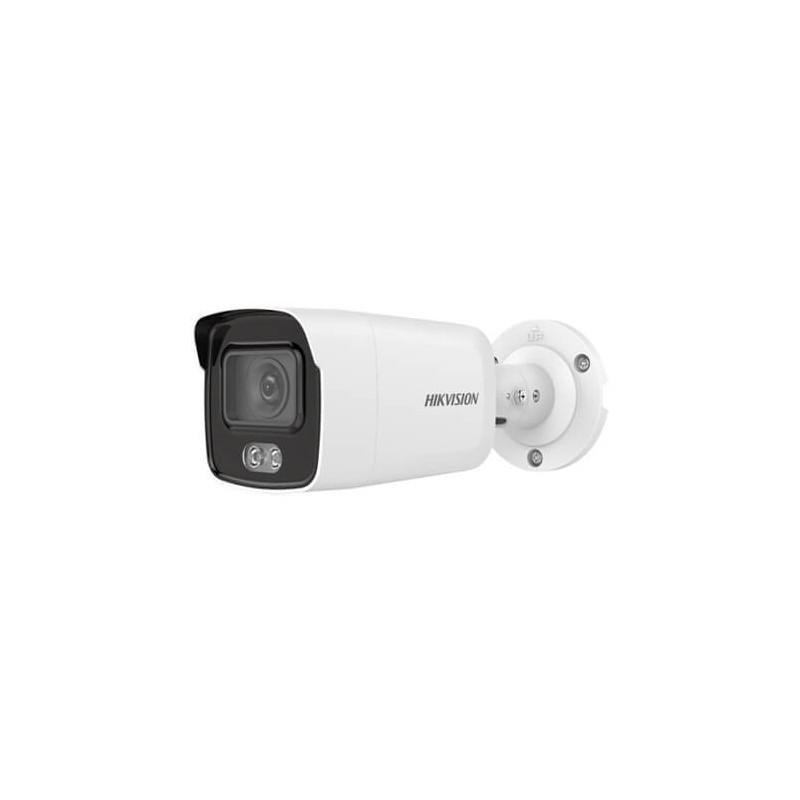

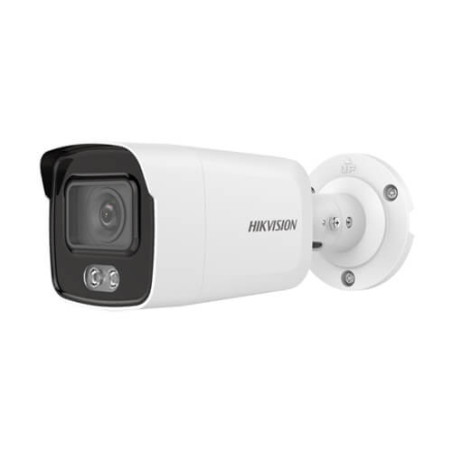

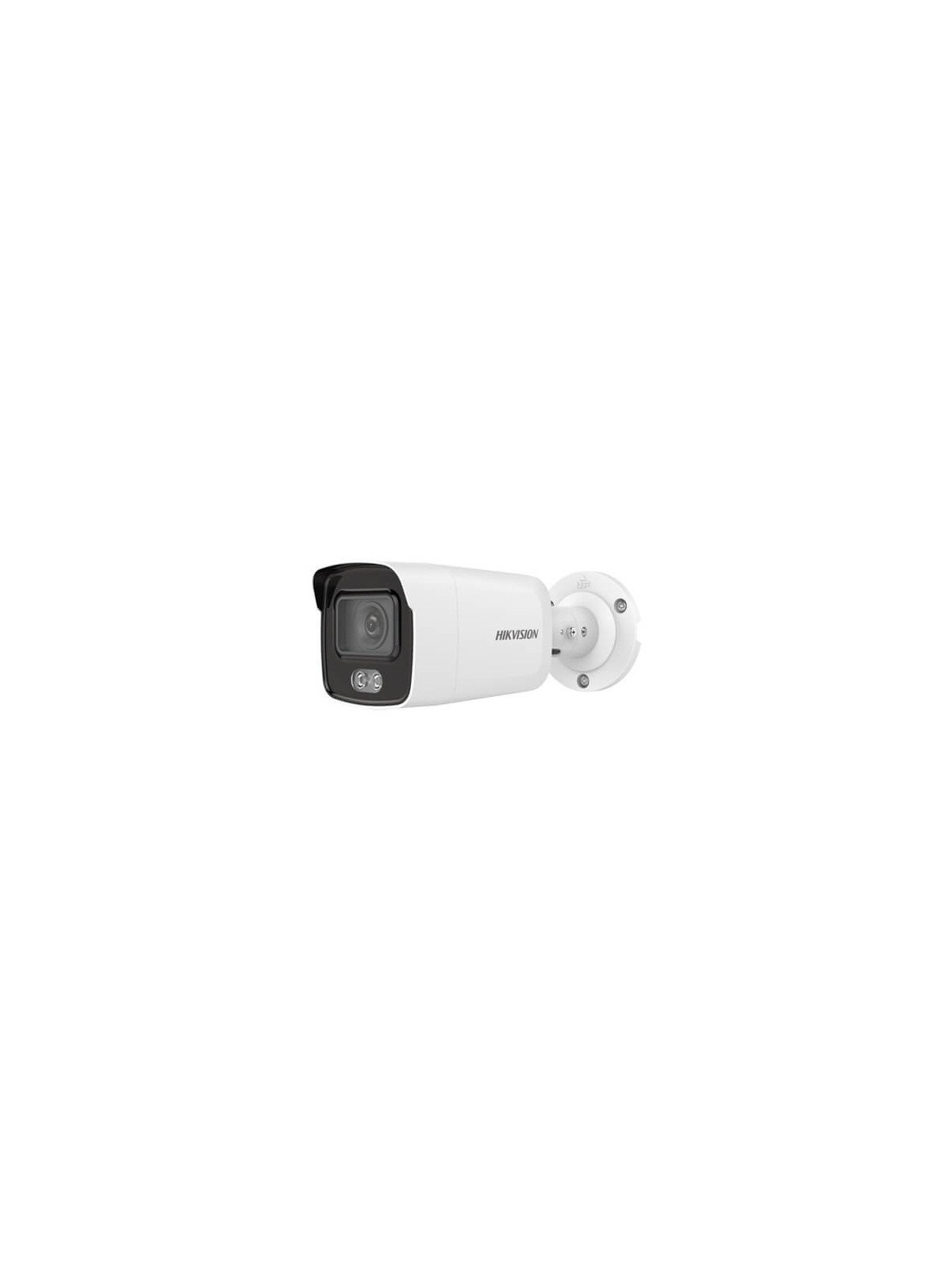

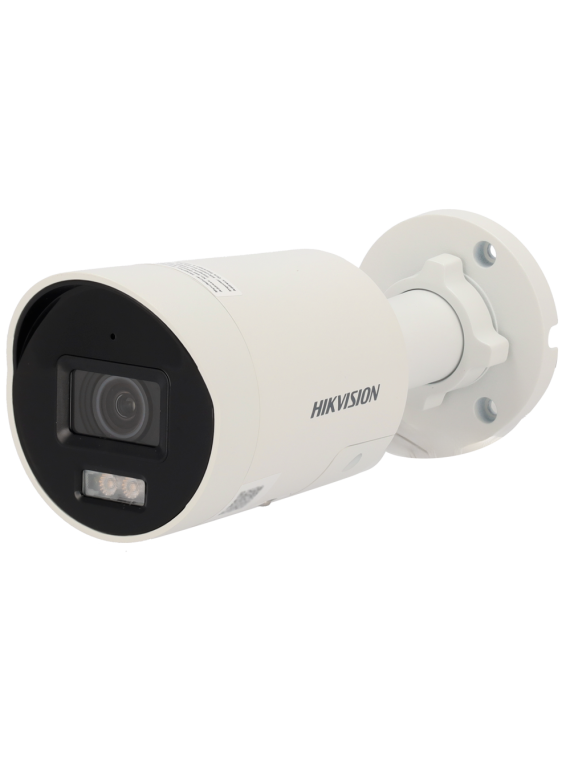

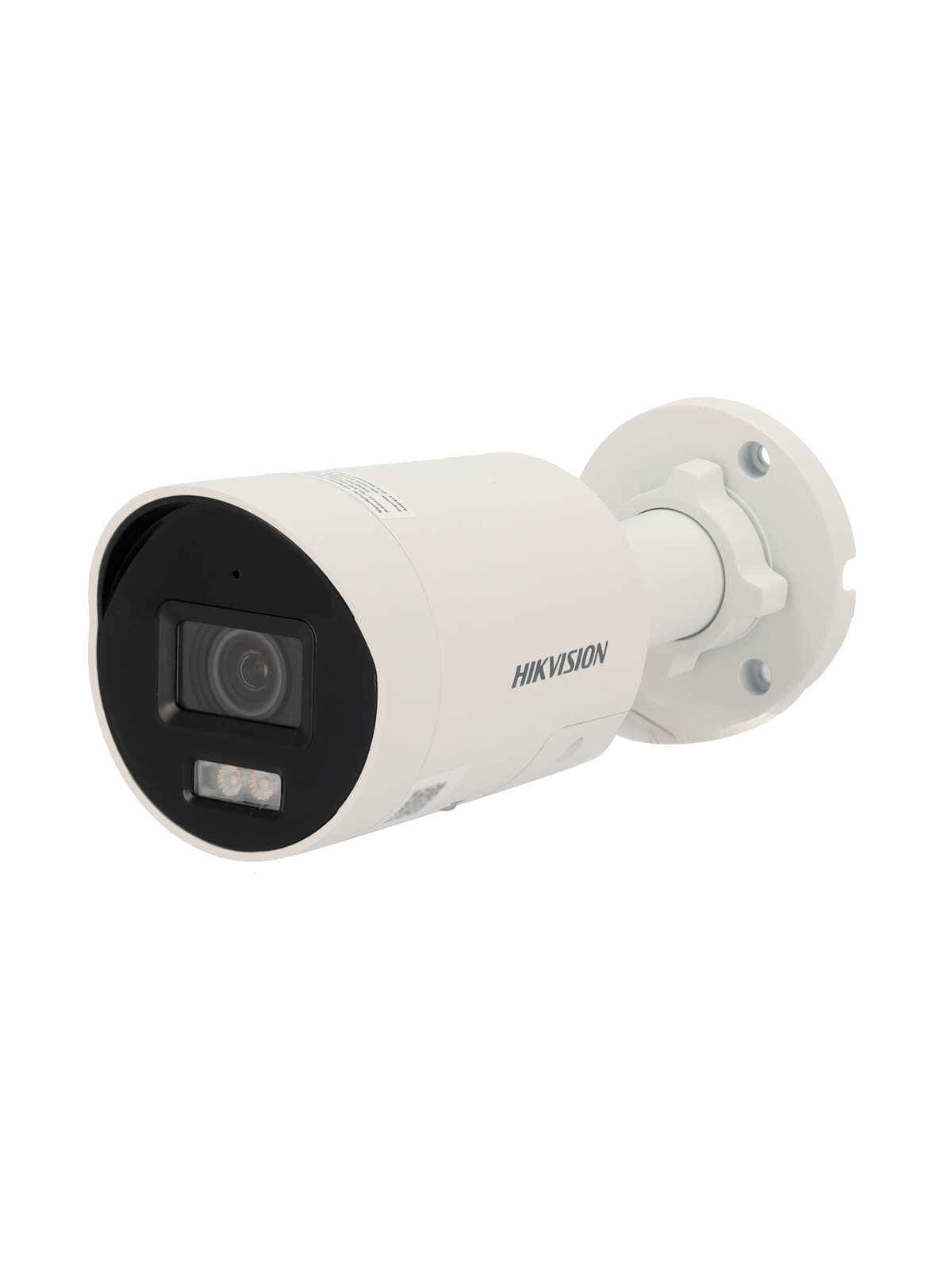

Cámara IP Hikvision DS-2CD2047G2-L 4MP PRO 0.0014Lux Luz30m 2.8mm H265+ POE SD WDR Colorvu

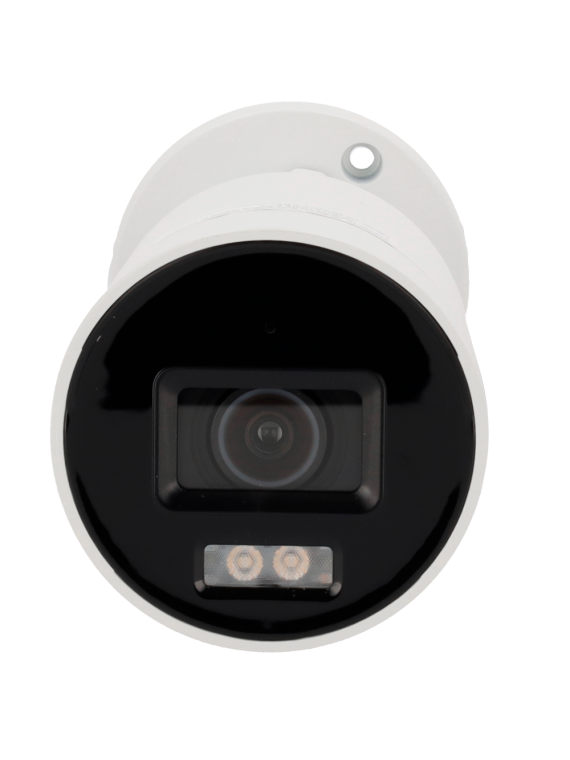

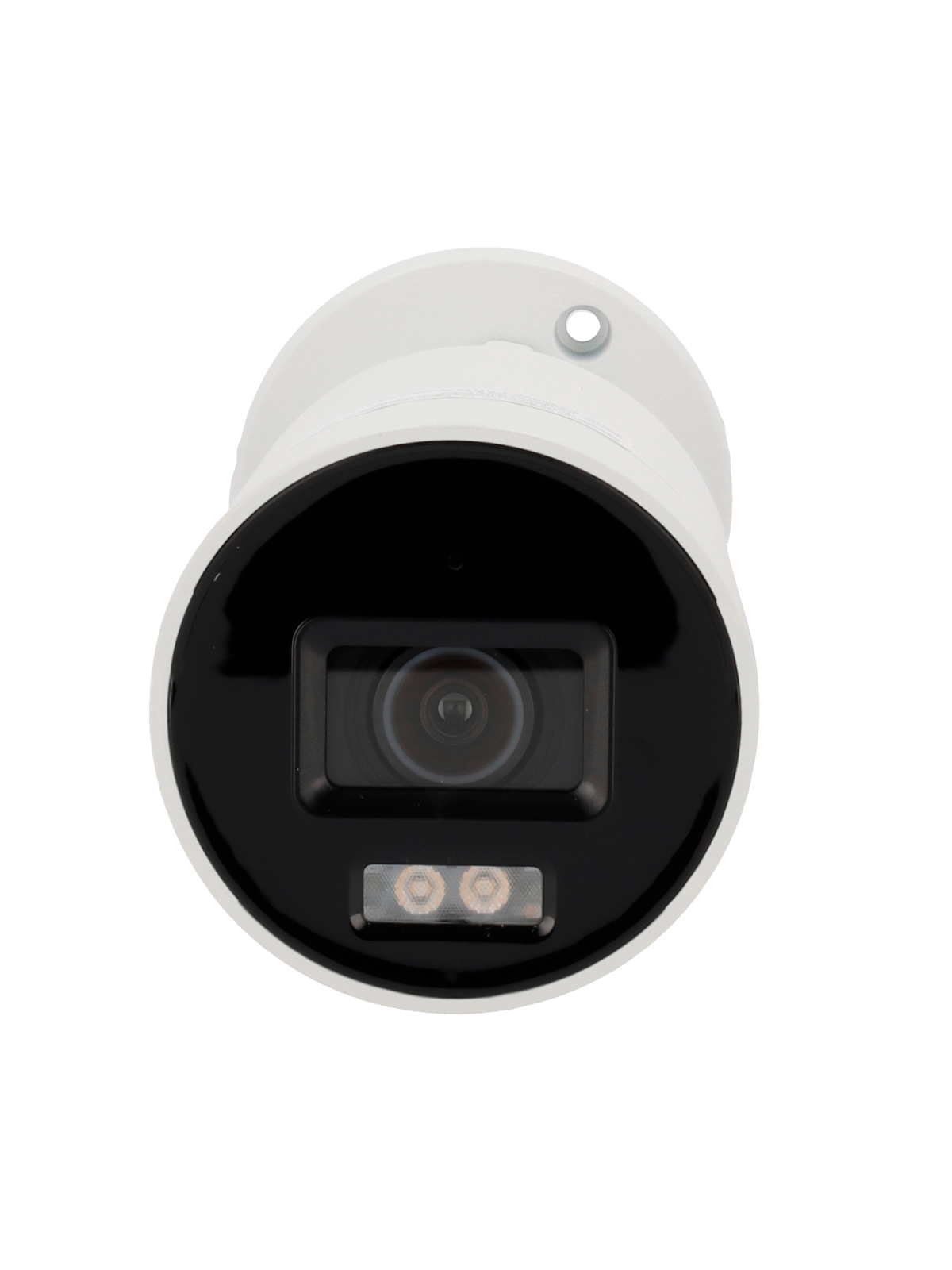

Cámara bullet ColorVU de tecnología IP y resolución 4 Megapixeles. Óptica fija 2.8 mm. Compresión H.265+/H.265. LEDS IR 30m. WDR120dB. Para exterior IP67.
- Tecnología ColorVu que incorpora lentes avanzadas y sensores de alta sensibilidad. En contraste con los lentes convencionales, los lentes de ColorVu están equipadas con una súper apertura, de hasta F1.0, que permite la entrada de más luz en el lente y así aumentar el brillo de las imágenes.
- Los lentes de las cámaras ColorVu de Hikvision también incorporan una Capa Antirreflectante de Banda Ancha (BBAR) y Vidrio Óptico de Dispersión Extra Baja (ED) para reducir los destellos y reproducir eficientemente la nitidez y saturación de color de una imagen.
- Estas tecnologías recuperan eficazmente la información clave que los destellos pueden bloquear.
|
|
| Características técnicas |
| Camera |
| Image Sensor: |
|
1/1.8" Progressive Scan CMOS |
| Signal System: |
|
PAL/NTSC |
| Min. Illumination: |
|
Color: 0.0014Lux @ (F1.0, AGC ON), 0 Lux with white light |
| Shutter time: |
|
1/3 s to 1/100,000 s |
| Slow shutter: |
|
Support |
| Lens: |
|
2.8 mm, horizontal FOV: 102°, vertical FOV: 51°, diagonal FOV: 125°
4 mm, horizontal FOV: 89°, vertical FOV: 46°, diagonal FOV: 105°
6 mm, horizontal FOV: 54°, vertical FOV: 30°, diagonal FOV: 62° |
| Adjustment Range: |
|
Pan: 0 to 360°, tilt: 0 to 90°, rotation: 0 to 360° |
| Day& Night: |
|
Auto |
| Wide Dynamic Range: |
|
120 dB |
| Digital noise reduction: |
|
3D DNR |
| Focus: |
|
Fixed |
| Compression Standard |
| Video Compression: |
|
H.265+/H.265/H.264+/H.264/MJPEG |
| H.264 code profile: |
|
Baseline Profile, Main Profile, High Profile |
| Video bit rate: |
|
32Kbps~8Mbps |
| Image |
| Max. Image Resolution: |
|
2560 × 1440 |
| Frame Rate: |
|
50Hz: 25fps (2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)
60Hz: 24fps (2560 × 1440), 30fps(2304 × 1296, 1920 × 1080, 1280 × 720)
|
| Sub Stream: |
|
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
|
| Image Enhancement: |
|
BLC/3D DNR/HLC |
| Image Settings: |
|
Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser |
| ROI: |
|
1 fixed region for each stream |
| Day/Night Switch: |
|
Day/Night/Auto/Schedule |
| Network |
| Network Storage: |
|

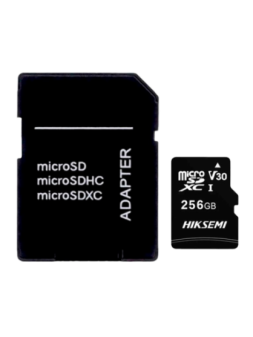

Support microSD/SDHC/SDXC card (256 GB) local storage and NAS (NFS,SMB/CIFS), ANR |
| Protocols: |
|
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS |
| System Compatibility: |
|
ONVIF (PROFILE S, PROFILE G), ISAPI, SDK |
| Intelligent |
| Behavior analysis: |
|
Intrusion detection, line crossing detection |
| Interface |
| Communication Interface: |
|

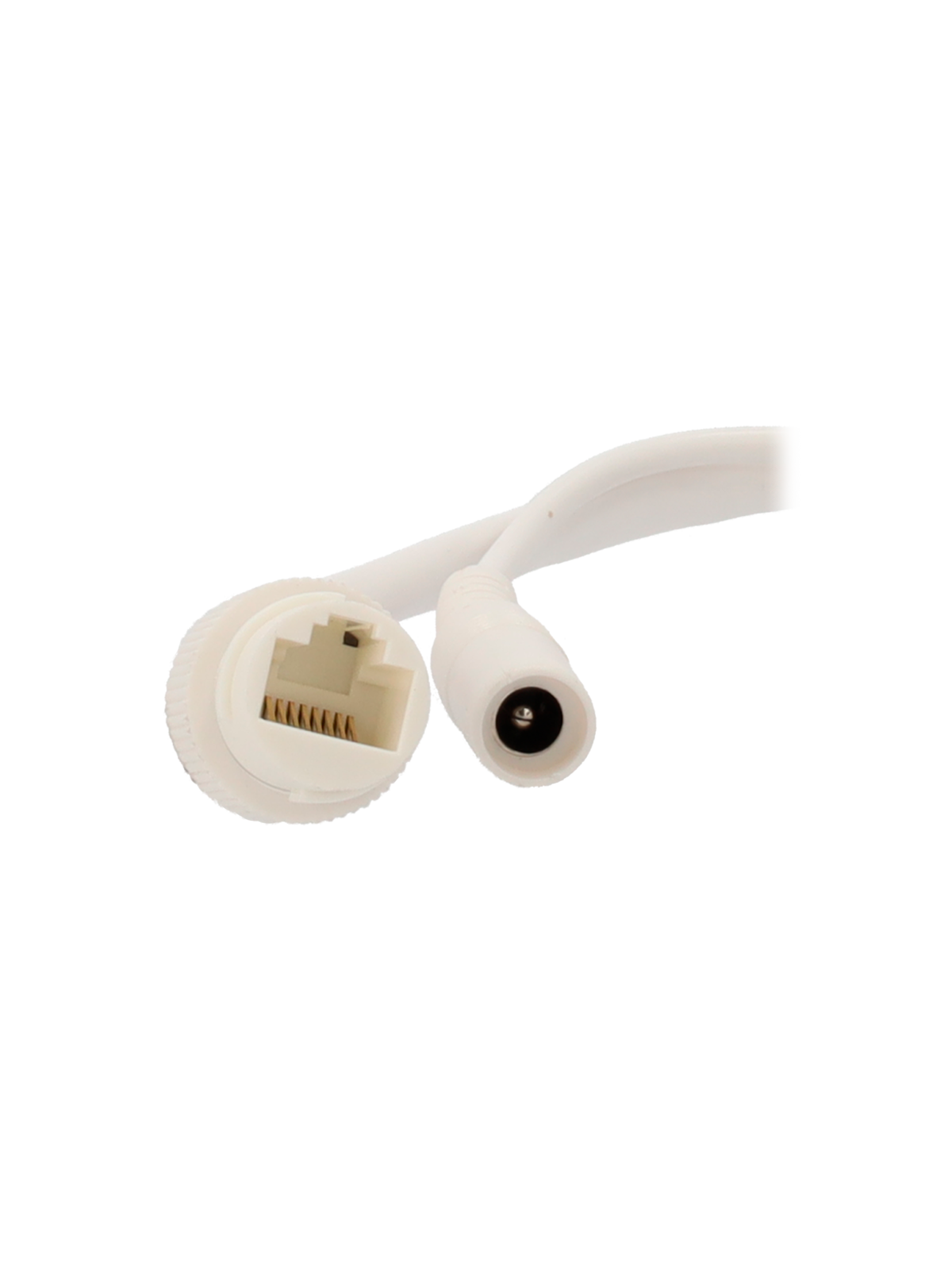

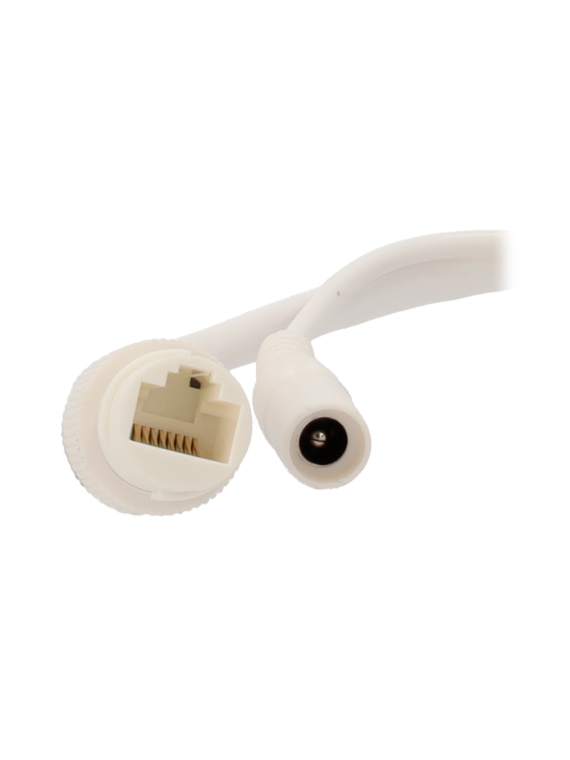

1 RJ45 10M / 100M Ethernet interface |
| On-board storage: |
|
Built-in micro SD/SDHC/SDXC slot, up to 256 GB |
| Smart Feature-set |
| Behavior Analysis: |
|
Line crossing detection, intrusion detection |
| Line Crossing Detection: |
|
Cross a pre-defined virtual line |
| Intrusion Detection: |
|
Enter and loiter in a pre-defined virtual region |
| General |
| Operating Conditions: |
|
-30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing) |
| Power Supply: |
|
12 V DC ± 20%, PoE (802.3af, class 3) |
| Power Consumption: |
|
12VDC, 0.5 A, max. 6 W; PoE:(802.3af, 36V to 57V), 0.2 A to 0.1 A, max. 7.5 W
|
| Weather Proof: |
|
IP67 |
| Dimensions: |
|
Camera: 85 × 85 × 218 mm (3.3" × 3.3" × 8.6")
With package: 315 × 137 × 141 mm (12.4" × 5.4" × 5.6")
|
| Weight: |
|
Camera: 0.710 kg (1.6 lb.)
With package: 1.035 kg (2.3 lb.)
|
|
|
|
