Descripción |

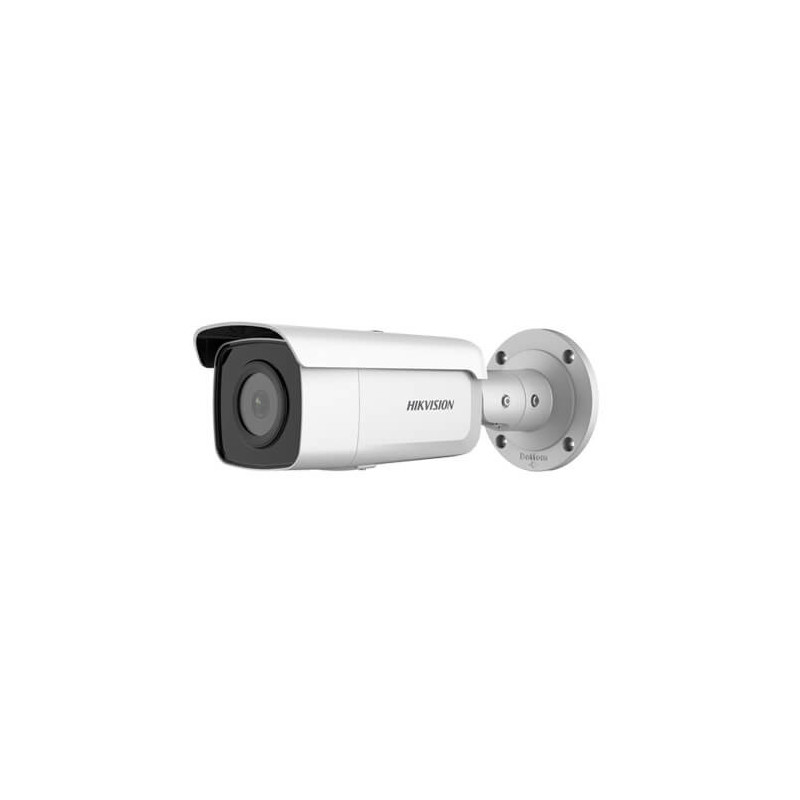

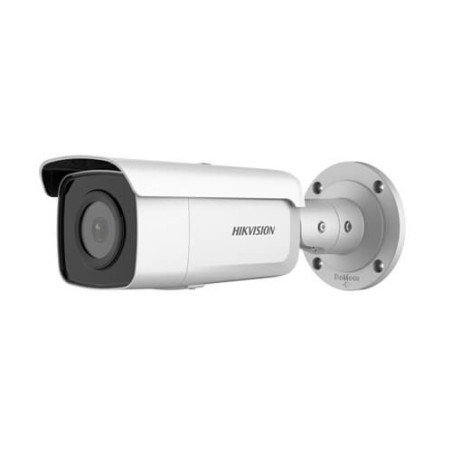

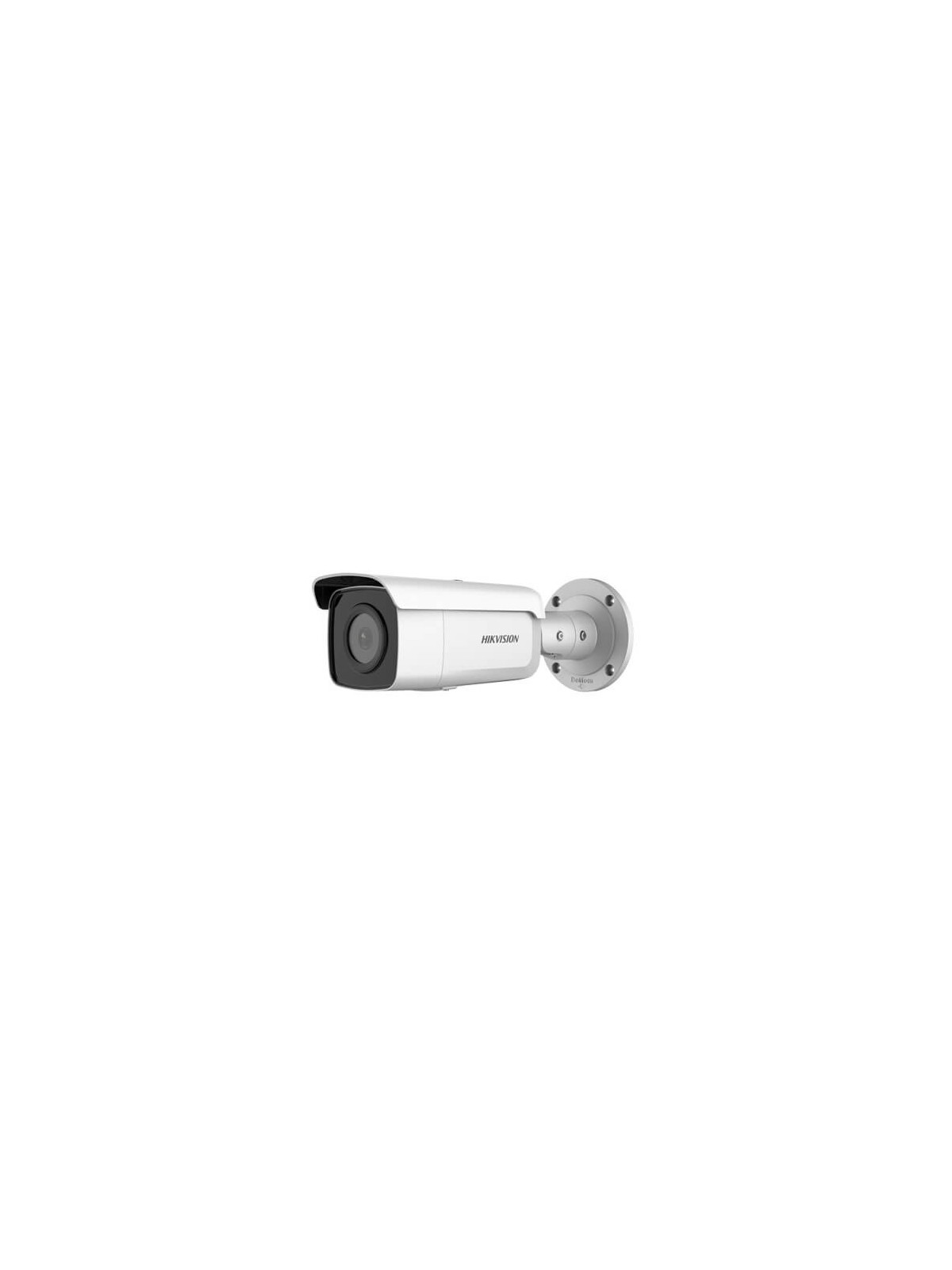

Cámara IP Hikvision DS-2CD2T26G2-2I 2MP PRO IR60m 2.8mm H265+ POE SD WDR Acusense

Cámara bullet IP Hikvision 2ª generación Acusense nuevo algoritmo de clasificación humanos/vehículos, resolución 2MP, óptica FIJA 2.8mm, LEDS IR con alcance 60m. Analítica VCA X4: intrusión, cruce de línea, entrada/salida área. Instalación exterior, protección IP67.
|
|
Características técnicas |
- Cámara
- Sensor de imagen - 1/2.8" Progressive Scan CMOS
- Wide dynamic range - 120 dB
- Iluminación mínima - Color: 0.002 Lux @ (F1.4, AGC ON)
- Velocidad de obturación - 1/3 s to 1/100,000 s
- Día y Noche - ICR Cut
- Ajuste de ángulo - Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
- Obturador lento - Yes
- P/N - P/N
- Lente
- Tipo de lente y FOV - 2.8 mm, horizontal FOV 107°, vertical FOV 57°, diagonal FOV 129°
4 mm, horizontal FOV 86°, vertical FOV 47°, diagonal FOV 102°
6 mm, horizontal FOV 55°, vertical FOV 29°, diagonal FOV 65°
- Apertura - F1.4
- Montura del lente - M12
- Tipo de apertura - Fixed
- Iluminador
- Rango IR - 2I: Up to 60 m
4I: Up to 80 m
- Longitud de onda - 850 nm
- Luz de suplemento inteligente - Yes
- Luz suplementaria - IR
- Vídeo
- Max. Resolución - 1920 × 1080
- Main stream - 50Hz: 25fps (1920 × 1080, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 × 720)
- Sub Stream - 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
- Third Stream - 50Hz: 25fps (1280 × 720, 640 × 480, 640 × 360, 360 × 240)
60Hz: 30fps (1280 × 720, 640 × 480, 640 × 360, 360 × 240)
- Compresión de video - Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
- Vídeo bitrate - 32 Kbps to 8 Mbps
- Tipo H.264 - Baseline Profile/Main Profile/High Profile
- Tipo H.265 - Main Profile
- H.264 + - Main Stream supports
- H.265 + - Main Stream supports
- Bit Rate Control - CBR/VBR
- Codificación de video escalable (SVC) - Yes
- Región de interés (ROI) - 1 fixed regions for each stream
- Red
- Vista en vivo simultánea - Up to 6 channels
- API - ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
- Protocolos - TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
- Smooth Streaming - Yes
- Usuario/operador - Up to 32 users. 3 user levels: administrator, operator and user
- Seguridad - Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE and digest authentication for ONVIF
- Almacenamiento en red - microSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported
- Cliente - iVMS-4200, Hik-Connect, Hik-Central
- Navegador web - Plug-in required live view: IE8+, Chrome41.0-44, Firefox30.0-51, Safari8.0-11
Plug-in free live view: Chrome57.0+, Firefox52.0+
- Imagen
- Interruptor día/noche - Day, Night, Auto, Schedule
- Mejora de la imagen - BLC, HLC, 3D DNR
- Interruptor de parámetros de imagen - Yes
- Configuración de imagen - Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
- Interfaz
- Almacenamiento a bordo - Built-in micro SD slot, up to 256 GB
- Restablecimiento de hardware - Yes
- Interfaz de comunicación - 1 RJ45 10M/100M self-adaptive Ethernet port
- Inteligente (Algoritmo tradicional)
- Evento Básico - Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error), scene change detection
- Inteligente (Algoritmo de aprendizaje profundo)
- Captura de la cara - Yes
- Protección Premier - Line crossing detection, intrusion detection, region entrance detection, region exiting detection
- General
- Condiciones de almacenaje - -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Condiciones de inicio y funcionamiento - -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Fuente de alimentación - 12 VDC ± 25%, reverse polarity protection
PoE: 802.3af,class 3
- Consumo de energía y corriente - 2I:
12 VDC, 0.63 A, max. 7.5 W
PoE: (802.3af, 36 V to 57 V) ,0.25 A to 0.16 A, max. 9 W
4I:
12 VDC, 0.88 A, max. 10.5 W
PoE: (802.3af, 36 V to 57 V), 0.34 A to 0.21 A, max. 12 W
- Interfaz de energía - Ø5.5 mm coaxial power plug
- Material - Metal except for sunshield
- Dimensión de la cámara - Ø105 × 289.5 mm (4.1" × 11.4")
- Dimensión del paquete - 386 × 156 × 155 mm (15.2" × 6.1" × 6.1")
- Peso de la cámara - 1090 g (2.4 lb.)
- Con peso del paquete - 1614 g (3.6 lb.)
- Método de enlace - Upload to NAS/memory card, notify surveillance center, trigger record, trigger capture, strobe light, audible warning
*Note: External device is required.
- Idioma del cliente web - 32 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
- Función general - Anti- flicker, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter
- Reinicio de software - Yes
- Certificaciones
- EMC - FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
- Seguridad - UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
- Ambiente - CE-ROHS (2011/65/EU); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)
- Protección - Ingression protection: IP67 (IEC 60529-2013)
|
|
|
