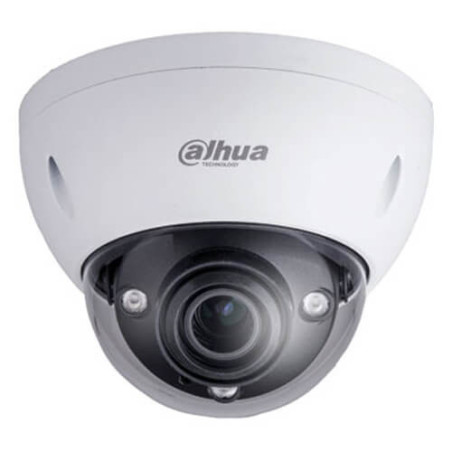

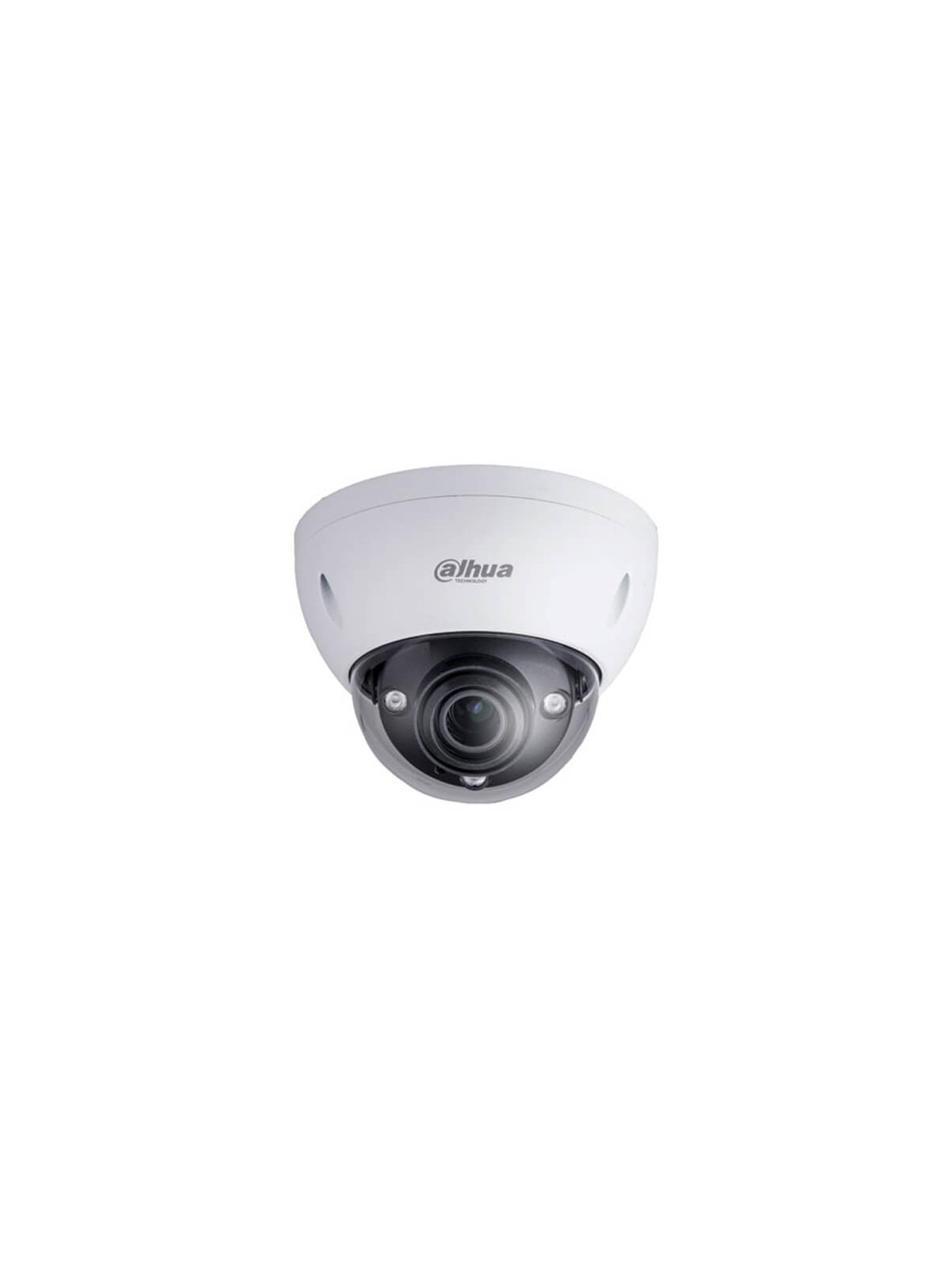

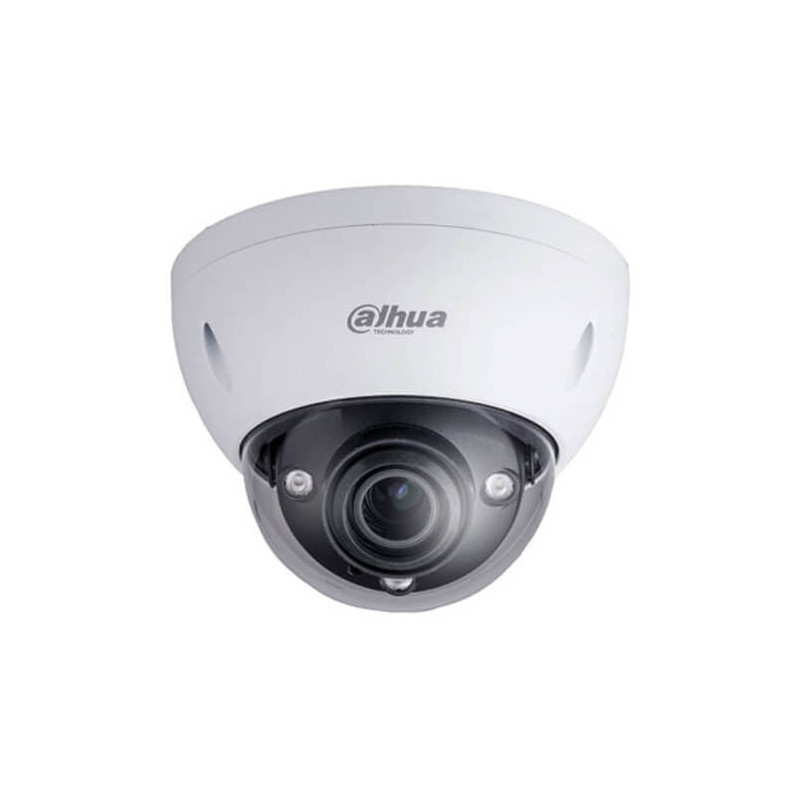

Domo IP Dahua HDBW5231R-ZE 2MP IR50m 2.7-12mm motorizada H265+ POE SD WDR IK10
Domo fijo IP con iluminación IR de 50 m antivandálico para exterior. CMOS 1/2,8” Sony® Starvis de 2MP. Triple stream. Formato H.265+/H.265/H.264+/H.264. Resolución de hasta 2MP. Filtro ICR. 0,006 lux F1.4. Óptica motorizada de 2,7~13,5 mm (101°~31°) con auto-iris. Zoom digital 16X. OSD, AWB, AGC, BLC, HLC, WDR real 120dB, 3D-DNR, zonas ROI, espejo, videosensor y mascaras de privacidad. Detección inteligente (IVS), detección facial. 1 entrada / 1 salida de audio. 1 entrada / 1 salida de alarma. Ranura MicroSD. Onvif, PSIA, CGI. IP67, IK10, Lightning-prrof 6KV. 3AXIS. 12V CC. ePoE.
|
|
| Características técnicas |
|
|
|
Camera
|
|
Image Sensor
|
1/2.8” 2Megapixel progressive scan CMOS
|
|
Effective Pixels
|
1920(H) x 1080(V)
|
|
RAM/ROM
|
256MB/32MB
|
|
Scanning System
|
Progressive
|
|
Electronic Shutter Speed
|
Auto/Manual, 1/3~1/100000s
|
|
Minimum Illumination
|
0.006Lux/F1.4 ( Color,1/3s,30IRE)
0.05Lux/F1.4 ( Color,1/30s,30IRE)
0Lux/F1.4 (IR on)
|
|
S/N Ratio
|
More than 50dB
|
|
IR Distance
|
Distance up to 50m (164ft)
|
|
IR On/Off Control
|
Auto/ Manual
|
|
IR LEDs
|
3
|
|
Lens
|
|
Lens Type
|
Motorized/ Auto Iris(DC)
|
|
Mount Type
|
Board-in
|
|
Focal Length
|
2.7mm~12mm
|
|
Max. Aperture
|
F1.4
|
|
Angle of View
|
H: 97°~34° , V: 52°~20°
|
|
Optical Zoom
|
4x
|
|
Focus Control
|
Motorized
|
|
Close Focus Distance
|
0.3m
|
|
DORI Distance
|
Lens
|
Detect
|
Observe
|
Recognize
|
Identify
|
|
W
|
48m(157ft)
|
19m(62ft)
|
10m(33ft)
|
5m(16ft)
|
|
T
|
133m(436ft)
|
53m(174ft)
|
27m(89ft)
|
13m(46ft)
|
|
Pan/Tilt/Rotation
|
|
Pan/Tilt/Rotation Range
|
Pan:0°~355°; Tilt:0°~65°; Rotation:0°~355°
|
|
Intelligence
|
|
IVS (optional)
|
Tripwire, Intrusion, Object Abandoned/Missing
|
|
Advanced Intelligent Functions
|
Face Detection
|
|
Video
|
|
Compression
|
H.265+/H.265/H.264+/H.264
|
|
Streaming Capability
|
3 Streams
|
|
Resolution
|
1080P(1920x1080)/1.3M(1280x960)/
720P(1280×720)/D1(704×576/704×480)/
VGA(640×480)/CIF(352×288/352×240)
|
|
Frame Rate
|
Main Stream: 1080P (1~50/60fps)
|
|
Sub Stream: D1(1~50/60fps)
|
|
Third Stream: 1080P(1~25/30fps)
|
|
Bit Rate Control
|
CBR/VBR
|
|
Bit Rate
|
H.264: 24~9472Kbps H.265: 14~5632Kbps
|
|
|
