| Descripción |
|

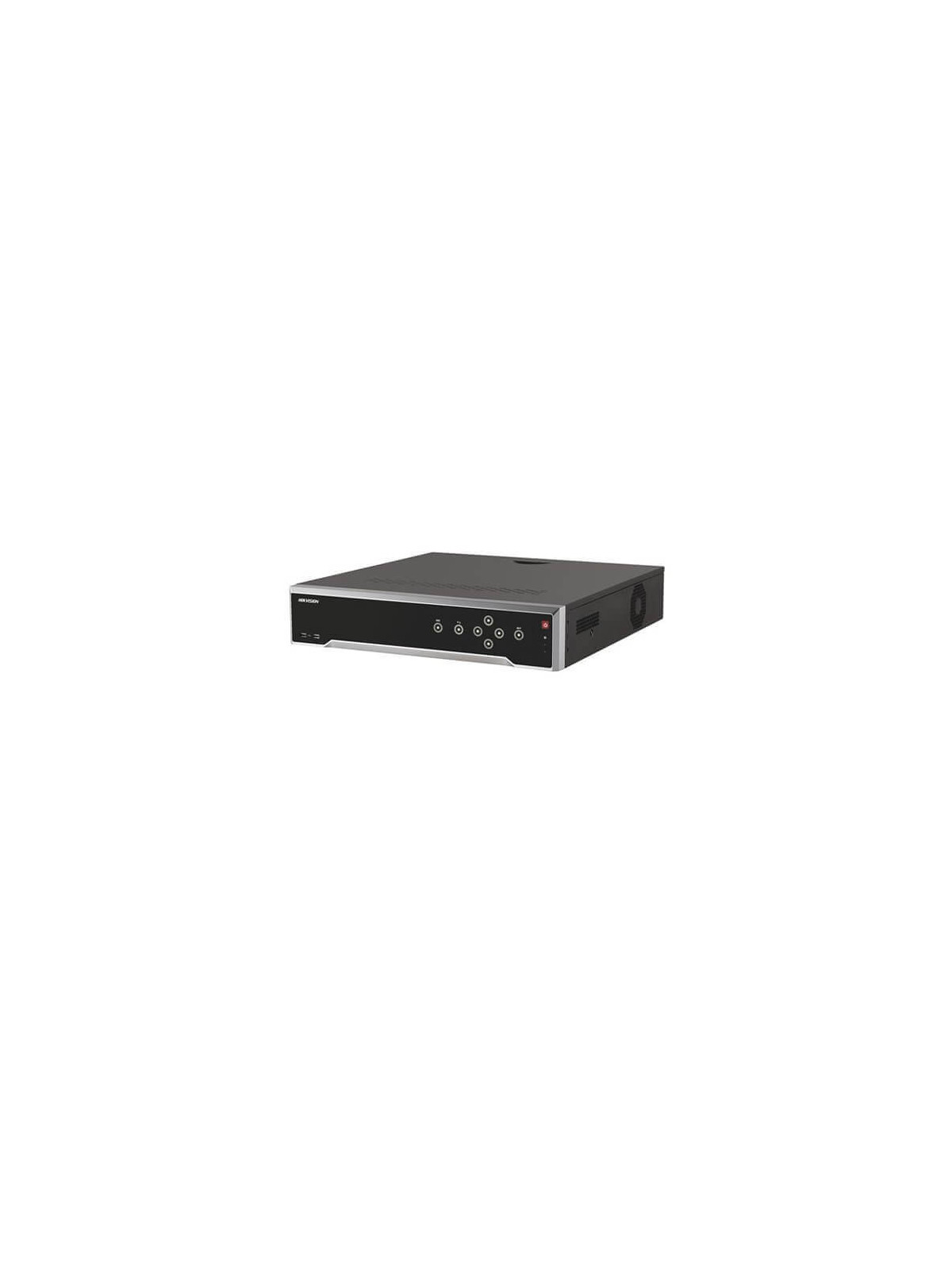

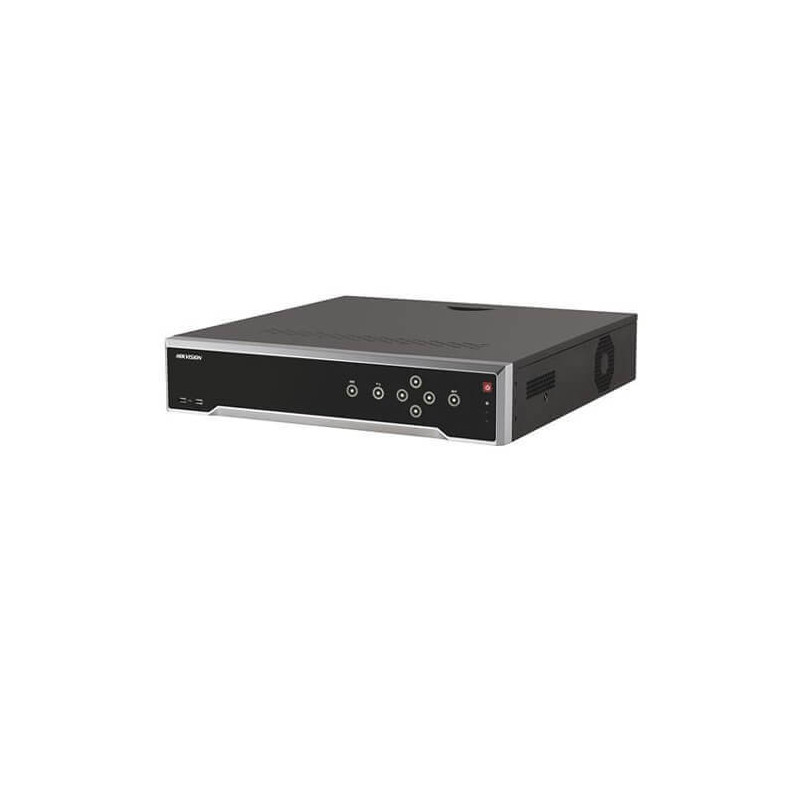

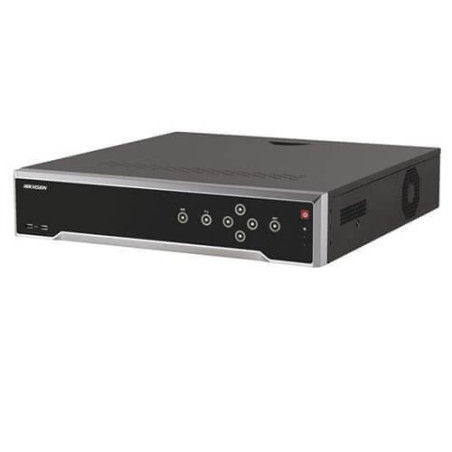

Grabador NVR Hikvision DS-7716NI-I4 16ch 12MP 160Mbps H265 HDMI4K LANx2 SATAx4 Alarmas
Grabador IP de 16 canales compatible con cámaras de hasta 12 Mpx.
- Ancho de banda de entrada de 160 Mbps.
- Compresión H.265, H.264+, H.264.
- Compatible con protocolo ONVIF.
- Sistema operativo dual.
- Soporta eventos VCA generados por la cámaras (detección de movimiento, línea de cruce, intrusión...).
- Puertos USB para backup
- Salida de monitor HDMI (resolución 4K) y VGA
- 16 entradas de alarma y 4 salida de relé
- 1 entrada/salida de audio
- Interfaz RS-485 y RS232
- 2 puertos ethernet Gigabit RJ45
- Web Server y software remoto
- Capacidad para 4 HDDs S-ATA internos de hasta 6 TB por disco (no incluidos).
- Alimentación 220 Vac, consumo 20W (sin HDDs).
- Medidas: 445 (W) × 390 (D) ×70 (H) mm. Peso (sin HDDs): < 5 Kg.
|
|
| Características técnicas |
- IP video input - 16-ch Up to 12 MP resolution
- Video resolution - 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF
- Incoming/outgoing bandwidth - 160 Mbps 256 Mbps
- HDMI output - 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- VGA output - 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- CVBS output - 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
- Audio output - 1-ch, RCA (Linear, 1 KΩ)
- Two-way audio input - 1-ch, RCA (2.0 Vp-p, 1 k Ω)
- Decoding format - H.265/H.265+/H.264/H.264+/MPEG4
- Recording resolution - 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF
- Synchronous playback - 16-ch
- Capability - 2-ch @ 12 MP (20fps) / 4-ch @ 8 MP (25fps) / 8-ch @ 4MP (30fps) / 16-ch @ 1080p (30fps)
- Remote connections - 128
- Network protocols - TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
- Network interface - 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
- SATA - 4 SATA interfaces for 4HDDs
- Capacity - Up to 8TB capacity for each HDD
- Serial port - 1 RS-485 (half-duplex), 1 RS-232
- USB interface - Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
- Alarm in/out - 16/4
- Power - ≤80 W
- Power supply - 100 to 240 VAC
- Consumption (without HDD) - ≤20 W
- Working temperature - -10 to +55º C (+14 to +131º F)
- Working humidity - 10 to 90 %
- Dimensions (W × D × H) - 445 × 400 ×71 mm ( 17.5"× 15.7" × 2.8")
- Weight (without hard disk) - ≤ 5 kg (11 lb)
- Chassis - 19-inch rack-mounted 1.5U chassis
|
|
|
