| Descripción |
|

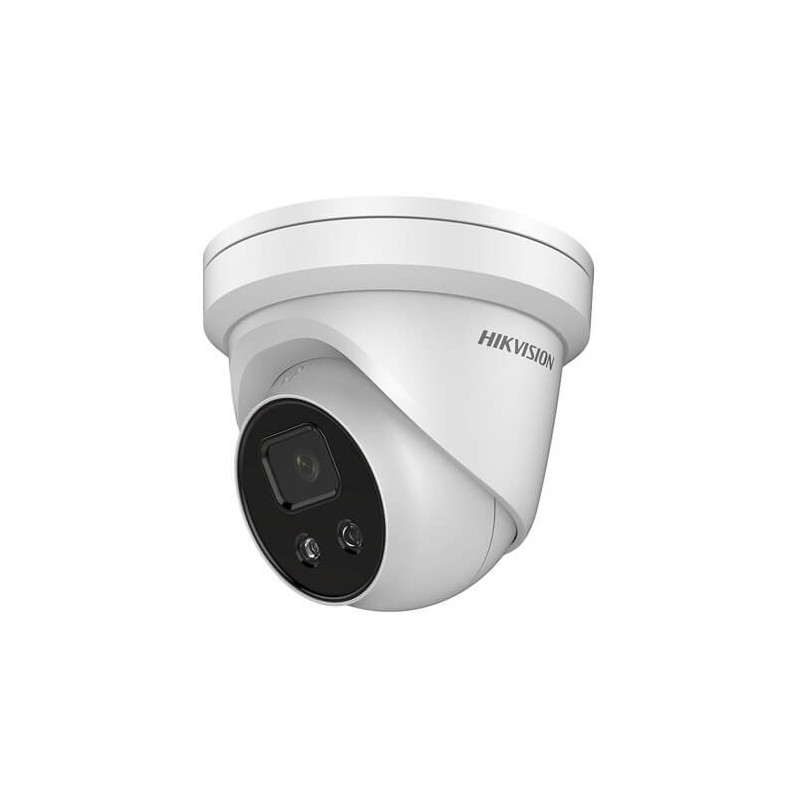

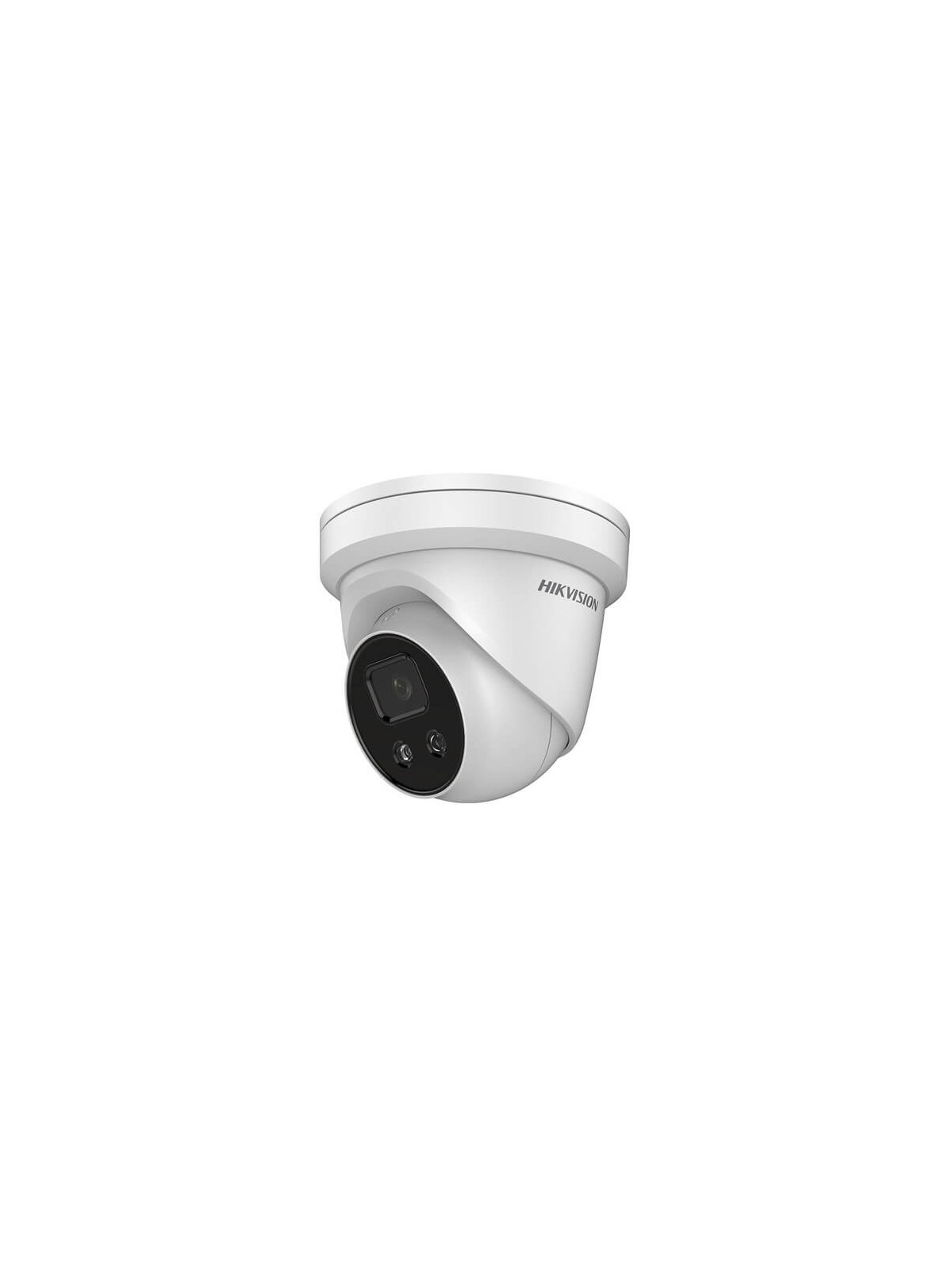

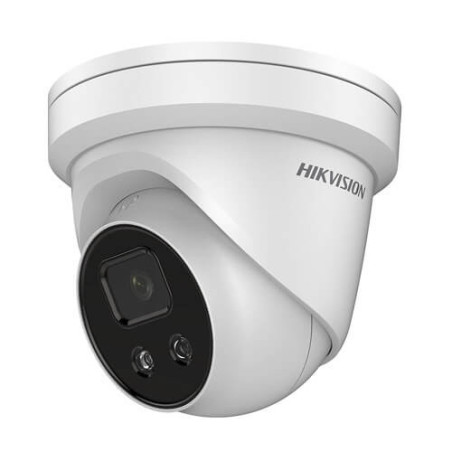

Domo IP Hikvision DS-2CD2346G2-I 4MP PRO IR30m 2.8mm H265+ POE SD WDR Acusense
Cámara minidomo de tecnología IP y resolución 4 Megapixeles (2688x1520 25IPS), con tecnología Acusense. Óptica fija 2.8mm. Compresión H.265+/H.265/H.264+/H.264.
-Serie EasyIP 4.0 con tecnología Acusense: detección inteligente de personas y/o vehículos.
Sensor CMOS 1/2.8" ultra low light con escaneado progresivo.
Conmutación día/noche mediante filtro mecánico.
Sensibilidad en color 0,005 Lux Color (F1.2, AGC ON).
LEDS IR alcance 50m.
WDR real 120dB, BLC, Defog, EIS, 3D DNR, ROI.
-Especificaciones de red:
Salida Ethernet 10/100Mbps
Doble streaming de video
Servidor Web integrado Internet Explorer
Compatible con ONVIF, ISAPI.
Soporta tarjeta SD hasta 128GB ( tarjeta no incluida).
-Detección:
Básica: movimiento, tamper de vídeo, excepciones.
Avanzada: detección de intrusión, cruce de línea, entrada/salida de zona.
- Especificaciones generales:
Sin alarmas. Sin audio.
Nivel de protección: IP67.
Instalación en exterior.
Alimentación 12 VDC max 600mA y PoE 802.3 af(no incluida).
Dimensiones: Ø 138.3 × L 126.3 mm.
|
|
| Características técnicas |
- Camera
- Image Sensor - 1/2.7" Progressive Scan CMOS
- Min. Illumination - Color: 0.003 Lux @ (F1.4, AGC ON)
- Day & Night - ICR Cut
- Shutter Speed - 1/3 s to 1/100,000 s
- Angle Adjustment - Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
- Slow Shutter - Yes
- P/N - P/N
- Wide Dynamic Range - 120 dB
- Lens
- Lens Type & FOV - 2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 123°
4 mm, horizontal FOV 83°, vertical FOV 45°, diagonal FOV 98°
6 mm, horizontal FOV 53°, vertical FOV 28°, diagonal FOV 62°
- Aperture - F1.4
- Lens Mount - M12
- Aperture Type - Fixed
- Illuminator
- IR Range - Up to 30 m
- Wavelength - 850 nm
- Smart Supplement Light - Yes
- Supplement Light - IR
- Video
- Max. Resolution - 2592 × 1944
- Main Stream - 50Hz: 20fps (2592 × 1944)
25fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720)
60Hz: 20fps (2592 × 1944)
30fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720)
- Sub Stream - 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
- Third Stream - 50Hz: 25fps (1280 × 720, 640 × 480, 640 × 360, 360 × 240)
60Hz: 30fps (1280 × 720, 640 × 480, 640 × 360, 360 × 240）
- Video Compression - Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
- Video Bit Rate - 32 kbps to 8 Mbps
- H.264 Type - Baseline Profile/Main Profile/High Profile
- H.265 Type - Main Profile
- H.264+ - Main Stream supports
- H.265+ - Main Stream supports
- Bit Rate Control - CBR/VBR
- Scalable Video Coding (SVC) - Yes
- Region of Interest (ROI) - 1 fixed region for each stream
- Audio
- Environment Noise Filtering - -U: Yes
- Audio Sampling Rate - -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Audio Compression - -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3
- Audio Bit Rate - -U: 64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8-320Kbps(MP3)
- Network
- Simultaneous Live View - Up to 6 channels
- API - ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
- Protocols - TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
- Smooth Streaming - Yes
- User/Host - Up to 32 users. 3 user levels: administrator, operator and user
- Security - Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE and digest authentication for ONVIF
- Network Storage - MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS(NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- Client - iVMS-4200, Hik-Connect, Hik-Central
- Web Browser - Plug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
- Image
- Day/Night Switch - Day, Night, Auto, Schedule
- Image Enhancement - BLC, HLC, 3D DNR
- Image Parameters Switch - Yes
- Image Settings - Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
- Interface
- Built-in Microphone - -U: Yes
- On-board Storage - Built-in micro SD slot, up to 256 GB
- Hardware Reset - Yes
- Communication Interface - 1 RJ45 10M/100M self-adaptive Ethernet port
- Deep Learning Function
- Face Capture - Yes
- Premier Protection - Line crossing detection, intrusion detection, region entrance detection, region exiting detection
- Intelligent (Traditional Algorithm)
- Basic Event - Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error), scene change detection
- General
- Storage Conditions - -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions - -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Power Supply - 12 VDC ± 25%, reverse polarity protection
PoE: 802.3af, class 3
- Power Consumption and Current - 12 VDC, 0.48 A, max. 5.8 W
PoE: (802.3af, 36 V to 57 V), 0.19 A to 0.12 A, max. 6.8 W
- Power Interface - Ø5.5 mm coaxial power plug
- Material - Metal except for trim ring
- Camera Dimension - Ø138.3 × 126.3 mm (5.4" × 5.0")
- Package Dimension - 170 × 170 × 150 mm (6.7" × 6.7" × 5.9")
- Camera Weight - Approx. 770 g (1.7 lb.)
- With Package Weight - Approx. 1073 g (2.4 lb.)
- Linkage Method - Upload to NAS/memory card, notify surveillance center, trigger record, trigger capture
- Web Client Language - 33 languages:
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General Function - Anti-flicker, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter
- Software Reset - Yes
- Protection - -U: Ingression protection: IP66 (IEC 60529-2013)
-I: Ingression protection: IP67 (IEC 60529-2013)
|
|
|
