Descripción |

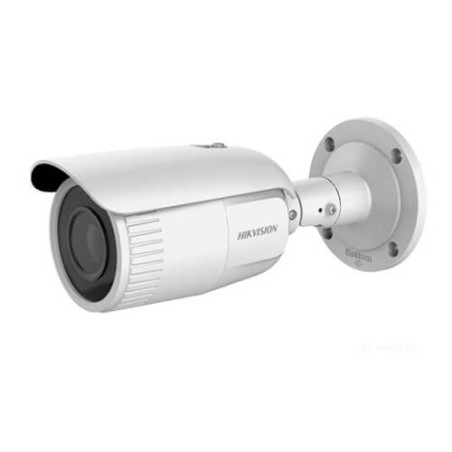

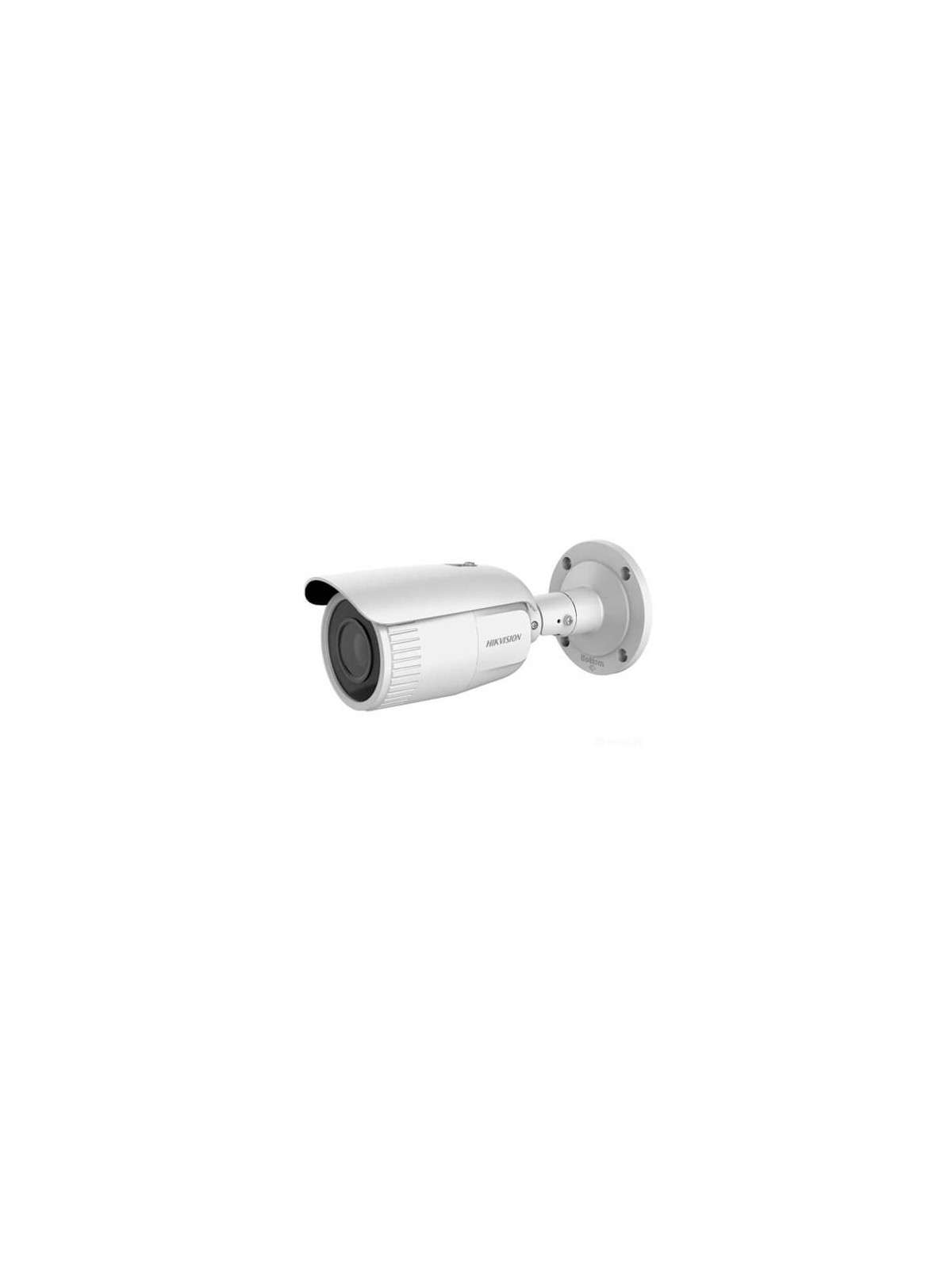

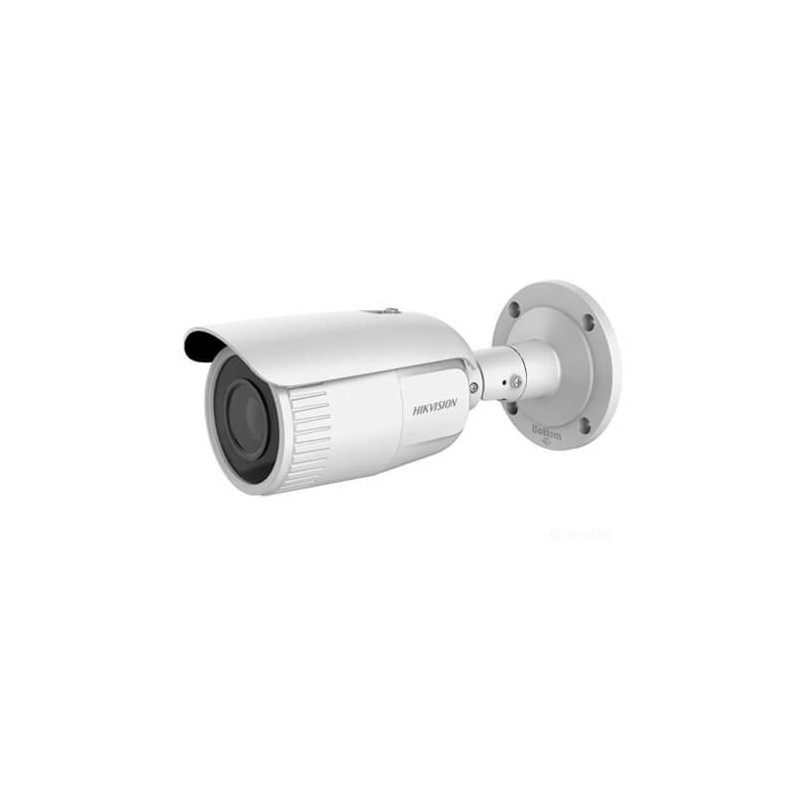

Cámara IP Hikvision DS-2CD1623G0-IZ 2MP ECO IR30m 2.8-12mm motorizada H265+ POE SD IK10
1/2.8" Progressive CMOS, ICR, 1920x1080:25fps(P)/30fps(N),
H.265+/H265/H.264+&H.264, 3D DNR, BLC, IR range: up to 30m, DC12V & PoE, TF card slot, Support mobile monitoring via Hik-Connect *power supply no included
-Z: motorized vari-focal lens
|
|
Características técnicas |
- Camera
- Image Sensor - 1/2.7" Progressive Scan CMOS
- Min. Illumination - 0.005 Lux @(F1.6, AGC ON), 0 Lux with IR
- Shutter Speed - 1/3 s to 1/100,000 s
- Slow Shutter - Yes
- Wide Dynamic Range - Digital WDR
- Day & Night - IR Cut Filter
- Angle Adjustment - Pan: 0° to 360°, tilt: 0° to 90°, rotation: 0° to 360°
- Lens
- Lens Type - Varifocal Lens
- Focal Length & FOV - 2.8 to 12 mm: horizontal FOV 96° to 36°, vertical FOV 51° to 20°, diagonal FOV 113° to 42°
- Lens Mount - Φ14
- Focus - Auto
- Aperture - F1.6
- Optical Zoom - Motorized
- Illuminator
- IR Wavelength - 850nm
- IR Range - Up to 50 m
- Video
- Max. Resolution - 1920 × 1080
- Main Stream - 50Hz:
25fps (1920 × 1080, 1280 × 720),
60Hz:
30fps (1920 × 1080, 1280 × 720)
- Sub-Stream - 50Hz: 25fps (640 × 480, 640 × 360)
60Hz: 30fps (640 × 480, 640 × 360)
- Video Compression - Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate - 32 Kbps to 8 Mbps
- H.264 Type - Baseline Profile/Main Profile/High Profile
- H.265 Type - Main Profile
- H.264+ - Main stream supports
- H.265+ - Main stream supports
- Region of Interest (ROI) - 1 fixed region for main stream
- Audio
- Audio Compression - -S: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
- Audio Bit Rate - -S: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)
- Audio Sampling Rate - -S: 8 kHz/16 kHz
- Environment Noise Filtering - -S: Yes
- Network
- Protocols - TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
- Simultaneous Live View - Up to 6 channels
- API - Open Network Video Interface, ISAPI
- User/Host - Up to 32 users. 3 levels: administrator, operator and user
- Network Storage - MicroSD/SDHC/SDXC card (256 GB) local storage
- Client - iVMS-4200, Hik-Connect
- Web Browser - Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
- Image
- Image Settings - Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
- Day/Night Switch - Auto, Schedule, Day, Night
- Image Enhancement - BLC, 3D DNR
- DNR - 3D DNR
- Interface
- Ethernet Interface - 1 RJ45 10M/100M self-adaptive Ethernet port
- On-Board Storage - Built-in memory card slot, support microSD card, up to 256 GB
- Audio - -S: 1 input (line in), 1 output (line out), mono sound
- Alarm - -S: 1 input,1 output
- Reset Key - Yes
- Event
- Basic Event - Motion detection, video tampering alarm, exception
- Smart Event - NA
- General
- Linkage Method - Upload to FTP, notify surveillance center, send email
also supports: upload to memory card, trigger recording, trigger capture,trigger alarm output(-S)
- Camera Dimension - Ø105 mm × 244.4 mm (4.1" × 9.6")
- Package Dimension - 315 × 137 × 141mm ( 12.4" × 5.4" × 5.6")
- Camera Weight - Approx. 1035 g (2.3 lb.)
- With Package Weight - Approx. 1550 g (3.4 lb.)
- Storage Conditions - -30 °C to +60 °C (22 °F to +140 °F), humidity 95% or less (non-condensing)
- Startup and Operating Conditions - -30 °C to +60 °C (22 °F to +140 °F), humidity 95% or less (non-condensing)
- Language - English, Ukrainian
- General Function - Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
- Firmware Version - V5.5.122
- Power Consumption and Current - 12VDC, 0.9A, MAX 11W
POE: (802.3af, 36 V to 57 V), 0.36 A to 0.23 A, max. 12.9W
- Power Supply - 12 VDC ± 25%
PoE: (802.3af, class 3)
- Power Interface - Ø5.5 mm coaxial power plug
- Approval
- EMC - FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
- Safety - UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
- Environment - CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
- Other - IP67 (IEC 60529-2013)
|
|
|
