Descripción |

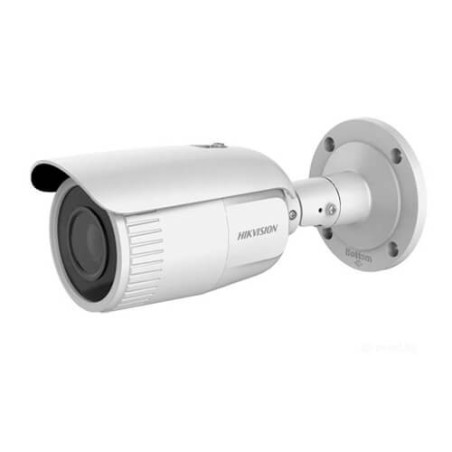

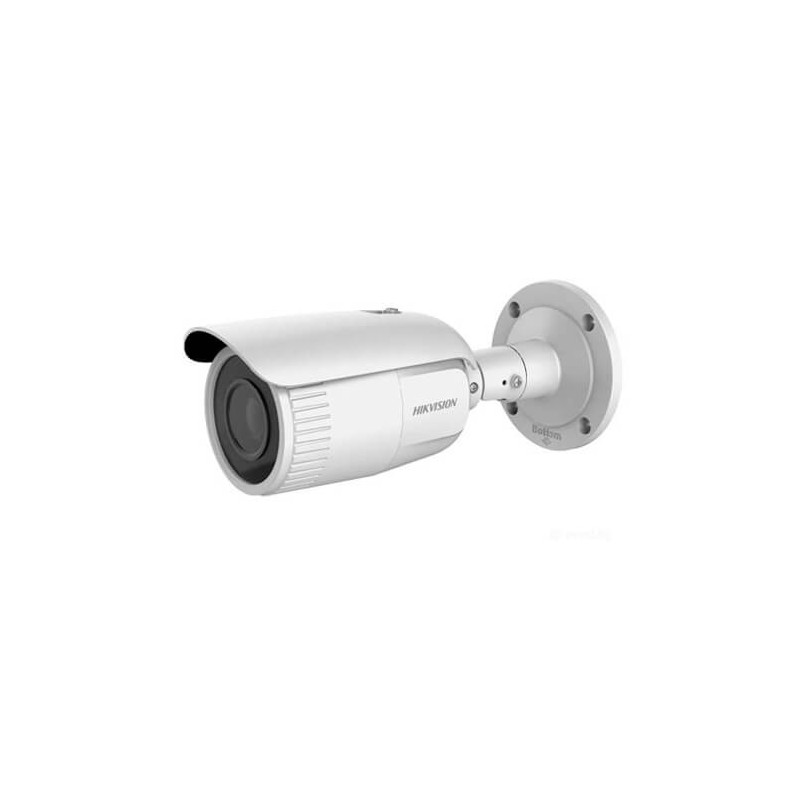

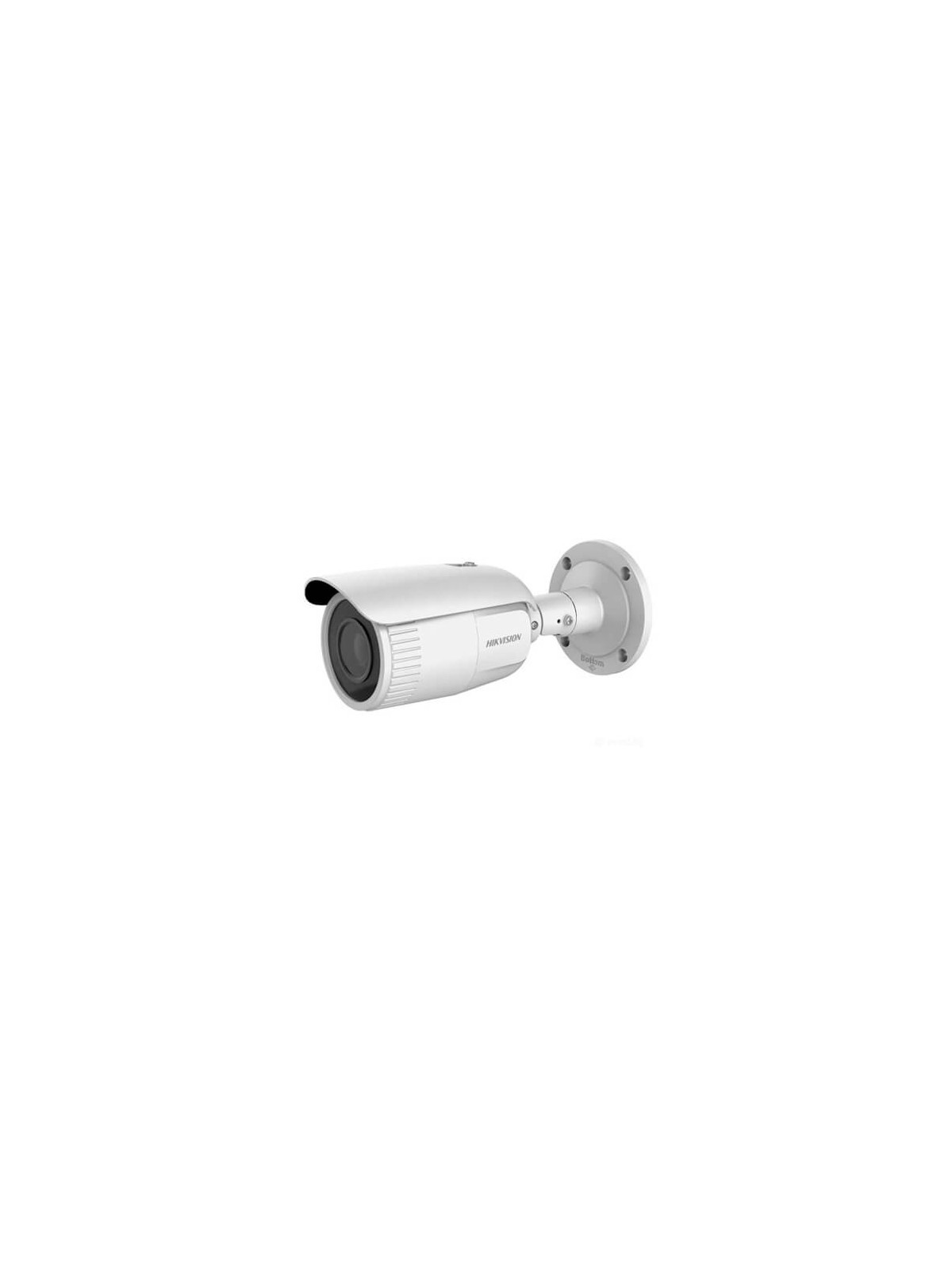

Cámara IP Hikvision DS-2CD1643G0-IZ 4MP ECO IR30m 2.8-12mm motorizada H265+ POE SD IK10

1/2.8" Progressive CMOS, ICR, 1920x1080:25fps(P)/30fps(N),
H.265+/H265/H.264+&H.264, 3D DNR, BLC, IR range: up to 30m, DC12V & PoE, TF card slot, Support mobile monitoring via Hik-Connect *power supply no included
-Z: motorized vari-focal lens
|
|
Características técnicas |
- Cámara
- Sensor de imagen - 1/3" Progressive Scan CMOS
- Iluminación mínima - 0.005 Lux @(F1.6, AGC ON), 0 Lux with IR
- Velocidad de obturación - 1/3 s to 1/100,000 s
- Obturador lento - Yes
- Wide dynamic range - 120 dB
- Día y Noche - IR Cut Filter
- Ajuste de ángulo - Pan: 0° to 360°, tilt: 0° to 90°, rotation: 0° to 360°
- Lente
- Lente - Varifocal Lens
- Focal Length & FOV - 2.8 to 12 mm: horizontal FOV 99° to 31°, vertical FOV 52° to 17°, diagonal FOV 116° to 36°
- Montura del lente - Φ14
- Enfoque - Auto
- Apertura - F1.6
- Zoom óptico - Motorized
- Iluminador
- IR Wavelength - 850nm
- Rango IR - Up to 50 m
- Vídeo
- Max. Resolución - 2560 × 1440
- Main stream - 50 Hz: 20 fps (2560 × 1440)
25 fps (2304 × 1296, 1920 × 1080, 1280 × 720)
60 Hz: 20 fps (2560 × 1440)
30 fps (2304 × 1296, 1920 × 1080, 1280 × 720)
- Sub-stream - 50 Hz: 25 fps (1280 × 720,640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720,640 × 480, 640 × 360)
- Compresión de video - Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG
- Vídeo bitrate - 32 Kbps to 8 Mbps
- Tipo H.264 - Baseline Profile/Main Profile/High Profile
- Tipo H.265 - Main Profile
- H.264 + - Main stream supports
- H.265 + - Main stream supports
- Región de interés (ROI) - 1 fixed region for main stream
- Audio
- Compresión de audio - -S: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
- Velocidad de bits de audio - -S: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)
- Frecuencia de muestreo de audio - -S: 8 kHz/16 kHz
- Filtro de ruido ambiental - -S: Yes
- Red
- Protocolos - TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP,, NTP, UPnP™, SMTP,IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
- Vista en vivo simultánea - Up to 6 channels
- API - Open Network Video Interface, ISAPI
- Usuario/operador - Up to 32 users. 3 levels: administrator, operator and user
- Almacenamiento en red - MicroSD/SDHC/SDXC card (256 GB) local storage
- Cliente - iVMS-4200, Hik-Connect
- Navegador web - Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
- Imagen
- Configuración de imagen - Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
- Interruptor día/noche - Auto, Schedule, Day, Night
- Mejora de la imagen - BLC, 3D DNR
- DNR - 3D DNR
- Interfaz
- Ethernet Interface - 1 RJ45 10M/100M self-adaptive Ethernet port
- On-Board Storage - Built-in memory card slot, support microSD card, up to 256 GB
- Audio - -S: 1 input (line in), 1 output (line out)
- Alarma - -S: 1 input,1 output
- Reset Key - Yes
- Evento
- Evento Básico - Motion detection, video tampering alarm, exception
- General
- Método de enlace - Upload to FTP, notify surveillance center, send email
also supports: upload to memory card, trigger recording, trigger capture
- Dimensión de la cámara - Ø105 mm × 244.4 mm (4.1" × 9.6")
- Dimensión del paquete - 315 × 137 × 141mm ( 12.4" × 5.4" × 5.6")
- Peso de la cámara - Approx. 1035 g (2.3 lb.)
- Con peso del paquete - Approx. 1550 g (3.4 lb.)
- Condiciones de almacenaje - -30 °C to +60 °C (22 °F to +140 °F), humidity 95% or less (non-condensing)
- Condiciones de inicio y funcionamiento - -30 °C to +60 °C (22 °F to +140 °F), humidity 95% or less (non-condensing)
- Idioma - English, Ukrainian
- Función general - Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
- Versión de firmware - V5.5.122
- Power Consumption and Current - 12VDC, 0.9A, MAX 11W
POE: (802.3af, 36 V to 57 V), 0.36 A to 0.23 A, max. 12.9W
- Fuente de alimentación - 12 VDC ± 25%
PoE: (802.3af, class 3)
- Interfaz de energía - Ø5.5 mm coaxial power plug
- Certificaciones
- EMC - FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
- Seguridad - UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
- Ambiente - CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
- Otros - IP67 (IEC 60529-2013)
|
|
|
