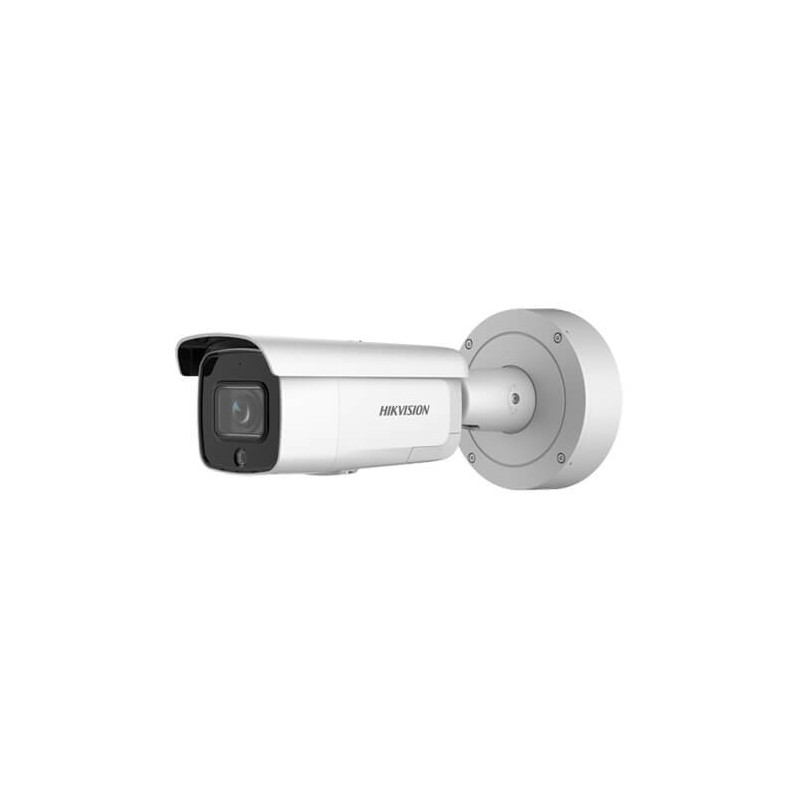

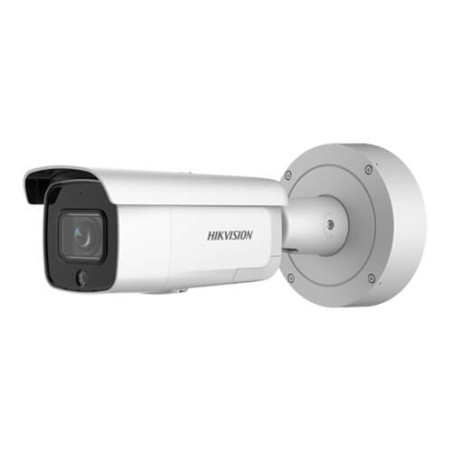

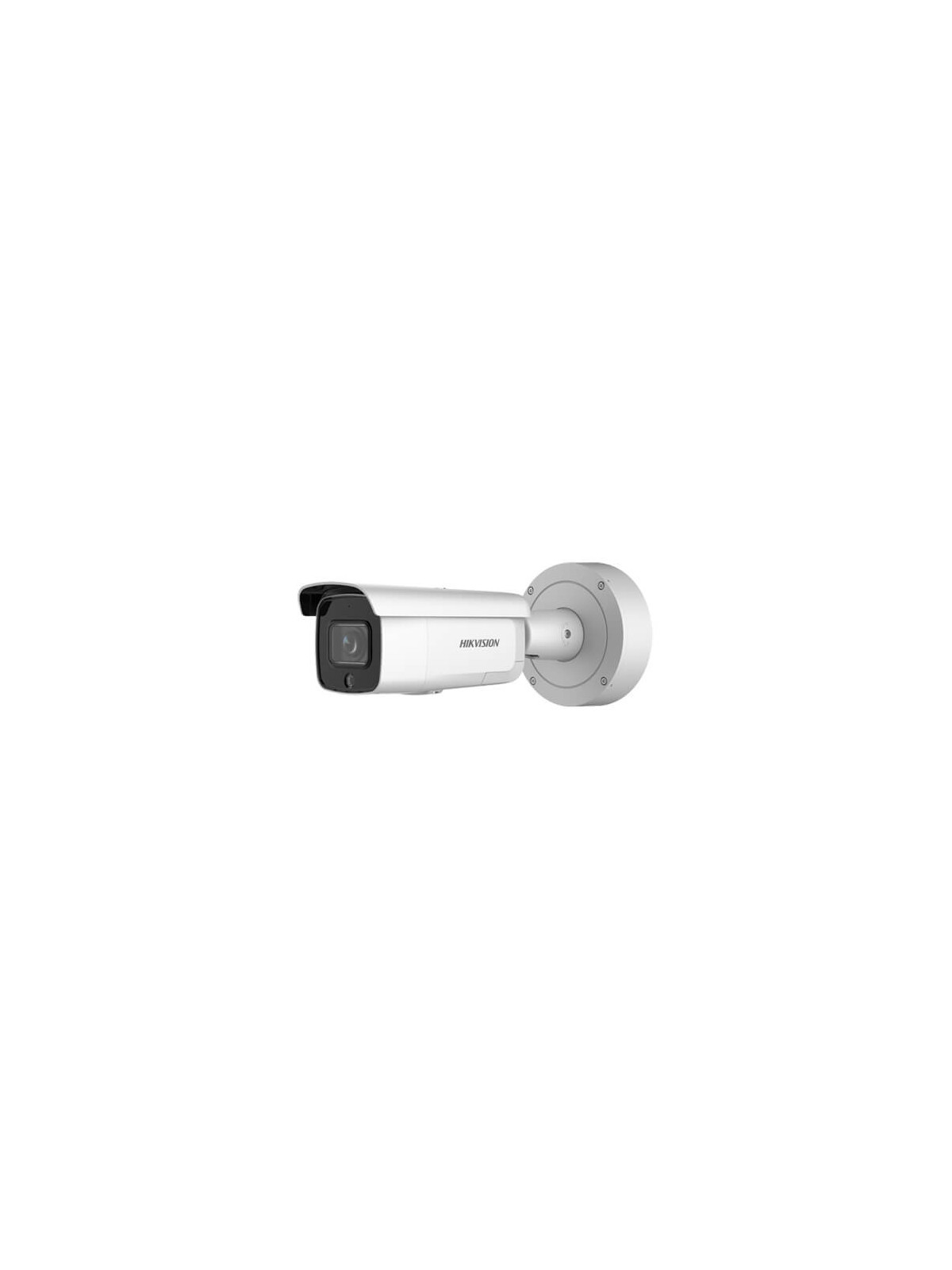

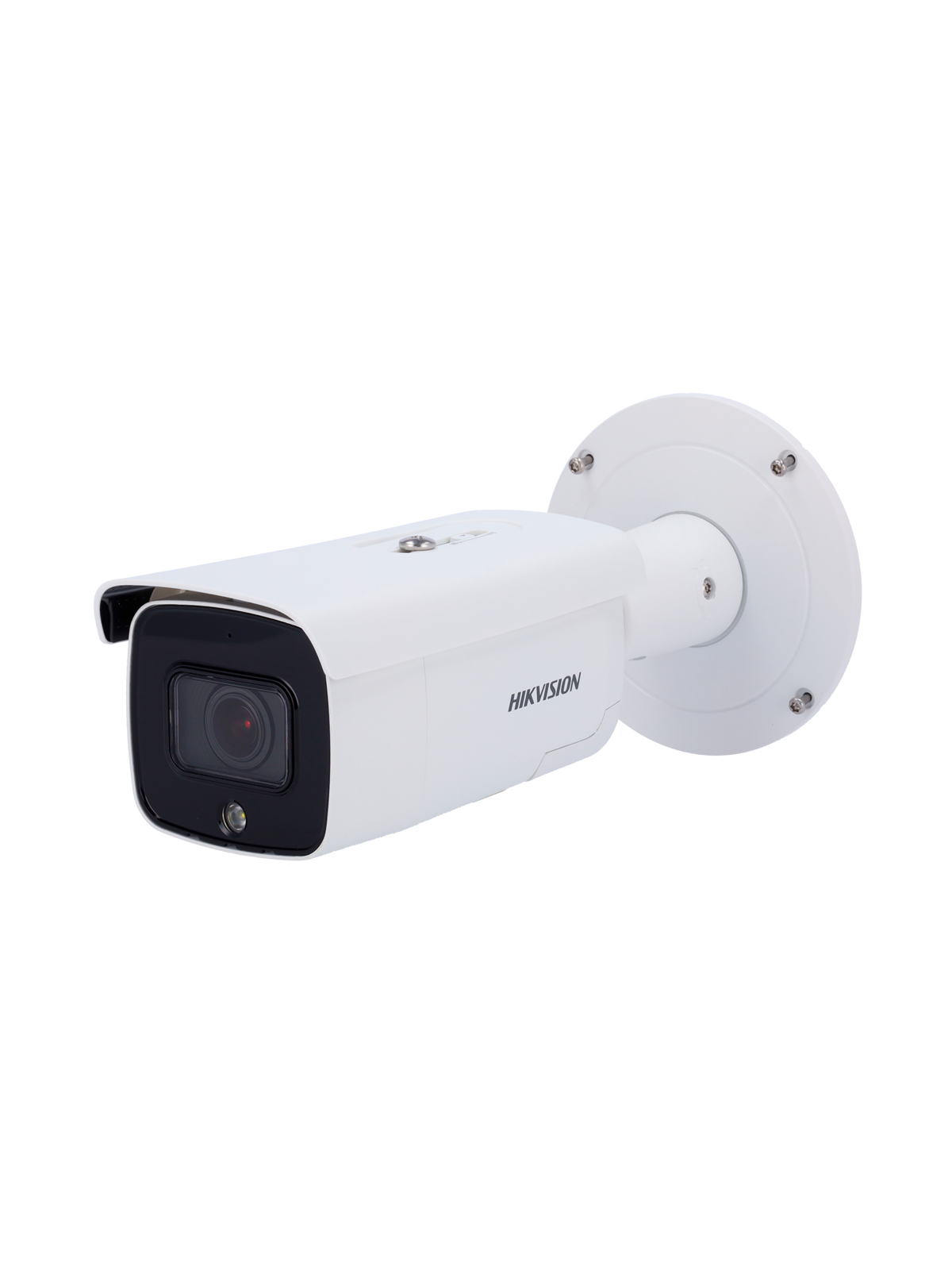

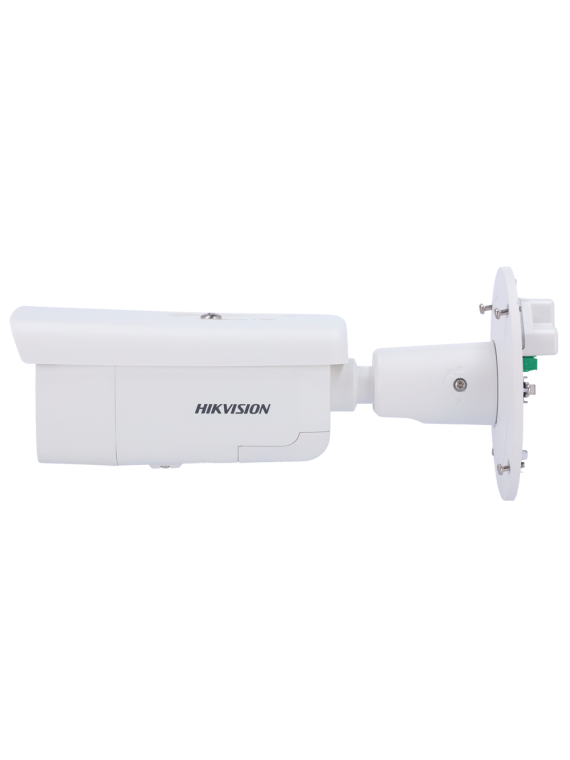

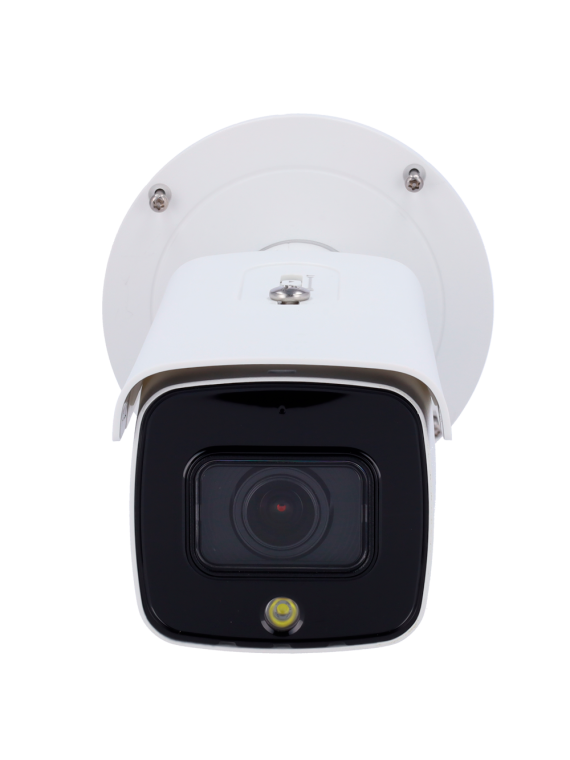

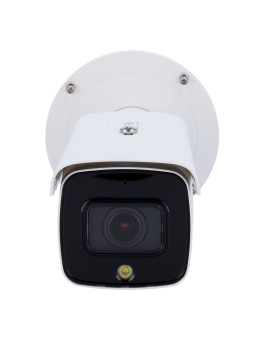

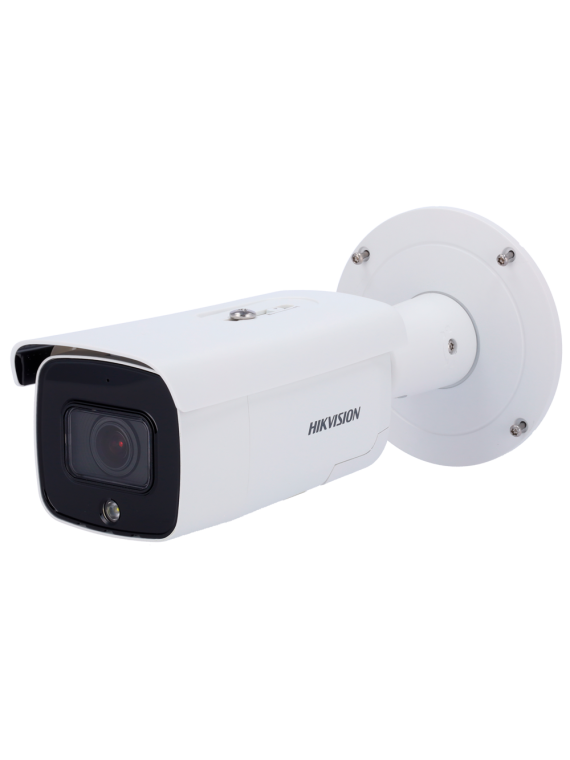

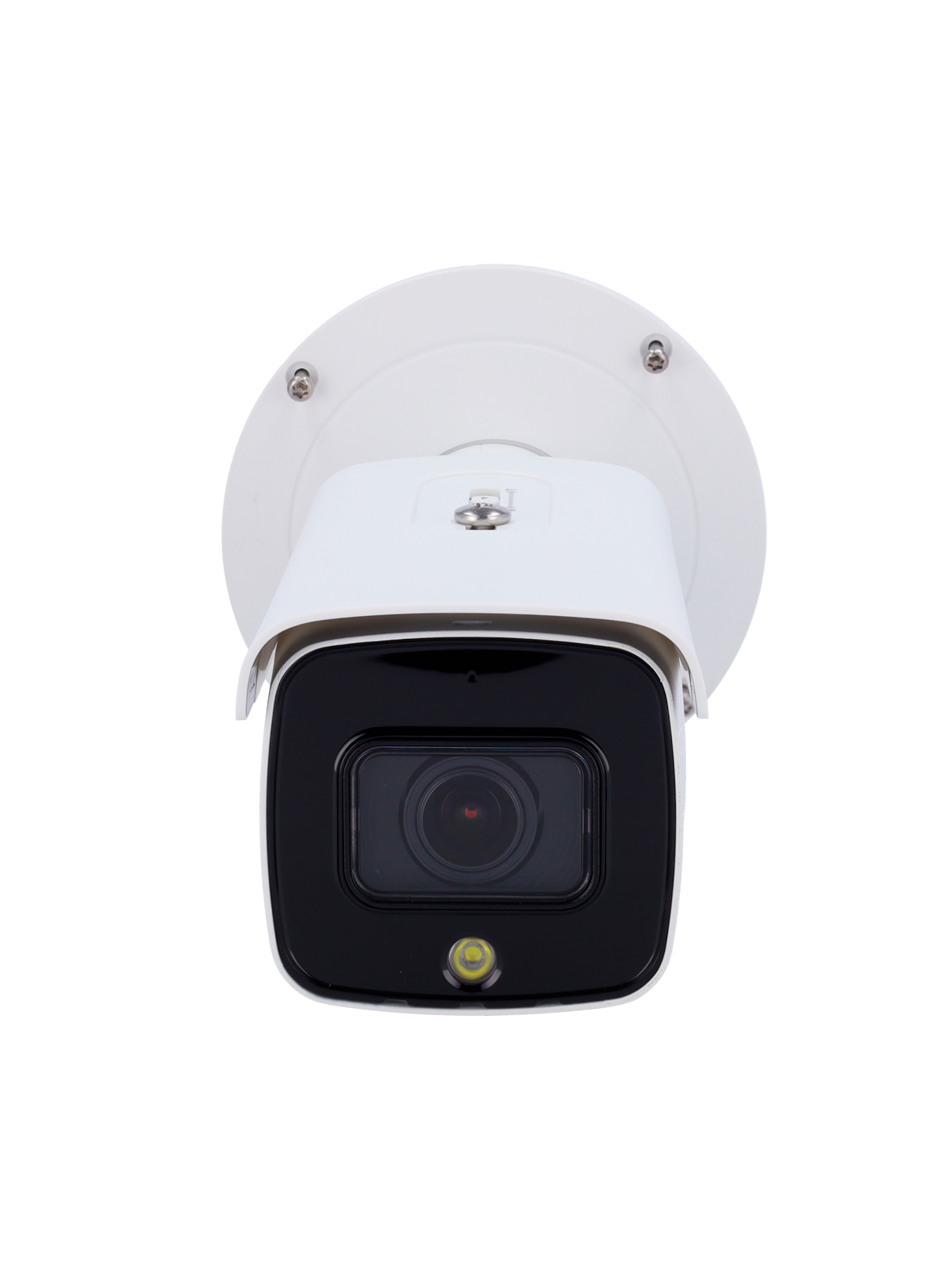

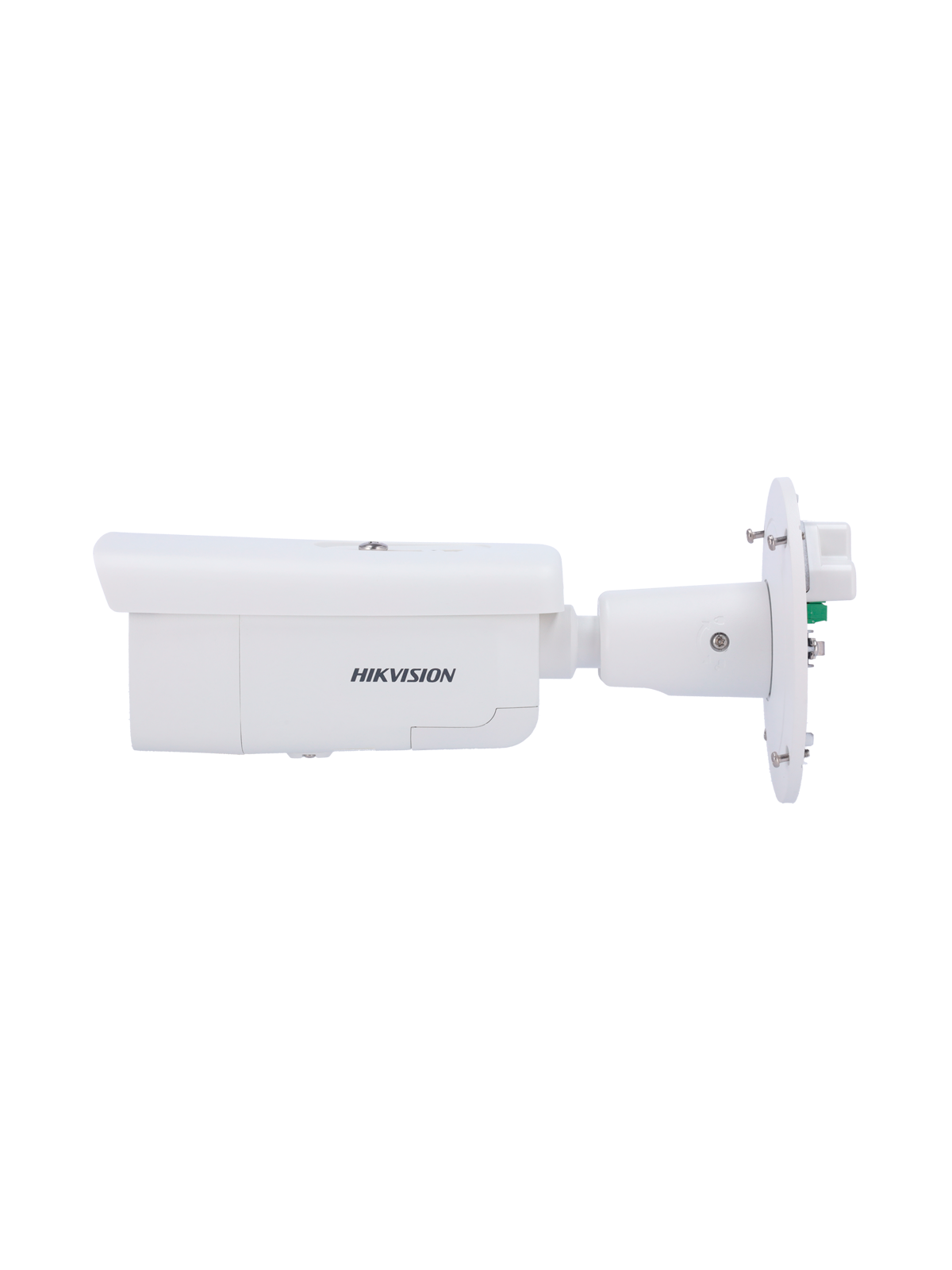

Cámara IP Hikvision DS-2CD2686G2-IZSU/SL 8MP PRO IR60m 2.8-12mm motorizada H265+ POE SD WDR Audio Alarmas Acusense

• Cámara
• Sensor de imagen - 1/1.8" Progressive Scan CMOS
• Iluminación mínima - Color: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR
• Velocidad de obturación - 1/3 s to 1/100,000 s
• Obturador lento - Yes
• P/N - P/N
• Wide dynamic range - 120 dB
• Día y Noche - IR cut filter
• Ajuste de ángulo - Pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°
• Memoria de apagado - Yes

• Lente
• Lente - Varifocal lens, motorized lens, 2.8 to 12 mm
• Iris Type - Fixed
• Focal Length & FOV - 2.8 to 12 mm, horizontal FOV 108° to 46°, vertical FOV 58° to 26°, diagonal FOV 127.4° to 52°
• Apertura - F1.4
• Montura del lente - Ø14

• DORI
• DORI - 2.8 to 12 mm: Wide: D: 86.0 m, O: 34.1 m, R: 17.2 m, I: 8.6 m Tele: D: 214.0 m, O: 84.9 m, R: 42.8 m, I: 21.4 m

• Iluminador
• Tipo de luz suplementaria - IR
• Rango IR - Up to 60 m
• IR Wavelength - 850 nm
• Luz de suplemento inteligente - Yes
• Alarma visual - Yes

• Vídeo
• Max. Resolución - 3840 × 2160
• Main stream - 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (3840 × 2160) 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-stream - 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
• Third Stream - 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings.
• Compresión de video - Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 *Third stream is supported under certain settings.
• Vídeo bitrate - 32 Kbps to 16 Mbps
• Tipo H.264 - Baseline Profile/Main Profile/High Profile
• Tipo H.265 - Main Profile
• H.264 + - Main stream supports
• H.265 + - Main stream supports
• Bit Rate Control - CBR/VBR
• Codificación de video escalable (SVC) - H.264 and H.265 encoding
• Región de interés (ROI) - 1 fixed region for main stream and sub-stream

• Audio
• Tipo de audio - Mono sound
• Filtro de ruido ambiental - Yes
• Frecuencia de muestreo de audio - 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Compresión de audio - G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
• Velocidad de bits de audio - 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)

• Red
• Vista en vivo simultánea - Up to 6 channels
• API - Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
• Protocolos - TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
• Usuario/operador - Up to 32 users. 3 user levels: administrator, operator and user
• Seguridad - Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• Almacenamiento en red - MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
• Cliente - iVMS-4200, Hik-Connect, Hik-Central
• Navegador web - Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+

• Imagen
• SNR - ≥ 52 dB
• Recorte objetivo - Yes
• Interruptor día/noche - Day, Night, Auto, Schedule
• Mejora de la imagen - BLC, HLC, 3D DNR
• Interruptor de parámetros de imagen - Yes
• Configuración de imagen - Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

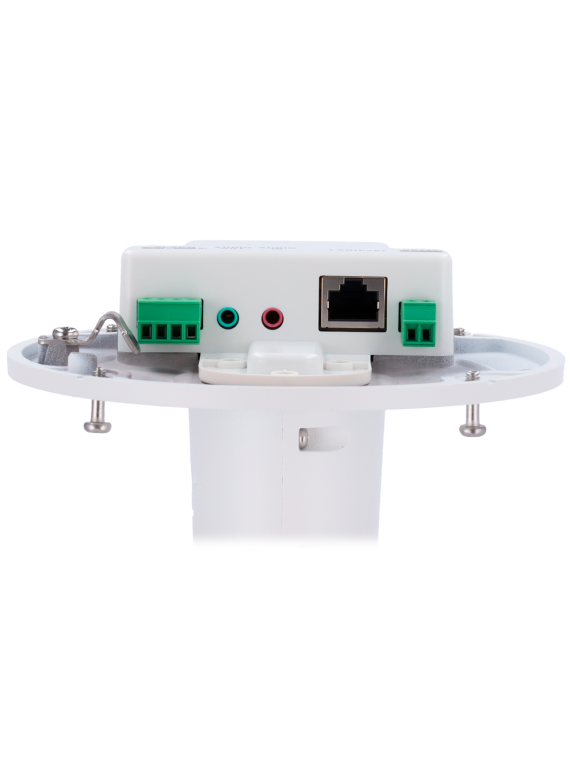

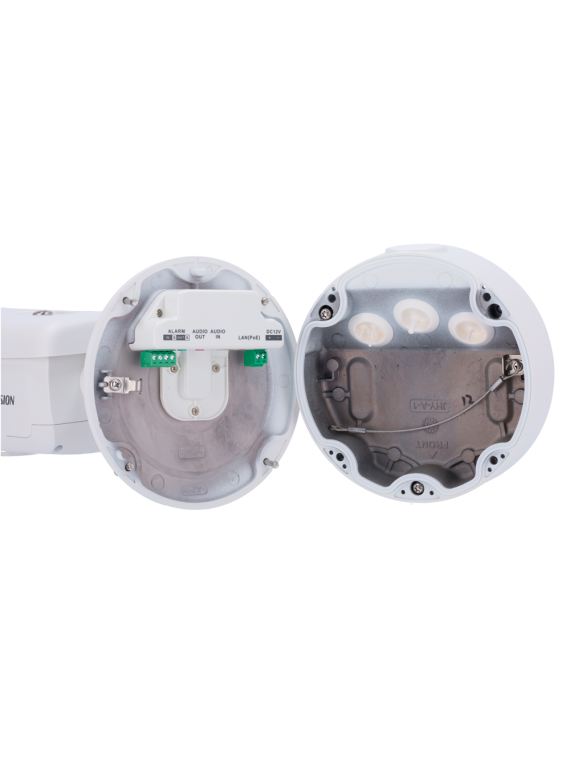

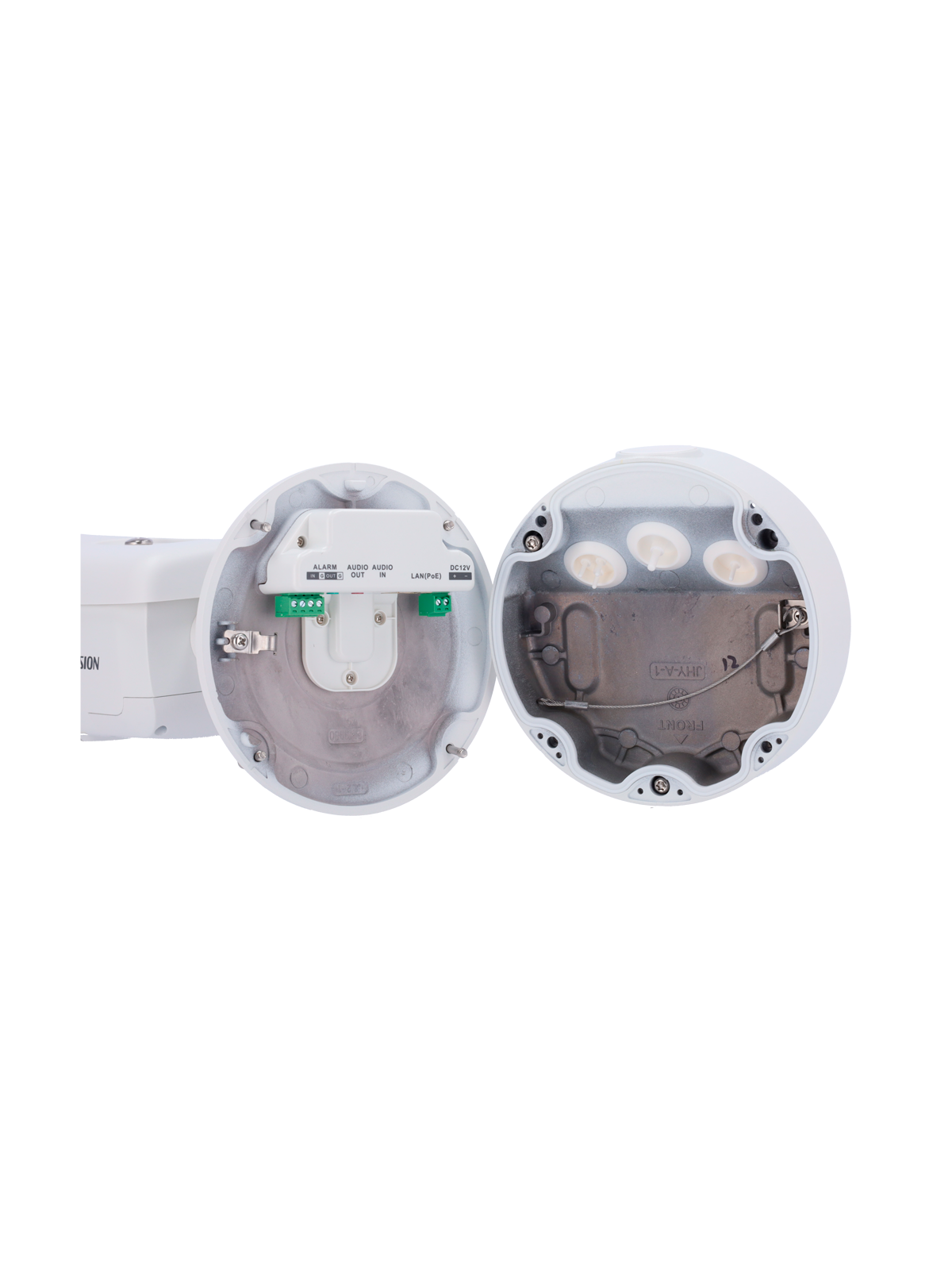

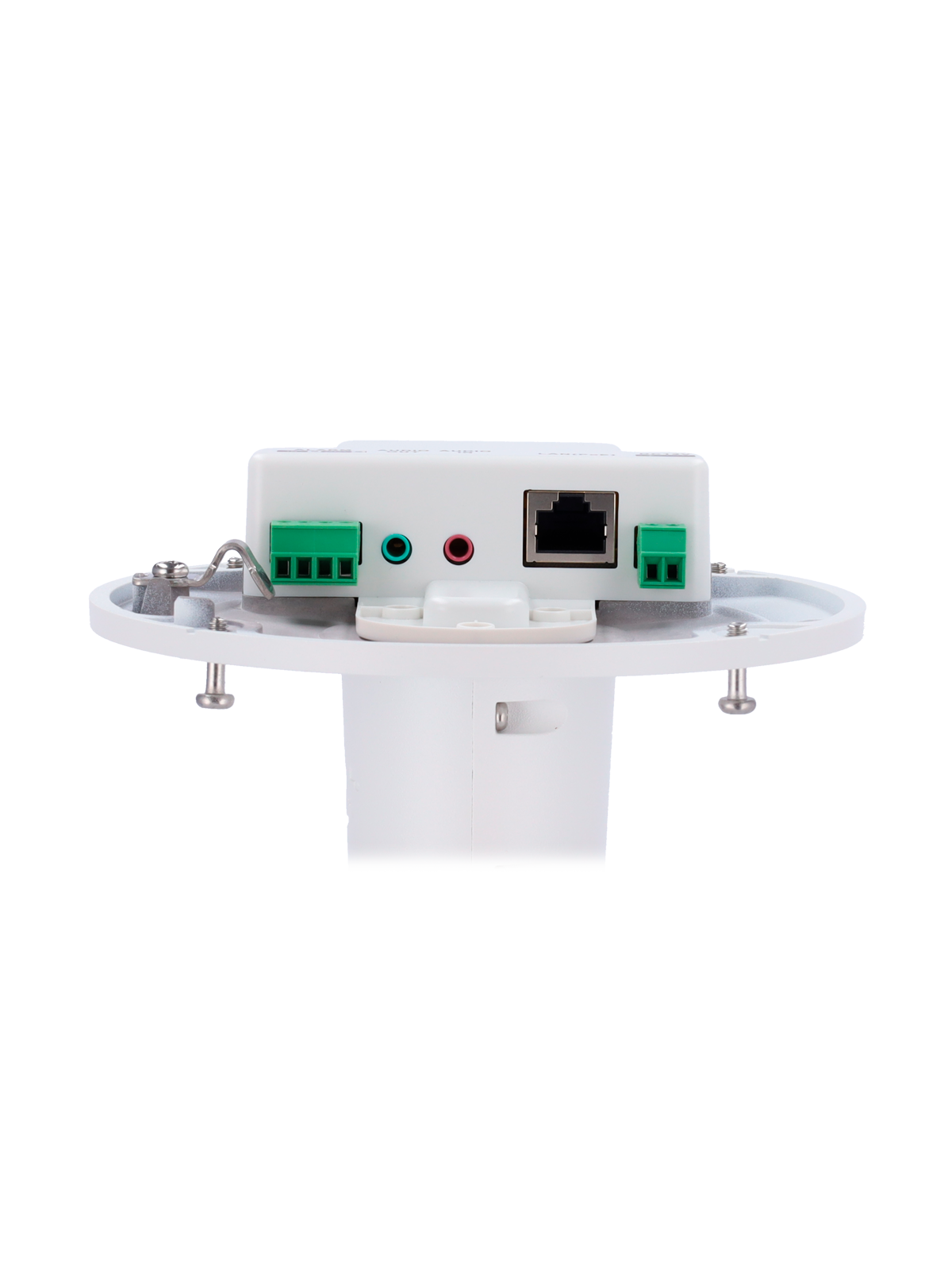

• Interfaz
• Alarma - 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
• Audio - 1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), 3.5 mm terminal block, output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
• Micrófono incorporado - Yes
• Altavoz incorporado - Power: 2 W. Max. sound pressure level: 10 cm: 97 dB.

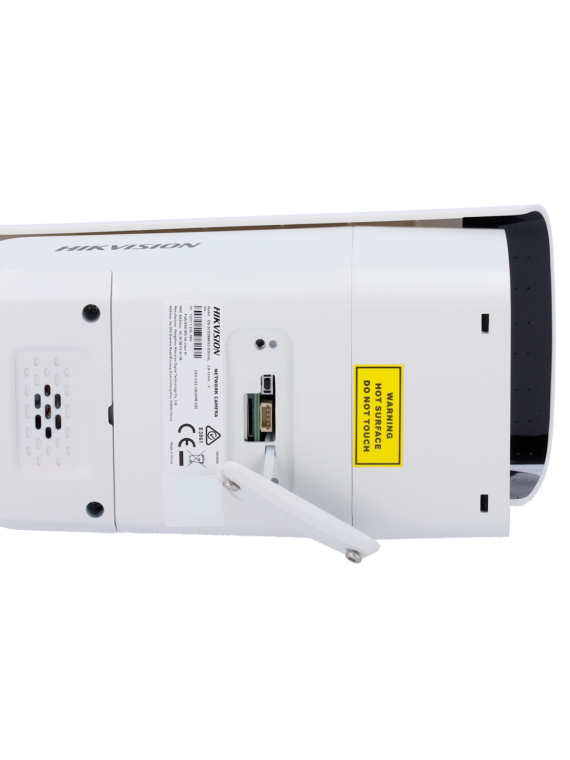

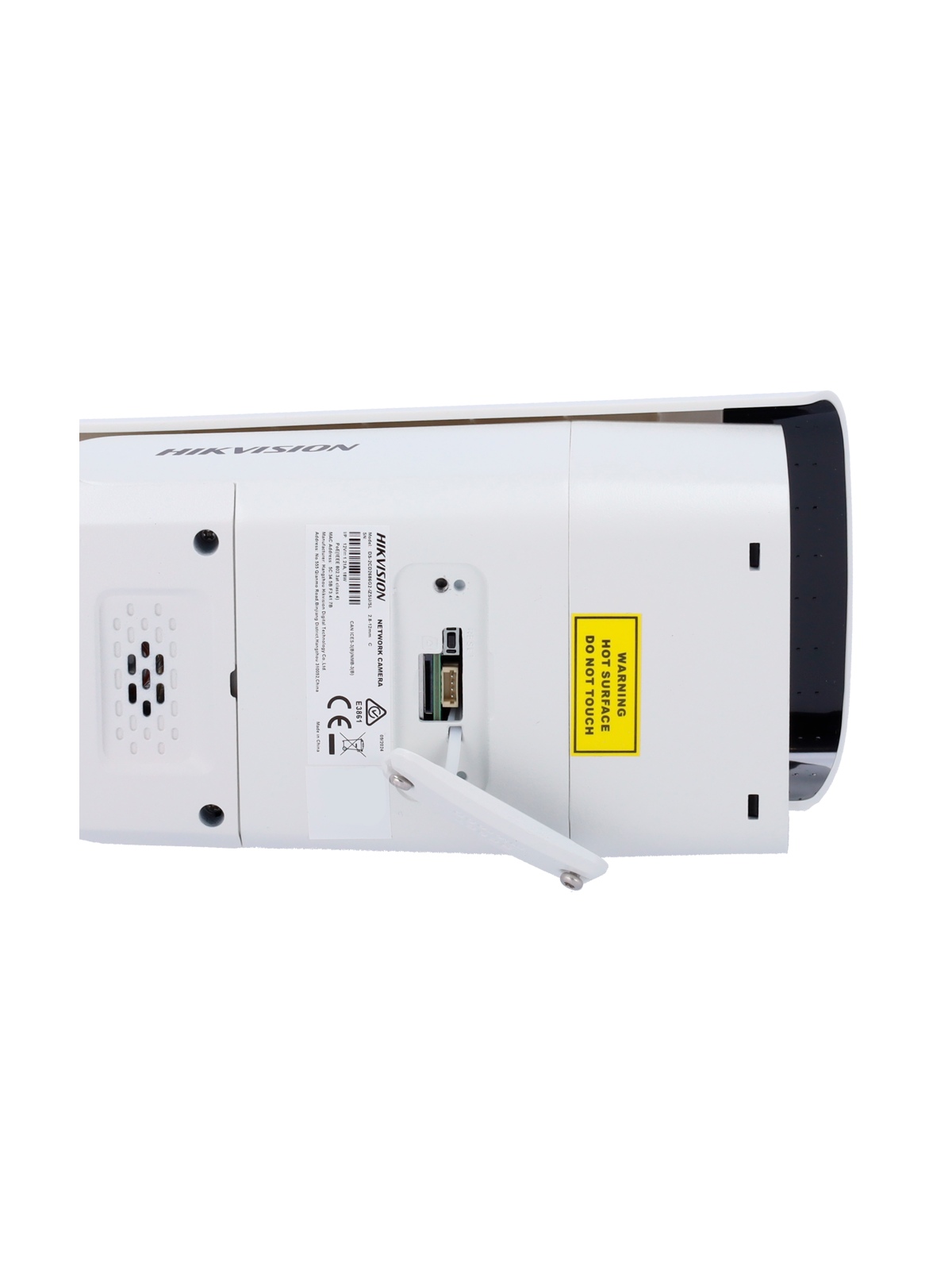

• On-Board Storage - Built-in micro SD/SDHC/SDXC slot, up to 256 GB
• Restablecimiento de hardware - Yes
• Ethernet Interface - 1 RJ45 10 M/100 M self-adaptive Ethernet port

• Evento
• Evento Básico - Motion detection (human and vehicle targets classification), video tampering alarm, exception
• Evento inteligente - Scene change detection

• Deep Learning Function
• Captura de la cara - Yes
• Protección perimetral - Line crossing detection, intrusion detection, region entrance detection, region exiting detection Supports human and vehicle targets classification

• General
• Método de enlace - Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning, strobe light
• Idioma del cliente web - 33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• Función general - Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
• Reinicio de software - Yes
• Versión de firmware - V5.5.112
• Condiciones de almacenaje - -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Condiciones de inicio y funcionamiento - -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Fuente de alimentación - 12 VDC ± 25% PoE: 802.3at, Class 4
• Power Consumption and Current - 12 VDC, 1.21 A, max. 14.5 W PoE (802.3at, 42.5 V to 57 V), 0.43 A to 0.32 A, max. 18 W
• Interfaz de energía - Two-core terminal block
• Material de la cámara - Aluminum alloy body
• Dimensión de la cámara - Ø144.1 mm × 342.7 mm (Ø5.7" × 13.6")
• Dimensión del paquete - 385 mm × 190 mm × 180 mm (15.2" × 7.5" × 7.1")
• Peso de la cámara - Approx. 1450 g (3.2 lb.)
• Con peso del paquete - Approx. 2541 g (5.7 lb.)

• Certificaciones
• EMC - FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
• Seguridad - UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014 ); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014 )
• Ambiente - CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
• Protección - IP66 (IEC 60529-2013), IK10 (IEC 62262:2002)
