Domo PTZ IP Hikvision DS-2DE2204IW-DE3 2MP IR30m 3.6-8.6mm Zoom4x H264+ POE SD Audio Alarmas

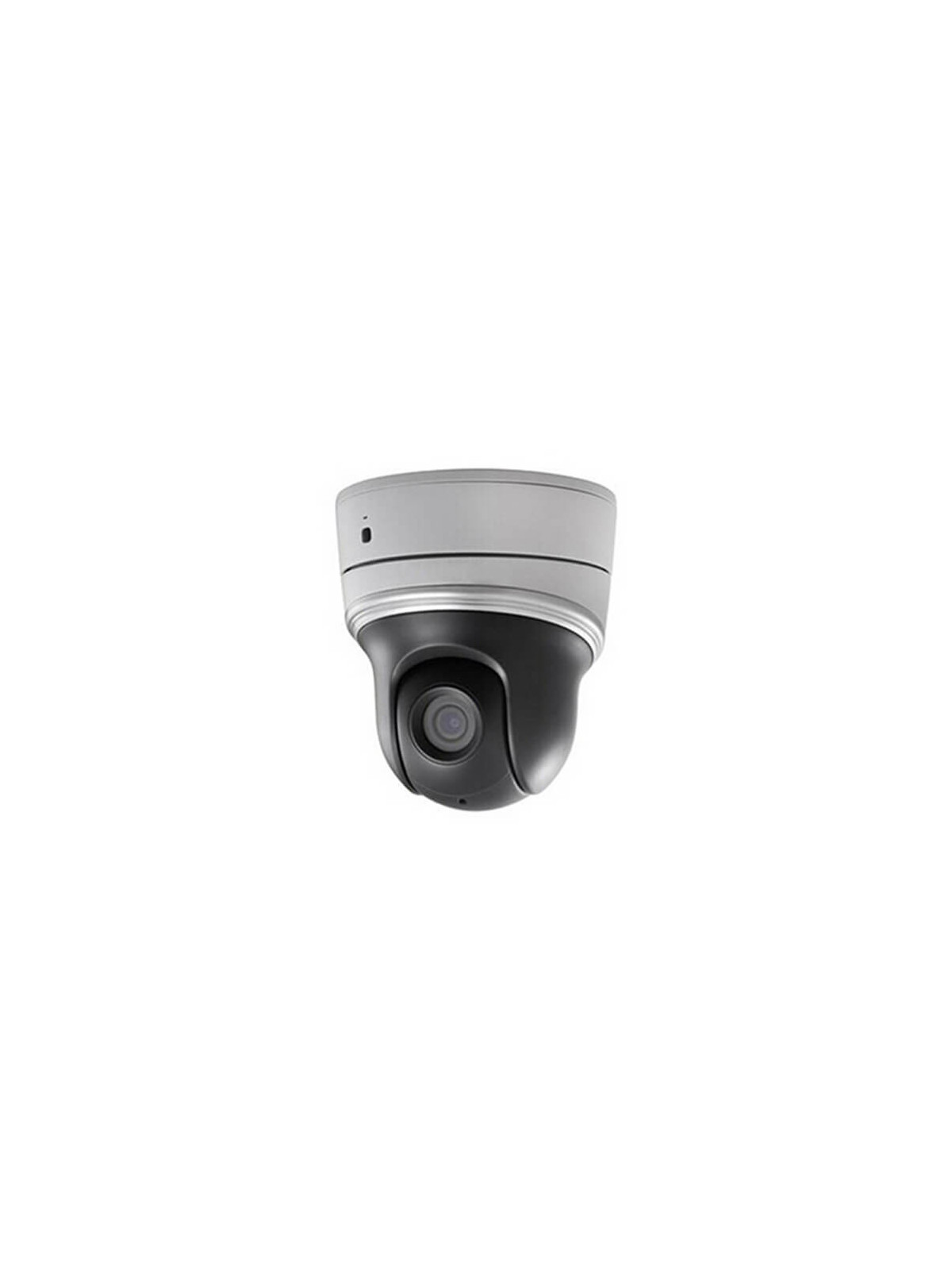

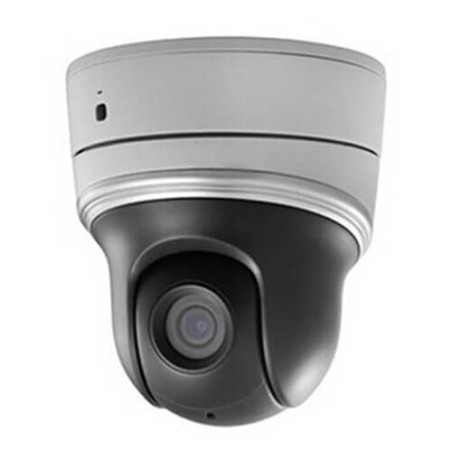

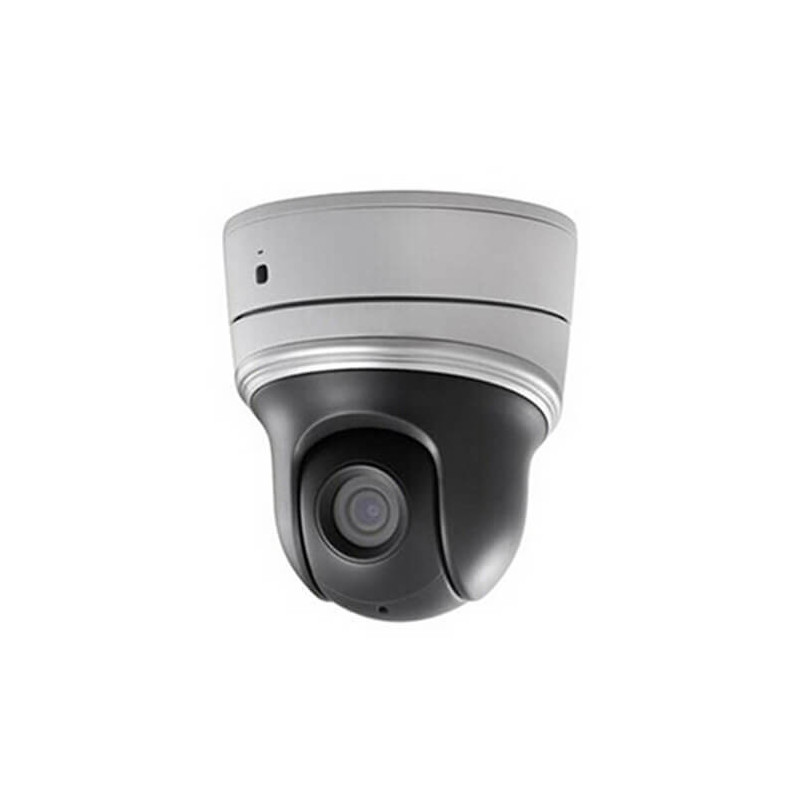

Domo mini PTZ IP SMART IR de Hikvision, de 2MP de resolución (1920x1080) 25IPS. Zoom óptico x4, y LEDs IR de 30 metros de alcance.
- Sensor CMOS 1/2.8”.
- con conmutación día/noche mecánica.
- sensibilidad: 0,05 Lux color / 0,005 Lux B/N. Incluye LEDS IR, tecnología SMART IR con alcance hasta 30m.
- Uso interior.
- Alimentación 12VDC/750mA. / POE (802.3af Fuente no incluida).
- Dimensiones: 125 x 137,2mm.
- Función PTZ:
Giro 0º- 350º, inclinación -0°~ 90°.
Velocidad manual de 60 ° / s y 50 ° / s de inclinación.
300 presets programables.
8 patrullas, hasta 32 presets por patrulla.
- Otras especificaciones:
Máscaras de privacidad: 8
Triple streaming, Servidor Web integrado (IE7+, Firefox5.0)
Detección d: movimiento, intrusión, cruce de línea, excepción audio.
ROI, AGC, balance blancos, HLC/BLC, 3D-DNR, WDR Digital.
Hasta 20 usuarios simultáneos
Compatible con ONVIF, PSIA, CGI
NAS. Acepta Tarjeta SD Max 128GB (No incluida)
|
|
Características técnicas |
- Lente
- FOV - Horizontal field of view: 94.5° to 38° (wide-tele)
Vertical field of view: 52° to 21.5° (wide-tele)
Diagonal field of view: 110° to 44° (wide-tele)
- Velocidad del Zoom - Approx. 2 s (optical lens, wide-tele)
- Distancia de trabajo - 10 mm to 1500 mm (wide-tele)
- Rango de apertura - F1.8 to F2.5
- Longitud focal - 2.8 mm to 12 mm, 4× optical zoom
- Imagen
- Mejora de la imagen - HLC/BLC/3D DNR/Defog/EIS/Regional Exposure/Regional Focus
- Sub-stream - 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
- Max. Resolución - 1920 × 1080
- Main stream - 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
- Third Stream - 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
- Red
- Almacenamiento en red - Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 128 GB; NAS (NPS, SMB/ CIPS), ANR
- Protocolos - IPv4/IPv6, HTTP, HTTPS, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
- API - Open-ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party Management Platform
- Vista en vivo simultánea - Up to 20 channels
- Usuario/operador - Up to 32 users. ,3 levels: Administrator, Operator and User
- Cliente - iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
- Navegador web - IE8+, Chrome31.0-44, Firefox30.0-51, Safari8.0+
- Medidas de seguridad - User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IP address filtering
- Enlace de alarma - Alarm actions, such as Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.
- Wi-Fi - Support
- Interfaz
- Salida de alarma - 1-ch alarm output
- Entrada de alarma - 1-ch alarm input
- Entrada de Audio - 1-ch audio input
- Salida de audio - 1-ch audio output
- Interfaz de red - 1 RJ45 10 M/100 M Ethernet Interface; PoE (802.3af, class3)
- Compresión estándar
- H.264 + - Support
- H.265 + - Support
- Tipo H.264 - Baseline Profile/Main Profile/High Profile
- Compresión de vídeo - Main Stream: H.265+/H.265/H.264+/H.264,Sub-Stream: H.265/H.264/MJPEG,Third Stream: H.265/H.264/MJPEG
- Tipo H.265 - Main Profile
- Vídeo bitrate - 32 Kbps to 16384 Kbps
- SVC - Support
- Módulo de cámara
- AGC - Auto/Manual
- Sensor de imagen - 1/2.8" progressive scan CMOS
- Iluminación mínima - Color: 0.05 Lux @(F2.0, AGC ON),B/W: 0.005 Lux @(F2.0, AGC ON),0 Lux with IR
- Balance de blancos - Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
- Tiempo de obturación - 1/1 s to 1/10,000 s
- Día y Noche - IR Cut Filter
- Zoom Digital - 4×
- Máscara de privacidad - 8 programmable privacy masks
- Modo de enfoque - Auto/Semi-automatic/Manual
- Digital WDR - Support
- Luz suplementaria
- Distancia IR - Up to 20 m
- Intesidad IR - Automatically adjusted, depending on the zoom ratio
- PTZ
- Rango de movimiento (pan) - 350°
- Velocidad de movimiento horizontal (pan) - Configurable, from 0.1°/s to 60°/s,Preset Speed: 60°/s
- Rango de movimiento (tilt) - From 0° to 90°
- Velocidad de vertical (tilt) - Configurable, from 0.1°/s to 50°/s,Preset Speed: 50°/s
- Zoom proporcional - Support
- Preajustes - 300
- Escaneo de patrulla - 8 patrols, up to 32 presets for each patrol
- Patrón de escaneo - 4 pattern scans, record time over 10 minutes for each scan
- Memoria de apagado - Support
- Acción del parque - Preset/Patrol Scan
- Pantalla de estado de PTZ - Support
- Congelación preestablecida - Support
- Tarea programada - Preset/Patrol /Dome Reboot/Dome Adjust/Aux Output
- Características inteligentes
- Basic Event Detection - Motion Detection, Video Tampering Detection
- Smart Detection - Intrusion Detection, Line Crossing Detection, Audio Exception Detection
- ROI - Main stream, sub-stream and third stream respectively support two fixed areas.
- General
- Material - ADC12 PC PC+ABS SUS304 POM
- Dimensiones - Φ 125 mm × 136.7 mm (Φ 4.92" × 5.38")
- - Approx. 0.65 kg (1.43 lb)
- Nivel de protección - TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection
- alimentación - DC 12V, 1.0 A, and PoE (802.3af), 36 to 57 VDC, 0.35 A, Class3
Max.: 9W, including max. 4W for IR
- Temperatura de trabajo - Working Temperature: -10°C to 50°C (14°F to 122°F)
- Condiciones de Humedad - Working Humidity: ≤ 90%
|
|
|
