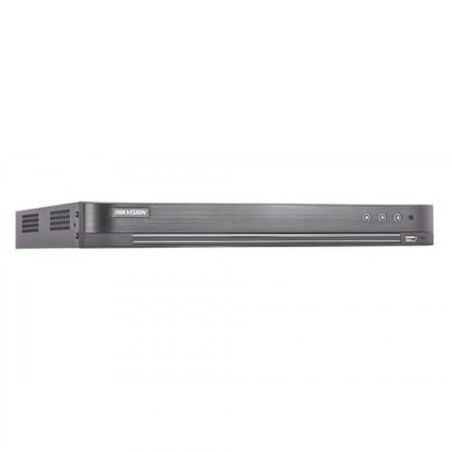

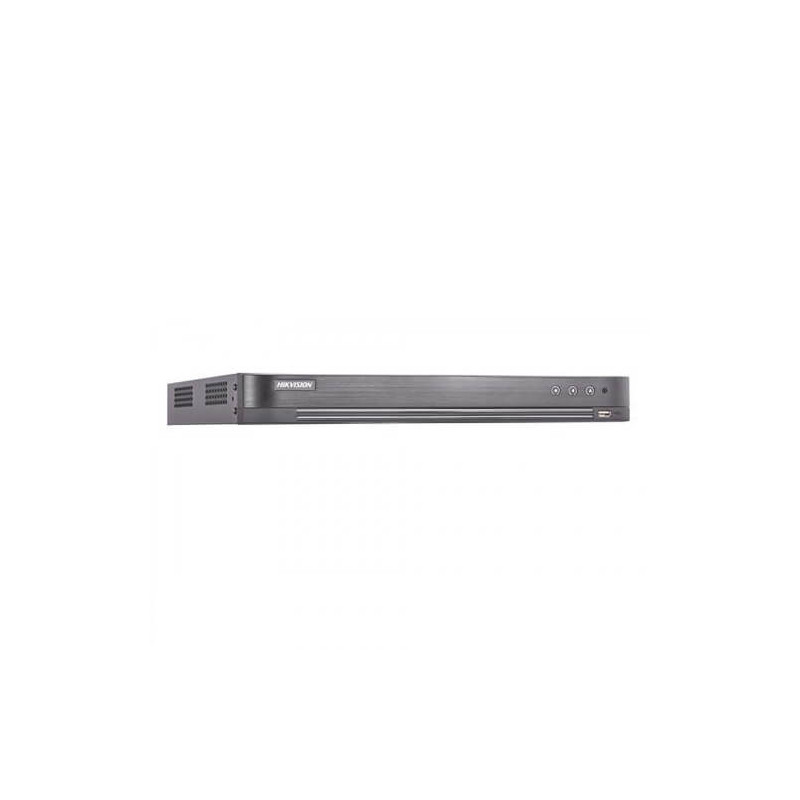

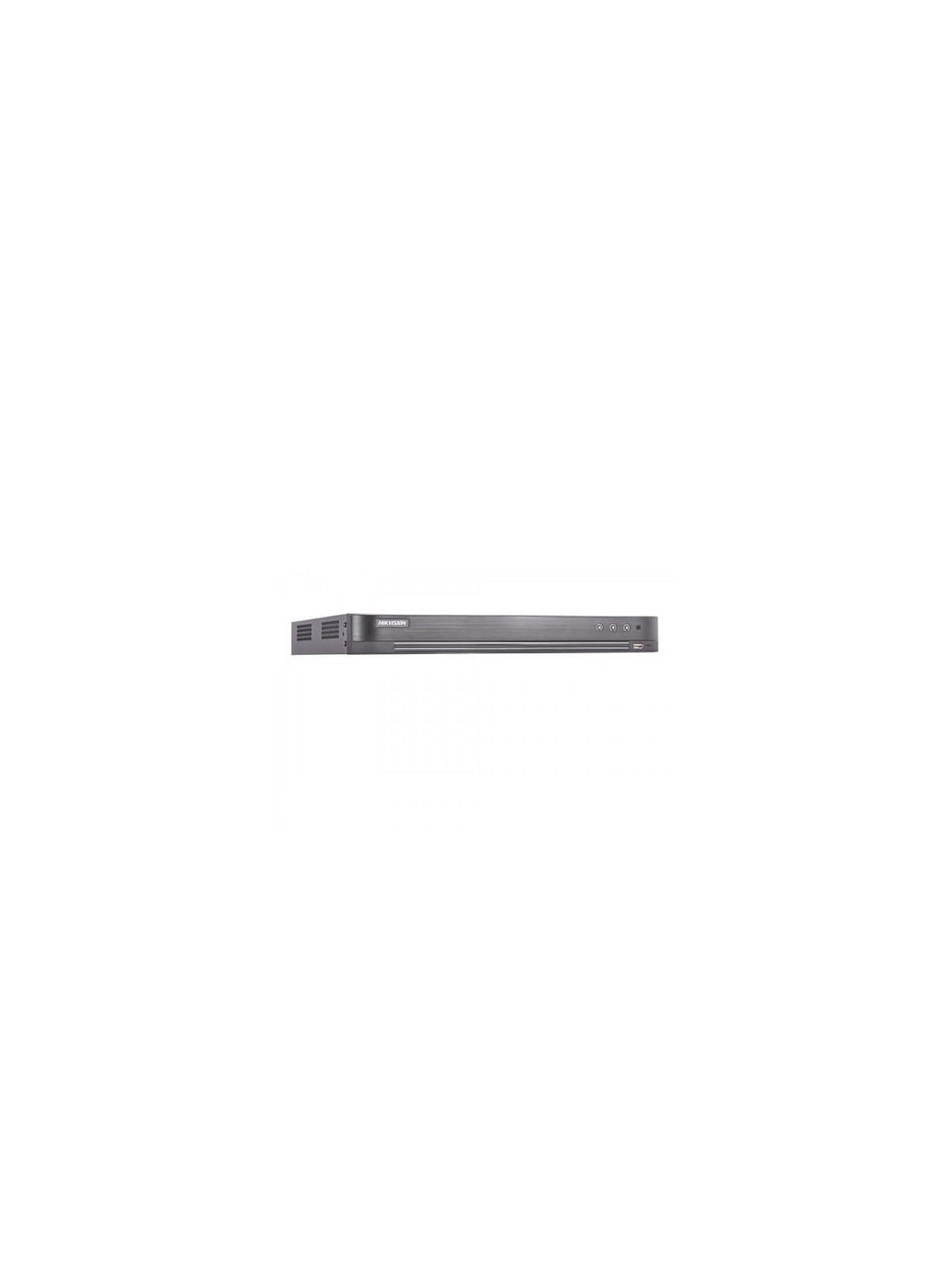

Grabador 5en1 Hikvision iDS-7216HUHI-M2/S/A 16ch Video (8MP/5MP) 16ch IP 1ch Audio H265+ HDMI SATAx2 Alarmas Acusense
16-ch 5 MP 1U H.265 AcuSense DVR
- Deep learning-based motion detection 2.0 for all analog channels
- Deep learning-based perimeter protection
- Efficient H.265 pro+ compression technology
- Encoding abilty up to 8 MP @ 8 fps, 5 MP @ 12 fps
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
- Up to 32 network cameras can be connected
|
|
| Características técnicas |
- Detección de movimiento 2.0
- Human/Vehicle Analysis - Deep learning-based motion detection 2.0 is enabled by default for all analog channels,
it can classify human and vehicle, and extremely reduce false alarms caused by objects
like leaves and lights;
Quick search by object or event type is supported;
- Protección perimetral
- Human/Vehicle Analysis - Up to 4-ch
- Recording
- Compresión de vídeo - H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Resolución de codificación - Main stream:
8 MP@8 fps/5 MP@12 fps/3K@12 fps/4MP@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
Sub-stream:
WD1/4CIF/CIF@25 fps (P)/30 fps (N)
- Vídeo bitrate - 32 Kbps to 10 Mbps
- Doble flujo - Support
- Stream Type - Video, Video & Audio
- Compresión de audio - G.711u
- Audio Bitrate - 64 Kbps
- Video and Audio
- Entrada de vídeo IP - 8-ch (up to 24-ch)
Enhanced IP mode on: 16-ch (up to 32-ch), each up to 4 Mbps
Up to 8 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
- Entrada de video analógico - 16-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- HDMI Output - 1-ch, 4K (3840 × 2160)/30Hz,
2K (2560 × 1440)/60Hz,
1920 × 1080/60Hz,
1280 × 1024/60Hz,
1280 × 720/60Hz,
1024 × 768/60Hz
HDMI/VGA simultaneous output
- VGA Output - 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI/VGA simultaneous output
- CVBS Input - PAL/NTSC
- CVBS Output - 1-ch, BNC (1.0 Vp-p, 75 Ω),
resolution: PAL: 704 × 576, NTSC: 704 × 480
- Reproducción síncrona - 16-ch
- HDTVI Input - 8 MP@15 fps, 5 MP@20 fps, 3K@20 fps, 4
MP@30 fps, 4 MP@25 fps, 3 MP@18 fps,
1080p@30 fps, 1080p@25 fps, 720p@60 fps,
720p@50 fps, 720p@30 fps, 720p@25 fps
- AHD Input - 5 MP, 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
- HDCVI Input - 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
- Salida de audio - 1-ch, RCA (Linear, 1 KΩ)
- Entrada de Audio - 1-ch (up to 16-ch is optional), RCA (2.0 Vpp,1 KΩ)
16-ch via coaxial cable
- Two-Way Audio - 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input)
- Red
- Protocolo de red - TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
- Conexión remota - 128
- Interfaz de red - 1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface
- Wi-Fi - Wi-Fi Connectable to Wi-Fi network by Wi-Fi dongle through USB interface
- Auxiliary Interface
- SATA - 2 SATA interfaces
- Capacidad - Up to 10 TB capacity for each disk
- Interfaz de serie - RS-485 (half-duplex)
- Interfaz USB - Front panel: 1 × USB 2.0
Rear panel: 1 × USB 3.0
- Alarma E/S - N/A (optional to support)
- General
- Fuente de alimentación - 12 VDC, 5 A
- Consumo - ≤ 19 W
- Temperatura de trabajo - -10 °C to +55 °C (+14 °F to +131 °F)
- Condiciones de Humedad - 10% to 90%
- Dimensión (W × D × H) - 380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
- - ≤ 2.1 kg (4.6 lb)
|
|
|
