| Descripción |
|

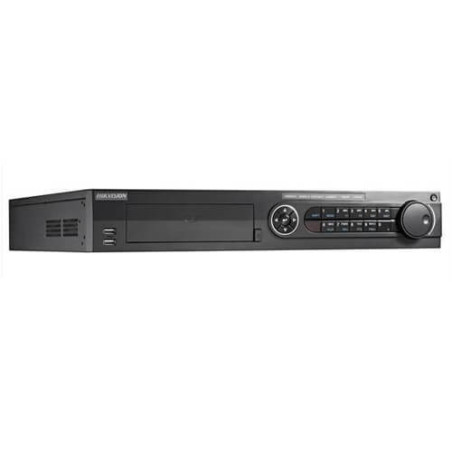

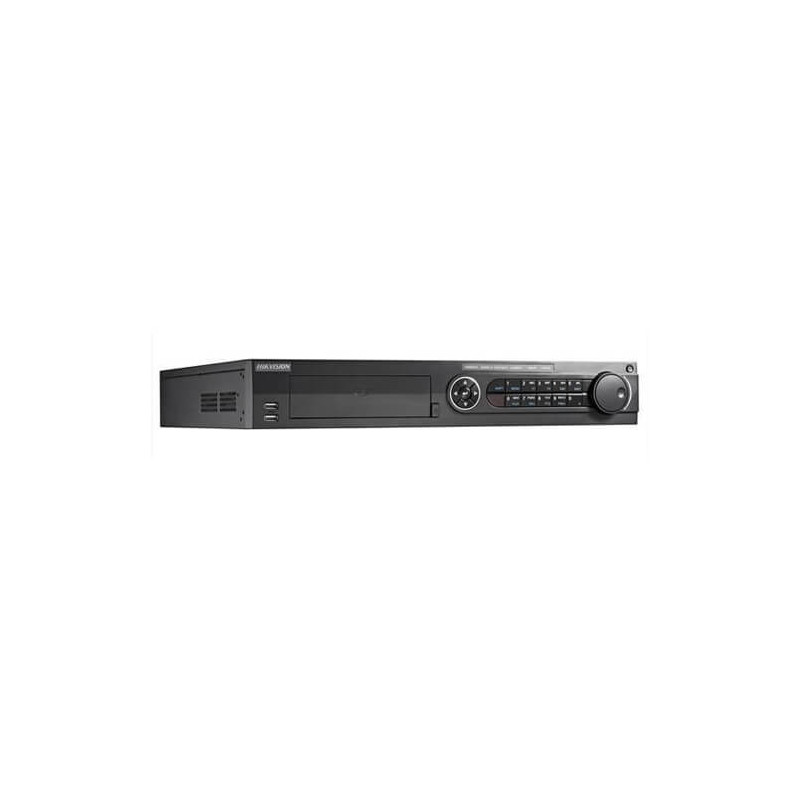

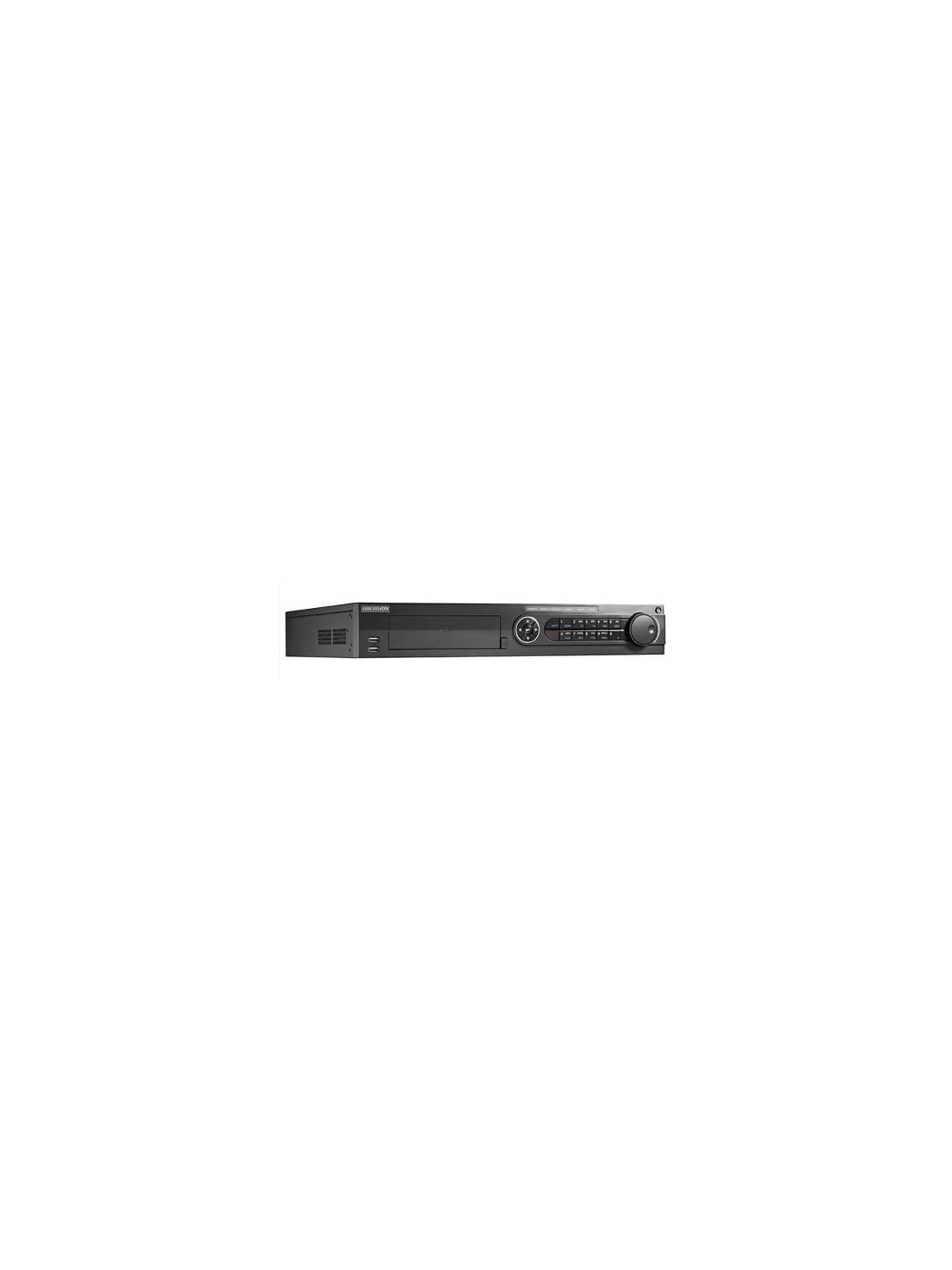

Grabador 5en1 Hikvision DS-7324HUHI-K4 24ch Video (8MP/5MP) 16ch IP 8MP 4ch Audio H265+ HDMI4Kx2 SATAx4 Alarmas
Grabador Digital 8MP Hikvision 24 entradas video BNC. Cámaras HD -TVI, AHD/CVI , CVBS y 16 cámaras IP (hasta 40). Soporta analítica de vídeo. Soporta POS. Admite 4HDD.
- 24 channels and 4 HDDs 1.5U DVR
- Efficient H.265 pro+ compression technology
- Encoding ability up to 8 MP @ 8 fps, 5 MP @ 12 fps
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
- Up to 40 network cameras can be connected
- Supports POS triggered recording and POS information overlay
- Supports RAID mode for even more reliable data storage, effectively avoiding data loss risks
|
|
| Características técnicas |
- Video and Audio
- Entrada de vídeo IP - 16-ch (up to 40-ch);Up to 6 MP resolution;Support H.265+/H.265/H.264+/H.264 IP cameras
- Entrada de video analógico - 24-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- HDMI 1 Output - 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- HDMI 2 Output - 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- CVBS Input - PAL/NTSC
- CVBS Output - 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
- Reproducción síncrona - 16-ch
- HDTVI Input - 8 MP, 5 MP, 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60
- AHD Input - 5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30
- HDCVI Input - 4 MP, 1080p25, 1080p30, 720p25, 720p30
- Salida de audio - 1-ch, RCA (Linear, 1 KΩ)
- Entrada de Audio - 4-ch, RCA (2.0 Vp-p, 1 KΩ)
- Two-Way Audio - 1-ch, RCA (2.0 Vp-p, 1 KΩ) (independent)
- Recording
- Compresión de vídeo - H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Resolución de codificación - 8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
- Frame Rate - Main stream:,8 MP@8fps/5 MP@12fps; 4 MP@15fps; 3 MP@18fps;,1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N),Sub-stream:,WD1/4CIF/CIF@25fps (P)/30fps (N),
- Vídeo bitrate - 32 Kbps to 6 Mbps
- Doble flujo - Support
- Stream Type - Video, Video & Audio
- Compresión de audio - G.711u
- Audio Bitrate - 64 Kbps
- Red
- Protocolo de red - TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, SNMP
- Conexión remota - 128
- Interfaz de red - 2, RJ45 10M/100M/1000M self-adaptive Ethernet interface
- Auxiliary Interface
- SATA - 4 SATA interfaces
- eSATA - Support
- Capacidad - Up to 10 TB capacity for each disk
- Interfaz de serie - RS-232, RS-485 (full-duplex), Keyboard
- Interfaz USB - Front panel: 2 × USB 2.0,Rear panel: 1 × USB 3.0,
- Alarma E/S - 16/4
- General
- Fuente de alimentación - 100 to 240 VAC
- Consumo - ≤ 74 W
- Temperatura de trabajo - -10 °C to +55 °C (+14 °F to +131 °F)
- Condiciones de Humedad - 10% to 90%
- Dimensión (W × D × H) - 440 × 390 × 70 mm (17.3 × 15.4 × 2.8 inch)
- - ≤ 7 kg (15.4 lb)
|
|
|
