| Descripción |
|

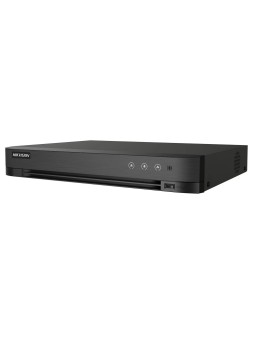

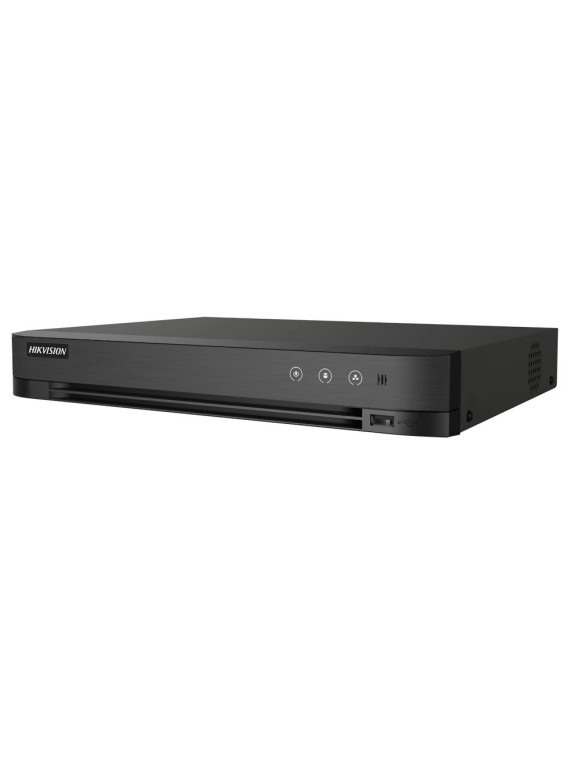

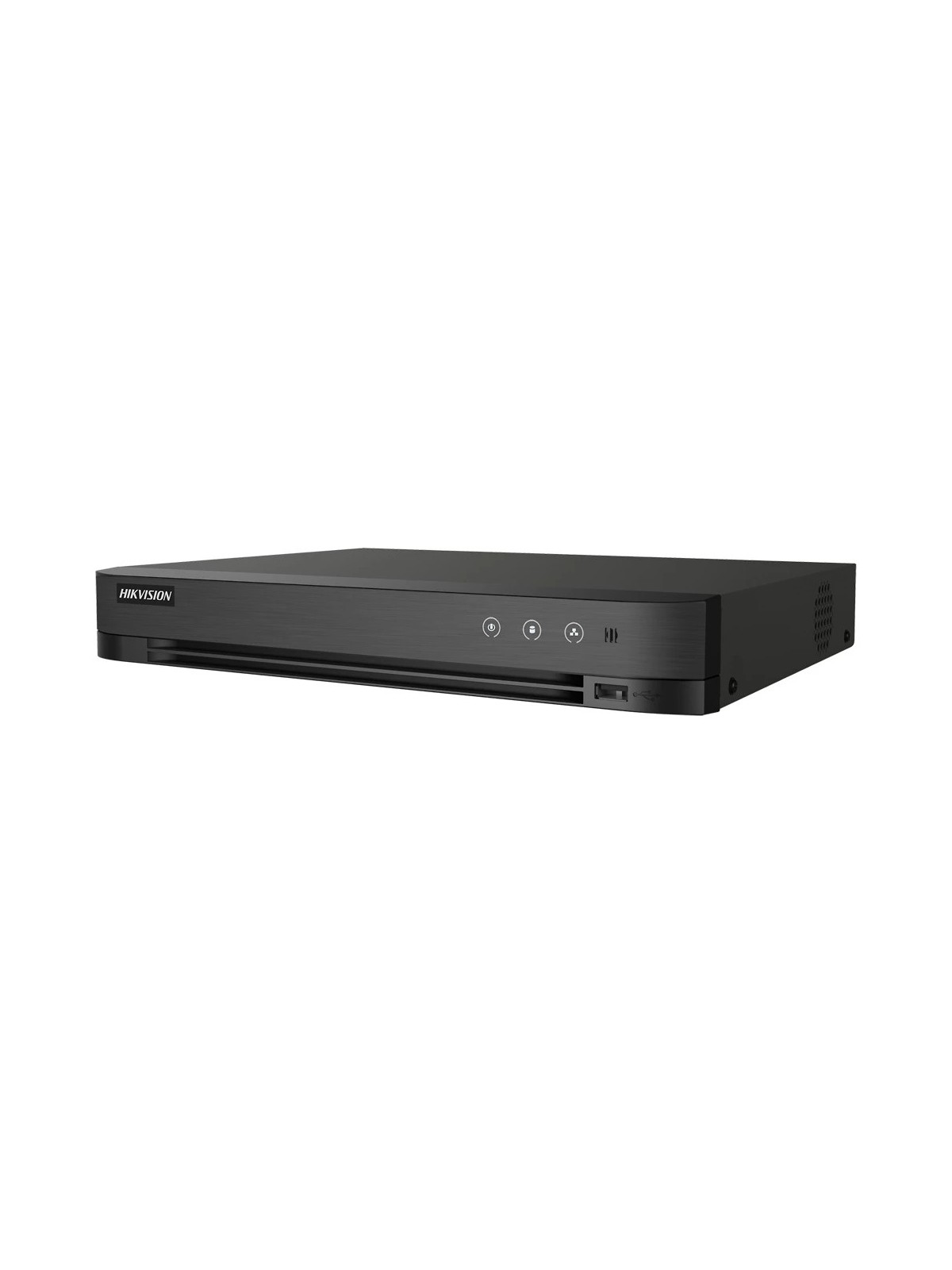

Grabador 5en1 Hikvision iDS-7208HQHI-M1/S 4ch Video (4MPLite) 4ch IP 1ch Audio H265+ HDMI SATAx1 Acusense
Grabador digital Hikvision 8 entradas con 4 canales Acusense (detección inteligente de personas y/o vehículos) o 1 canal de captura facial (en cámaras HD). Cámaras HD -TVI, AHD/CVI , CVBS y 4 cámaras IP (hasta 12). Admite 1HDD.
- 8 channels and 1 HDD 1U AcuSense DVR
- False alarm reduction through human and vehicle target classification based on deep learning
- Efficient H.265 pro+ compression technology
- Encoding ability up to 1080p @ 15 fps
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
- Up to 12 network cameras can be connected.
|
|
| Características técnicas |
- Video and Audio
- Entrada de vídeo IP - 2-ch (up to 10-ch)
Up to 6 MP resolution
Enhanced IP mode on:
4-ch (up to 12-ch), each up to 4 Mbps
Support H.265+/H.265/H.264+/H.264 IP cameras
- Entrada de video analógico - 8-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- HDMI Output - 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,
1024 × 768/60Hz, HDMI/VGA simultaneous output
- CVBS Input - PAL/NTSC
- CVBS Output - 1-ch, BNC (1.0 Vp-p, 75 Ω),
resolution: PAL: 704 × 576, NTSC: 704 × 480
- Reproducción síncrona - 8-ch
- HDTVI Input - 4 MP, 3 MP, 1080p30, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps
*: The 3 MP signal input is only available for channel 1 of iDS-7204HQHI-M1/S, for channel 1/2 of iDS-7208HQHI-M1/S, and for channel 1/2/3/4 of iDS-7216HQHI-M1/S.
- AHD Input - 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
- HDCVI Input - 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
- Salida de audio - 1-ch, RCA (Linear, 1 KΩ)
- Entrada de Audio - 1-ch, RCA (2.0 Vp-p, 1 KΩ)，8-ch via coaxial cable
- Two-Way Audio - 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
- Recording
- Compresión de vídeo - H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Resolución de codificación - Main stream:
When 1080p lite mode not enabled:
For 4 MP stream access:
4 MP lite@15 fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15 fps
For 1080p stream access:
1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
When 1080p Lite mode enabled:
4 MP lite/3 MP@15 fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
Sub-stream:
WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N)
- Vídeo bitrate - 32 Kbps to 6 Mbps
- Doble flujo - Support
- Stream Type - Video, Video & Audio
- Compresión de audio - G.711u
- Audio Bitrate - 64 Kbps
- Red
- Protocolo de red - TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
- Conexión remota - 64
- Interfaz de red - 1, RJ45 10M/100M self-adaptive Ethernet interface
- Auxiliary Interface
- SATA - 1 SATA interface
- Capacidad - Up to 10 TB capacity for each disk
- Interfaz de serie - RS-485 (half-duplex)
- Interfaz USB - 2 × USB 2.0
- Alarma E/S - N/A
- General
- Fuente de alimentación - 12 VDC
- Consumo - ≤ 18 W
- Temperatura de trabajo - -10 °C to +55 °C (+14 °F to +131 °F)
- Condiciones de Humedad - 10% to 90%
- Dimensión (W × D × H) - 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
- - ≤ 1.78 kg (3.9 lb)
|
|
|
