| Descripción |
|

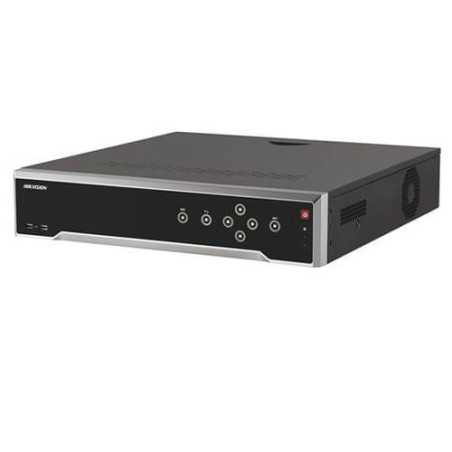

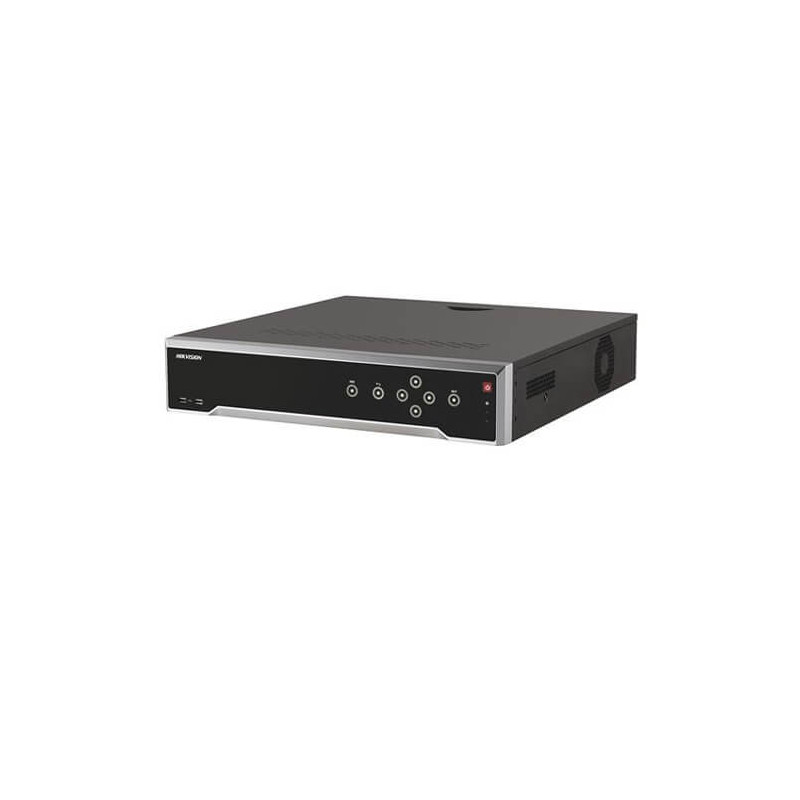

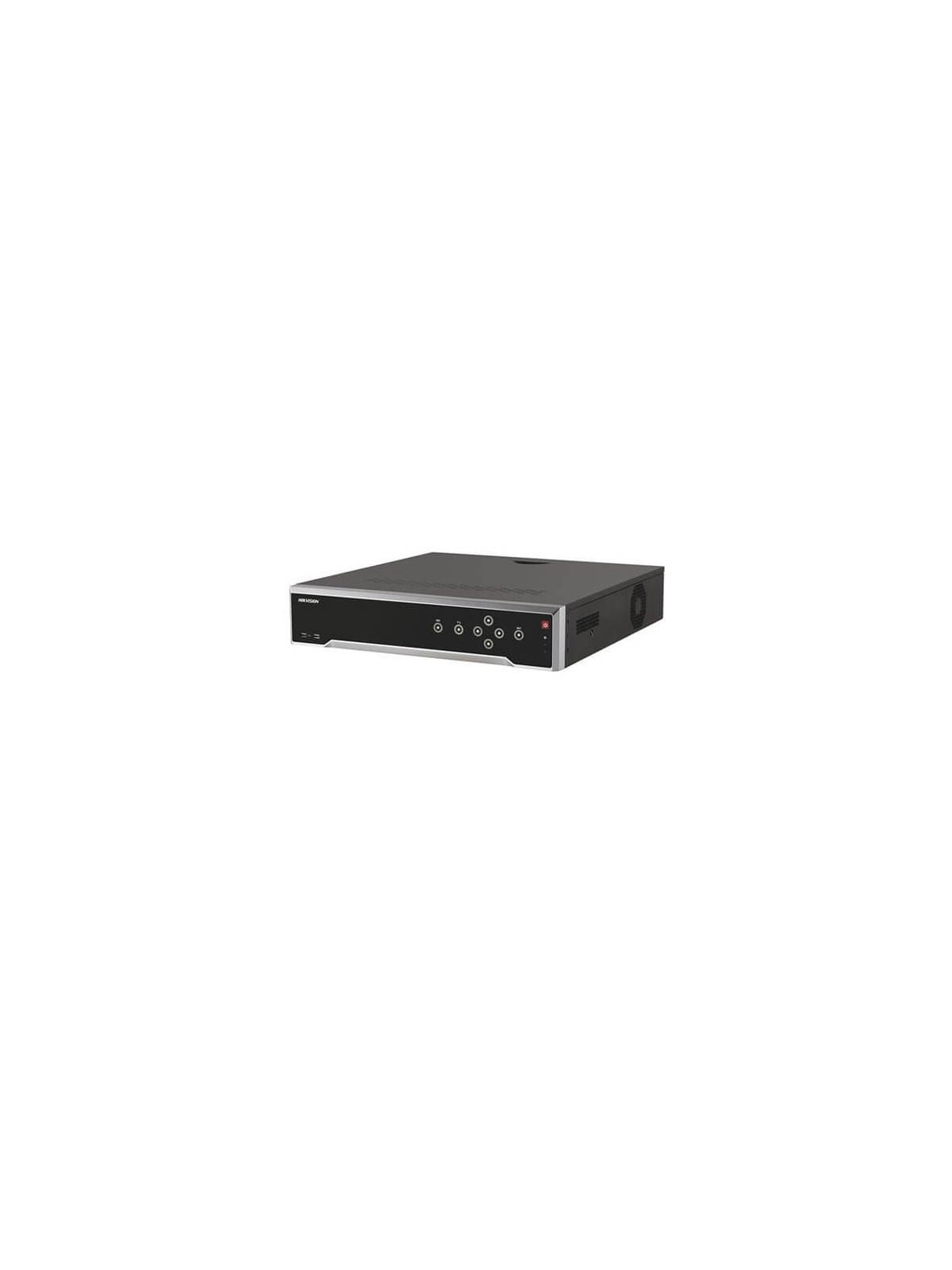

Grabador NVR Hikvision DS-7708NI-I4 8ch 12MP 80Mbps H265+ HDMI4K LANx2 SATAx4 Alarmas
Grabador en red para 8 cámaras IP de resolución hasta 12MP Soporta codificación H.265+ / H.265 / H.264+ / H.264 / MPEG4 / MJPEG.
-Ancho de banda de entrada 80Mbps, capacidad de transmisión 256Mbps y 32 conexiones remotas.
-Capacidad de visualización 2 canales a 4K (8 Mpx) o 8 canales a 1080P .
-Hasta 12 MP de resolución para la grabación.
-Salidas de monitor HDMI y VGA, resolución HDMI hasta 4K (3840 × 2160).
-Reproducción sincronizada de 8 canales.
-2 tarjetas de red RJ45 10/100/1000 Mbps.
-1 x puerto RS485 para domos
-1 x puerto USB para teclado DS-1005KI
-1 x puerto RS232
-1 x puerto USB 3.0, 2 x puerto USB 2.0.
-Capacidad para 4 HDD 6TB no incluidos.
-Alarmas: 16 entradas y 1 salida. Audio: 1 entrada y 1 salida
-Dimensiones: 385x315x44.45mm, chasis rack 19” 1U.
|
|
| Características técnicas |
- IP video input - 8-ch Up to 12 MP resolution
- Video resolution - 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF
- Incoming/outgoing bandwidth - 80 Mbps 256 Mbps
- HDMI output - 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- VGA output - 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- CVBS output - 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
- Audio output - 1-ch, RCA (Linear, 1 KΩ)
- Two-way audio input - 1-ch, RCA (2.0 Vp-p, 1 k Ω)
- Decoding format - H.265/H.265+/H.264/H.264+/MPEG4
- Recording resolution - 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF
- Synchronous playback - 8-ch
- Capability - 2-ch @ 12 MP (20fps) / 4-ch @ 8 MP (25fps) / 8-ch @ 4MP (30fps) / 16-ch @ 1080p (30fps)
- Remote connections - 32
- Network protocols - TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
- Network interface - 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
- SATA - 4 SATA interfaces for 4HDDs
- Capacity - Up to 6TB capacity for each HDD
- Serial port - 1 RS-485 (half-duplex), 1 RS-232
- USB interface - Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
- Alarm in/out - 16/4
- Power - ≤80 W
- Power supply - 100 to 240 VAC
- Consumption (without HDD) - ≤20 W
- Working temperature - -10 to +55º C (+14 to +131º F)
- Working humidity - 10 to 90 %
- Dimensions (W × D × H) - 445 × 400 ×71 mm ( 17.5"× 15.7" × 2.8")
- Weight (without hard disk) - ≤ 5 kg (11 lb)
- Chassis - 19-inch rack-mounted 1.5U chassis
|
|
|
