| Descripción |
|

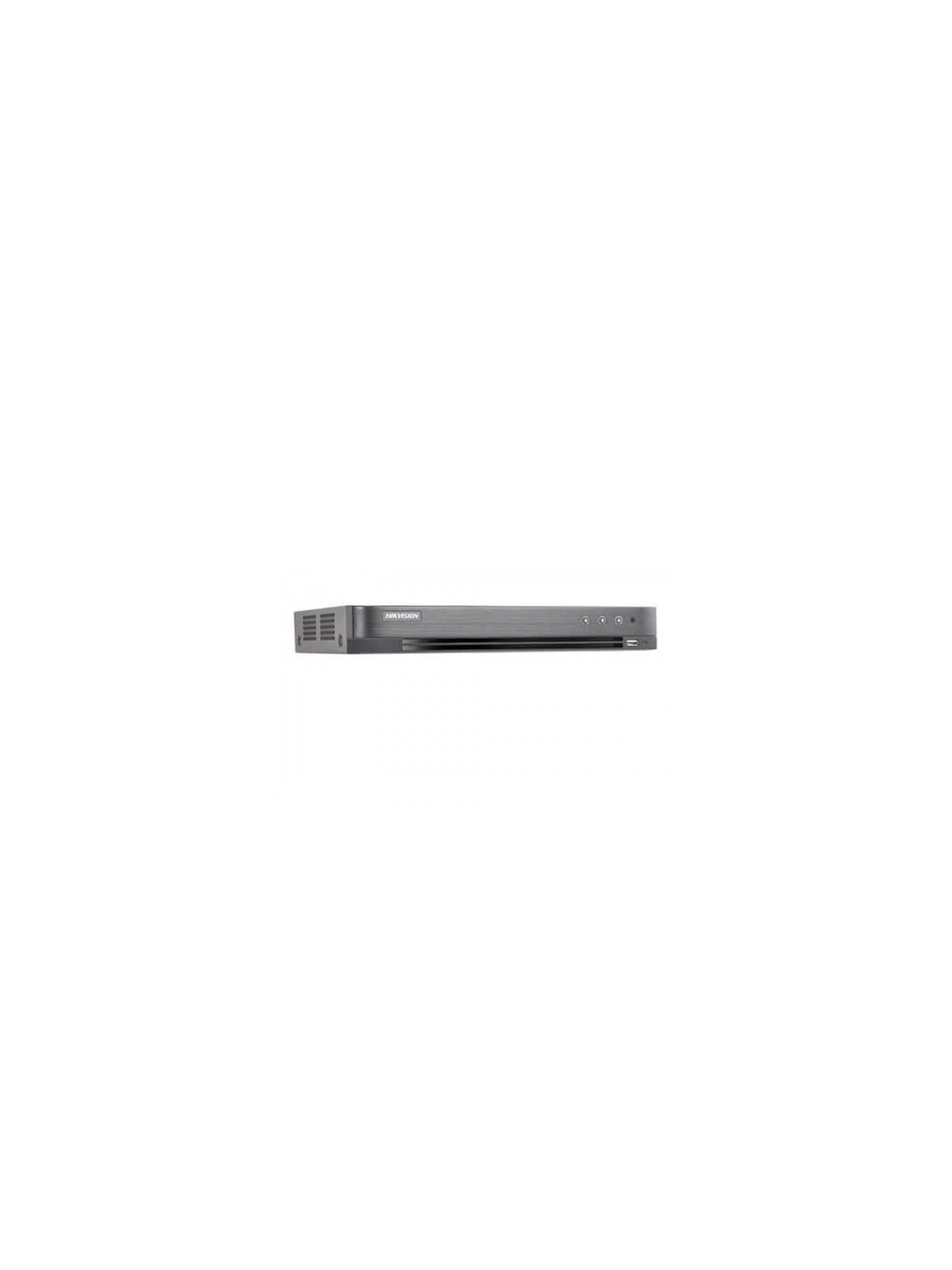

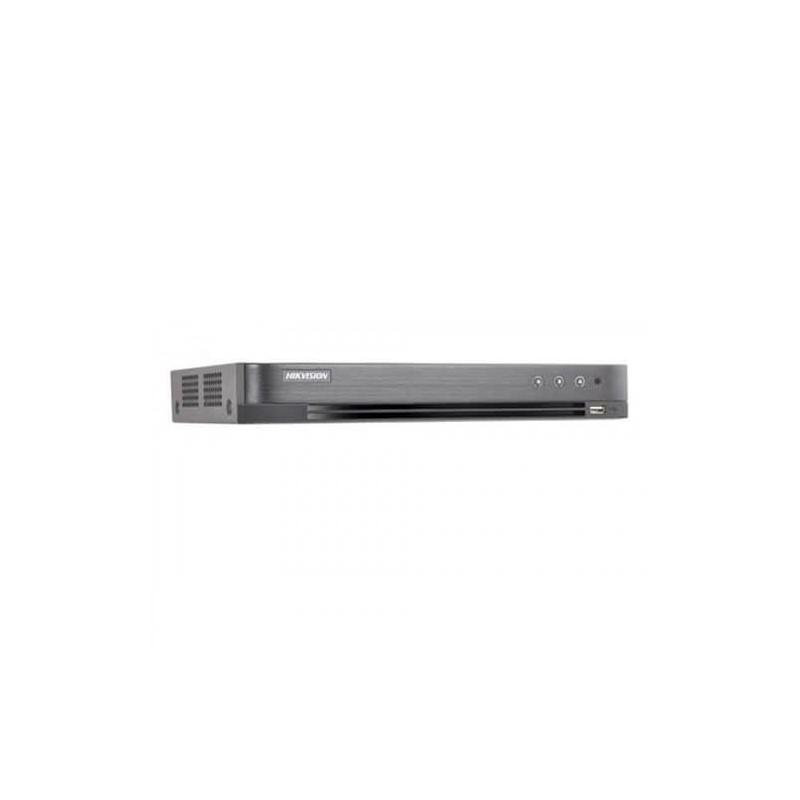

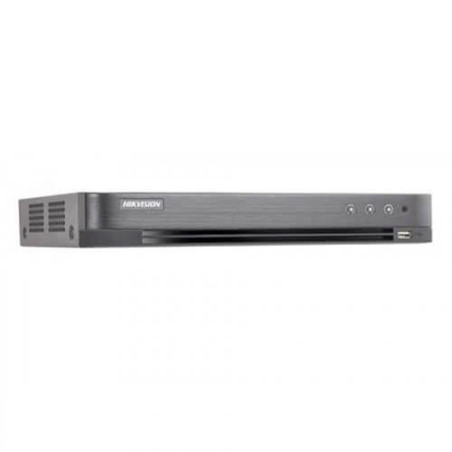

Grabador 5en1 Hikvision DS-7216HQHI-K1(S) 16ch Video (2MP 400fps) 2ch IP 1ch Audio H265+ HDMI SATAx1
Grabador DVR 16 Ch Hikvision Turbo HD 4.0 hasta 3Mpx + 2 canales IP hasta 4Mpx + Salida principal HDMI hasta 4K / VGA simultáneas y salida CVBS.
-Formato H.265+ / H.265 / H.264+ / H.264 y H.265 / H.264 para el flujo de cámaras analógicas.
-Entrada de señal autoadaptativa HDTVI / HDCVI / AHD / CVBS.
-Conectable a cámaras IP H.265+ / H.265 / H.264+ / H.264.
-Resolución de hasta 3 MP para grabación.
-Salida HDMI a una resolución de hasta 4K (3840 × 2160).
-Transmisión de larga distancia sobre UTP y cable coaxial.
-Reproducción simultánea de 16 canales.
-Capacidad para 1HDD de hasta 6TB.
|
|
| Características técnicas |
- Recording
- Video compression - H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Encoding resolution - When 1080p lite mode is not enabled: ,4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF,When 1080p Lite mode is enabled: ,4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF,
- Frame rate - Main stream:,When 1080p Lite mode not enabled: ,For 4 MP stream access:,4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) ,For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps,For 1080p stream access: ,1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),When 1080p Lite mode enabled: ,4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),Sub-stream: ,WD1/4CIF@12fps; CIF@25fps (P)/30fps (N),Sub-stream: ,WD1/4CIF@12fps; CIF@25fps (P)/30fps (N),
- Video bit rate - 32 Kbps to 6 Mbps
- Dual stream - Support
- Stream type - Video, Video & Audio
- Audio compression - G.711u
- Audio bit rate - 64 Kbps
- Video and Audio
- IP video input - 8-ch (up to 24-ch) Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
- Analog video input - 16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- AHD input - 4 MP, 1080p25, 1080p30, 720p25, 720p30
- HDCVI input - 1080p25, 1080p30, 720p25, 720p30
- CVBS input - PAL/NTSC
- Audio input - 1-ch, RCA (2.0 Vp-p, 1 KΩ)
- Audio output - 1-ch, RCA (Linear, 1 KΩ)
- Two-way audio - 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
- Synchronous playback - 16-ch
- HDTVI input - 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25,*: The 3 MP signal input is only available for channel 1 of DS-7204HQHI-K1, for channel 1/2 of DS-7208HQHI-K1, and for channel 1/2/3/4 of DS-7216HQHI-K1.,
- VGA/HDMI output - VGA: 1-ch, ,1920 × 1080/60Hz, 1280 × 1024/60Hz, ,1280 × 720/60Hz, 1024 × 768/60Hz,HDMI: 1-ch, ,4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, ,1280 × 720/60Hz, 1024 × 768/60Hz,
- CVBS output - 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
- Network
- Remote connections - 128
- Network protocols - TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
- Network interface - 1,,RJ45 10M/100M/1000M ,self-adaptive ,Ethernet interface,
- Auxiliary interface
- SATA - 1 SATA interface
- Capacity - Up to 10 TB capacity for each disk
- Alarm in/out - N/A
- USB interface - Front panel: 1 × USB 2.0 Rear panel: 1 × USB 3.0
- Serial interface - RS-485 (half-duplex)
- General
- Power supply - 12 VDC
- Working temperature - -10 °C to +55 °C (+14 °F to +131 °F)
- Working humidity - 10% to 90%
- Dimensions (W × D × H) - 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
- Weights (without HDD) - ≤ 2 kg (4.4 lb)
- Consumption
(without HDD) - ≤ 25 W
|
|
|
