| Descripción |
|

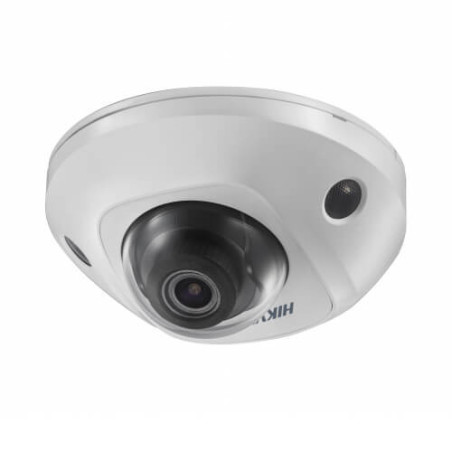

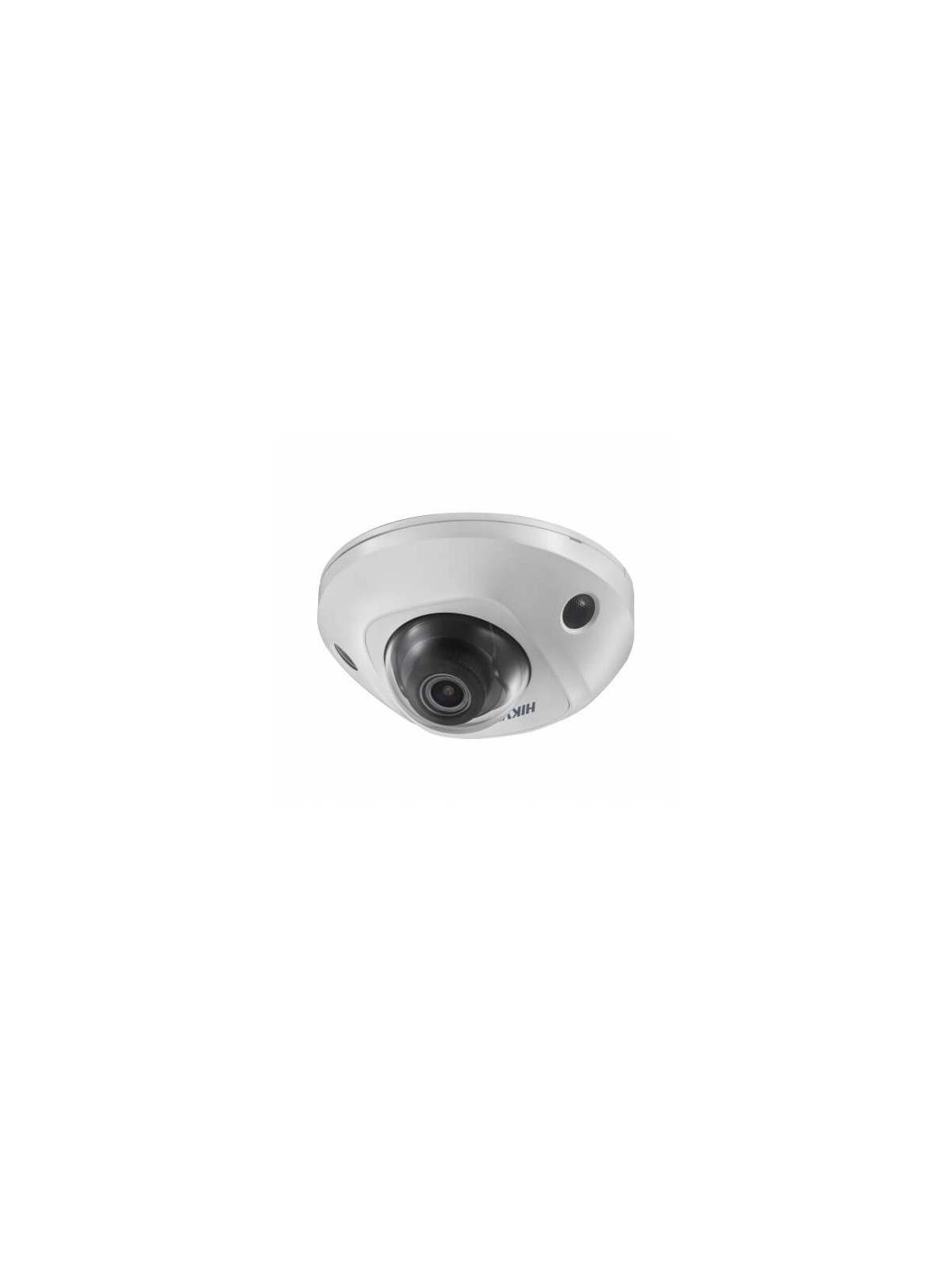

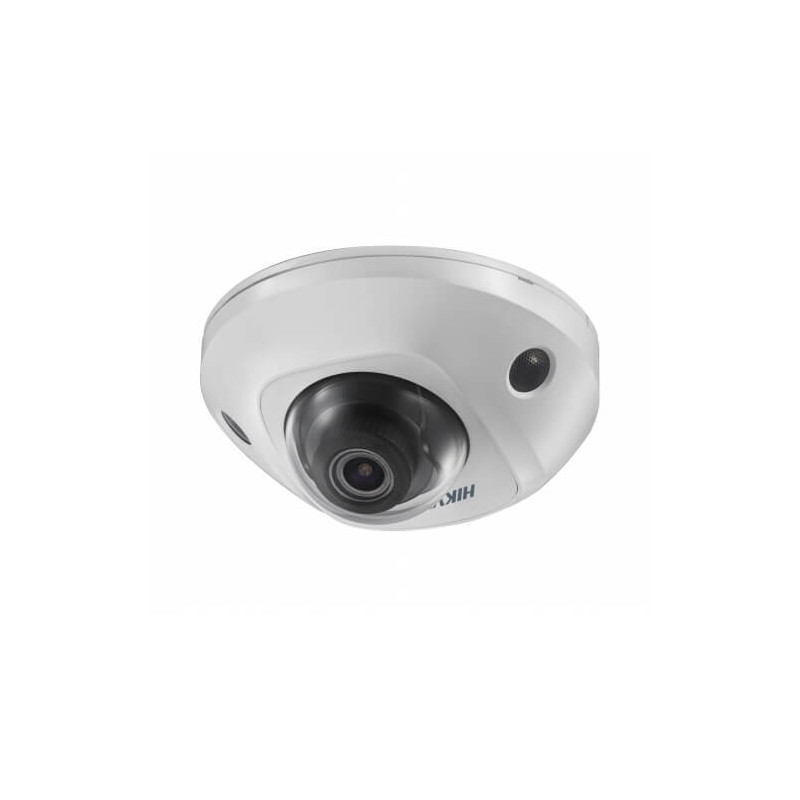

Domo IP Hikvision DS-2CD2543G0-IW 4MP PRO IR10m 2.8mm H265+ Wifi POE SD WDR
Mini cámara IP 4MP compacta wifi, día/noche con conmutación mecánica.
-Sensor CMOS 1/3" con escaneo progresivo.
-Óptica 2.8 mm. Sensibilidad: 0,01 lux (F1.2, AGC ON), 0 lux con IR. Incluye LEDS IR EXIR alcance 10m.
-Resolución 4 Megapixels. Ratio de imágenes 25IPS (2688 x 1520, 1920x1080, 1280x720).
-Formato de compresión H.265+, H.265, H.264 +, H.264 y MJPEG, triple flujo de vídeo, servidor web integrado, salida IP (Ethernet 10/100M). Compatible ONVIF,PSIA y CGI.
-Funciones WDR 120dB, 3D DNR, BLC, botón de reset.
-Detección SMART de cruce de línea, intrusión y detección de rostro básica.
-Detección de movimiento, tamper, desconexión de red, conflicto IP, excepción de grabación.
-Marca de agua.
-Wifi estandar 802.11b/g/n.
-Acepta tarjeta SD Max 128 GB (no incluida).
-Dimensiones 110x56.4 mm.
-Instalación exterior, protección IP66, antivandálica IK08.
|
|
| Características técnicas |
- Camera
- Image Sensor - 1/3" Progressive Scan CMOS
- Min. Illumination - Color: 0.018 lux @(F1.6, AGC ON), 0 lux with IR
- Shutter Speed - 1/3 s to 1/100,000 s
- Slow Shutter - Yes
- Wide Dynamic Range - 120 dB
- Day & Night - IR Cut Filter
- Angle Adjustment - Pan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360°
- Lens
- Lens Type - 2.8, 4, 6 mm
- FOV - 2.8 mm, horizontal FOV: 98°, vertical FOV: 55°, diagonal FOV: 114°
4 mm, horizontal FOV: 78°, vertical FOV: 42°, diagonal FOV: 93°
6 mm, horizontal FOV: 48°, vertical FOV: 27°, diagonal FOV: 54°
- Aperture - F1.6
- Lens Mount - M12
- Illuminator
- IR Range - Up to 10 m
- Wavelength - 850 nm
- Video
- Max. Resolution - 2688 × 1520
- Main Stream - 50Hz: 25 fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)
60Hz: 30 fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)
- Sub-Stream - 50Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)
- Third Stream - 50Hz: 25 fps (1280 × 720, 640 × 360, 352 × 288)
60Hz: 30 fps (1280 × 720, 640 × 360, 352 × 240)
- Video Compression - Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
- Video Bit Rate - 32 Kbps to 16 Mbps
- H.264 Type - Main Profile/High Profile
- H.265 Type - Main Profile
- H.264+ - Main stream supports
- H.265+ - Main stream supports
- Scalable Video Coding (SVC) - Support H.264 and H.265 encoding
- Audio
- Environment Noise Filtering - Yes
- Audio Sampling Rate - 16 kHz, 32kHz, 44.1kHz, 48kHz
- Audio Compression - G722.1/G711ulaw/G711alaw/G726/MP2L2/PCM
- Audio Bit Rate - 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
- Network
- Simultaneous Live View - Up to 6 channels
- API - ONVIF (PROFILE S, PROFILE G), ISAPI
- Protocols - TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
- User/Host - Up to 32 users. 3 levels: administrator, operator and user
- Network Storage - Support MicroSD/SDHC/SDXC card (128 GB), local storage and NAS (NFS, SMB/CIFS), ANR
- Client - Wired network: Hik-Connect, iVMS-4200, Hik-Central
Wi-Fi: iVMS-4200, Hik-Central
- Web Browser - Plug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11
Plug-in free live view: Chrome 45.0+, Firefox 52.0+
- Alarm Trigger - Motion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error, illegal login
- Wi-Fi
- Encryption Mode - WPA, WPA2
- Wi-Fi Protocol - IEEE 802.11b/g/n
- Frequency Range - 2.412 GHz to 2.4835 GHz
- Channel Bandwidth - 20 MHz/40 MHz
- Transfer Rate - 11b: 11 Mbps
11g: 54 Mbps
11n: up to 150 Mbps
- Wireless Range - Up to 50 m (The performance varies based on actual environment)
- Image
- Day/Night Switch - Auto/Schedule/Day/Night/Triggered by Alarm In (-S model)
- DNR - 3D DNR
- Image Enhancement - BLC/3D DNR/HLC
- Image Settings - Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
- Interface
- Audio - 2 Inputs: line in, or mic in (built-in microphone)
1 Output: line out, mono sound, terminal block
- Alarm - 1 Input: Alarm in
1 Output: Alarm out (max. 12 VDC, 30 mA), terminal block
- On-board Storage - Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
- Hardware Reset - Yes
- Communication Interface - 1 RJ45 10M/100M self-adaptive Ethernet port
- Event
- Basic Event - Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
- Smart Event - Line crossing detection, intrusion detection, face detection
- Face Detection - Yes
- General
- Linkage Method - Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email
Trigger notification: HTTP, ISAPI, alarm output , Email
- Firmware Version - V5.6.5
- General Function - One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
- Startup and Operating Conditions - -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
- Power Supply - 12 VDC ± 25%, PoE (802.3af, class 3)
- Power Consumption and Current - 12 VDC, 0.7 A, max. 8.5 W, Ø5.5mm coaxial plug power; PoE (802.3af, 36 V to 57 V), 0.3 A to 0.1 A, max. 10 W
- Camera Dimension - Ø110 mm × 56.4 mm (Ø4.3" × 2.2")
- Camera Weight - Camera: Approx. 400 g (0.9 lb.)
- Approval
- Protection - Ingress protection: IP66 (IEC 60529-2013), IK08 (IEC 60529-2013)
|
|
|
