| Descripción |
|

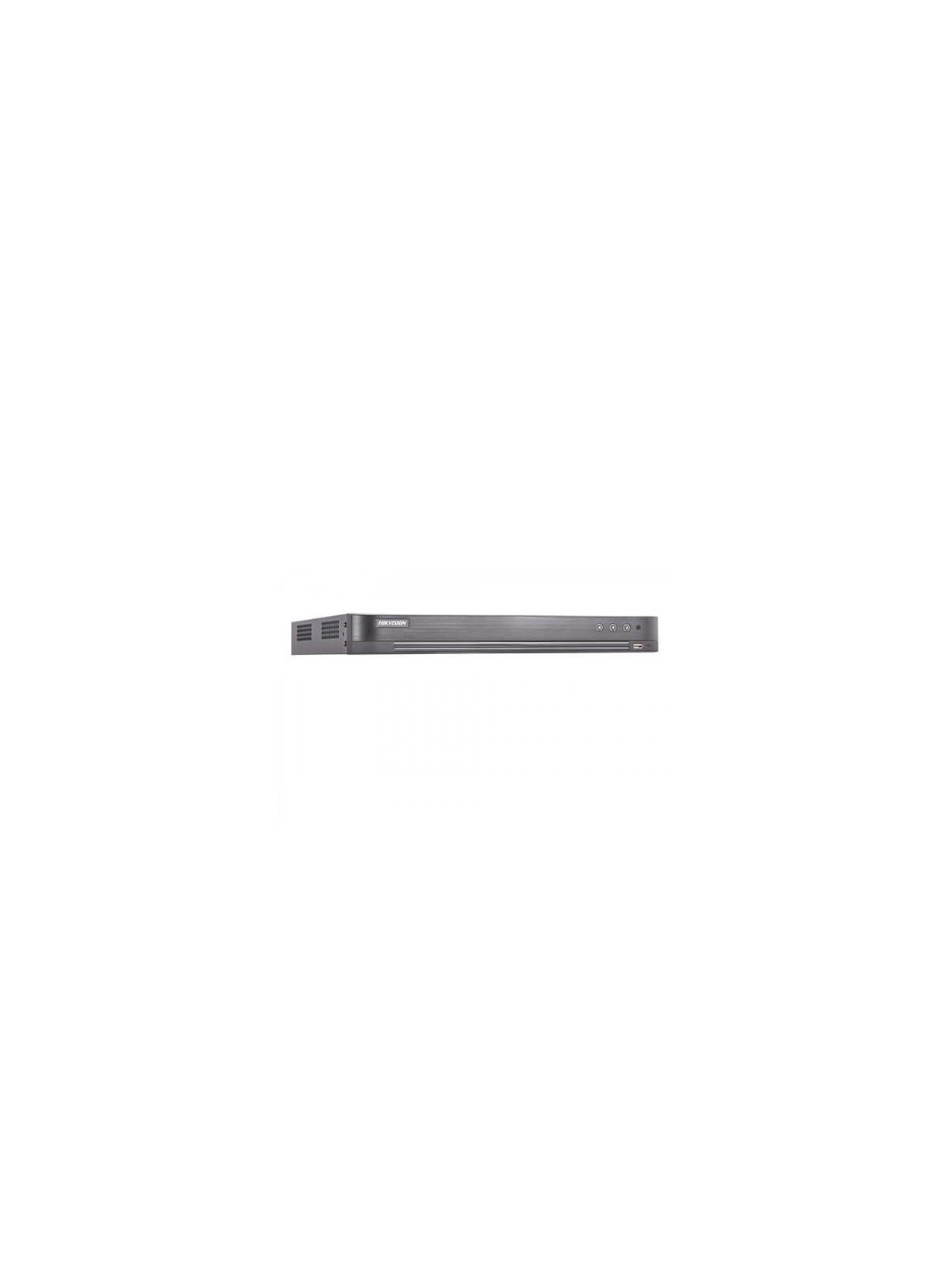

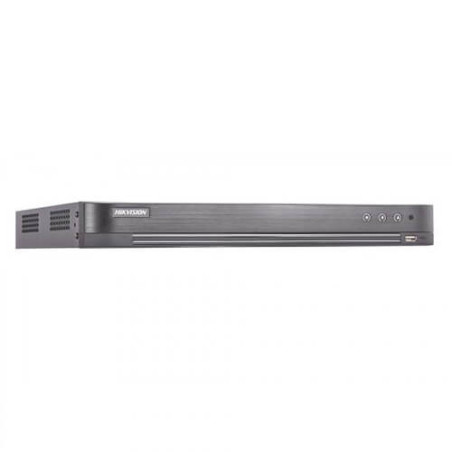

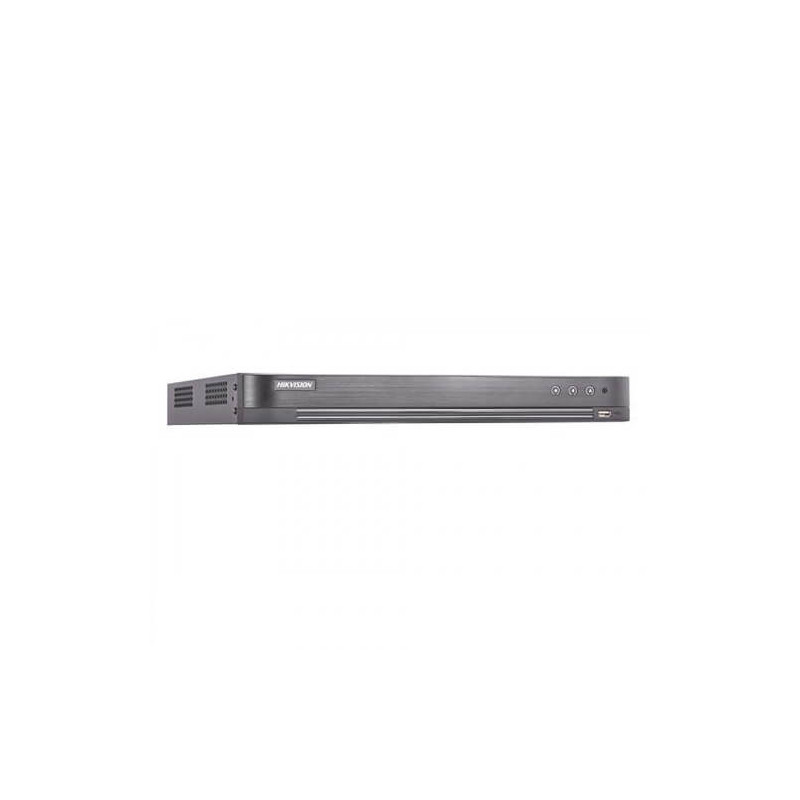

Grabador 5en1 Hikvision DS-7208HUHI-K2(S) 8ch Video (8MP 64fps) 8ch IP 6MP 1ch Audio H265+ HDMI SATAx2 Alarmas
Grabador DVR Hikvision Turbo HD 4.0 de 8 canales hasta 8MP + 8 canales IP hasta 8MP + Formatos H.265+ / H.265 / H.264+ / H.264, Salida principal HDMI hasta 4K / VGA simultáneas y salida CVBS.
-Codificación H.265+ / H.265 / H.264+ / H.264.
-Entrada de señal HDTVI / HDCVI / AHD / CVBS autoadaptable.
-Puede conectarse a cámaras IP H.265 + / H.265 / H.264 + / H.264.
-Hasta 5 MP de resolución para la grabación.
-Salida HDMI de resolución de hasta 4K (3840 × 2160).
-Transmisión de larga distancia sobre cable UTP y coaxial.
-Reproducción sincronizada de 8 canales.
-Capacidad para 2 HDD 8TB.
-8 entrada y 4 salida de alarma.
-Teclado remoto DS-1005KI a través de puerto USB.
|
|
| Características técnicas |
- Recording
- Video compression - H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Encoding resolution - 8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
- Frame rate - Main stream: ,8 MP@8fps/5 MP@12fps/4 MP@15fps/3 MP@18fps,1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N),Sub-stream: ,WD1/4CIF/CIF@25fps (P)/30fps (N),
- Video bit rate - 32 Kbps to 10 Mbps
- Dual stream - Support
- Stream type - Video, Video & Audio
- Audio compression - G.711u
- Audio bit rate - 64 Kbps
- Video and Audio
- IP video input - 8-ch (up to 16-ch) Up to 8 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
- Analog video input - 8-chBNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- AHD input - 5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30
- HDCVI input - 4 MP, 1080p25, 1080p30, 720p25, 720p30
- CVBS input - PAL/NTSC
- Audio input - 4-ch, RCA (2.0 Vp-p, 1 KΩ)
- Audio output - 1-ch, RCA (Linear, 1 KΩ)
- Two-way audio - 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
- Synchronous playback - 8-ch
- HDTVI input - 8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
- VGA/HDMI output - VGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz ,HDMI: 1-ch, 4K (3840 × 2160)/30Hz, ,2K (2560 × 1440)/60Hz,,1920 × 1080/60Hz, 1280 × 1024/60Hz, ,1280 × 720/60Hz, 1024 × 768/60Hz
- CVBS output - 1-ch, BNC (1.0 Vp-p, 75 Ω),
- Network
- Remote connections - 64
- Network protocols - TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
- Network interface - 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface
- Auxiliary interface
- SATA - 2 SATA interfaces
- Capacity - Up to 10 TB capacity for each disk
- Alarm in/out - 8/4
- USB interface - Front panel: 1 × USB 2.0,Rear panel: 1 × USB 3.0
- Serial interface - RS-485 (half-duplex)
- General
- Power supply - 12 VDC
- Working temperature - -10 °C to +55 °C (+14 °F to +131 °F)
- Working humidity - 10% to 90%
- Dimensions (W × D × H) - 380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
- Consumption
(without HDD) - ≤ 20 W
- Weights
(without HDD) - ≤ 1.78 kg (3.9 lb)
|
|
|
