Descripción |

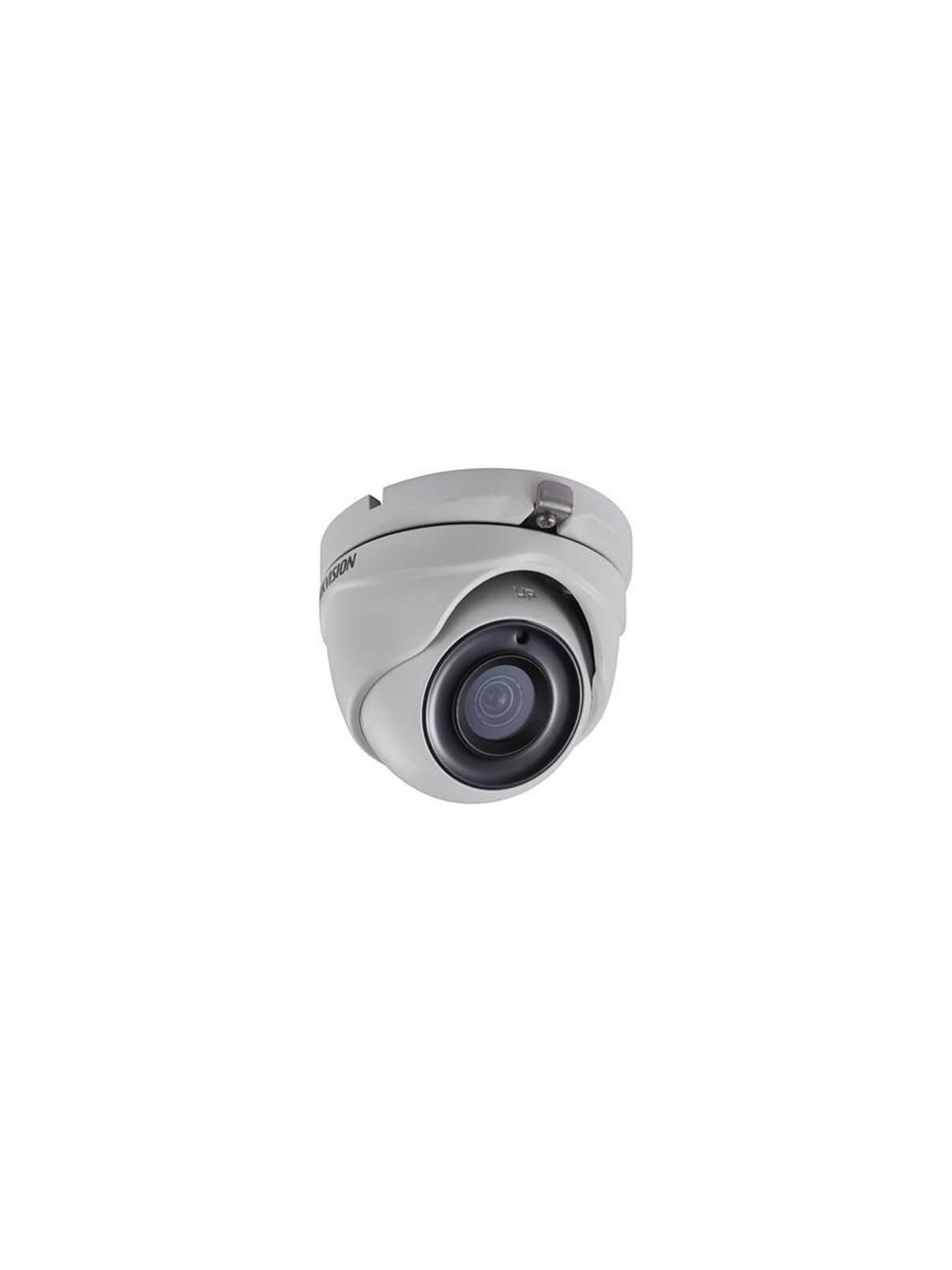

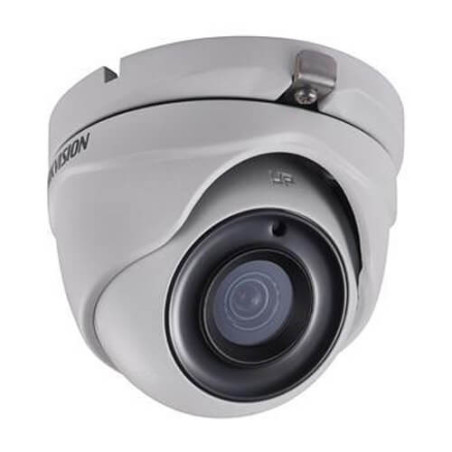

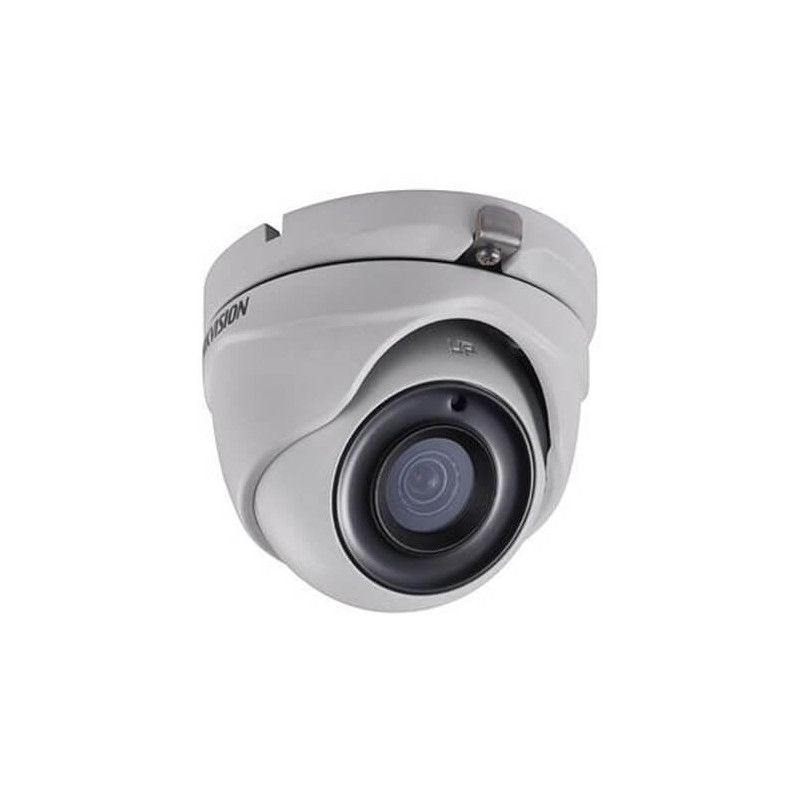

Domo 4en1 Hikvision DS-2CE56H0T-ITMF 5MP ECO IR20m 2.8mm

5 MP Turret Camera
• 5 Megapixel high-performance CMOS
• Analog HD output, up to 5MP resolution
• True Day/Night
• OSD menu, 2D DNR, DWDR
• EXIR technology, up to 20m IR distance
• IP67 weatherproof
• 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
• Up the Coax(HIKVISION-C)
|
|
Características técnicas |
- Cámara
- Sensor de imagen - 5 MP CMOS image sensor
- Max. Resolución - 2560 (H) × 1944 (V)
- Iluminación mínima - Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
- Tiempo de obturación - PAL: 1/25 s to 1/50, 000 s,NTSC: 1/30 s to 1/50, 000 s
- Día y Noche - IR cut filter
- Ajuste de ángulo - Pan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360°
- Lente
- Lente - 2.8 mm, 3.6 mm, 6 mm fixed Lens
- Focal Length & FOV - 85.5° (2.8 mm), 80.1° (3.6 mm), 57.1° (6 mm)
- Montura del lente - M12
- Imagen
- Configuración de imagen - Brightness, Sharpness, DNR, Mirror, Smart IR
- Frame Rate - PAL: 5 MP@20fps, 4 MP@25fps, 1080p@25fps,NTSC: 5 MP@20fps, 4 MP@30fps, 1080p@30fps
- Modo día/noche - Auto/Color/BW (Black and White)
- Wide Dynamic Range (WDR) - DWDR
- Mejora de la imagen - BLC
- Balance de blancos - ATW/MWB
- AGC - Support
- Interfaz
- Salida de Vídeo - Switchable TVI/AHD/CVI/CVBS
- General
- Material - Metal
- Dimensión - 91 mm × 82.6 mm × 68.3 mm (3.58" × 3.25" × 2.69")
- - Approx. 350 g (0.77 lb.)
- Operating Condition - -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
- Comunicación - Up the coax, Protocol: HIKVISION-C (TVI output)
- Idioma - English
- Fuente de alimentación - 12 VDC ±25%
- Consumo - Max. 4.3 W
- Rango IR - Up to 20 m
- Certificaciones
- Protección - IP67
|
|
|
