Descripción |

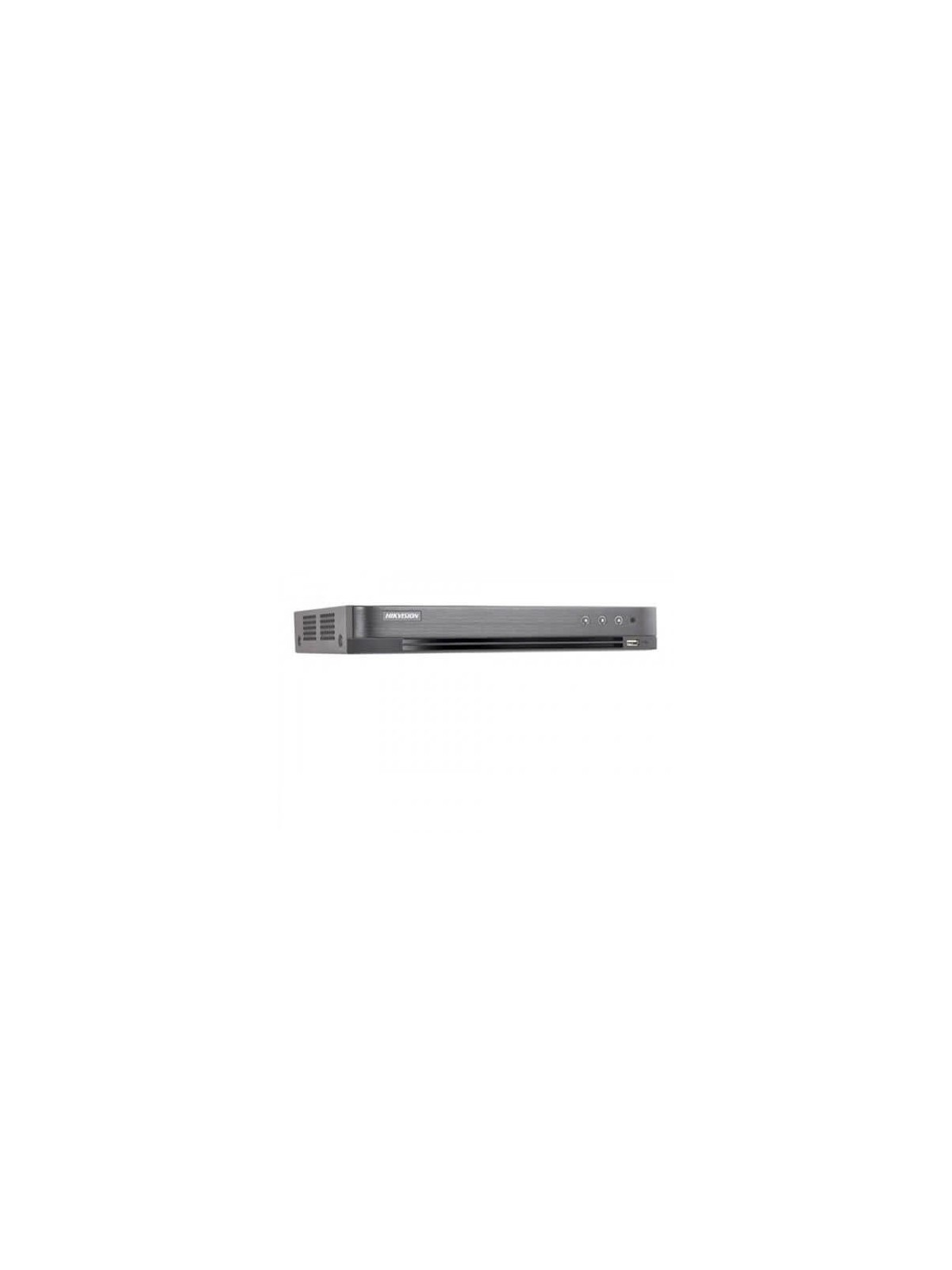

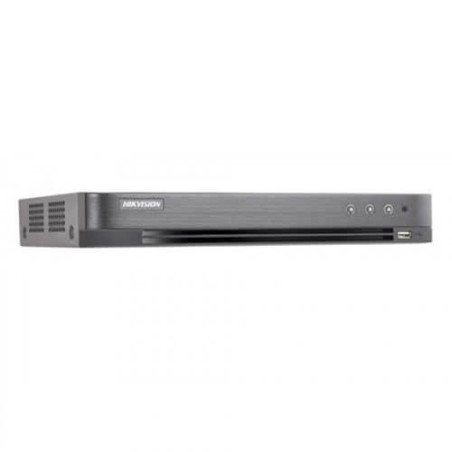

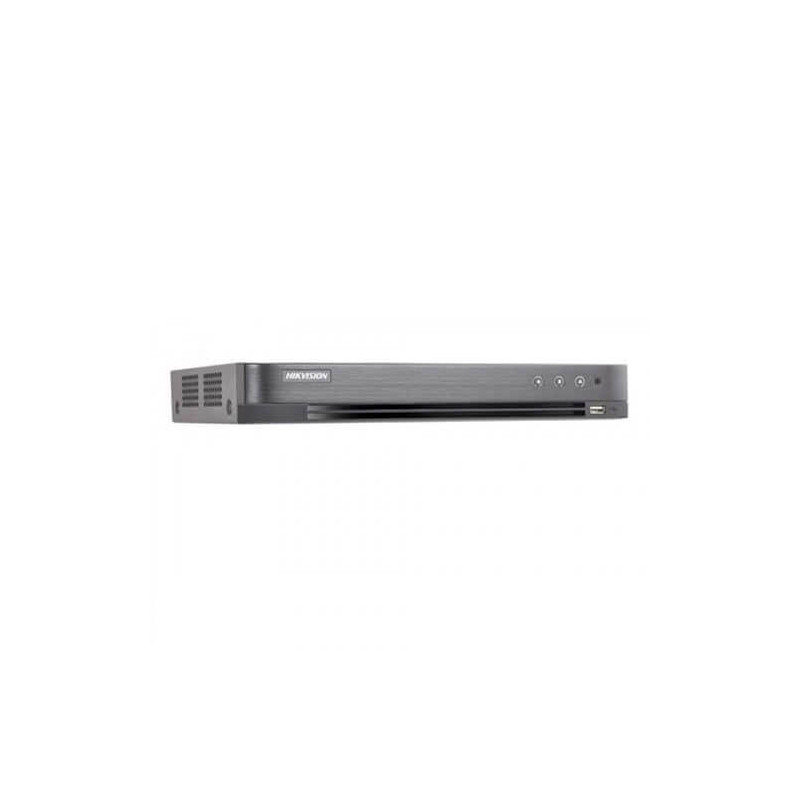

Grabador 5en1 Hikvision DS-7204HTHI-K1(S) 4ch Video (8MP/5MP) 4ch IP 1ch Audio H265+ HDMI4K SATAx1 Alarmas
![Grabador 5en1 Hikvision DS-7204HTHI-K1(S) 4ch Video (8MP/5MP) 4ch IP 1ch Audio H265+ HDMI4K SATAx1 Alarmas Grabador 5en1 Hikvision DS-7204HTHI-K1(S) 4ch Video (8MP/5MP) 4ch IP 1ch Audio H265+ HDMI4K SATAx1 Alarmas](images/100x100/des-ds-7204hthi-k1s.jpg)
- 4 channels and 1 HDD 1U DVR
- Efficient H.265 pro+ compression technology
- Encoding ability up to 8 MP @ 15 fps
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
- Up to 8 network cameras can be connected
|
|
Características técnicas |
- Recording
- Compresión de vídeo - H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Encoding resolution - 8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
- Frame Rate - Main stream: ,8 MP@15fps, 5 MP@20fps, 3 MP@18fps,4 MP/1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N),Sub-stream: ,WD1/4CIF/CIF@25fps (P)/30fps (N),
- Vídeo bitrate - 32 Kbps to 10 Mbps
- Dual stream - Support
- Stream type - Video, Video & Audio
- Audio compression - G.711u
- Audio bit rate - 64 Kbps
- Video and Audio
- Entrada de video IP - 4-ch (up to 8-ch);Up to 8 MP resolution,*: The 8 MP signal input is only available for channel 1 of DS-7204HUHI-K1/P.,Support H.265+/H.265/H.264+/H.264 IP cameras
- Analog video input - 4-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- AHD input - 5 MP, 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30
- HDCVI input - 4 MP, 1080p25, 1080p30, 720p25, 720p30
- CVBS input - PAL/NTSC
- HDMI/VGA output - VGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,HDMI: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, ,1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,
- Entrada de Audio - 4-ch, RCA (2.0 Vp-p, 1 KΩ)
- Salida de audio - 1-ch, RCA (Linear, 1 KΩ)
- Audio bidireccional - 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
- Reproducción síncrona - 4-ch
- HDTVI input - 8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
- Salida CVBS - 1-ch, BNC (1.0 Vp-p, 75 Ω),,resolution: PAL: 704 × 576, NTSC: 704 × 480,
- Red
- Conexiones remotas - 32
- Network protocols - TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
- Interfaz de red - 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface
- Auxiliary interface
- SATA - 1 SATA interface
- Capacidad - Up to 10 TB capacity for each disk
- Alarm in/out - 4/1
- Interfaz USB - Front panel: 1 × USB 2.0,Rear panel: 1 × USB 3.0,
- Serial interface - RS-485 (half-duplex)
- General
- Fuente de alimentación - 12 VDC
- Temperatura de trabajo - -10 °C to +55 °C (+14 °F to +131 °F)
- Humedad de trabajo - 10% to 90%
- Dimensiones (W × D × H) - 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
- Weights (without HDD) - ≤ 1.5 kg (3.3 lb)
- Consumption(without HDD) - ≤ 15 W
|
|
|
