Descripción |

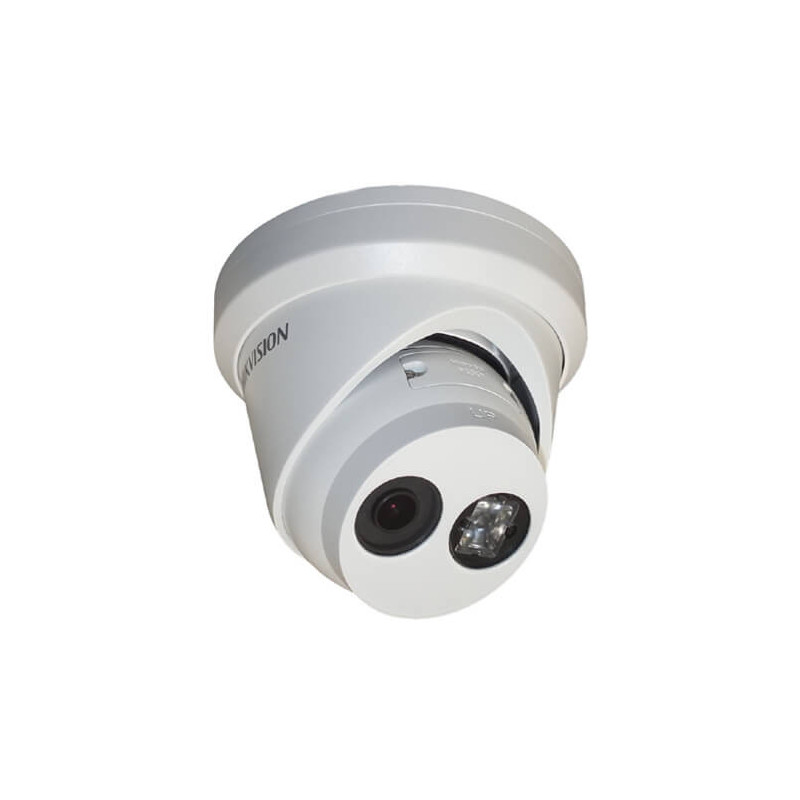

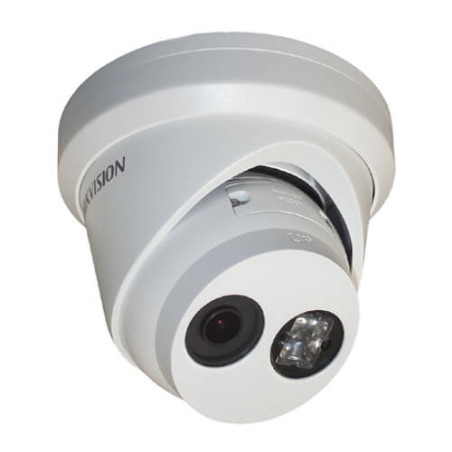

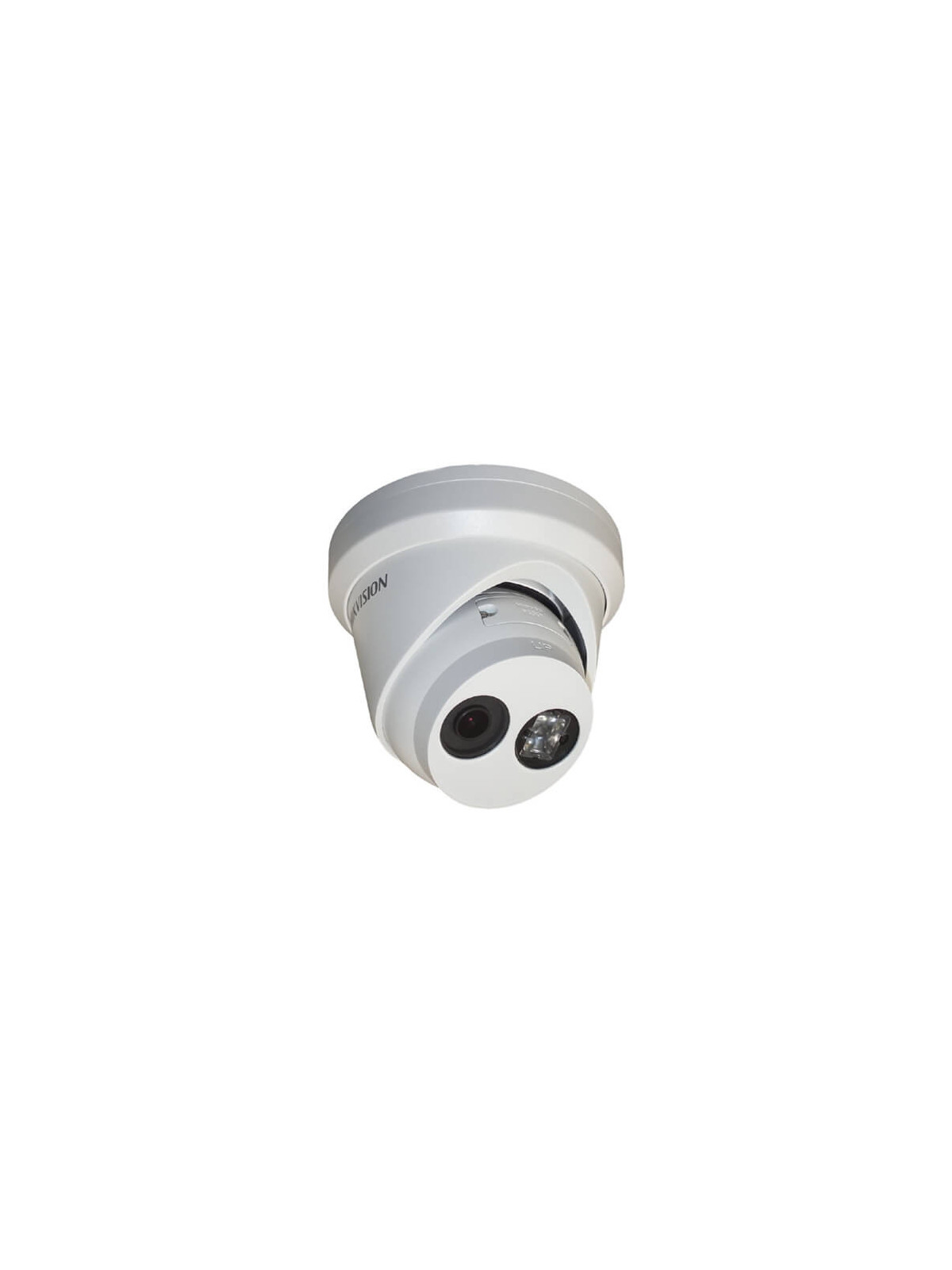

Domo IP Hikvision DS-2CD2363G0-I 6MP PRO IR30m 2.8mm H265+ POE SD WDR

Cámara minidomo de tecnología IP y resolución 6 Megapixeles. Óptica fija 2.8 mm. Compresión H.265+/H.265/H.264+/H.264.
-Serie EasyIP 2.0 Plus.
-Función día/noche conmutación mecánica.
-Sensor CMOS 1/3" con escaneo progresivo.
-Óptica 2.8 mm. Sensibilidad: 0,01 lux (F1.2, AGC ON), 0 lux con IR. Incluye LEDS IR alcance 30m.
-Resolución 4 Megapixels. Ratio de imágenes 25IPS (2688 x 1520, 1920x1080, 1280x720).
-Rango dinámico expandido real 120dB.
-1 salida de video IP Ethernet 10/100Mbps. Servidor Web integrado. Triple streaming de video
-Codificación H265+, H265, H264+, H264.
-Detección SMART : Intrusión, Cruce de línea, Detección rostro básica.
-BLC/3D DNR/ROI/HLC.
-Acepta tarjeta SD hasta 128GB.
-Sin entrada/salida de alarma. Sin entrada/salida de audio.
-Instalación exterior IP67. Ajuste 3 ejes.
|
|
Características técnicas |
- Camera
- Image Sensor - 1/2.9" Progressive Scan CMOS
- Min. Illumination - Color: 0.01 lux @(F1.2, AGC ON), 0.028 lux @(F2.0, AGC ON), 0 lux with IR
- Shutter Speed - 1/3 s to 1/100,000 s
- Slow Shutter - Yes
- Wide Dynamic Range - 120dB
- Day & Night - IR Cut Filter
- Angle Adjustment - Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
- Lens
- Focus - Fixed
- Lens Type - 2.8/4/6/8 mm
- FOV - 2.8 mm, horizontal FOV: 97°, vertical FOV: 63°, diagonal FOV: 120°,4 mm, horizontal FOV: 78°, vertical FOV: 50°, diagonal FOV: 97°,6 mm, horizontal FOV: 60°, vertical FOV: 39°, diagonal FOV: 75°,8 mm, horizontal FOV: 39.5°, vertical FOV: 26°, diagonal FOV: 48°
- Aperture - F2.0
- Lens Mount - M12
- Aperture Type - Fixed
- Illuminator
- IR Range - Up to 30 m
- Wavelength - 850nm
- Video
- Max. Resolution - 3072 × 2048
- Main Stream - 50Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720),60Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 30fps (2560 × 1440, 1920 × 1080, 1280 × 720)
- Sub Stream - 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
- Third Stream - 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288),60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
- Video Compression - Main stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
- Video Bit Rate - 32 Kbps to 16 Mbps
- H.264 Type - Main Profile/High Profile
- H.265 Type - Main Profile
- H.264+ - Main stream supports
- H.265+ - Main stream supports
- Scalable Video Coding (SVC) - H.264 and H.265 encoding support
- Audio
- Audio Compression - G722.1/G.711/G726/MP2L2/PCM/MP3
- Audio Bit Rate - 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3)
- Network
- Simultaneous Live View - Up to 6 channels
- API - ONVIF (PROFILE S, PROFILE G), ISAPI
- Protocols - TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
- User/Host - Up to 32 users,3 levels: Administrator, Operator and User
- Network Storage - Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
- Client - iVMS-4200, Hik-Connect, Hik-Central
- Web Browser - Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+
- Alarm Trigger - Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error
- Image
- Day/Night Switch - Day/Night/Auto/Schedule
- Target Cropping - No
- DNR - 3D DNR
- Image Enhancement - BLC/3D DNR/HLC
- Image Settings - Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
- Interface
- Video Output - No
- On-board Storage - Built-in microSD/SDHC/SDXC slot, up to 128 GB
- Hardware Reset - Yes
- Communication Interface - 1 RJ45 10M/100M self-adaptive Ethernet port
- Event
- Basic Event - Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
- Smart Event - Line crossing detection, intrusion detection, face detection
- Face Detection - Yes
- General
- Linkage Method - Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, Email
- Firmware Version - 5.6.3
- Web Client Language - 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
- General Function - Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
- Startup and Operating Conditions - -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
- Power Supply - 12 VDC ± 25%, Φ 5.5mm ,PoE(802.3af, class 3)
- Power Consumption and Current - 12 VDC, 0.5 A, max. 6.0 W,PoE: (802.3af, 36 V to 57 V), 0.3 A to 0.2 A, max. 7.5 W
- Camera Dimension - Camera: Φ 127.3 × 95.9 mm (5″ × 3. 8″),Package: 150 × 150 × 141 mm (5.9″ × 5.9″ × 5.6″)
- Camera Weight - Camera: 620 g (1.4 lb.)
- Approval
- Protection - Without -U: Ingress protection: IP67 (IEC 60529-2013)
With -U: Ingress protection: IP66 (IEC 60529-2013)
|
|
|
