Descripción |

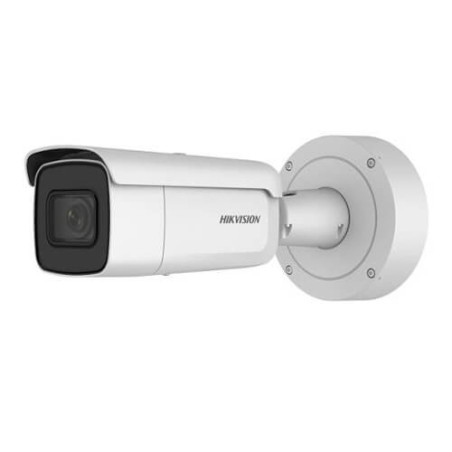

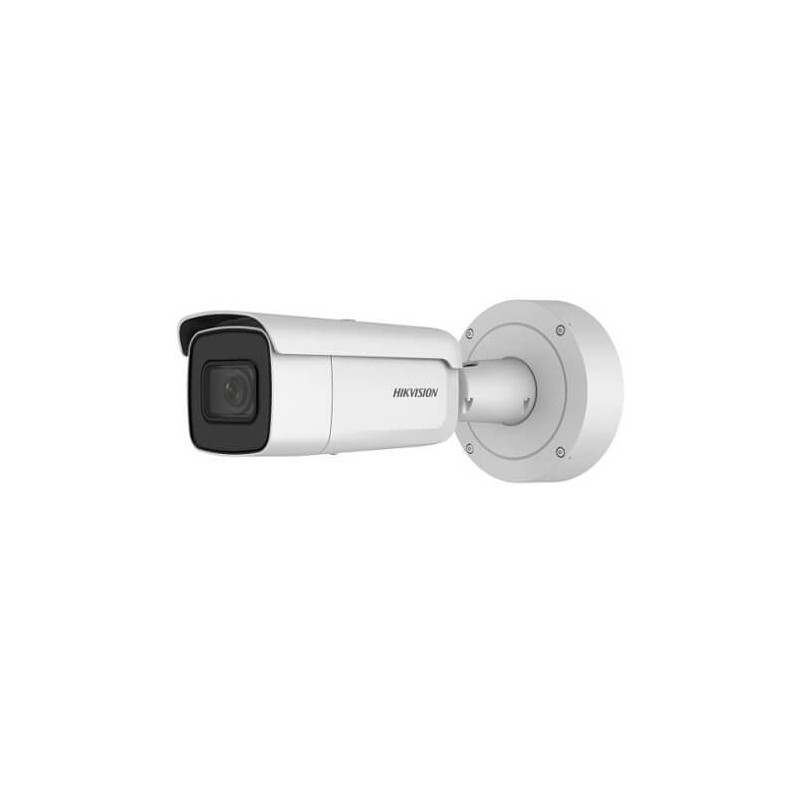

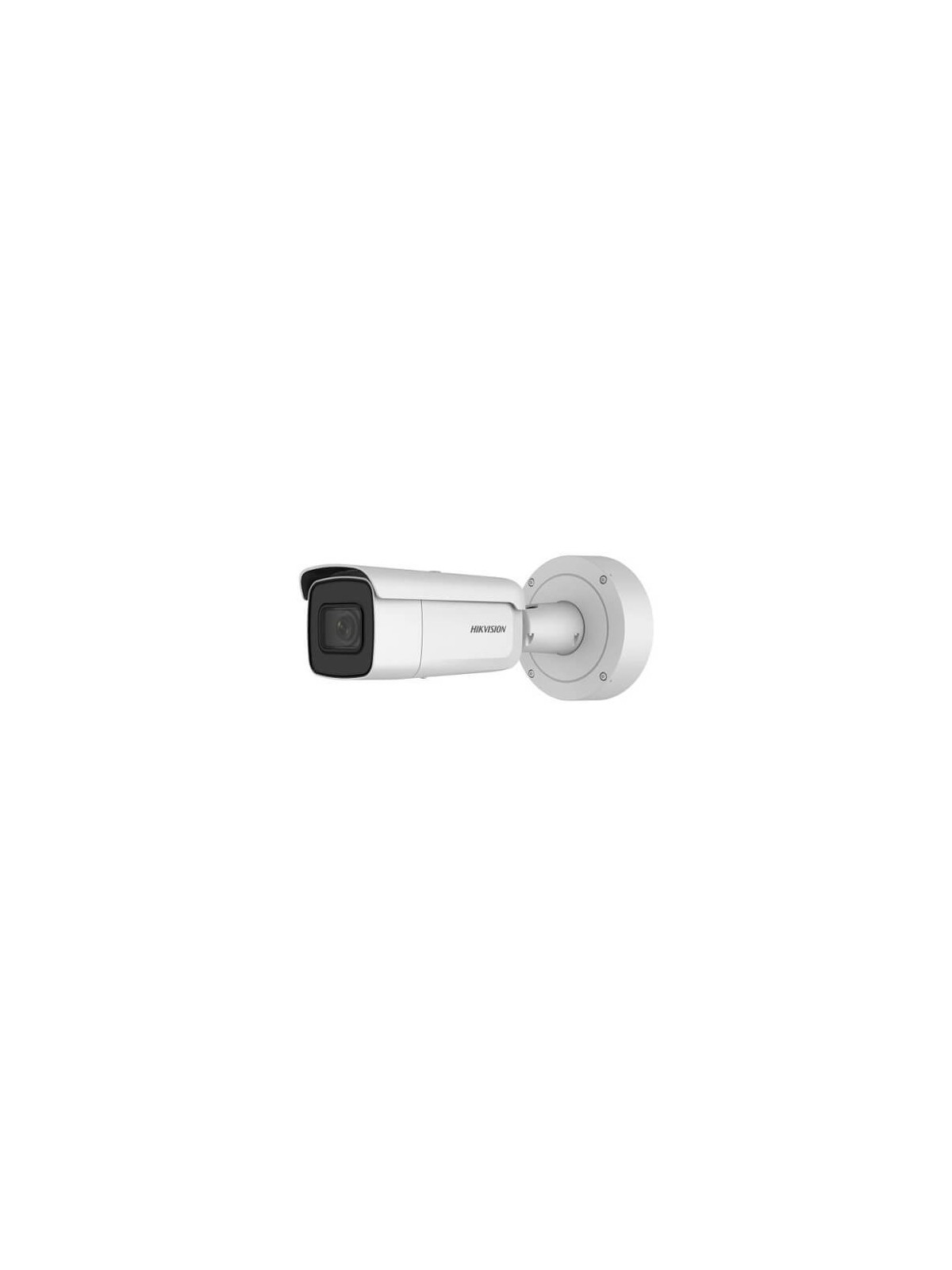

Cámara IP Hikvision DS-2CD2663G0-IZS 6MP PRO IR50m 2.8-12mm motorizada H265+ POE SD WDR Audio Alarmas

Cámara bullet de tecnología IP y resolución 6 Megapixeles (2560x1440 20IPS). Óptica varifocal 2.8-12 mm motorizada. Compresión H.265+/H.265/H.264+/H.264.
Sensor CMOS 1/2.9" con conmutación día/noche mediante filtro mecánico.
Sensibilidad en color 0,01 Lux.
LEDS IR EXIR alcance 50m.
WDR real 120dB, BLC, Defog, EIS, 3D DNR, ROI.
-Especificaciones de red:
Salida Ethernet 10/100M
Triple streaming de video
Servidor Web integrado Internet Explorer
Compatible con ONVIF, ISAPI.
Hasta 6 usuarios simultáneos
Soporta tarjeta SD hasta 128GB ( tarjeta no incluida).
-Detección:
Básica: movimiento, tamper de vídeo, excepciones.
Avanzada: intrusión, cruce de línea, detección facial.
- Especificaciones generales:
Salida video compuesto (75Ohm, BNC).
Alarmas: 1 entrada y 1 salida, audio1 entrada y 1 salida.
Nivel de protección: IP67. Antivandáilco IK10.
Instalación en exterior.
Alimentación 12 VDC max 1.2A y PoE (802.3 af).
Dimensiones: 144 x 333mm.
|
|
Características técnicas |
- Cámara
- Sensor de imagen - 1/2.9" Progressive Scan CMOS
- Iluminación mínima - Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
- Velocidad de obturación - 1/3 s to 1/100,000 s
- Obturador lento - Yes
- Día y noche - IR Cut Filter
- Wide dynamic range - 120dB
- Ajuste de ángulo - Pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 355°
- DNR - 3D DNR
- Lente
- Lente - 2.8 to 12 mm;Motorized
- Auto-Iris - No
- Apertura - F1.6
- Enfoque - Auto
- FOV - Horizontal field of view: 88° to 27°,Vertical field of view: 56° to 18°,Diagonal field of view: 110° to 33°
- Montura del lente - Φ14
- Iluminador
- Rango IR - Up to 50 m
- Longitud de onda - 850nm
- Vídeo
- Max. Resolución - 3072 × 2048
- Main stream - 50Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720),60Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 30fps (2560 × 1440, 1920 × 1080, 1280 × 720)
- Sub Stream - 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
- Third Stream - 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288),60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
- Compresión de vídeo - Main stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
- Tipo H.264 - Main Profile/High Profile
- Tipo H.265 - Main Profile
- Vídeo bitrate - 32 Kbps to 16 Mbps
- SVC - H.264 and H.265 encoding support
- Audio
- Filtro de ruido ambiental - Yes
- Frecuencia de muestreo de audio - 8kHz/16kHz/32kHz/44.1kHZ/48kHz
- General
- Función general - Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
- Reiniciar - Yes
- Condiciones de inicio y funcionamiento - -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
- Fuente de alimentación - 12 VDC ± 25%, PoE (802.3at, class 4), Φ 5.5 mm coaxial power plug
- Consumo de energía y corriente - 12 VDC, 1.2A, max. 14.5W,PoE (802.3at, 42.5V to 57V), 0.5A to 0.3A, max. 18W
- Material - Metal
- Dimensiones - Φ144.1 × 332.7 mm (Φ5.7" × 13.1")
- - Camera: 1893 g (4.2 lb.)
- Protección de la interfaz - IP66
- Imagen
- Interruptor día/noche - Day/Night/Auto/Schedule/Triggered by Alarm In
- Wi-Fi
- Seguridad - Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
- Red
- Almacenamiento en red - Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
- Seguridad - Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
- Vista en vivo simultánea - Up to 6 channels
- Usuario/operador - Up to 32 users,3 levels: Administrator, Operator and User
- Cliente - iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
- Activador de alarma - Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error
- Interfaz
- Interfaz de comunicación - 1 RJ45 10M/100M self-adaptive Ethernet port
- Audio - 1 input (line in, 3.5 mm), 1 output (line out, 3.5 mm), mono sound
- Alarma - 1 input, 1 output (max. 12 VDC, 30 mA), terminal block
- Salida de Vídeo - 1Vp-p composite output (75 Ω) (For adjustment only)
- Almacenamiento a bordo - Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
- Certificaciones
- Protección contra impactos - IK10
- Compresión estándar
- H.264 + - Main stream supports
- H.265 + - Main stream supports
|
|
|
