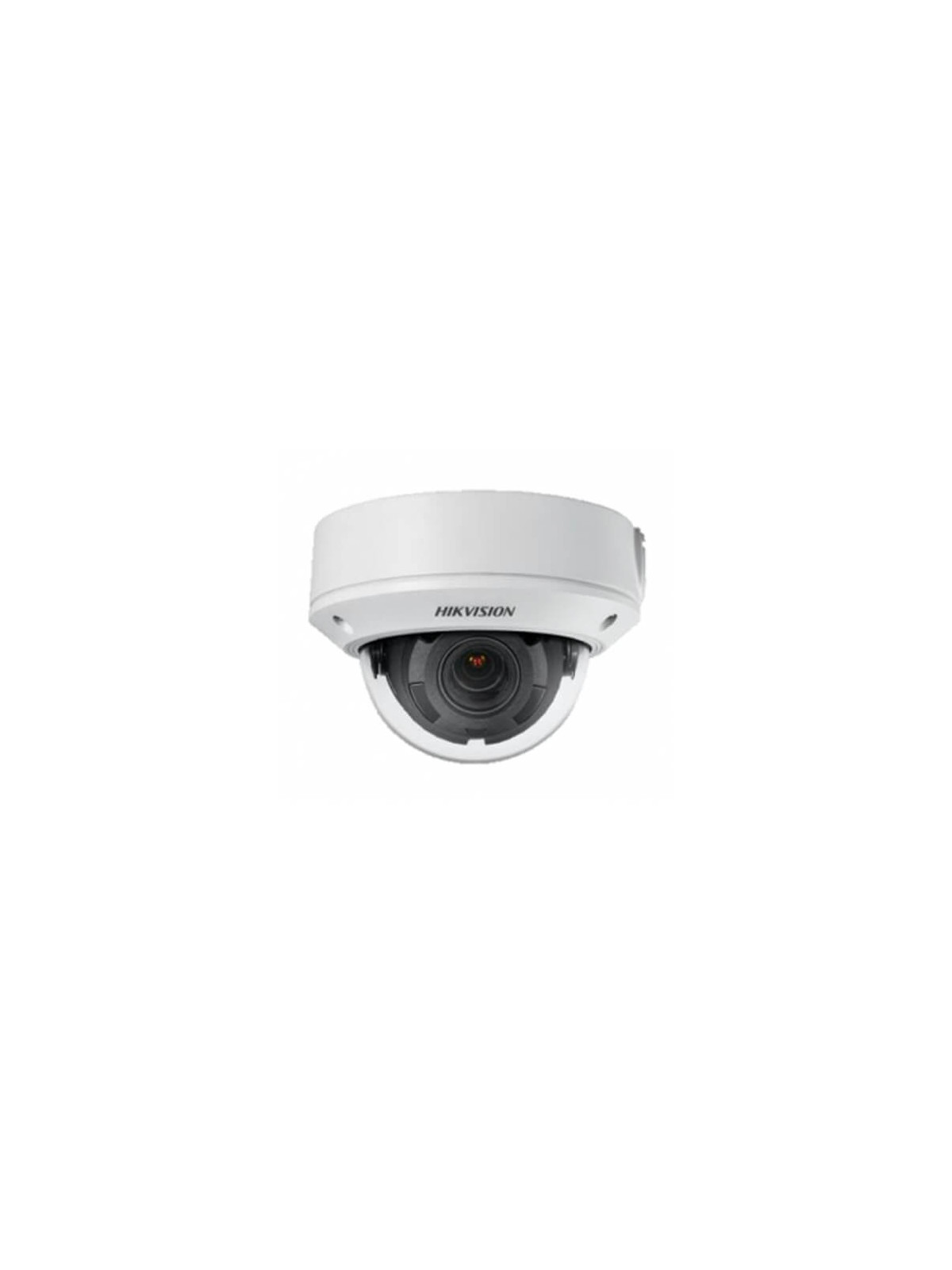

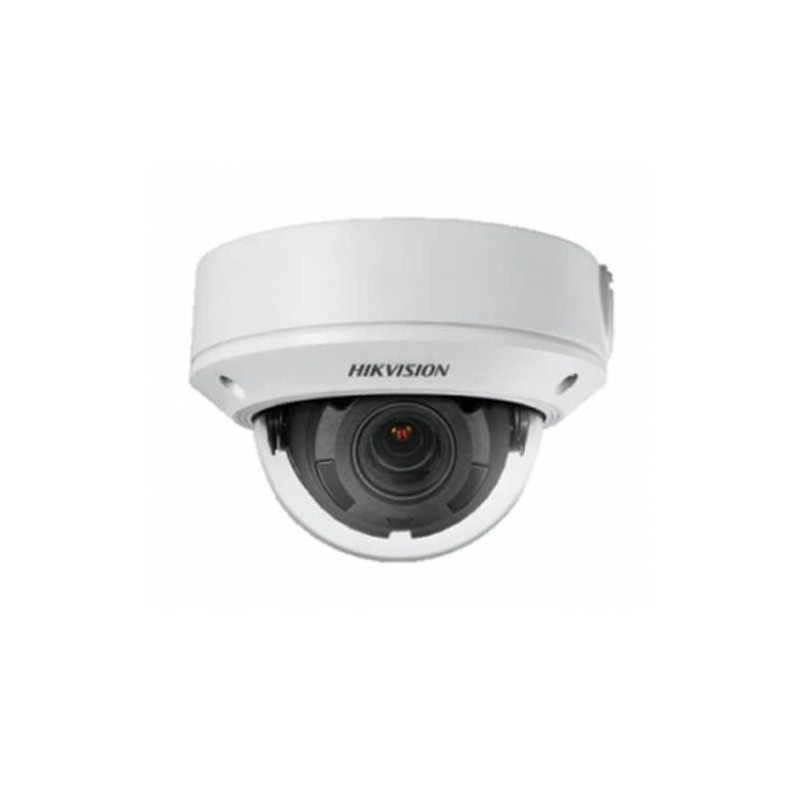

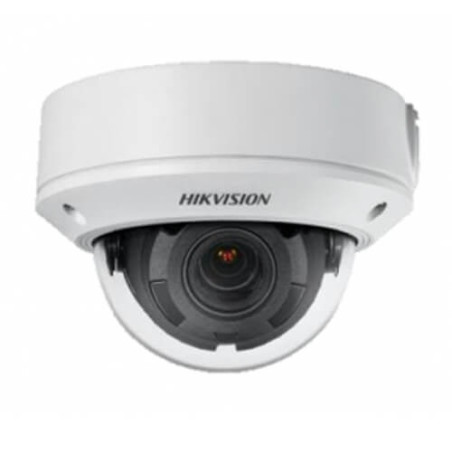

Domo IP Hikvision DS-2CD1723G0-IZ 2MP ECO IR30m 2.8-12mm motorizada H265+ POE SD

1/2.8" Progressive CMOS, ICR, 1920x1080:25fps(P)/30fps(N),
H.265+/H265/H.264+&H.264, 3D DNR, BLC, IR range: up to 30m, DC12V & PoE, TF card slot, Support mobile monitoring via Hik-Connect *power supply no included
-Z: motorized vari-focal lens
|
|
Características técnicas |
- Camera
- Image Sensor - 1/2.8" progressive scan CMOS
- Min. Illumination - Color: 0.01 Lux @(F1.2, AGC ON), 0.018Lux @ (F1.6, AGC ON)
- Shutter Speed - 1/3 s to 1/100, 000 s, support slow shutter
- Slow Shutter - Yes
- Wide Dynamic Range - Digital WDR
- Angle Adjustment - Pan: 0° to 355°, tilt: 0° to 70°, rotation: 0° to 360°
- DNR - 3D DNR
- Lens
- Lens - 2.8 to 12 mm
- Auto-Iris - No
- Aperture - F1.6
- Focus - -I: Manual
-IZ: Auto
- FOV - Horizontal field of view: 98° to 34°
Vertical field of view: 52° to 19°
Diagonal field of view: 116° to 40°
- Lens Mount - Φ14
- Illuminator
- IR Range - Up to 30 m
- Wavelength - 850 nm
- Video
- Max. Resolution - 1920 × 1080
- Video Compression - Main stream: H.265/H.264
Sub stream: H.265/H.264/MJPEG
- H.264 Type - Baseline Profile/Main Profile/High Profile
- H.265 Type - Main Profile
- Video Bit Rate - 32 Kbps to 8 Mbps
- Smart Feature-Set
- Region of Interest - 1 fixed region for main stream and sub-stream
- Image
- Image Enhancement - BLC, 3D DNR
- Image Setting - Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
- Day/Night Switch - Auto, scheduled
- Sub-stream
Max. Frame Rate - 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
- Network
- Network Storage - Support Micro SD/SDHC/SDXC card (128G ), local storage and ANR
- Protocols - TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
- API - ONVIF (PROFILE S, PROFILE G), ISAPI
- Simultaneous Live View - Up to 6 channels
- User/Host - Up to 32 users
3 levels: Administrator, Operator and User
- Client - iVMS-4200, iVMS-4500, iVMS-5200
- Web Browser - IIE7+, Chrome18-42, Firefox5.0+, Safari5.02+
- Alarm Trigger - Motion detection, video tampering alarm, network disconnected, IP address conflicted, illegal login
- Interface
- Communication Interface - 1 RJ45 10M/100M self-adaptive Ethernet port
- Video Output - 1Vp-p composite output (75 Ω/BNC)
- General
- Firmware Version - 5.5.2
- General Function - One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
- Startup and Operating Conditions - -30 °C to 50 °C (-22 °F to 122 °F), humidity: 95% or less (non-condensing)
- Power Supply - 12 VDC ± 25%, 5.5 mm coaxial power plug
PoE (802.3af, class 3)
- Material - Metal & Plastic
- Dimensions - Camera: Φ 141 mm × 99.9 mm (5.6" × 3.9")
With package: 140 mm × 140 mm × 154 mm (5.5" × 5.5" × 6.1")
- Weight - Camera: Approx. 830 g (1.8 lb.)
With package: Approx. 1070 g (2.4 lb.)
- Interface Protection - IP67, IK10
TVS 2000V lightning protection, surge protection and voltage transient protection
- Compression Standard
- H.264+ - Main stream supports
- H.265+ - Main stream supports
|
|
|
