Descripción |

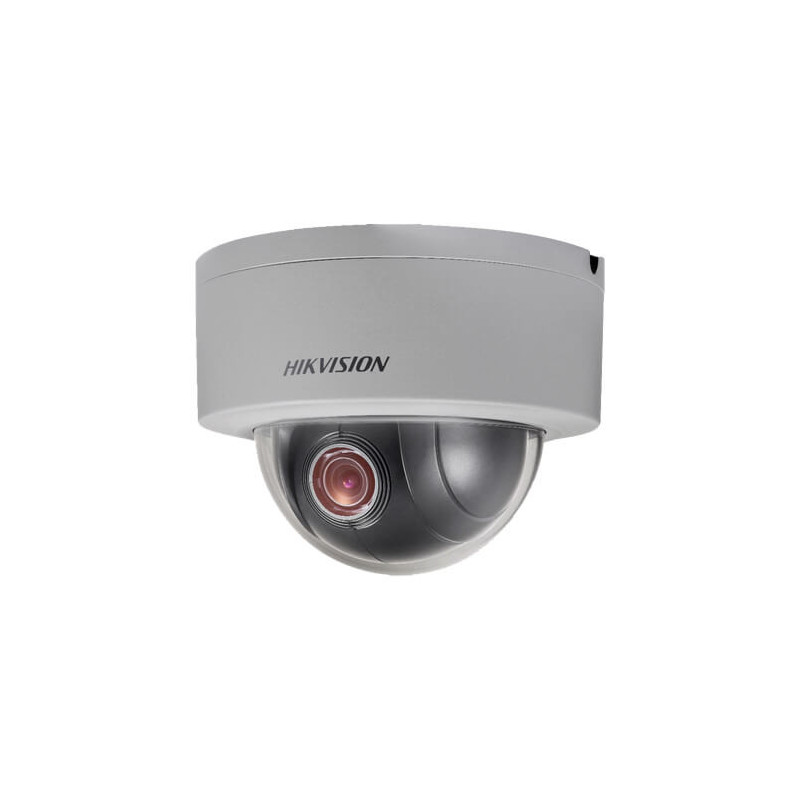

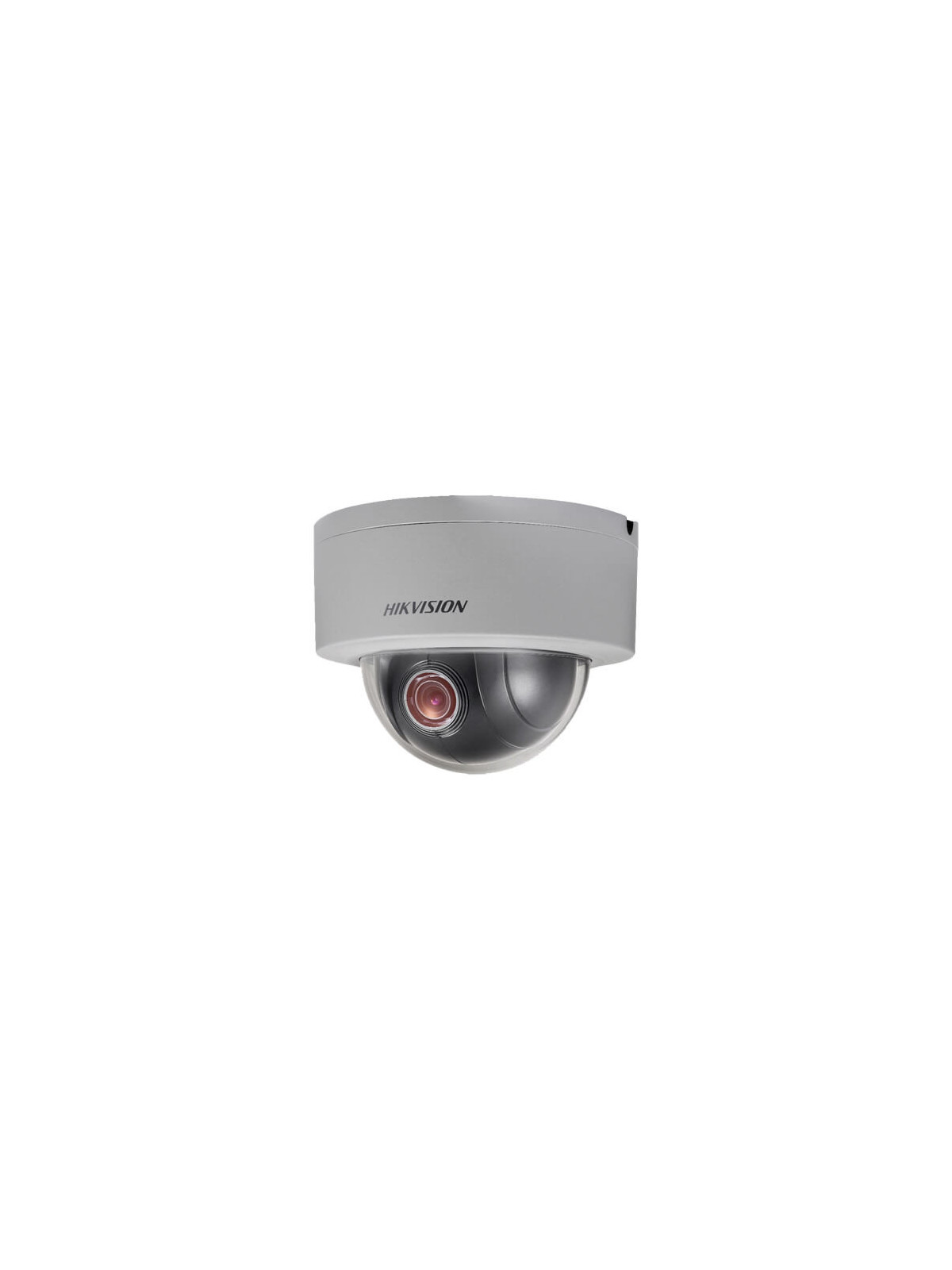

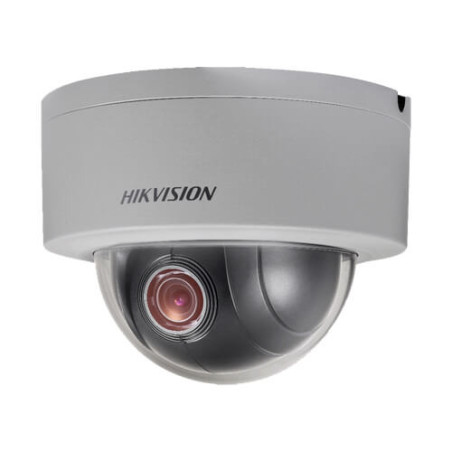

Domo PTZ IP Hikvision DS-2DE3204W-DE 2MP 0.01Lux 2.8-12mm Zoom4x H265 POE SD WDR Audio Alarmas

2MP Network Mini PTZ Dome Camera
• 1/3” Progressive Scan CMOS
• 1920 x 1080P
• 4X Optical Zoom
• DWDR
• Support IP66/IK10
• Support PoE(802.3af)
• Support RS485
• Support Hik-connect cloud P2P
• Support plug & play
|
|
Características técnicas |
- Red
- Almacenamiento en red - Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording
- Protocolos - IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP,IGMP, ICMP, DHCP, PPPoE
- API - ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK
- Vista en vivo simultánea - Up to 20 channels
- Usuario/operador - Up to 32 users. 3 levels: Administrator, Operator and User
- Navegador web - IE 8 to 11, Chrome 31.0+, Firefox 30.0+, Edge 16.16299+
- Medidas de seguridad - User authentication (ID and PW), Host authentication (MAC address); IP address filtering
- Enlace de alarma - Alarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.
- Compresión de vídeo - H.265+/H.265/H.264+/H.264/MJPEG
- H.264 + - Yes
- H.265 + - Yes
- Compresión de audio - G.711ulaw/G.711alaw/G.726/MP2L2/G.722/PCM
- Detección de eventos - Intrusion detection, line crossing detection, audio exception detection, motion detection
- ROI - Support 4 areas with adjustable levels
- Max. Resolución - 1920 × 1080
- Main stream - 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720), 50fps (1920 × 1080, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720), 60fps (1920 × 1080, 1280 × 720)
- Sub-stream - 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288), 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
- Third Stream - 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
- Pan and Tilt
- Rango de movimiento (pan) - 0° to 350°
- Velocidad de movimiento horizontal (pan) - Pan Manual Speed: 0.1°~60°/s, Pan Preset Speed: 60°/s
- Rango de movimiento (tilt) - 0° to 90°
- Velocidad de vertical (tilt) - Tilt Manual Speed: 0.1°~50°/s, Tilt Preset Speed: 50°/s
- Preajustes - 300
- Escaneo de patrulla - 8 patrols, up to 32 presets for each patrol
- Memoria de apagado - Preset/Patrol
- Tarea programada - Preset / Reboot / Patrol /Self test / Aux output
- Alarma
- Alarma - 1-ch alarm input/1-ch alarm output
- Audio - 1 audio input (Mic/Line in), 2~2.4V[p-p]; output impedance: 1KΩ, ±10%, 1-ch audio output line level, impedance: 600Ω
- Interfaz de red - 10Base-T / 100Base-TX, RJ45 connector
- Módulo de cámara
- DNR 3D - Yes
- Sensor de imagen - 1/2.8’’ Progressive Scan CMOS
- Iluminación mínima - F1.6, AGC On : Color : 0.05 lux, B/W : 0.01 lux
- Balance de blancos - Auto / Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
- Ganancia - Auto / Manual
- Tiempo de obturación - 1/1~1/10,000s
- Día y Noche - IR Cut Filter
- Zoom Digital - 16x
- Máscara de privacidad - 8 privacy masks programmable
- Modo de enfoque - Auto / Semiautomatic / Manual
- WDR - DWDR
- BLC - Yes
- HLC - Yes
- Longitud focal - 2.8~12mm, 4x
- Velocidad del Zoom - Approx.1s(Wide~Tele)
- Campo de visión - Horizontal field of view: 100.5° to 32.6° (wide-tele)
Vertical field of view: 52.8° to 18.3° (wide-tele)
Diagonal field of view: 120.2° to 37.5° (wide-tele)
- Rango de apertura - F1.6 ~F2.7
- System Integration
- Certificación - FCC, CE, UL, RoHS, IEC/EN 61000, IEC/EN 55022, IEC/EN 55024, IEC /EN60950-1
- Language (Web Browser Access ) - 32 languages. English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
- alimentación - 12 VDC, 1.0 A, Max. 8W and PoE (802.3af), 36 to 57 VDC, 0.35 A, Class 3
- Ambiente de trabajo - Temperature: Outdoor:-30°C ~ 65°C (-22°F ~ 149°F), Humidity: ≤ 90%
- Nivel de protección - IP66, IK10, 4,000V lightning protection, surge protection and voltage transient protection
- Instalación - Wall mount: DS-1273ZJ –PT6; In-ceiling Mount: 1227ZJ-PT6; Junction Box: DS-1280ZJ –PT6
- Dimensiones - Φ140.7×107.2mm
- - 950g
|
|
|
