| Descripción |
|

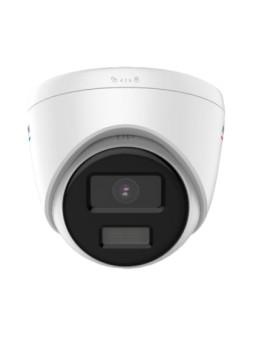

Domo IP Hikvision DS-2CD1343G0-I 4MP ECO IR30m 2.8mm H265+ POE
Cámara minidomo de tecnología IP y resolución 4 Megapixeles (2560x1400 a 20IPS). Óptica fija 2.8 mm. Compresión H.265+/H.265/H.264+/H.264.
Sensor CMOS 1/2.8" de escaneado progresivo.
Conmutación día/noche mediante filtro mecánico.
Sensibilidad en color 0,01 Lux.
LEDS IR alcance 30m.
WDR digital, BLC, 3D DNR, ROI.
-Especificaciones de red:
Salida Ethernet 10/100M
Doble streaming de video
Servidor Web integrado Internet Explorer
Compatible con ONVIF, CGI, ISAPI.
Hasta 6 usuarios simultáneos
No soporta tarjeta SD.
-Detección:
Básica: movimiento, tamper de vídeo, acceso ilegal.
- Especificaciones generales:
Nivel de protección: IP67.
Instalación en exterior.
Alimentación 12 VDC max 400 mA y PoE (802.3 af).
Dimensiones: Ø 110 × L 93.2 mm.
|
|
| Características técnicas |
- Camera
- Image Sensor - 1/3" progressive scan CMOS
- Min. Illumination - Color: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @ (F2.0, AGC ON)
- Shutter Speed - 1/3 s to 1/100, 000 s
- Slow Shutter - Yes
- Day &Night - IR cut filter
- Wide Dynamic Range - 120 dB
- Angle Adjustment - Pan: 0° to 360°, tilt: 0° to 75°, rotation: 0° to 360°
- DNR - 3D DNR
- Lens
- Lens - 2.8 mm, 4 mm, 6 mm
- Auto-Iris - No
- Aperture - F2.0
- Focus - No
- FOV - 2.8 horizontal FOV 100°, vertical FOV 55°, diagonal FOV 117°,4 mm, horizontal FOV 77°, vertical FOV 42°, diagonal FOV 88°,6 mm, horizontal FOV 51°, vertical FOV 28°, diagonal FOV 58°
- Lens Mount - M12
- Illuminator
- IR Range - Up to 30 m
- Wavelength - 850 nm
- Video
- Max. Resolution - 2560 × 1440
- Video Compression - Main stream: H.265/H.264,Sub stream: H.265/H.264/MJPEG
- H.264 Type - Baseline Profile/Main Profile/High Profile
- H.265 Type - Main Profile
- Video Bit Rate - 32 Kbps to 8 Mbps
- Smart Feature-Set
- Region of Interest - 1 fixed region for main stream and sub-stream
- Image
- Image Enhancement - BLC, 3D DNR
- Image Setting - Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
- Day/Night Switch - Auto, scheduled
- Main Stream
Max. Frame Rate - 50Hz: 20fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1080, 1280 × 720),60Hz: 20fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720)
- Sub-stream
Max. Frame Rate - 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
- Network
- Network Storage - NAS (NFS, SMB/CIFS)
- Protocols - TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
- API - ONVIF (PROFILE S, PROFILE G), ISAPI
- Simultaneous Live View - Up to 6 channels
- User/Host - Up to 32 users,3 levels: Administrator, Operator and User
- Client - iVMS-4200, Hik-Connect, iVMS-5200
- Web Browser - IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
- Alarm Trigger - Motion detection, video tampering alarm, illegal login
- Interface
- Communication Interface - 1 RJ45 10M/100M self-adaptive Ethernet port
- General
- Firmware Version - 5.5.3
- General Function - Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
- Startup and Operating Conditions - -30 °C to 50 °C (-22 °F to 122 °F), humidity: 95% or less (non-condensing)
- Power Supply - 12 VDC ± 25%, 5.5 mm coaxial power plug,PoE (802.3af, class 3)
- Material - Metal & Plastic
- Dimensions - Camera: Ø 110 mm × 93.2 mm ( 4.3" × 3.7"),With package: 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
- Weight - Camera: approx. 350 g (0.8 lb.),With package: approx. 610 g (1.3 lb.)
- Power Consumption and Current - 12 VDC, 0.4 A, max: 5 W,PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, Max: 6.5 W
- Interface Protection - IP67,TVS 2000V lightning protection, surge protection and voltage transient protection
- Compression Standard
- H.264+ - Main stream supports
- H.265+ - Main stream supports
|
|
|
