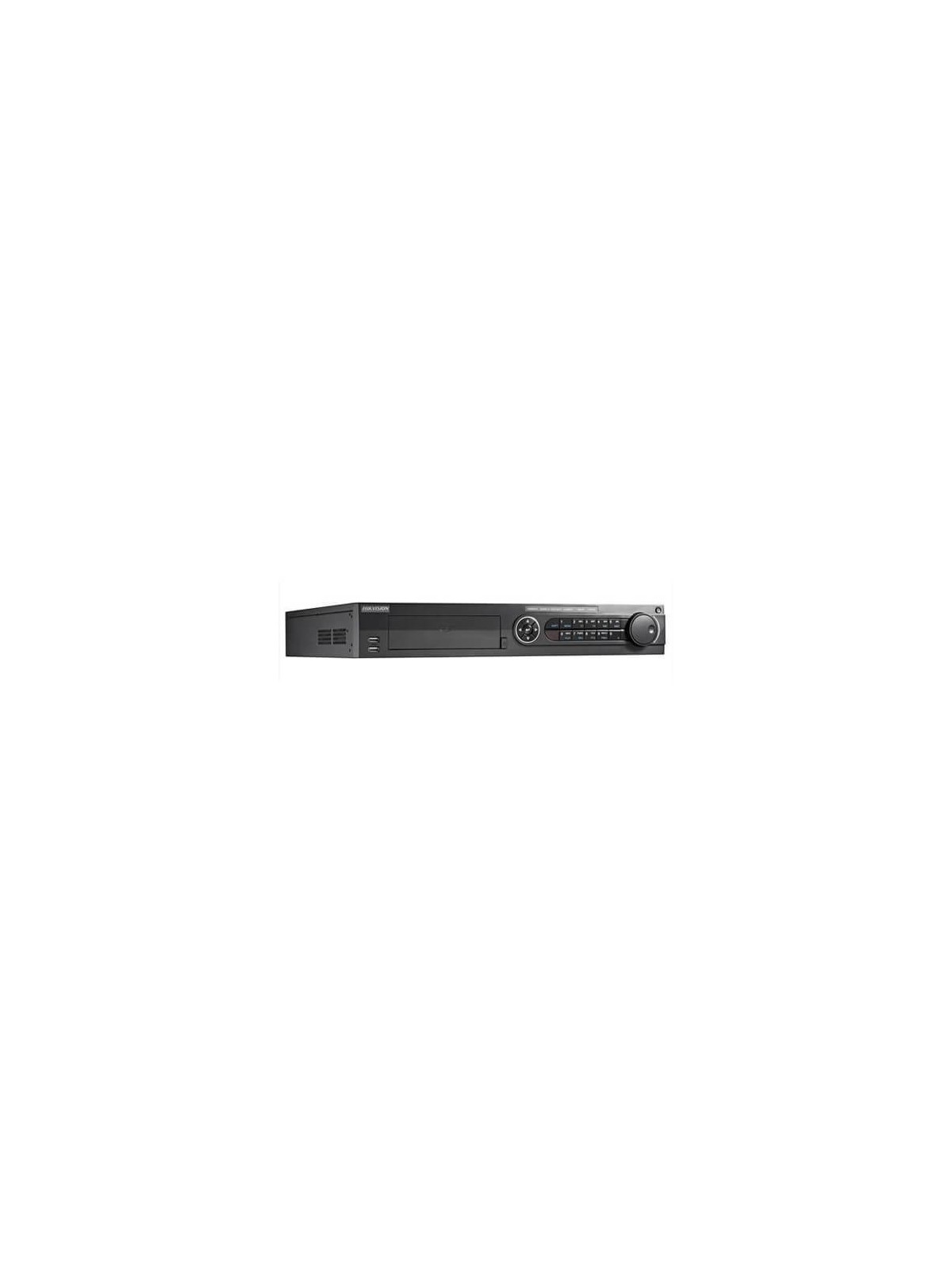

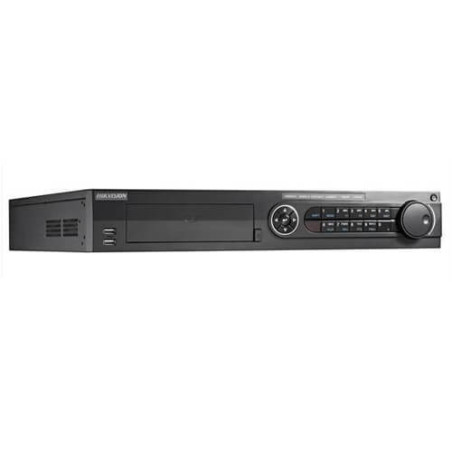

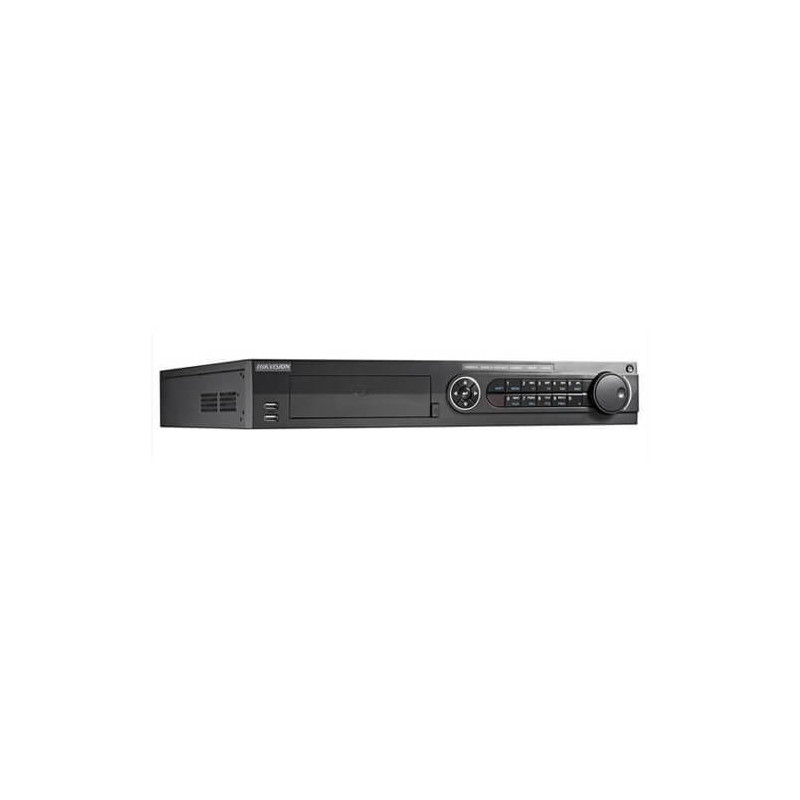

Grabador 5en1 Hikvision DS-7316HQHI-K4 16ch Video (2MP 200fps) 2ch IP 4MP 4ch Audio H265+ HDMI SATAx4 Alarmas


743.80€
(900.00€
con IVA)
+2ud. 669.42€

Grabador 5en1 Hikvision DS-7316HQHI-K4 16ch Video (2MP 200fps) 2ch IP 4MP 4ch Audio H265+ HDMI SATAx4 Alarmas
Cantidad: Stock: Stock de sobras!
Descripción


Grabador 5en1 Hikvision DS-7316HQHI-K4 16ch Video (2MP 200fps) 2ch IP 4MP 4ch Audio H265+ HDMI SATAx4 Alarmas

Grabador 5en1 Hikvision DS-7316HQHI-K4 16ch Video (2MP 200fps) 2ch IP 4MP 4ch Audio H265+ HDMI SATAx4 Alarmas

Grabador DVR Hikvision Turbo HD 4.0 de 16 canales hasta 4MP Lite 15FPS + Formatos H.265+ / H.265 / H.264+ / H.264, Salida principal HDMI hasta 4K / VGA simultáneas y salida CVBS.
-Codificación H.265+ / H.265 / H.264+ / H.264.
-Entrada de señal HDTVI / HDCVI / AHD / CVBS autoadaptable.
-Puede conectarse a cámaras IP H.265 + / H.265 / H.264 + / H.264.
-Hasta 4 MP Lite de resolución para la grabación.
-Transmisión de larga distancia sobre cable UTP y coaxial.
-Reproducción sincronizada de 16 canales.
-Capacidad para 4 HDD 10TB.
-16 entrada y 4 salida de alarma.
-Teclado remoto DS-1003KI a través de puerto RS485.
-Teclado remoto DS-1005KI a través de puerto USB.

Características técnicas
  • Recording
  • Video compression - H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • Encoding resolution - When 1080p Lite mode is not enabled: ,4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF;,When 1080p Lite mode is enabled: ,4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF,
  • Frame rate - Main stream:,When 1080p Lite mode is not enabled: ,For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) ,For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps,For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),When 1080p Lite mode enabled: ,4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/ 30fps (N),Sub-stream:,WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
  • Video bit rate - 32 Kbps to 6 Mbps
  • Dual stream - Support
  • Stream type - Video, Video & Audio
  • Audio compression - G.711u
  • Audio bit rate - 64 Kbps
  • Video and Audio
  • IP video input - 8-ch (up to 24-ch) Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
  • Analog video input - 16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
  • AHD input - 4 MP, 1080p25, 1080p30, 720p25, 720p30
  • HDCVI input - 1080p25, 1080p30, 720p25, 720p30
  • CVBS input - PAL/NTSC
  • Audio input - 4-ch, RCA (2.0 Vp-p, 1 KΩ)
  • Audio output - 2-ch, RCA (Linear, 1 KΩ)
  • Two-way audio - 1-ch, RCA (2.0 Vp-p, 1 KΩ) (independent)
  • Synchronous playback - 16-ch
  • HDTVI input - 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25,*: The 3 MP signal input is only available for channel 1 of DS-7304HQHI-K4, channel 1/2 of DS-7308HQHI-K4, and channel 1/2/3/4 of DS-7316HQHI-K4.
  • VGA/HDMI output - VGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,HDMI: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • CVBS output - 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
  • Network
  • Remote connections - 128
  • Network protocols - TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, SNMP
  • Network interface - 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface
  • Auxiliary interface
  • SATA - 4 SATA interfaces
  • Capacity - Up to 10 TB capacity for each disk
  • Alarm in/out - 16/4
  • USB interface - Front panel: 2 × USB 2.0,Rear panel: 1 × USB 3.0
  • Serial interface - RS-232, RS-485 (full-duplex), Keyboard
  • eSATA - Support
  • General
  • Power supply - 100 to 240 VAC
  • Working temperature - -10 °C to +55 °C (+14 °F to +131 °F)
  • Working humidity - 10% to 90%
  • Dimensions (W × D × H) - 445 × 390 × 70 mm (17.5 × 15.4 × 2.8 inch)
  • Weights (without HDD) - ≤ 5 kg (11.0 lb)
  • Consumption (without HDD) - ≤ 55 W
