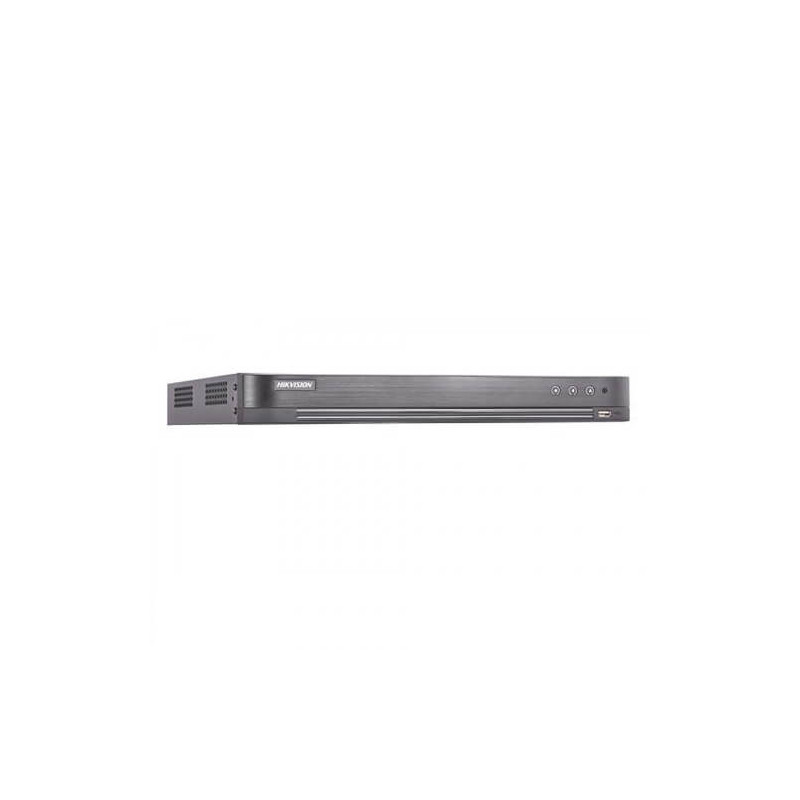

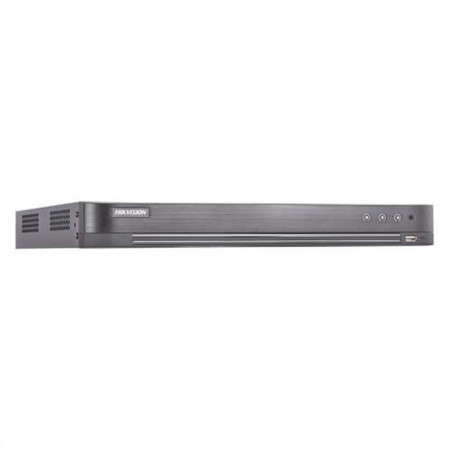

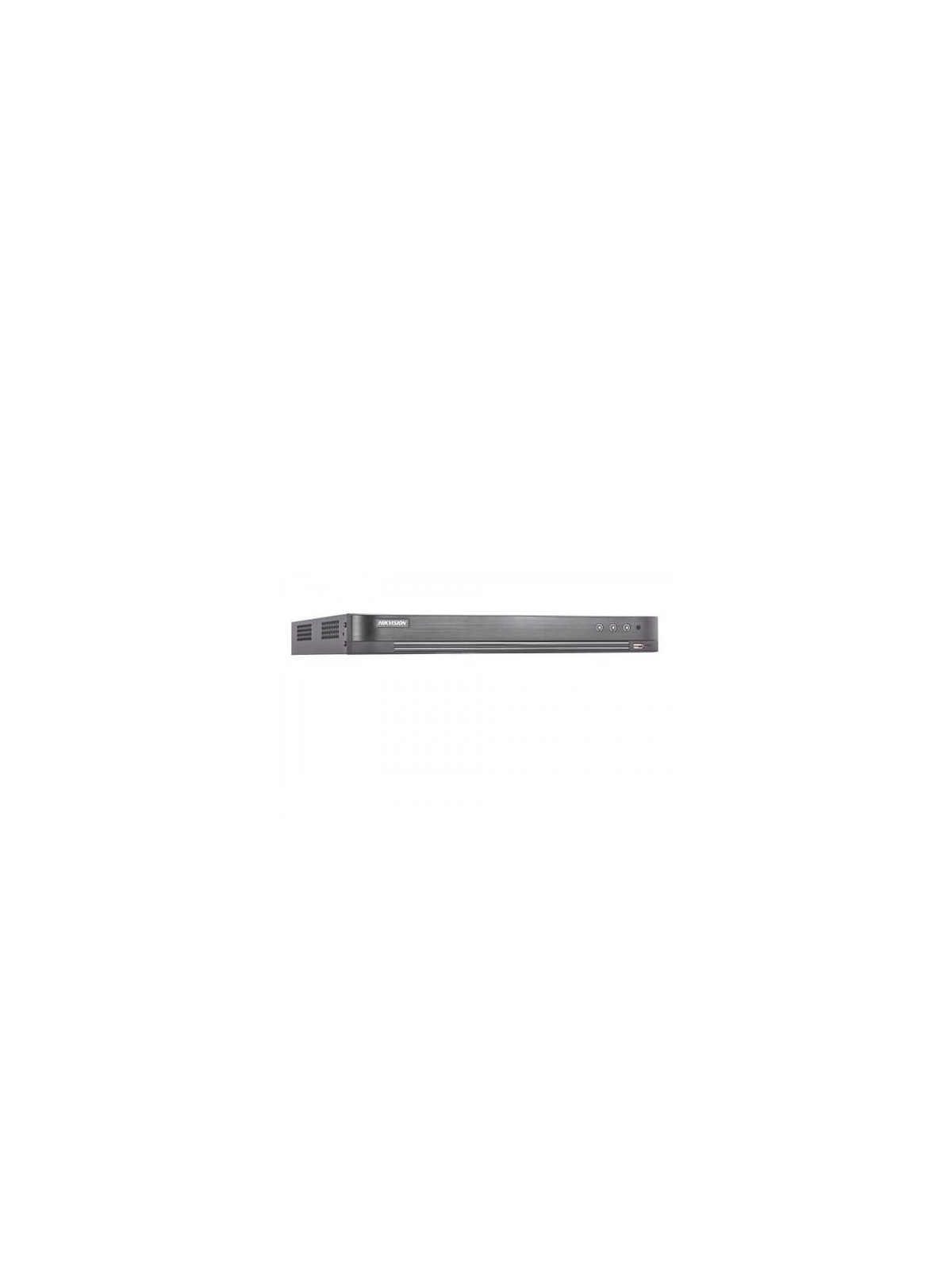

Grabador 5en1 Hikvision DS-7216HQHI-K2(S) 16ch Video (2MP 400fps) 4ch IP 1ch Audio H265+ HDMI SATAx2

• Recording
• Video compression - H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding resolution - When 1080p lite mode is not enabled: ,4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF,When 1080p Lite mode is enabled: ,4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF,
• Frame rate - Main stream:,When 1080p Lite mode not enabled: ,For 4 MP stream access:,4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) ,For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps,For 1080p stream access: ,1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),When 1080p Lite mode enabled: ,4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),Sub-stream: ,WD1/4CIF@12fps; CIF@25fps (P)/30fps (N),
• Video bit rate - 32 Kbps to 6 Mbps
• Dual stream - Support
• Stream type - Video, Video & Audio
• Audio compression - G.711u
• Audio bit rate - 64 Kbps

• Video and Audio
• IP video input - 8-ch (up to 24-ch) Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
• Analog video input - 16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
• AHD input - 4 MP, 1080p25, 1080p30, 720p25, 720p30
• HDCVI input - 1080p25, 1080p30, 720p25, 720p30
• CVBS input - PAL/NTSC
• Audio input - 1-ch, RCA (2.0 Vp-p, 1 KΩ)
• Audio output - 1-ch, RCA (Linear, 1 KΩ)
• Two-way audio - 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
• Synchronous playback - 16-ch
• HDTVI input - 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25,*: The 3 MP signal input is only available for channel 1/2 of DS-7208HQHI-K2, and for channel 1/2/3/4 of DS-7216HQHI-K2.,
• VGA/HDMI output - VGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,HDMI: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• CVBS output - 1-ch, BNC (1.0 Vp-p, 75 Ω),

• Network
• Remote connections - 128
• Network protocols - TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
• Network interface - 1,,RJ45 10M/100M/1000M ,self-adaptive ,Ethernet interface,

• Auxiliary interface
• SATA - 2 SATA interfaces
• Capacity - Up to 10 TB capacity for each disk
• Alarm in/out - N/A
• USB interface - Front panel: 1 × USB 2.0,Rear panel: 1 × USB 3.0,
• Serial interface - RS-485 (half-duplex)

• General
• Power supply - 12 VDC
• Working temperature - -10 °C to +55 °C (+14 °F to +131 °F)
• Working humidity - 10% to 90%
• Dimensions (W × D × H) - 380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
• Weights (without HDD) - ≤ 2 kg (4.4 lb)
• Consumption (without HDD) - ≤ 25 W
