Descripción |

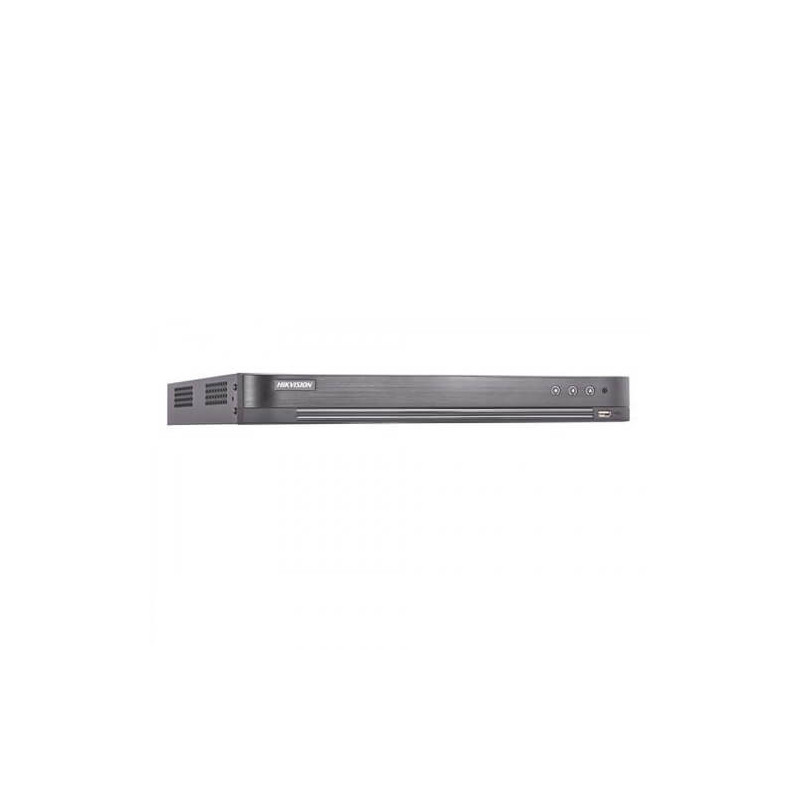

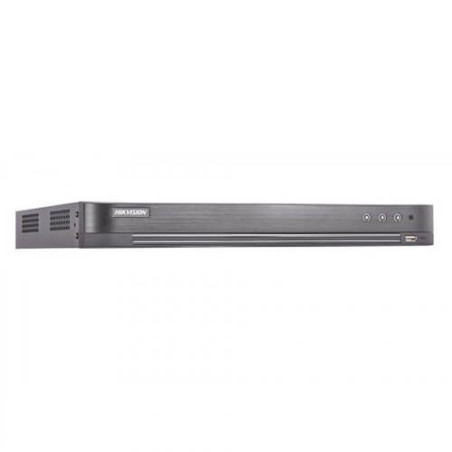

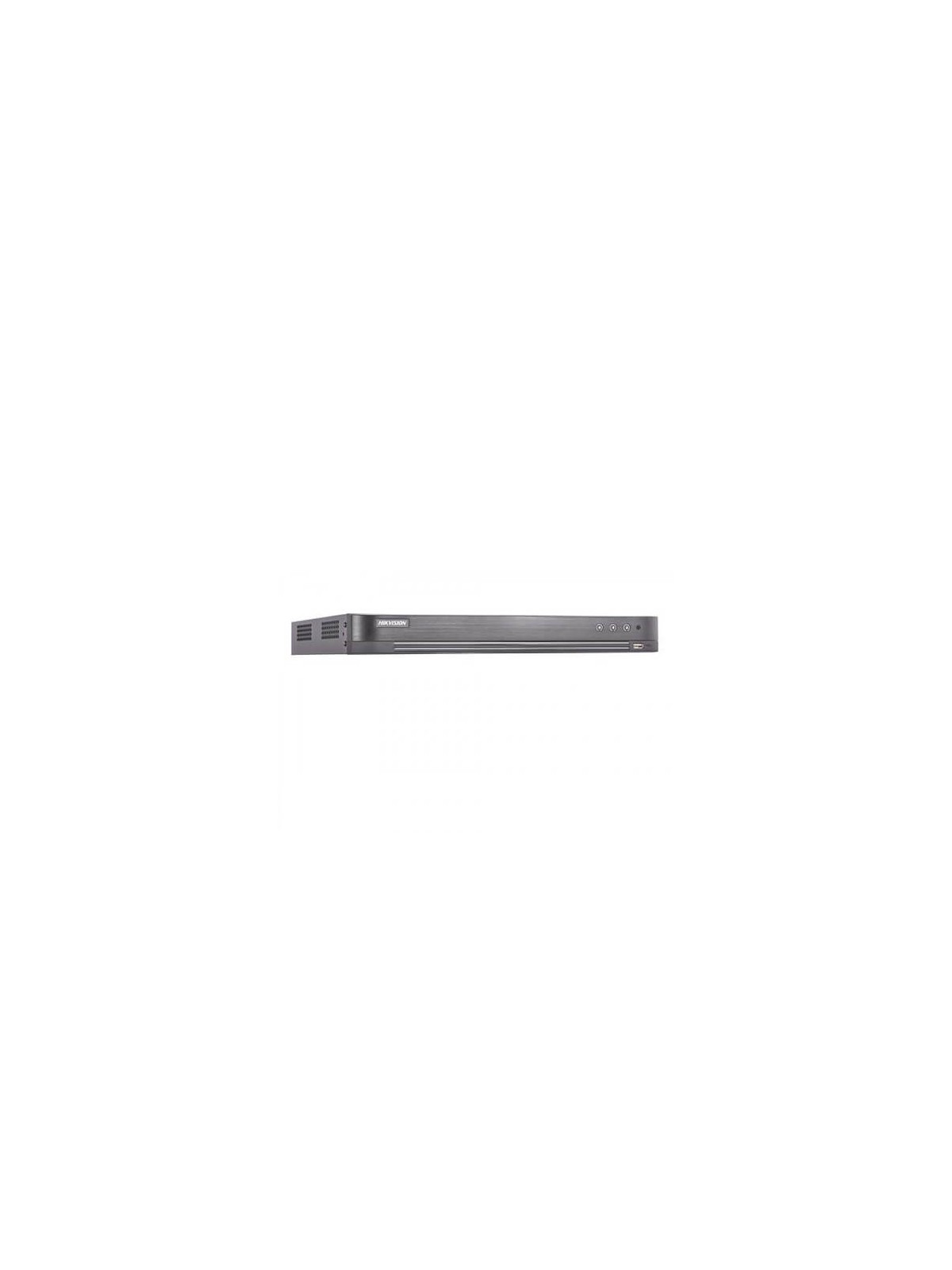

Grabador 5en1 Hikvision DS-7208HTHI-K2(S) 8ch Video (8MP/5MP) 8ch IP 1ch Audio H265+ HDMI4K SATAx2 Alarmas

- 8 channels and 2 HDDs 1U DVR
- Efficient H.265 pro+ compression technology
- Encoding ability up to 8 MP @ 15 fps
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
- Up to 16 network cameras can be connected
|
|
Características técnicas |
- Recording
- Compresión de vídeo - H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Encoding resolution - 8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
- Frame Rate - Main stream:
8 MP@15 fps/5 MP@20 fps/3K@20 fps/3 MP@18 fps
4 MP/1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
Sub-stream:
WD1/4CIF/CIF@25 fps (P)/30 fps (N)
- Vídeo bitrate - 32 Kbps to 16 Mbps
- Dual stream - Support
- Stream type - Video, Video & Audio
- Audio compression - G.711u
- Audio bit rate - 64 Kbps
- Video and Audio
- Entrada de video IP - 8-ch (up to 16-ch) Up to 8 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
- Analog video input - 16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- AHD input - 5 MP, 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30
- HDCVI input - 4 MP, 1080p25, 1080p30, 720p25, 720p30
- CVBS input - PAL/NTSC
- Entrada de Audio - 4-ch, RCA (2.0 Vp-p, 1 KΩ);8-ch via coaxial cable
- Salida de audio - 1-ch, RCA (Linear, 1 KΩ)
- Audio bidireccional - 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
- Reproducción síncrona - 8-ch
- HDTVI input - 8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
- VGA/HDMI output - VGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz ,HDMI: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, ,1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,
- Salida CVBS - 1-ch, BNC (1.0 Vp-p, 75 Ω),,resolution: PAL: 704 × 576, NTSC: 704 × 480,
- Red
- Conexiones remotas - 64
- Network protocols - TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
- Interfaz de red - 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface
- Auxiliary interface
- SATA - 2 SATA interfaces
- Capacidad - Up to 10 TB capacity for each disk
- Alarm in/out - 8/4
- Interfaz USB - Front panel: 1 × USB 2.0,Rear panel: 1 × USB 3.0,
- Serial interface - RS-485 (half-duplex)
- General
- Fuente de alimentación - 12 VDC
- Temperatura de trabajo - -10 °C to +55 °C (+14 °F to +131 °F)
- Humedad de trabajo - 10% to 90%
- Dimensiones (W × D × H) - 380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
- Weights (without HDD) - ≤ 2 kg (4.4 lb)
- Consumption
(without HDD) - ≤ 20 W
|
|
|
