| Descripción |
|

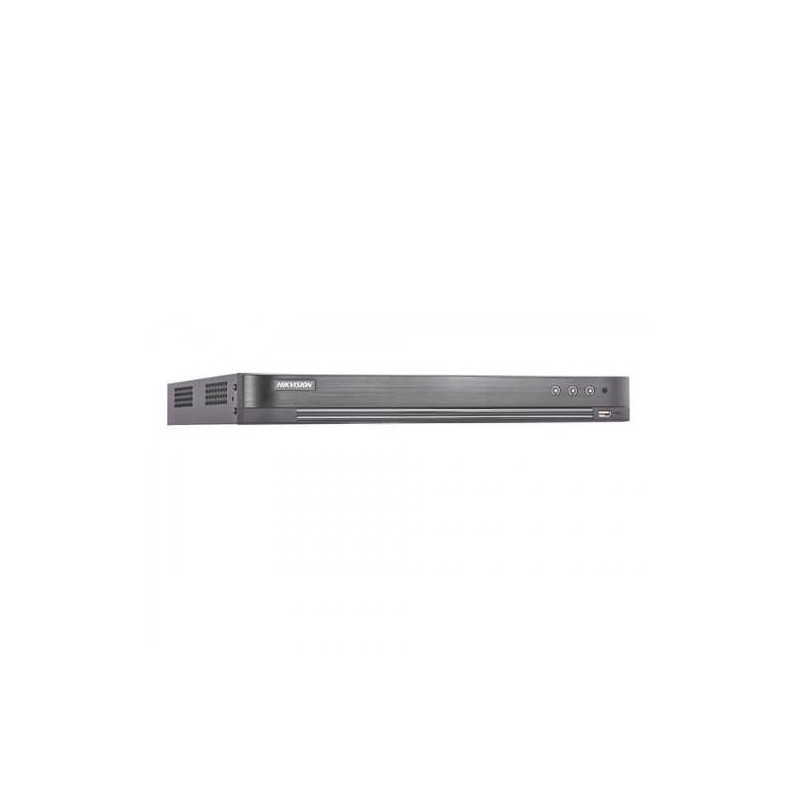

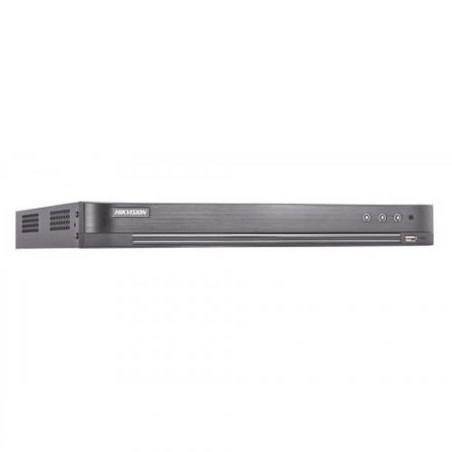

Grabador 5en1 Hikvision DS-7208HQHI-K2/A(S) 8ch Video (2MP 200fps) 2ch IP 1ch Audio H265+ HDMI SATAx2 Alarmas
Grabador DVR 8 Ch Hikvision Turbo HD 4.0 hasta 3Mpx + 2 canales IP hasta 4Mpx + Salida monitor principal HDMI/VGA simultáneas y salida CVBS.. Con 8 entradas y 4 salidas de alarma.
-Formato H.265+ / H.265 / H.264+ / H.264 y H.265 / H.264 para el flujo de cámaras analógicas.
-Entrada de señal HDTVI / HDCVI / AHD / CVBS autoadaptativa.
-Conectable a cámaras IP H.265 + / H.265 / H.264 + / H.264.
-Resolución de hasta 3 MP para grabación.
-Transmisión de larga distancia sobre UTP y cable coaxial.
-Reproducción sincrónica de 8 canales.
-Capacidad para 2HDD de hasta 6TB.
|
|
| Características técnicas |
|
| | Video/Audio Input | | Audio Input: | | 1-ch | | Video Compression: | | H.265+/H.265/H.264+/H.264 | | Analog and HD-TVI video input: | | 8-ch,BNC interface (1.0Vp-p, 75 Ω)connection | | Supported camera types: | | Support HDTVI input: 3MP,1080P/25Hz, 1080P/30Hz,720P/25Hz, 720P/30Hz, 720P/50Hz, 720P/60Hz,
Support AHD input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz
Support CVI input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz
Support CVBS input | | Video Input Interface: | | BNC (1.0 Vp-p, 75Ω) | | Audio Compression: | | G.711u | | Audio Input Interface: | | RCA (2.0 Vp-p, 1 kΩ) | | Two-way Audio: | | 1-ch, RCA (2.0 Vp-p, 1 KΩ), (using the 1st channel of audio input) |
| Video/Audio Output | | CVBS Output: | | 1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704x576,NTSC:704x480 | | HDMI/VGA Output: | | 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz | | Recording resolution: | | When 1080p Lite mode not enabled: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF;
When 1080p Lite mode enabled: 1080p lite/720p lite/VGA/WD1/4CIF/CIF | | Frame Rate: | | Main stream:
When 1080p Lite mode not enabled:
For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps
For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled:
3 MP@15fps
1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
Sub-stream:
WD1/4CIF@12fps; CIF@25fps (P)/30fps (N) | | Video Bit Rate: | | 32 Kbps-6 Mbps | | Stream Type: | | Video/Video&Audio | | Two-way Audio: | | 1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input) | | Audio Output: | | 1-ch RCA(Linear, 1kΩ) | | Audio Bit Rate: | | 64kbps | | Dual Stream: | | Support | | Playback Resolution: | | 3 MP/1080p/720p/VGA/WD1/4CIF/CIF | | Synchronous Playback: | | 8-ch |
| Network management | | Remote connections: | | 128 | | Network protocols: | | TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS,ONVIF |
| Hard Disk Driver | | Interface Type: | | 1 SATA Interface | | Capacity: | | Up to 6 TB capacity for each disk |
| External Interface | | Network Interface: | | 1; 10M / 100M self-adaptive Ethernet interface | | USB Interface: | | 2 USB 2.0 Interfaces | | Serial Interface: | | 1; standard RS-485 serial interface, half-duplex |
| General | | Power Supply: | | 12V DC | | Consumption: | | ≤ 6W(without hard disks) | | Working Temperature: | | -10 oC to +55 oC (14 oF to 131 oF) | | Working Humidity: | | 10% to 90% | | Dimensions: | | 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch) | | Weight: | | ≤ 1.16 kg (2.6 lb) |
|
|
