Descripción |

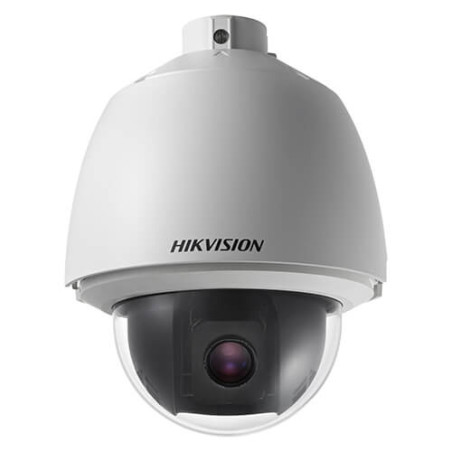

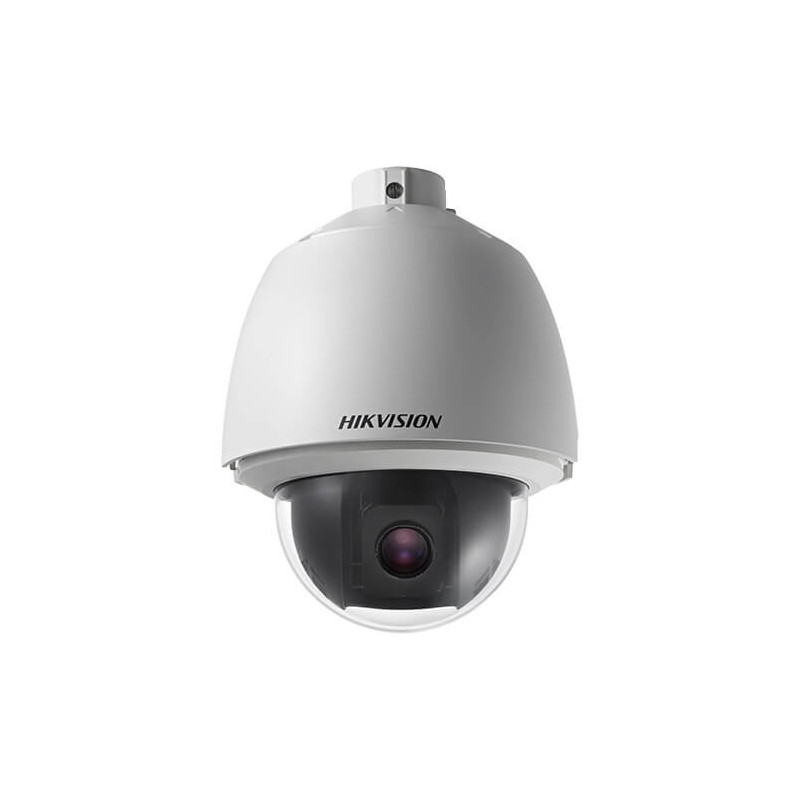

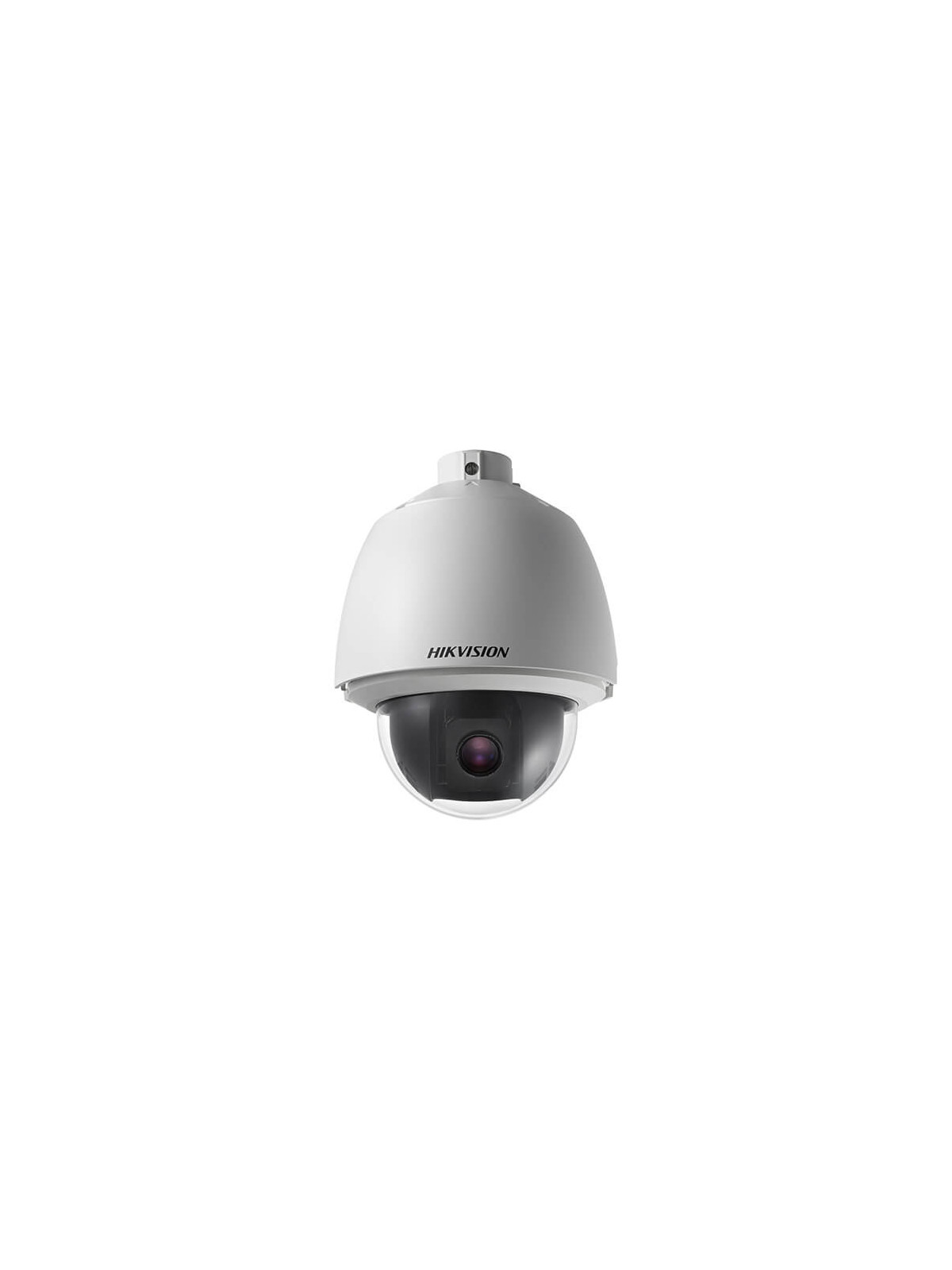

Domo PTZ IP Hikvision DS-2DE5225W-AE 2MP 0.001Lux 4.8-120mm Zoom25x H265+ POE SD WDR Audio Alarmas

5-inch 2 MP 25X Powered by DarkFighter Network Speed Dome
- High quality imaging with 2 MP resolution
- Clear imaging against strong back lighting due to 120 dB WDR technology
- Pan and tilt ability enables camera to monitor zones of interest
- 25x optical zoom allows for closer viewing of subjects in expansive areas
- Water and dust resistant (IP66) and vandal resistant (IK10).
|
|
Características técnicas |
- Lente
- FOV - Horizontal field of view: 57.6° to 2.5° (Wide-Tele),Vertical field of view: 34.4° to 1.4° (Wide-Tele),Diagonal field of view: 64.5° to 2.9° (Wide-Tele)
- Velocidad del Zoom - Approx. 3.6 s (optical lens, wide-tele)
- Distancia de trabajo - 10 mm to 1500 mm (wide-tele)
- Rango de apertura - F1.6 to F3.5
- Longitud focal - 4.8 mm to 120 mm, 25× optical zoom
- Imagen
- Mejora de la imagen - HLC/BLC/3D DNR/Defog/EIS/Regional Exposure/Regional Focus
- Sub-stream - 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
- Max. Resolución - 1920 × 1080
- Main stream - 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),50fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720),60fps (1920 × 1080, 1280 × 960, 1280 × 720)
- Third Stream - 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
- Red
- Almacenamiento en red - Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/ CIPS), ANR
- Protocolos - IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
- API - Open-ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party Management Platform
- Vista en vivo simultánea - Up to 20 channels
- Usuario/operador - Up to 32 users,3 levels: Administrator, Operator and User
- Cliente - iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
- Navegador web - IE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51
- Medidas de seguridad - User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
- Enlace de alarma - Alarm actions, such as Notify Surveillance Center, Upload to FTP, Send Email, Trigger Recording, Recording Linkage, and Alarm Input, etc.
- Interfaz
- Salida de alarma - 1-ch alarm output
- Entrada de alarma - 2-ch alarm input
- Entrada de Audio - 1-ch audio input
- Salida de audio - 1-ch audio output
- Interfaz de red - 1 RJ45 10 M/100 M Ethernet, PoE+ (802.3 at, class4)
- Compresión estándar
- H.264 + - Support
- H.265 + - Support
- Tipo H.264 - Baseline Profile/Main Profile/High Profile
- Compresión de vídeo - Main Stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG,Third Stream: H.265/H.264/MJPEG
- Tipo H.265 - Baseline Profile/Main Profile/High Profile
- Vídeo bitrate - 32 Kbps to 16384 Kbps
- Compresión de audio - G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
- Audio Bitrate - G.711alaw/G.711ulaw: 64 Kbps,G.722.1/G.726: 16 Kbps,MP212/PCM: 32 Kbps/64 Kbps/128 Kbps
- SVC - Support
- Módulo de cámara
- Sensor de imagen - 1/2.8" progressive scan CMOS
- Iluminación mínima - Color: 0.005 Lux @(F1.6, AGC ON),B/W: 0.001Lux @(F1.6, AGC ON)
- Balance de blancos - Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
- Ganancia - Auto/Manual
- Tiempo de obturación - 50Hz: 1/1 s to 1/30,000 s,60Hz: 1/1 s to 1/30,000 s
- Día y Noche - IR Cut Filter
- Zoom Digital - 16×
- Máscara de privacidad - 24 programmable privacy masks
- Modo de enfoque - Auto/Semi-automatic/Manual
- WDR - 120 dB WDR
- PTZ
- Rango de movimiento (pan) - 360° endless
- Velocidad de movimiento horizontal (pan) - Configurable, from 0.1°/s to 250°/s, ,Preset speed: 300°/s
- Rango de movimiento (tilt) - From -5° to 90° (auto-flip)
- Velocidad de vertical (tilt) - Configurable, from 0.1°/s to 150°/s,Preset Speed: 200°/s
- Zoom proporcional - Support
- Preajustes - 300
- Escaneo de patrulla - 8 patrols, up to 32 presets for each patrol
- Patrón de escaneo - 4 pattern scans, record time over 10 minutes for each scan
- Memoria de apagado - Support
- Acción del parque - Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
- Posicionamiento 3D - Support
- Pantalla de estado de PTZ - Support
- Congelación preestablecida - Support
- Tarea programada - Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output
- Características inteligentes
- Basic Event Detection - Motion Detection, Alarm Input, Alarm Output, Video Tampering Detection, Exception
- Smart Detection - Face Detection, Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Object Removal Detection, Unattended Baggage Detection
- Seguimiento inteligente - Support
- Registro inteligente - ANR (Automatic Network Replenishment), Dual-VCA
- ROI - Main stream, sub-stream, and third stream respectively support four fixed areas.
- General
- Material - ADC 12, PC+ABS, PC/PMMA
- Dimensiones - Φ 220 mm × 280 mm (Φ 8.66" × 11.02")
- - Approx. 3 kg (6.61 lb)
- Nivel de protección - IP66 Standard, IK10, TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection
- alimentación - 24 VAC and PoE+ (802.3 at, class4),Max.: 22 W
- Temperatura de trabajo - -30°C to 65°C (-22°F to 149°F)
- Condiciones de Humedad - ≤ 90%
|
|
|
