| Descripción |
|

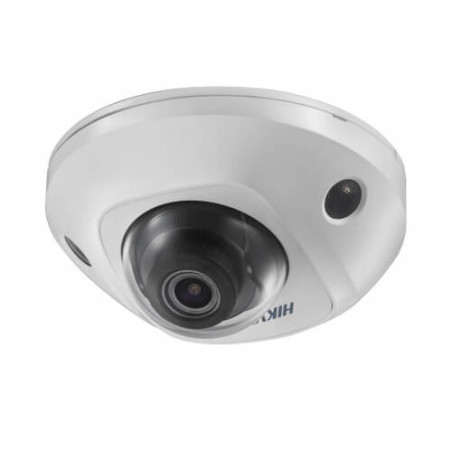

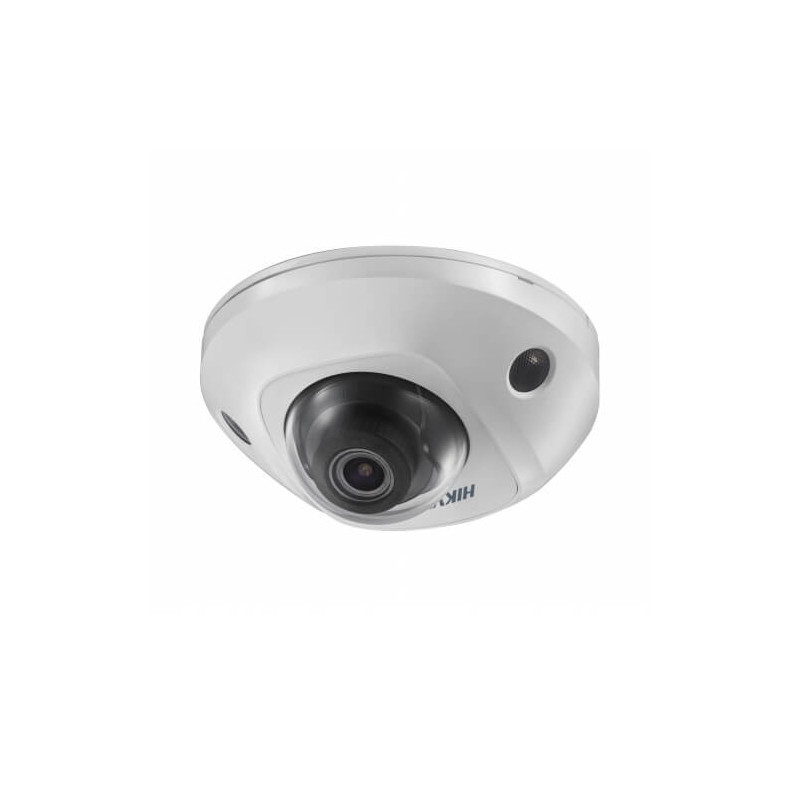

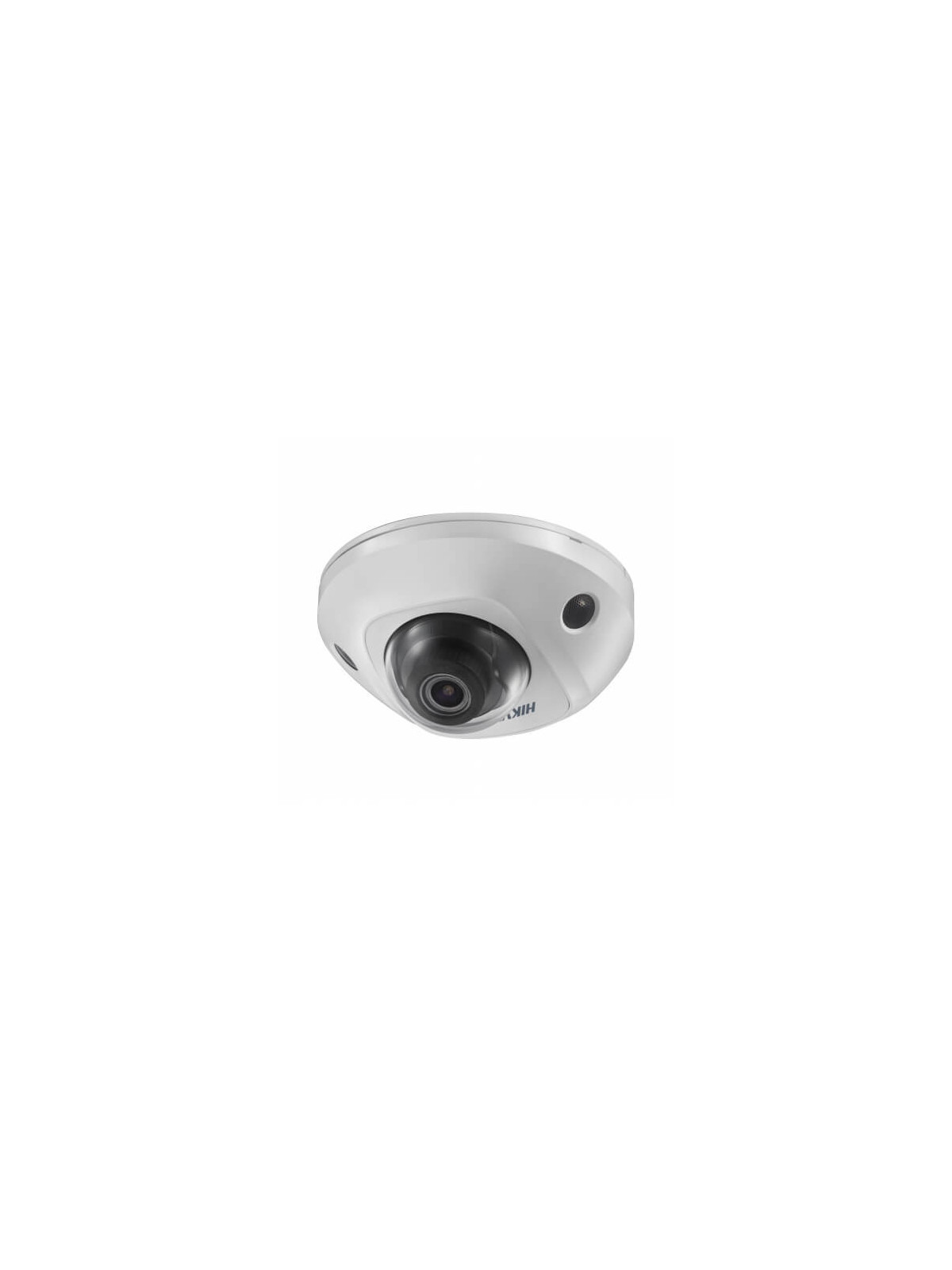

Domo IP Hikvision DS-2CD2523G0-IW 2MP PRO IR10m 2.8mm H265+ Wifi POE SD WDR
Mini cámara IP compacta 2MP 1920x1080 25IPS, óptica fija 2.8mm. Compresión H.265+/H.265/H.264+/H.264/MJPEG.
-Serie EasyIP 2.0 Plus.
-Función día/noche conmutación mecánica.
-Sensor CMOS 1/3" con escaneo progresivo.
-Óptica 2.8 mm. Sensibilidad: 0,01 lux (F1.2, AGC ON), 0 lux con IR. Incluye LEDS IR EXIR alcance 10m.
-Resolución 4 Megapixels. Ratio de imágenes 25IPS (2688 x 1520, 1920x1080, 1280x720).
-Rango dinámico expandido real 120dB.
-1 salida de video IP Ethernet 10/100Mbps. Servidor Web integrado. Triple streaming de video
-Codificación H265+, H265, H264+, H264.
-Detección SMART : Intrusión, Cruce de línea, Detección rostro básica.
-BLC/3D DNR/ROI/HLC.
-Acepta tarjeta SD hasta 128GB.
-Instalación exterior IP66, antivandálico IK08. Ajuste 3 ejes.
-Wi-Fi
|
|
| Características técnicas |
- Camera
- Image Sensor - 1/2.7" Progressive Scan CMOS
- Min. Illumination - Color: 0.028 lux @(F2.0, AGC ON), 0 lux with IR
- Shutter Speed - 1/3 s to 1/100,000 s
- Slow Shutter - Yes
- Wide Dynamic Range - 120 dB
- Day & Night - IR Cut Filter
- Angle Adjustment - Pan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360°
- Lens
- Lens Type - 2.8, 4, 6 mm
- FOV - 2.8 mm, horizontal FOV: 114°, vertical FOV: 62°, diagonal FOV: 135°
4 mm, horizontal FOV: 86°, vertical FOV: 46°, diagonal FOV: 102°
6 mm, horizontal FOV: 54°, vertical FOV: 30°, diagonal FOV: 62°
- Aperture - F2.0
- Lens Mount - M12
- Illuminator
- IR Range - Up to 10 m
- Wavelength - 850 nm
- Video
- Max. Resolution - 1920 × 1080
- Main Stream - 50Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
- Sub-Stream - 50Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)
- Third Stream - 50Hz: 25 fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 288)
60Hz: 30 fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 240)
- Video Compression - Main stream: H.265/H.264
Sub-stream: H.265/H.264 /MJPEG
Third stream: H.265/H.264
- Video Bit Rate - 32 Kbps to 16 Mbps
- H.264 Type - Main Profile/High Profile
- H.265 Type - Main Profile
- H.264+ - Main stream supports
- H.265+ - Main stream supports
- Scalable Video Coding (SVC) - Support H.264 and H.265 encoding
- Audio
- Environment Noise Filtering - Yes
- Audio Sampling Rate - 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Audio Compression - G722.1/G711ulaw/G711alaw/G726/MP2L2/PCM
- Audio Bit Rate - 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
- Network
- Simultaneous Live View - Up to 6 channels
- API - ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
- Protocols - TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
- User/Host - Up to 32 users. 3 levels: administrator, operator and user
- Security - Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
- Network Storage - Support Micro SD/SDHC/SDXC card (128 GB), local storage and NAS (NFS, SMB/CIFS), ANR
- Client - Wired network: Hik-Connect, iVMS-4200, Hik-Central
Wi-Fi: iVMS-4200, Hik-Central
- Web Browser - Plug-in required live view: IE 8+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+
Local Service: Chrome 41.0+, Firefox 30.0+
- Alarm Trigger - Motion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error, illegal login
- Wi-Fi
- Encryption Mode - WPA, WPA2
- Wi-Fi Protocol - IEEE 802.11b/g/n
- Frequency Range - 2.412 GHz to 2.4835 GHz
- Channel Bandwidth - 20 M/40 M
- Wireless Range - Up to 50 m (The performance varies based on actual environment)
- Transfer Rate - 11b: 11 Mbps
11g: 54 Mbps
11n: up to 150 Mbps
- Image
- Day/Night Switch - Auto/Schedule/Day/Night/Triggered by Alarm In (-S)
- DNR - 3D DNR
- Image Enhancement - BLC/3D DNR/HLC
- Image Settings - Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
- Interface
- Audio - 2 Inputs: line in, or mic in (built-in microphone)
1 Output: line out, mono sound, terminal block
- Alarm - 1 Input: Alarm in;
1 Output: Alarm out (max. 12 VDC, 30 mA), terminal block
- On-board Storage - Built-in MicroSD/SDHC/SDXC slot, up to 128G
- Hardware Reset - Yes
- Communication Interface - 1 RJ45 10M/100M self-adaptive Ethernet port
- Event
- Basic Event - Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
- Smart Event - Line crossing detection, intrusion detection, face detection
- Face Detection - Yes
- General
- Linkage Method - Trigger recording: memory card, network storage, pre-record and post-record
Trigger captured pictures uploading: FTP, HTTP, NAS, Email
Trigger notification: HTTP, ISAPI, alarm output , Email
- Firmware Version - V5.6.5
- Web Client Language - 32 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
- General Function - Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
- Startup and Operating Conditions - -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
- Power Supply - 12 VDC ± 25%, PoE (802.3af, class 3)
- Power Consumption and Current - 12 VDC, 0.7 A, max. 8.5 W, Ø5.5mm coaxial plug power; PoE (802.3af, 36 V to 57 V), 0.3 A to 0.1 A, max. 10 W
- Camera Dimension - Ø110 mm × 56.4 mm (Ø4.3" × 2.2")
- Camera Weight - Camera: Approx. 400 g (0.9 lb.)
- Approval
- Protection - Ingress protection: IP66 (IEC 60529-2013), IK08 (IEC 60529-2013)
|
|
|
