Descripción |

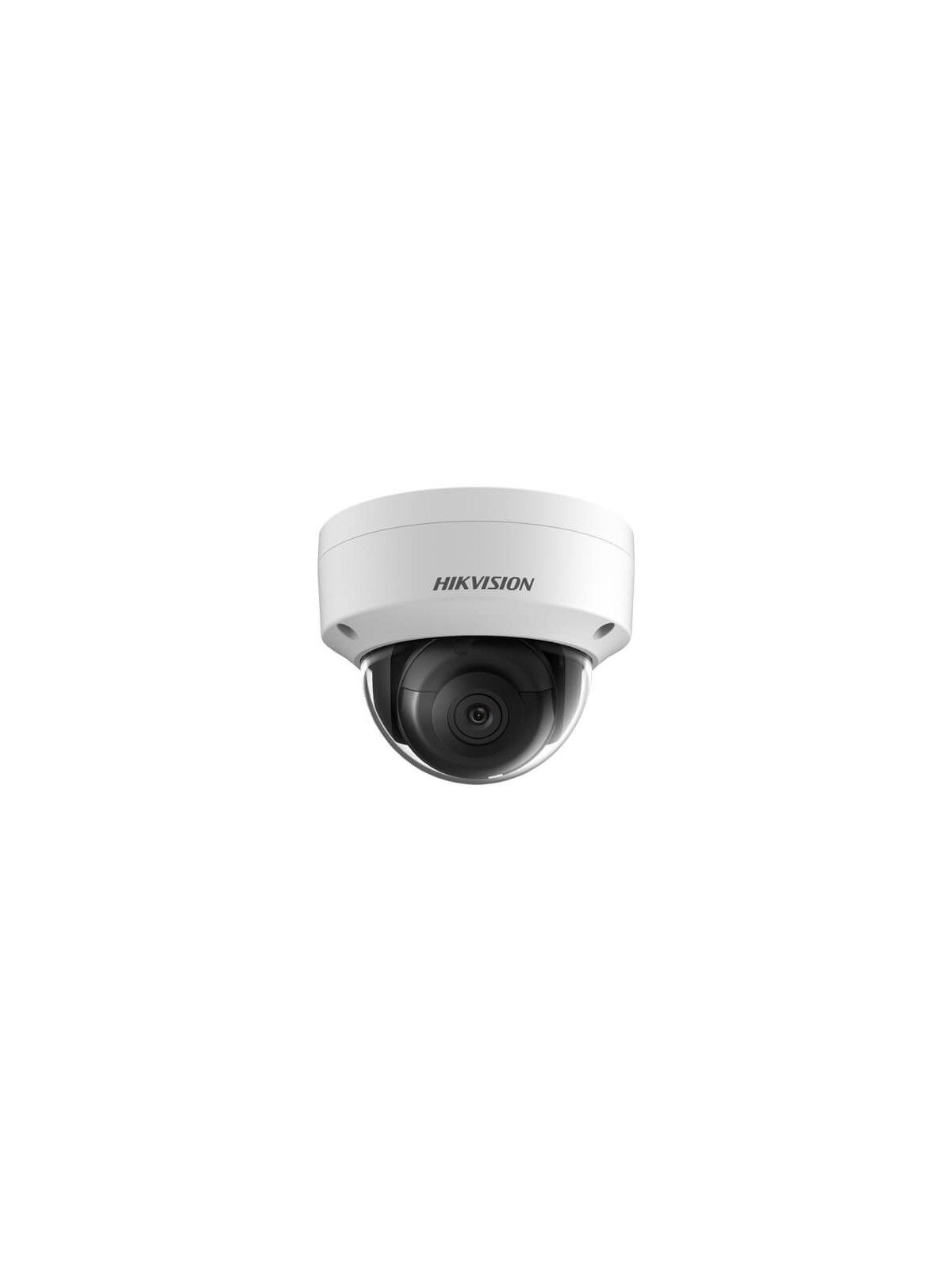

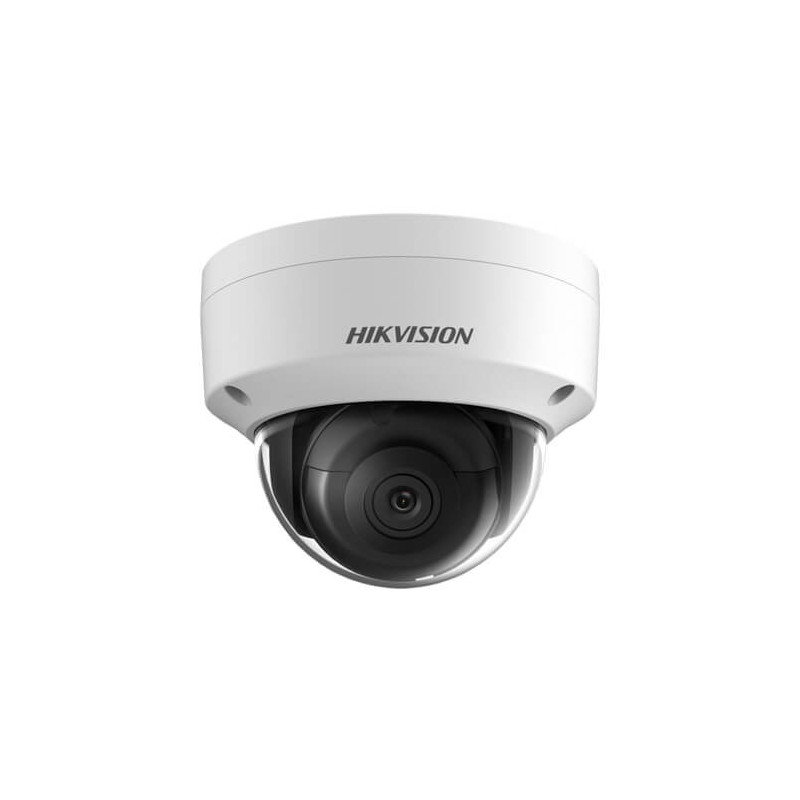

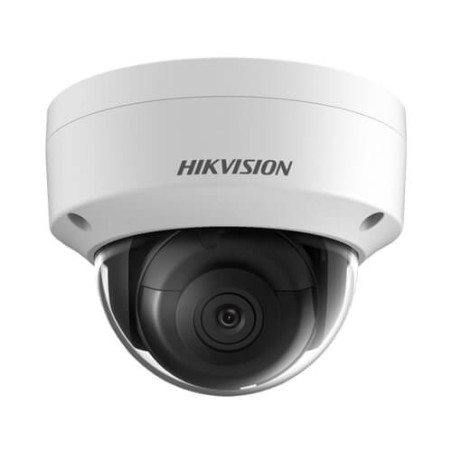

Domo IP Hikvision DS-2CD2163G0-I 6MP PRO IR30m 2.8mm H265+ POE SD WDR

Cámara minidomo de tecnología IP y resolución 6 Megapixeles. Óptica fija 2.8 mm. Compresión H.265+/H.265/H.264+/H.264.
-Serie EasyIP 2.0 Plus.
Sensor CMOS 1/2.5" con conmutación día/noche mediante filtro mecánico.
Sensibilidad en color 0,01 Lux.
LEDS IR alcance 30m.
WDR real 120dB, BLC, HLC, Defog, EIS, 3D DNR, ROI.
-Especificaciones de red:
Salida Ethernet 10/100M
Triple streaming de video
Servidor Web integrado Internet Explorer
Compatible con ONVIF, ISAPI.
Soporta tarjeta SD hasta 128GB ( tarjeta no incluida).
-Detección:
Básica: movimiento, tamper de vídeo, excepciones.
Avanzada: intrusión, cruce de línea, detección facial.
- Especificaciones generales:
Nivel de protección: IP67, antivandálico IK10.
Instalación en exterior.
Alimentación 12 VDC max 600 mA y PoE (802.3 af).
Dimensiones: Ø111 × L82.4 mm.
|
|
Características técnicas |
- Camera
- Image Sensor - 1/2.9" Progressive Scan CMOS
- Min. Illumination - Color: 0.01 lux @(F1.2, AGC ON), 0.028 lux @(F2.0, AGC ON), 0 lux with IR
- Shutter Speed - 1/3 s to 1/100,000 s
- Slow Shutter - Yes
- Wide Dynamic Range - 120dB
- Day & Night - IR Cut Filter
- Angle Adjustment - Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
- Lens
- Focus - Fixed
- Lens Type - 2.8/4/6/8 mm
- FOV - 2.8 mm, horizontal FOV: 97°, vertical FOV: 63°, diagonal FOV: 120°,4 mm, horizontal FOV: 78°, vertical FOV: 50°, diagonal FOV: 97°,6 mm, horizontal FOV: 60°, vertical FOV: 39°, diagonal FOV: 75°,8 mm, horizontal FOV: 39.5°, vertical FOV: 26°, diagonal FOV: 48°
- Aperture - F2.0
- Lens Mount - M12
- Aperture Type - Fixed
- Illuminator
- IR Range - Up to 30 m
- Wavelength - 850nm
- Video
- Max. Resolution - 3072 × 2048
- Main Stream - 50Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720),60Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 30fps (2560 × 1440, 1920 × 1080, 1280 × 720)
- Sub Stream - 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
- Third Stream - 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288),60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
- Video Compression - Main stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
- Video Bit Rate - 32 Kbps to 16 Mbps
- H.264 Type - Main Profile/High Profile
- H.265 Type - Main Profile
- H.264+ - Main stream supports
- H.265+ - Main stream supports
- Scalable Video Coding (SVC) - H.264 and H.265 encoding support
- Audio
- Environment Noise Filtering - Yes
- Audio Sampling Rate - 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Audio Compression - G.711/G.722.1/G.726/MP2L2/PCM
- Audio Bit Rate - 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
- Network
- Simultaneous Live View - Up to 6 channels
- API - ONVIF (PROFILE S, PROFILE G), ISAPI
- Protocols - TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
- User/Host - Up to 32 users,3 levels: Administrator, Operator and User
- Network Storage - Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
- Client - iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
- Web Browser - Plug-in required live view:,IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11,Plug-in free live view:,Chrome 45.0+, Firefox 52.0+
- Alarm Trigger - Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error
- Image
- Day/Night Switch - Day/Night/Auto/Schedule/Triggered by alarm input (-S)
- Target Cropping - No
- DNR - 3D DNR
- Image Enhancement - BLC/3D DNR/HLC
- Image Settings - Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
- Interface
- Audio - 1 input (line in/mic in), 1 output (line out), terminal block, mono sound
- Alarm - 1 input;1 output (max. 12 VDC, 30 mA), terminal block
- Video Output - No
- On-board Storage - Built-in microSD/SDHC/SDXC slot, up to 128 GB
- Hardware Reset - Yes
- Communication Interface - 1 RJ45 10M/100M self-adaptive Ethernet port
- Event
- Face Detection - Yes
- General
- Firmware Version - 5.6.3
- General Function - One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
- Startup and Operating Conditions - -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
- Power Supply - 12 VDC ± 25%, Φ 5.5mm ,PoE(802.3af, class 3)
- Power Consumption and Current - 12 VDC, 0.6 A, max. 7.5 W,PoE: (802.3af, 36 V to 57 V), 0.3 A to 0.2 A, max. 9 W
- Camera Dimension - Camera: Φ 111 mm × 82.4 mm (Φ 4.4" × 3.2"),Package: 134 × 134 × 108 mm (5.3" × 5.3" × 4.3")
- Camera Weight - Camera: approx. 500 g (1.1 lb.)
- Approval
- Protection - IP67, IK10
|
|
|
