| Descripción |
|

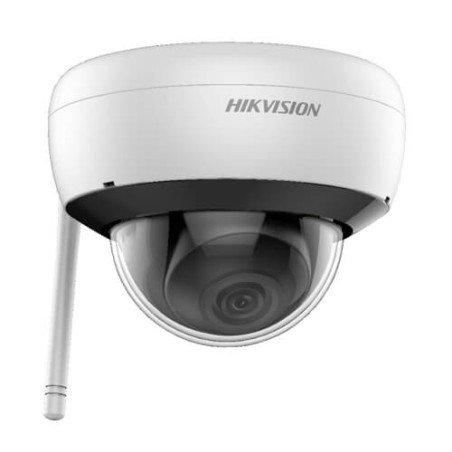

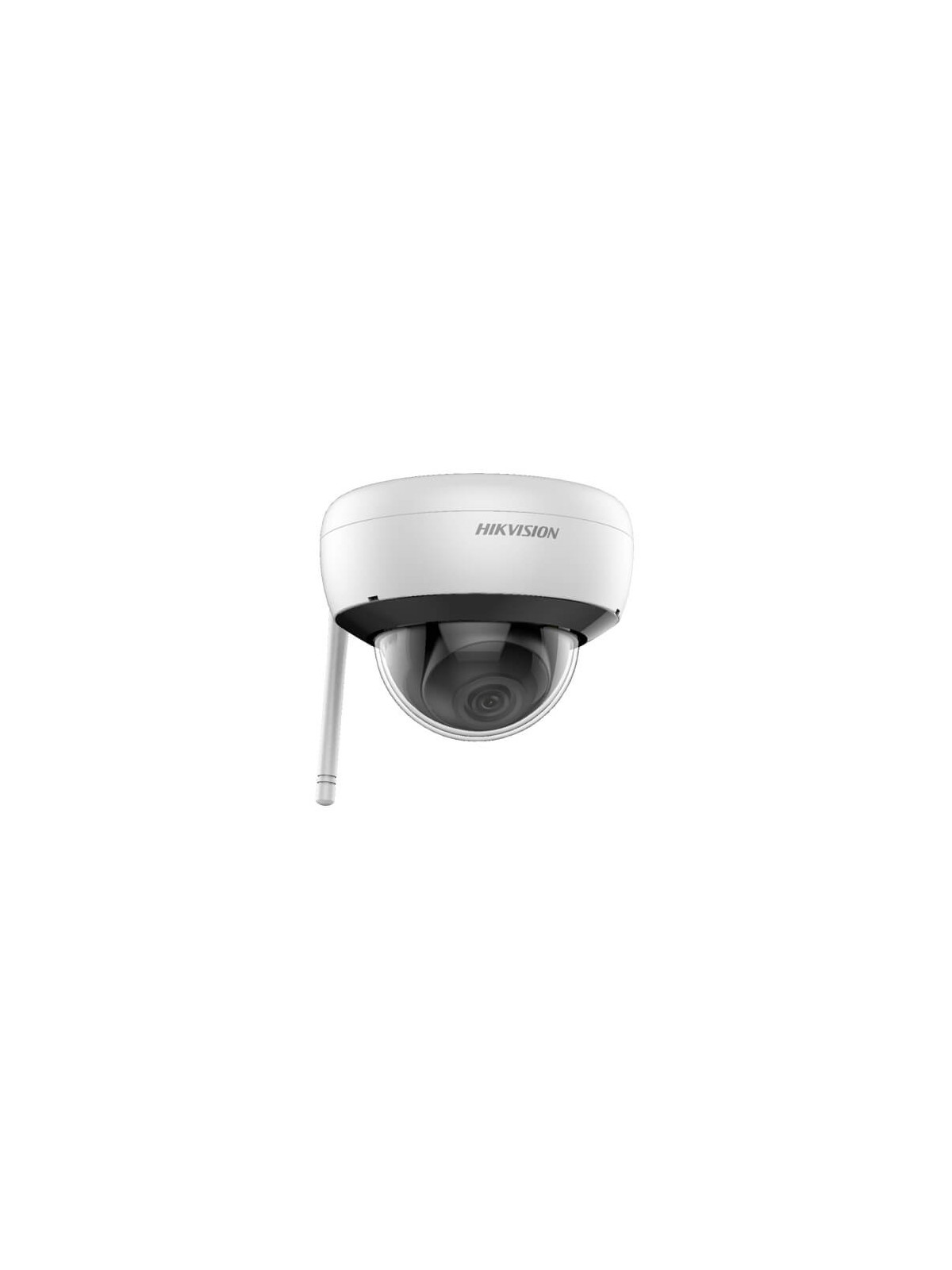

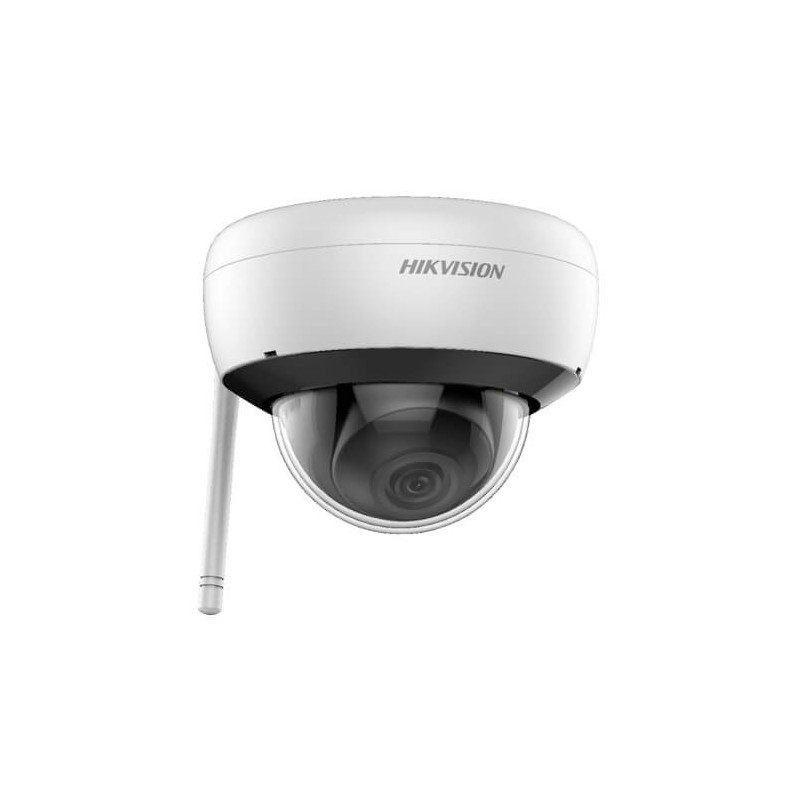

Domo IP Hikvision DS-2CD2121G1-IDW 2MP ECO IR30m 2.8mm H265+ Wifi SD Audio
Cámara minidomo Wi-Fi de tecnología IP y resolución 2 Megapixeles (1920x1080 @25ips). Óptica fija 2.8 mm.
-Conexión WIFI IEEE802.11b, 802.11g, 802.11n. Frecuencia 2.412 GHz - 2.472 GHz. Alcance máximo 50m.
-Función día/noche conmutación mecánica.
-Compresión H.265+/H.265/H.264+/H.264.
-Sensor CMOS 1/2.8" con escaneo progresivo.
-Sensibilidad: 0,01 lux (F1.2, AGC ON), 0 lux con IR. Incluye LEDS IR alcance 30m.
-Rango dinámico expandido digital.
-BLC/3D DNR/ROI.
-1 salida de video IP Ethernet 10/100Mbps. Servidor Web integrado. Doble streaming de video.
-Acepta tarjeta SD hasta 128GB.
-Sin E/S alarma. Micrófono integrado.
-Instalacióinterior, IP66. Material plástico.
-Alimentación 12VDC 400mA (no incluida).
-Dimensiones: 121.4 x 92.2 mm.
|
|
| Características técnicas |
- Camera
- Image Sensor - 1/2.8" Progressive Scan CMOS
- Min. Illumination - Color: 0.028 Lux @(F2.0, AGC ON)
- Shutter Speed - 1/3 s to 1/100,000 s
- Slow Shutter - Yes
- Day &Night - IR Cut Filter
- Wide Dynamic Range - DWDR
- DNR - 3D DNR
- Axis Adjustment - Pan: 0° to 355°, tilt: 0° to 75°
- Lens
- Auto-Iris - No
- Aperture - F2.0
- Focus - No
- FOV - 2.8 mm, horizontal FOV: 114°, vertical FOV: 62°, diagonal FOV: 135°
4 mm, horizontal field of view: 86°, vertical FOV: 46°, diagonal FOV: 102°
- Lens Mount - M12
- Focal Length - 2.8/4 mm
- Illuminator
- IR Range - Up to 30 m
- Wavelength - 850 nm
- Network
- Alarm Trigger - Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD error, HDD full
- Network Storage - Support built-in microSD/SDHC/SDXC card (128 GB), local storage and NAS (NFS, SMB/CIFS), ANR
- Protocols - 802.11b: CCK, QPSK, BPSK
802.11g/n: OFDM
- API - ONVIF (PROFILE S, PROFILE G), ISAPI
- Simultaneous Live View - Up to 6 channels
- User/Host - Up to 32 users. 3 levels: administrator, operator and user
- Client - Wired network: Hik-Connect, iVMS-4200, iVMS-5200, iVMS-4500
Wi-Fi: iVMS-4200, iVMS-5200, iVMS-4500
- Web Browser - IE 8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
- Video
- Max. Resolution - 1920 × 1080
- Main Stream - 50Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
- Sub Stream - 50Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)
- Video Compression - Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG
- H.264 Type - Baseline Profile/Main Profile/High Profile
- H.265 Type - Main Profile
- Video Bit Rate - 32 Kbps to 8 Mbps
- Audio
- Audio Compression - G.711/G.722.1/G.726/MP2L2/PCM
- Audio Bit Rate - 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
- Audio Sampling Rate - 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Smart Feature-Set
- Region of Interest - Support 1 fixed region for main stream
- Image
- Image Enhancement - BLC/3D DNR
- Image Setting - Saturation, brightness, contrast and sharpness are adjustable via client software and web browser
- Day/Night Switch - Auto/Scheduled/Day/Night
- Wi-Fi
- Wireless Standards - IEEE802.11b, 802.11g, 802.11n
- Frequency - 2.412 GHz - 2.472 GHz
- Channel Bandwidth - 20/40MHz
- Security - 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
- Transfer Rate - 11b/g: 54 Mbps
11n: up to 150 Mbps
- Wireless Range - Up to 50 m (The performance varies based on actual environment)
- Interface
- Communication Interface - 1 RJ45 10M/100M self-adaptive Ethernet port
- Audio - 1 Built-in mic, mono sound
- Alarm - No
- Video Output - No
- On-board Storage - Built-in microSD/SDHC/SDXC slot, up to 128 GB
- General
- Firmware Version - V5.5.98
- General Function - One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
- Reset - Yes
- Startup and Operating Conditions - -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
- Power Supply - 12 VDC ± 25%, Ø5.5 mm coaxial plug power
- Power Consumption and Current - 12 VDC, 0.4 A, max: 5 W, <20 dBm
- Material - Plastic
- Dimensions - Camera: Ø121.4 mm × 92.2 mm (Ø4.8" × 3.6")
With package: 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
- Weight - Camera: 465 g (1 lb.)
With package: 713 g (1.6 lb.)
- Approval
- Protection - Ingress protection: IP66 (IEC 60529-2013)
- Compression Standard
- H.264+ - Main stream supports
- H.265+ - Main stream supports
|
|
|
