| Descripción |
|

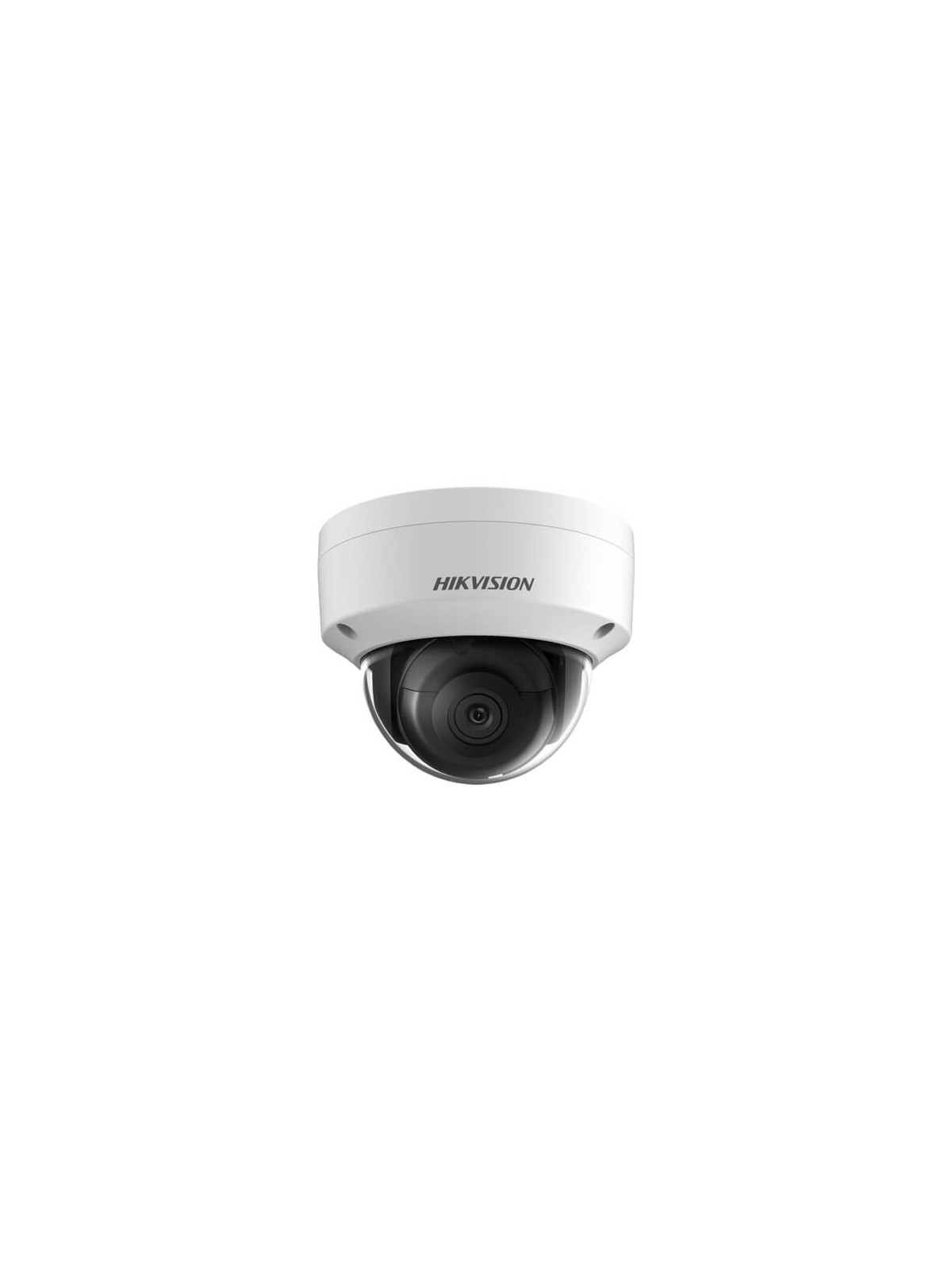

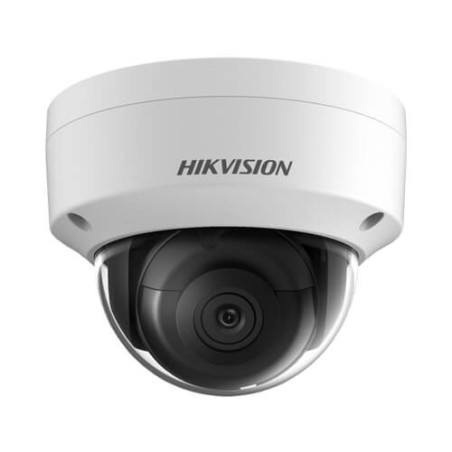

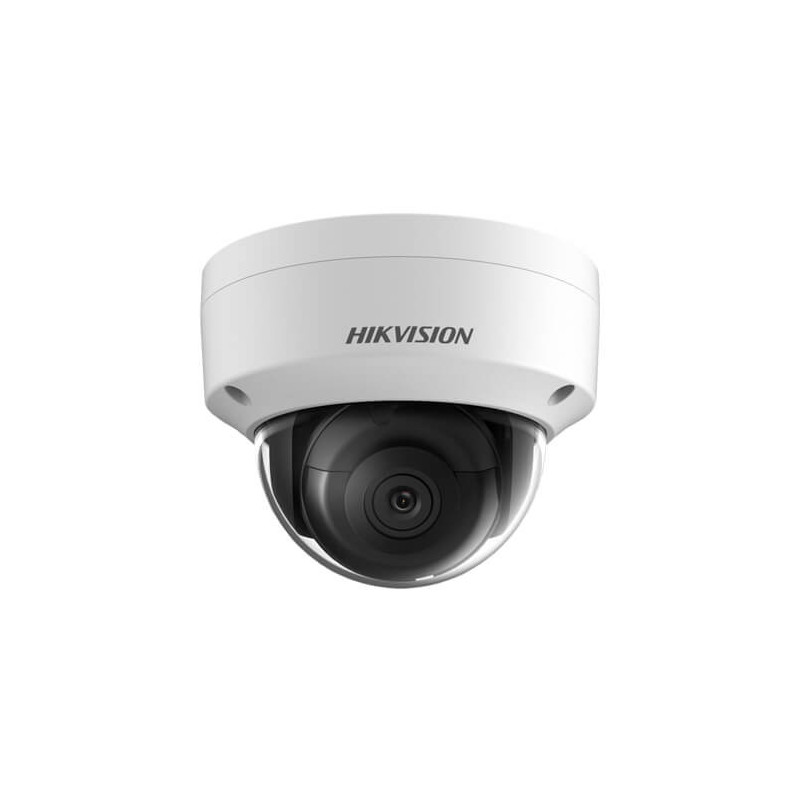

Domo IP Hikvision DS-2CD2121G0-IW 2MP PRO IR30m 2.8mm H265+ Wifi POE SD WDR
Cámara minidomo wifi de tecnología IP y resolución 2 Megapixeles (1920x1080 @25ips). Óptica fija 2.8 mm.
-Serie EasyIP 1.0.
-Función día/noche conmutación mecánica.
-Compresión H.265+/H.265/H.264+/H.264.
-Sensor CMOS 1/2.8" con escaneo progresivo.
-Sensibilidad: 0,01 lux (F1.2, AGC ON), 0 lux con IR. Incluye LEDS IR alcance 30m.
-Rango dinámico expandido 120dB.
-1 salida de video IP Ethernet 10/100Mbps. Servidor Web integrado. Doble streaming de video.
-Codificación H265+,H265, H264+, H264, MJPEG.
-Detección SMART : Intrusión, Cruce de línea.
-BLC/3D DNR/ROI.
-Acepta tarjeta SD hasta 128GB.
-Instalación exterior IP67. Ajuste 3 ejes.
-Estandar Wifi IEEE 802.11b/g/n.
|
|
| Características técnicas |
- Camera
- Image Sensor - 1/2.8" Progressive Scan CMOS
- Min. Illumination - Color: 0.028Lux @(F2.0, AGC ON)
B/W: 0.0028 Lux @(F2.0, AGC ON), 0 Lux with IR
- Shutter Speed - 1/3 s to 1/100,000 s
- Slow Shutter - Yes
- Day &Night - IR Cut Filter
- Wide Dynamic Range - 120 dB
- Angle Adjustment - Pan: 0° to 355°, tilt: 0° to 70°, rotate: 0° to 355°
- DNR - 3D DNR
- Lens
- Lens - 2.8/4/6 mm
- Auto-Iris - No
- Aperture - F2.0
- Focus - Fixed
- FOV - 2.8 mm: horizontal FOV: 115°, vertical FOV: 62°, diagonal FOV: 136°
4 mm: horizontal FOV: 86°, vertical FOV: 47°, diagonal FOV: 103°
6 mm: horizontal FOV: 55°, vertical FOV: 31°, diagonal FOV: 62°
- Lens Mount - M12
- Illuminator
- IR Range - Up to 30 m
- Wavelength - 850 nm
- Video
- Max. Resolution - 1920 × 1080
- Main Stream - 50Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
- Sub Stream - 50Hz: 25 fps (704 × 576, 640 × 480, 352 × 288, 320 × 240)
60Hz: 30 fps (704 × 480, 640 × 480, 352 × 240, 320 × 240)
- Video Compression - Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG
- H.264 Type - Baseline Profile/Main Profile/High Profile
- H.265 Type - Main Profile
- Video Bit Rate - 32 Kbps to 8 Mbps
- SVC - No
- Audio
- Audio Compression - G.711/G.722.1/G.726/MP2L2/PCM
- Audio Bit Rate - 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
- Environment Noise Filtering - Yes
- Audio Sampling Rate - 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Audio - 1 input (line in), 1 output (line out), mono sound
- Smart Feature-Set
- Behavior Analysis - Line crossing detection, intrusion detection
- Region of Interest - 1 fixed region for main stream
- Image
- Image Enhancement - BLC/3D DNR
- Image Setting - Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser
- Target Cropping - No
- Day/Night Switch - Day/Night/Auto/Schedule/Triggered by alarm in (-S)
- Approval
- Protection - Ingress protection: IP67 (IEC 60529-2013), IK10(IEC 62262:2002)
- Wi-Fi
- Frequency - 2.4 GHz to 2.4835 GHz
- Channel Bandwidth - 20/40 MHz
- Security - 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
- Transfer Rate - 11b: 11 Mbps
11g: 54 Mbps
11n: 65 Mbps
- Wireless Range - 50 m
- Wireless Standards - IEEE 802.11b/g/n
- Network
- Network Storage - Support built-in micro SD/micro SDHC/micro SDXC card (128 GB), local storage and NAS (NFS, SMB/CIFS), ANR
- Protocols - 802.11b: DQPSK, DBPSK, CCK
802.11g/n: 64-QAM, 16-QAM, QPSK, BPSK
- API - ONVIF (PROFILE S, PROFILE G), ISAPI
- Simultaneous Live View - Up to 6 channels
- User/Host - Up to 32 users. 3 levels: administrator, operator and user
- Client - Wired network: Hik-Connect, iVMS-4200, iVMS-5200, iVMS-4500
Wi-Fi: iVMS-4200, iVMS-5200, iVMS-4500
- Web Browser - IE 8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
- Alarm Trigger - Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error
- Interface
- Communication Interface - 1 RJ45 10M/100M self-adaptive Ethernet port
- Alarm - 1 input, 1 output
- Video Output - No
- On-board Storage - Built-in micro SD/micro SDHC/micro SDXC slot, up to 128 GB
- General
- Firmware Version - V5.5.98
- General Function - One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
- Reset - Yes
- Startup and Operating Conditions - -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
- Power Supply - 12 VDC ± 25%, PoE (802.3af, class 3)
- Power Consumption and Current - PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 6.5 W; 12 VDC, 0.4 A, max. 5 W
- Material - Front cover: plastic, base: metal
- Dimensions - Camera: Ø111 × 82.4 mm (Ø4.4" × 3.2")
With package: 135 × 135 × 110 mm (5.3" × 5.3" × 4.3")
- Weight - Camera: approx. 497 g (1.1 lb.)
With package: approx. 597 g (1.3 lb.)
- Compression Standard
- H.264+ - Main stream supports
- H.265+ - Main stream supports
|
|
|
