| Descripción |
|

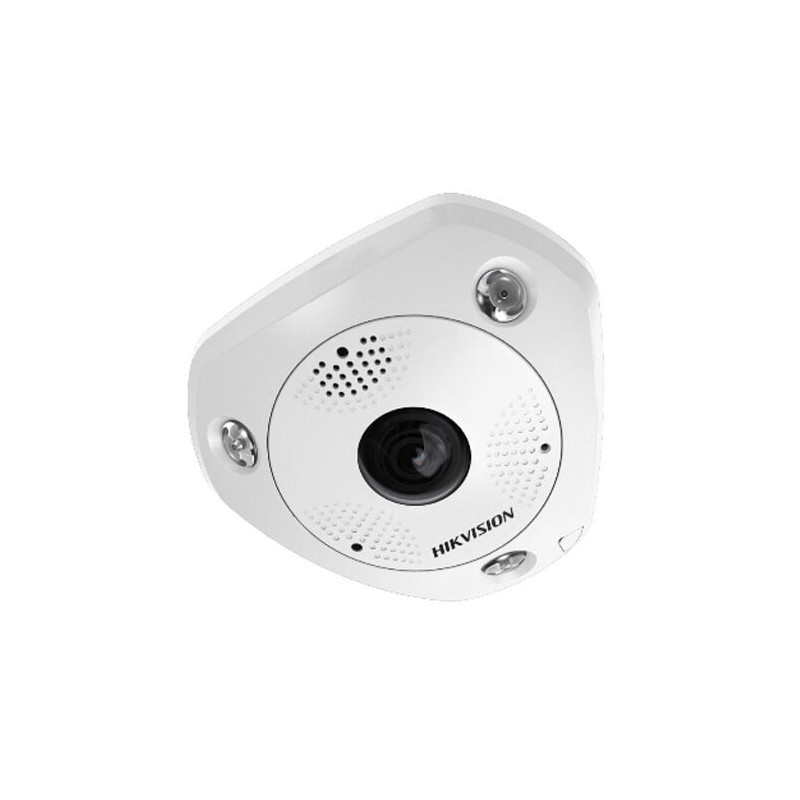

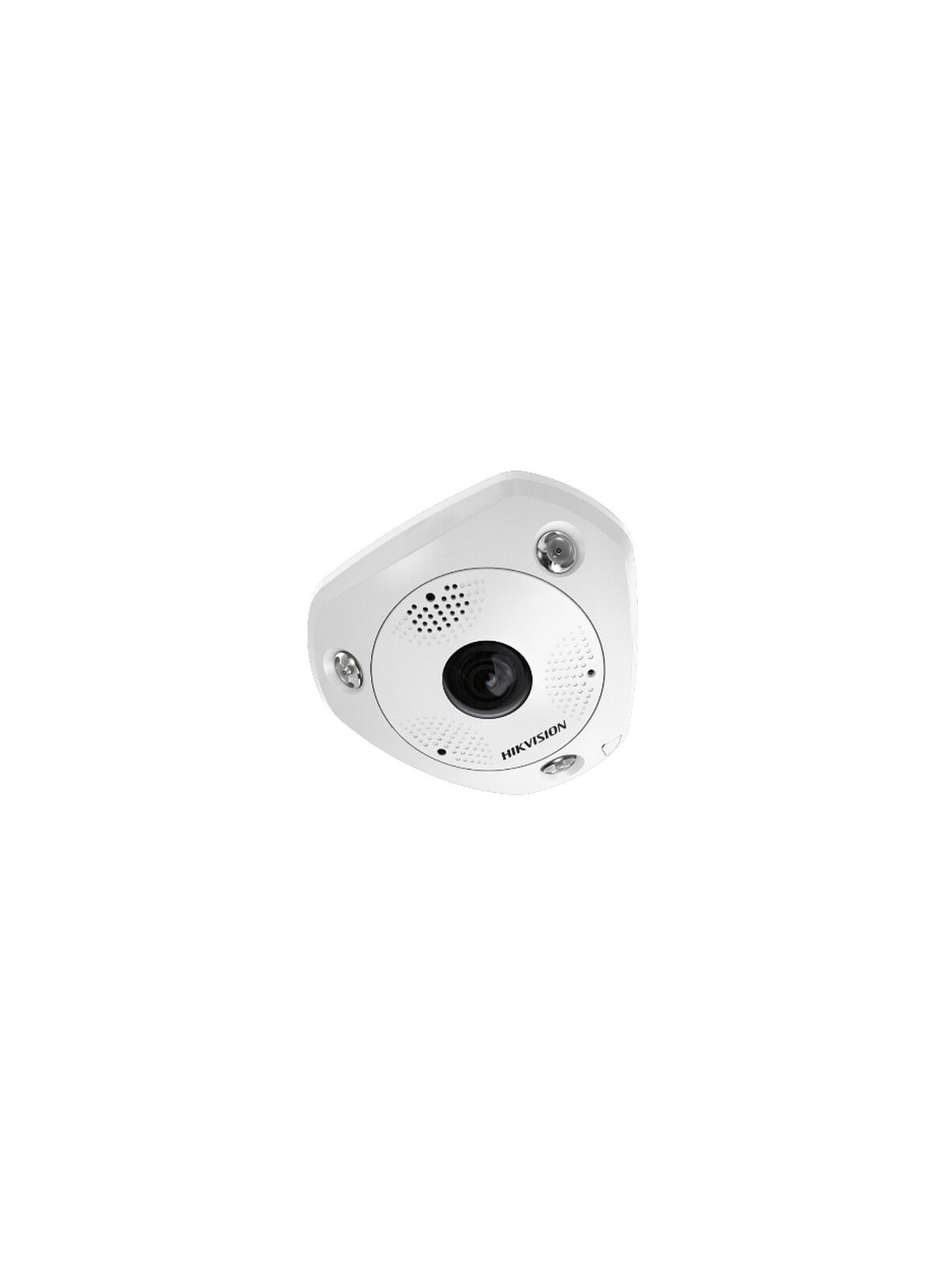

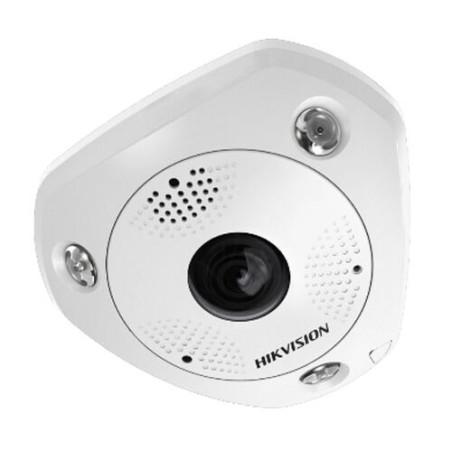

Cámara Panorámica IP Hikvision DS-2CD6365G0E-IVS 6MP IR15m 1.27mm (fisheye) ePTZ H265 POE SD Audio Alarmas IP67
Cámara fisheye 360º IP Hikvision, resolución 6MP, 1.27mm, 3xIR 15m. Analítica VCA X6: intrusión, cruce de línea, objeto abandonado/sustraido, entrada/salida área. Exterior IP67, IK10.
- CCD 1/1.8” CMOS escaneado progresivo.
- Resolución 6MP 3072 × 2048 @25fps .
- Hasta 15 vistas decodificadas por HW.
- Rango dinámico esxpandido digital.
- Audio: micrófono integrado y altavoz interno .
- Soporta 1E/1S de alarma.
- 3 LEDS IR de alcance hasta 15m.
- Analítica de video: intrusión, cruce de línea, entrada en área, salida de área, objeto abandonado y objeto sustraido.
- Excepción de audio y ROI.
- Instalación exterior; protección IP67, IK10.
|
|
| Características técnicas |
- Camera
- Image Sensor1/1.8'' Progressive Scan CMOS
- Min. IlluminationColor: 0.047 Lux @ (F2.6, AGC ON), B/W: 0.0047 Lux @ (F2.6, AGC ON), 0 Lux with IR
- Shutter Speed1 s to 1/100,000 s
- Slow ShutterYes
- Day &NightIR Cut Filter
- Digital Noise Reduction3D DNR
- WDRDigital WDR
- Lens
- ApertureF2.6
- FOVHorizontal FOV 180° (wall mount), 360°(ceiling mount), 360°(table mount)
- Lens MountM12
- Focal length1.27 mm
- Audio
- Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
- Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)
- Environment Noise FilteringYes
- Audio Sampling Rate8 kHz/16 kHz
- Image
- Image EnhancementBLC, HLC, defog, 3D DNR
- Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In (-S)
- Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format
- Image SettingsSaturation, brightness, contrast, sharpness, AGC and white balance are adjustable by client software or web browser
- Max. Resolution3072 × 2048
- Main StreamMax. Frame Rate50Hz: 25fps (3072 × 2048, 2048 × 2048, 1280 × 1280) 60Hz: 30fps (3072 × 2048, 2048 × 2048, 1280 × 1280)
- Sub-streamMax. Frame Rate50Hz: 25fps (720 × 720, 720 × 480) 60Hz: 30fps (720 × 720, 720 × 480)
- Network
- Network StorageSupport microSD/SDHC/SDXC card (256 G), local storage and NAS (NFS,SMB/CIFS), ANR
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
- APIONVIF (PROFILE S, PROFILE G), ISAPI
- Simultaneous Live ViewUp to 20 channels
- User/HostUp to 32 users. 3 user levels, administrator, operator and user
- ClientiVMS-4200, iVMS-4500, Hik-Connect, iVMS-5200
- Web BrowserIE8+, Chrome31.0-44, Firefox 30.0-51, Safari8.0+
- Alarm TriggerMotion detection, video tampering alarm, network disconnected, IP address conflicted, illegal login, HDD full, HDD error
- Security MeasuresPassword protection, HTTPS encryption, IEEE 802.1x port-based network access control, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF
- Interface
- Communication Interface1 RJ45 10M/100M/1000M self-adaptive Ethernet port
- Reset ButtonYes
- Audio (-S)1 Audio input (line in, 3.5 mm), 1 audio output (line out, 3.5 mm); 2 built-in microphone, 1 built-in speaker, mono sound
- Alarm (-S)1-ch alarm input, max. 12 V; 1-ch alarm output, max 24 VDC, 1 A
- On-board storageBuilt-in micro SD/SDHC/SDXC slot, up to 256 GB
- Compression Standard
- H.264+Main stream supports
- H.265+Main stream supports
- H.264 TypeBaseline Profile/ Main Profile /High Profile
- Video CompressionMain stream: H.265+/H.265/H.264+/H.264 Sub stream: H.265/H.264/MJPEG
- H.265 TypeMain Profile
- Video Bitrate32 Kbps to 16 Mbps
- SVCH.265 and H.264 support
- IR
- IR RangeUp to 15 m IR range, 3 LEDs. Each LED is independently controlled.
- Wavelength850 nm
- Live View Display
- Display Mode18 display modes in total Software decoding: Ceiling mount: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 2PTZ, 4PTZ, fisheye + 3PTZ, fisheye +8 PTZ, half sphere, cylinder Wall mount: fisheye view, panorama view, panorama + 3PTZ, panorama + 8PTZ, 4PTZ, fisheye + 3PTZ, fisheye +8 PTZ Table mount: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 4PTZ, fisheye + 3PTZ, fisheye +8 PTZ, cylinder Hardware decoding: Ceiling mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion Wall mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion Table mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion
- Mount TypeSupport table, wall, and ceiling mounting
- Smart Feature-set
- Exception DetectionAudio exception detection
- Behavior AnalysisLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
- Region of Interest4 fixed regions for main stream and sub-stream
- General
- Power Supply12 VDC±20%, PoE (802.3af, class 0), -S model: two-core terminal block Without –S model: Φ 5.5 × 2.1 mm coaxial power plug
- MaterialMetal
- DimensionsWithout –V model: 167.4 × 152.8 × 50.1 mm (6. 6" × 6" × 2") With –V model: 167.4 × 152.8 × 55 mm (6. 6" × 6" × 2.2")
- WeightApprox. 1400 g (3.09 lbs)
- Operating Conditions-40 °C to +60 °C (-40 °F to +140 °F), Humidity 95% or less (non-condensing)
- Power Consumption12 VDC, 0.9 A, max. 11 W PoE (802.3af, 36 to 57 V), 0.3 A to 0.2 A, max. 12 W
- Protection LevelWith -V: IP67, IK10
|
|
|
