Descripción |

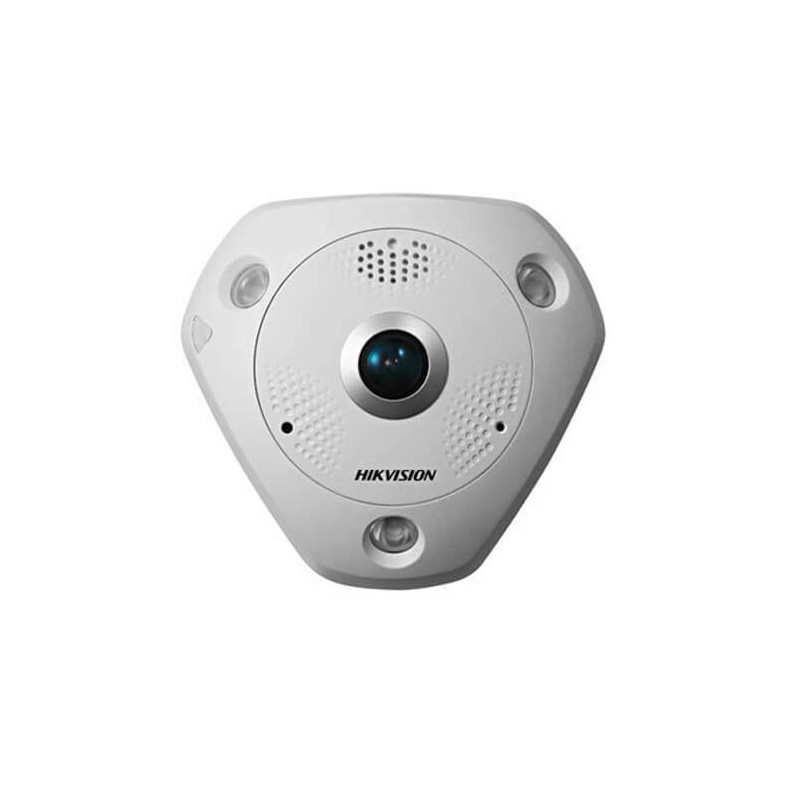

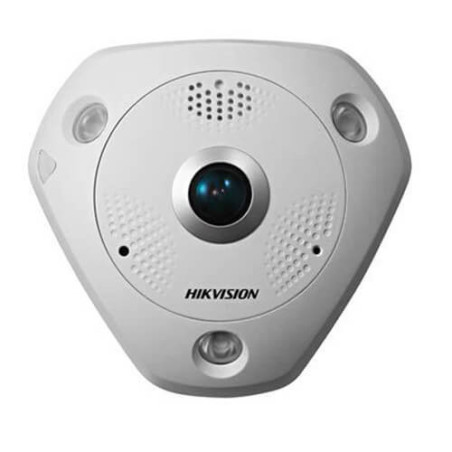

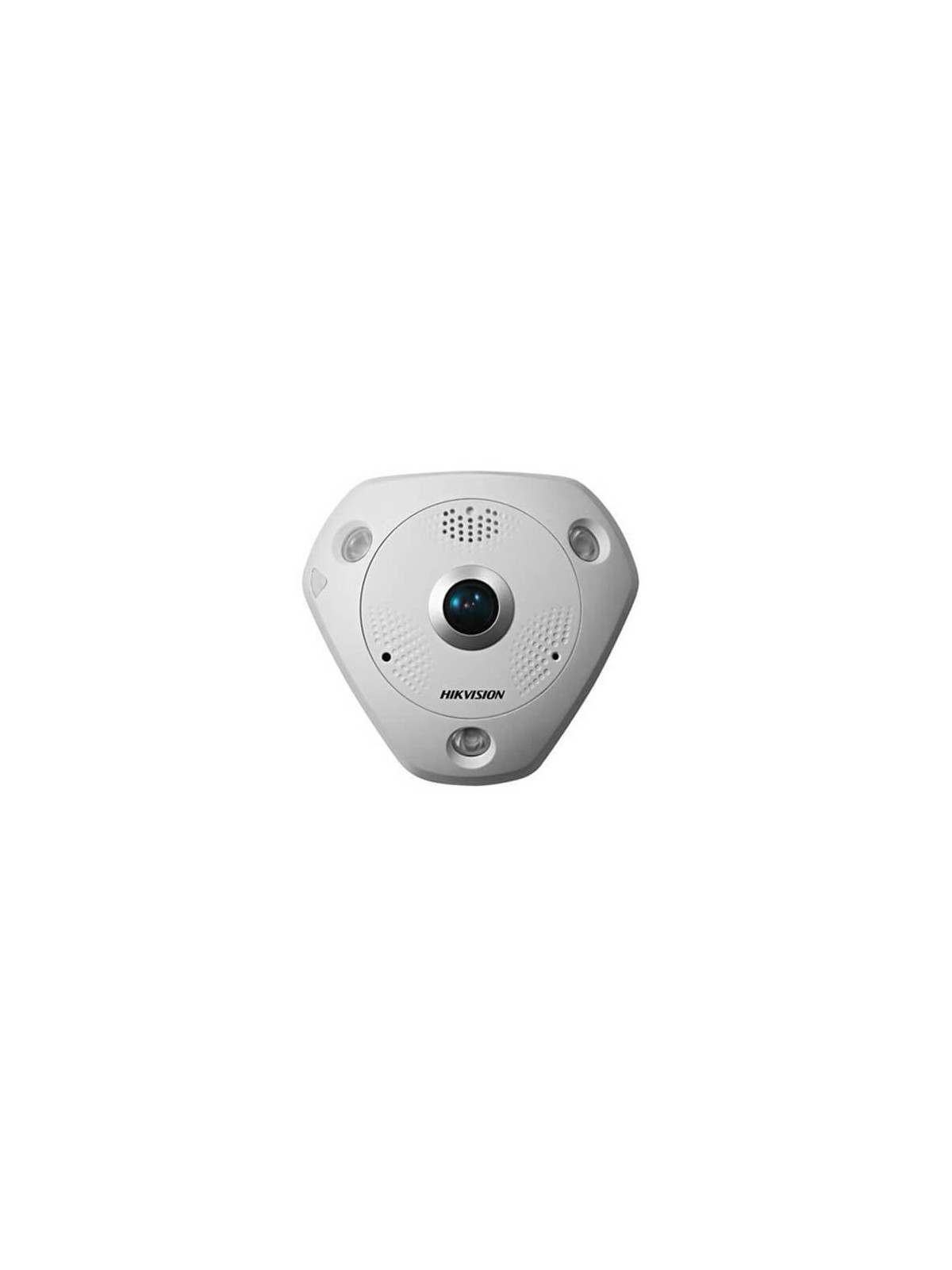

Cámara Panorámica IP Hikvision DS-2CD6362F-I 6MP IR15m 1.19mm (fisheye) ePTZ H264 POE SD

Cámara hemisférica interior 360º IP 6Mpx D&N 1/1.8" CMOS Scan progresivo, ICR. Elementos 3072 x 2048. Compresión H.264/MJPEG. Iluminación 0,05 lux color / 0 lux con ICR. LED IR hasta 15 metros. Óptica ojo de pez. Modo High-frame: 1 x ojo de pez (3072 x 2048, 25fps) o (2048 x 2048, 25fps) o 4 x PTZ (1024 x 768, 25fps) / Modo multicanal: 1 x ojo de pez (1280 x 1280, 12.5fps) y 1 x panorámica (2048 x 1536, 12.5fps) y 3 x PTZ (1024 x 768, 12.5fps). Detección de movimiento, zonas de privacidad. Slot Micro SD/SDXC (hasta 64GB). Compensación contraluces digital digitalWDR, 3DDNR, BLC, HLC. Alimentación: 12Vdc y PoE, consumo 11W (max). Medidas: 164mm x 152.8mm x 43.8mm, peso 1400g.
|
|
Características técnicas |
| Camera |
---|
Image Sensor: | | | 1/1.8" Progressive Scan CMOS | Min. Illumination: | | | 0.05 Lux @ (F1.2, AGC ON), 0.25 Lux @ (F2.6, AGC ON), 0 Lux with IR | Shutter time: | | | 1/3 s – 1/100,000 s | Lens: | | | 1.27 mm, F2.6; horizontal field of view: 180° (wall mount), 360°(ceiling mount), 360°(table mount) | Lens Mount: | | | M12 | Day& Night: | | | IR cut filter with auto switch | Wide Dynamic Range: | | | Digital WDR | Digital noise reduction: | | | 3D DNR | Compression Standard |
---|
Video Compression: | | | H.264/MJPEG | H.264 code profile: | | | Baseline Profile / Main Profile / High Profile | Video bit rate: | | | 256Kbps~16Mbps | Audio Compression: | | | G.711/G.722.1/G.726/MP2L2 | Audio bit rate: | | | 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2) | Image |
---|
Max. Image Resolution: | | | 3072 x 2048 | Main Stream: | | | 50Hz: 25fps (3072 × 2048, 2048 × 2048, 1280 × 1280) 60Hz: 24fps (3072 × 2048), 30fps (2048 × 2048, 1280 × 1280)
| Image Settings: | | | Saturation, Brightness, Contrast , Hue, Sharpness, AGC, White Balance | ROI: | | | Support 3 fixed region for each stream | Day/Night Switch: | | | Auto/Schedule/Alarm Trigger | Network |
---|
General Function: | | | One-key reset, anti-flicker, heartbeat, password protection, privacy mask, watermark, IP address filter | Network Storage: | | | Built-in Micro SD/SDHC/SDXC slot, up to 128G, NAS(NFS, SMB/CIFS) | Alarm Trigger: | | | Motion detection, Dynamic Analysis, Tampering alarm, Network disconnect, IP address conflict, Storage exception | Protocols: | | | TCP/IP, ICMP,HTTP, HTTPS,FTP, DHCP,DNS, DDNS,RTP, RTSP,RTCP, PPPoE,NTP, UPnP,SMTP, SNMP,IGMP, 802.1X, QoS,IPv6, Bonjour | Security: | | | User Authentication, Watermark, IP address filtering, Anonymous access | System Compatibility: | | | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI | Interface |
---|
Audio Input: | | | 1 3.5mm audio interface, Mic in/Line in (-S) 1 built-in microphone by default, 24db | Audio Output: | | | 1 3.5mm audio output interface (-S) 1 built-in speaker by default, support echo cancellation | Communication Interface: | | | 1 RJ45 10M/100M/1000M Ethernet port, 1 RS 485 interface (-S) | Alarm Input: | | | -S:1 | Alarm Output: | | | -S:1 | On-board storage: | | | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB | General |
---|
Operating Conditions: | | | Indoor: -10 °C – 50 °C (14 °F – 122 °F) Outdoor: -30 °C – 60 °C (-22 °F – 140 °F) Humidity 95% or less (non-condensing) | Power Consumption: | | | Max. 12 W | Impact Protection: | | | IEC 60068-2-75 test, Eh, 50J; EN 50102, EN50155, IK10 (-V) | Weather Proof: | | | IP66 | Dimensions: | | | 164 x 152.8 x 43.8mm (6.46” x 6.02” x 1.72”) | Weight: | | | 1400g |
|
|
