| Descripción |
|

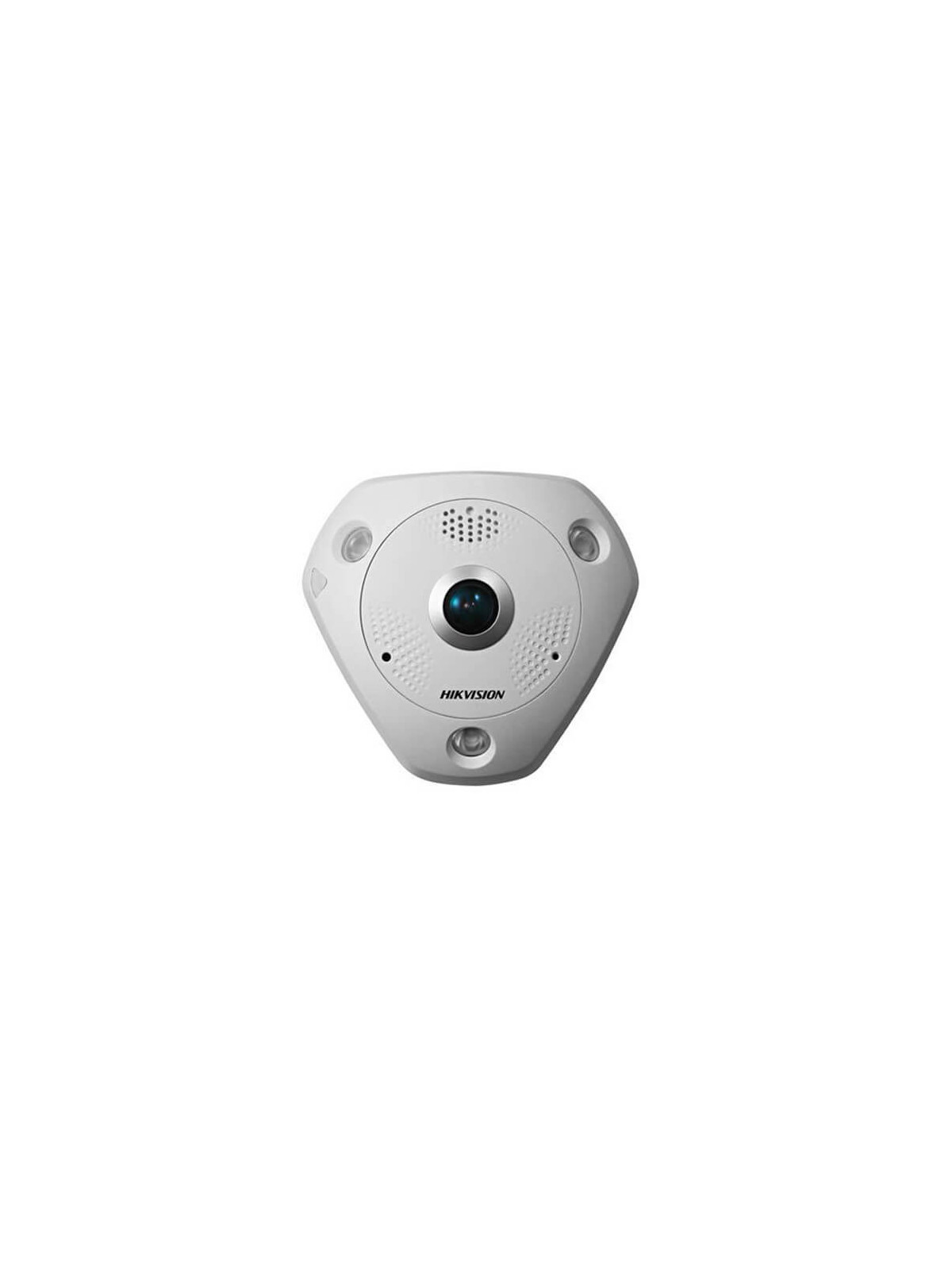

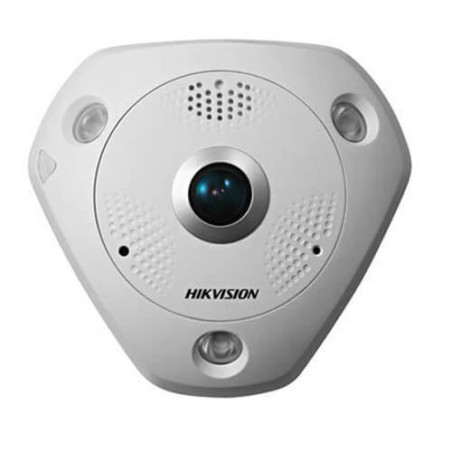

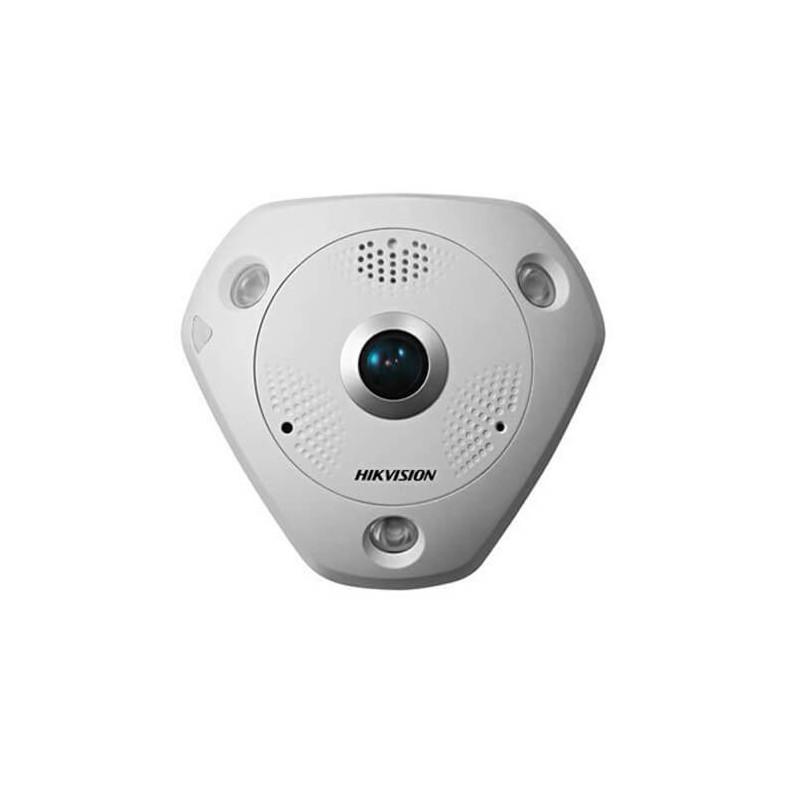

Cámara Panorámica IP Hikvision DS-2CD6332FWD-I 3MP IR15m 1.19mm (fisheye) ePTZ H264 POE SD
Cámara hemisférica interior 360º IP 3Mpx D&N 1/3.2" CMOS Scan progresivo, ICR. Elementos 2048 x 1536. Compresión H.264/MPEG4/MJPEG. Iluminación 0,1 lux color / 0 lux con ICR. LED IR hasta 15 metros. Óptica ojo de pez. Modo High-frame: 1 x ojo de pez (2048 x 1536, 25fps) o (1536 x 1536, 25fps) o 4 x PTZ (800 x 600, 25fps) / Modo multicanal: 1 x ojo de pez (1536 × 1536, 20fps) y 1 x panorámica (1600 x 1200, 20fps) y 3 x PTZ (800 x 600, 20fps). Detección de movimiento, zonas de privacidad. Slot Micro SD/SDXC (hasta 64GB). Compensación contraluces WDR (120 dB), 3DDNR, BLC. Alimentación: 12Vdc y PoE, consumo 11W (max). Medidas: 164mm x 152mm x 45.5mm, peso 1400g.
|
|
| Características técnicas |
| Camera |
| Image Sensor |
1/3" Progressive Scan CMOS
|
| Min. Illumination |
0.1lux @(F1.2, AGC ON)
0.28lux @(F2.0, AGC ON)
0 lux with IR
|
| Shutter time |
1/25(1/30) s to 1/100,000 s
|
| Lens |
1.19mm, F2.0
Angle of view: 360°
|
| Lens Mount |
M12
|
| Day& Night |
IR cut filter with auto switch
|
| Wide Dynamic Range |
120 dB
|
| Digital noise reduction |
3D DNR
|
|
| Compression Standard |
| Video Compression |
H.264/M-JPEG
|
| Bit Rate |
32 Kbps ~ 16 Mbps
|
| Audio Compression |
G.711/G.726/MP2L2
|
|
| Image |
| Max. Image Resolution |
2048×1536
|
| Frame Rate |
High-frame mode:
50Hz: 1 × fisheye (2048*1536/1536 × 1536, 25fps) or 4 × PTZ (800 × 600, 25fps)
60Hz: 1 × fisheye (2048*1536/1536 × 1536, 30fps) or 4 × PTZ (800 × 600, 30fps)
Multi-channel mode:
50Hz: 1 × fisheye (1536 × 1536 ,20fps), 1 × panoramic (1600 × 1200, 20fps), 3 × PTZ (800 × 600, 20fps)
60Hz: 1 × fisheye (1536 × 1536, 20fps), 1 × panoramic (1600 × 1200, 20fps), 3 × PTZ (800 × 600, 20fps)
|
| Image Settings |
Saturation, brightness, contrast adjustable through client software or web browser
|
|
| Network |
| Network Storage |
NAS
|
| Alarm Trigger |
Motion detection, Dynamic Analysis, Tampering alarm, Network disconnect, IP address conflict, Storage exception
|
| Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP,SMTP, SNMP, IGMP, 802.1X,QoS, IPv6, Bonjour
|
| Security |
User Authentication, Watermark, IP address filtering, anonymous access
|
| System Compatibility |
ONVIF, PSIA, CGI, ISAPI
|
|
| Interface |
| Audio |
Internal Microphone and Speaker
|
| Communication Interface |
1 RJ45 10M / 100M ethernet interface
|
| On-board storage |
Built-in Micro SD/SDHC/SDXC card slot, up to 64 GB
|
|
| General |
| Operating Conditions |
-30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing)
|
| Power Supply |
12 VDC ± 10%, PoE (802.3af)
|
| Power Consumption |
Max. 12W
|
| IR Range |
15 meters
|
| Dimensions |
164x152.8x43.8mm(6.46”x6.02”x1.72”)
|
| Weight |
1400g
|
|
|
|
|
