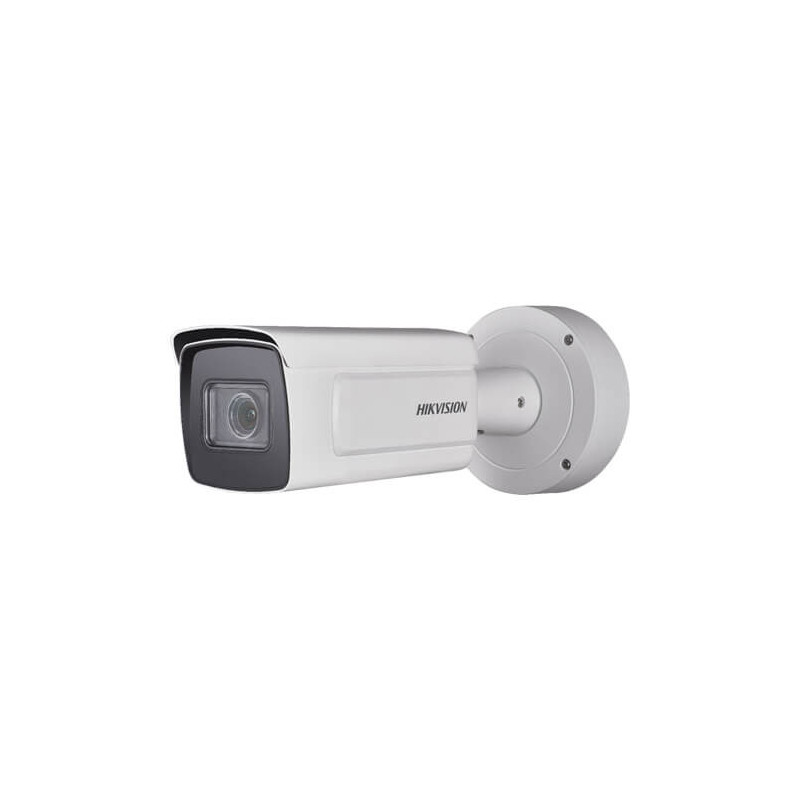

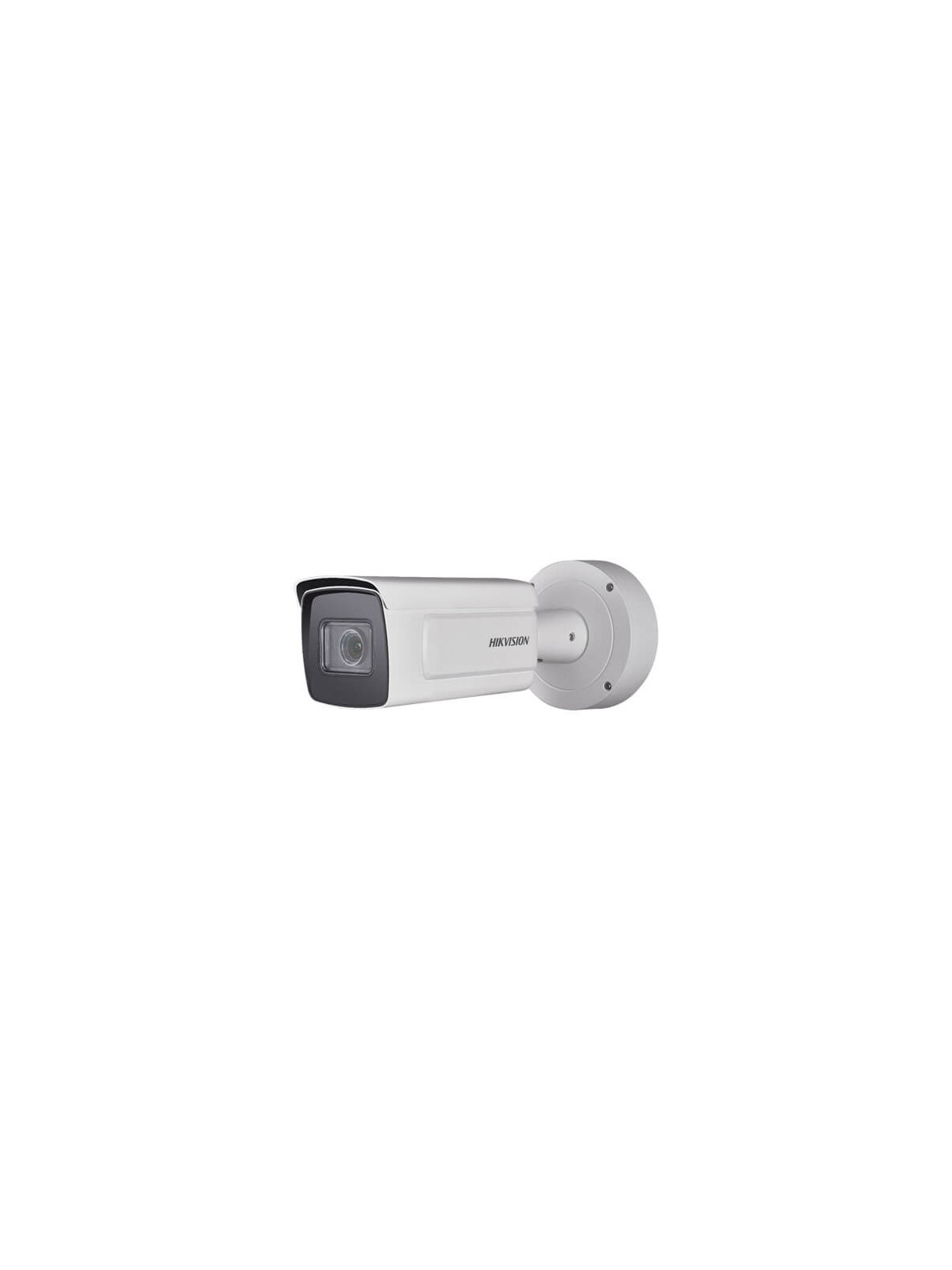

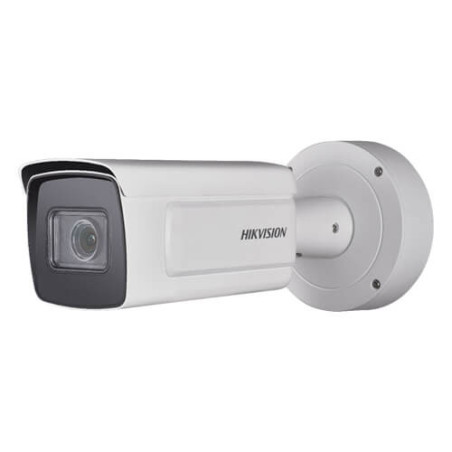

Cámara LPR IP Hikvision DS-2CD7A26G0/P-IZHS(8-32mm) 2MP IR100m 8-32mm motorizada H265+ POE SD WDR Alarmas

• Camera
• Image Sensor - 1/1.8ʺ Progressive Scan CMOS
• Min. Illumination - Color: 0.002 Lux @ (F1.2, AGC ON), 0.004 Lux @ (F1.6, AGC ON), 0 Lux with IR
• Shutter Speed - 1 s to 1/100,000 s
• Slow Shutter - Yes
• Wide Dynamic Range - 140 dB
• Day & Night - IR cut filter
• Angle Adjustment - Bracket, pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°

• Lens
• Focus - Auto, semi auto, manual
• Lens Type - 2.8 to 12 mm and 8 to 32 mm optional
• FOV - 2.8 to 12 mm: horizontal FOV 103.3° to 38.6°, vertical FOV 54.2° to 21.9°, diagonal FOV 124.2° to 44.3° 8 to 32 mm: horizontal FOV 42.5° to 13.4°, vertical FOV 23.4° to 7.7°, diagonal FOV 49° to 15.3°
• Aperture - 2.8 to 12 mm: F1.2 8 to 32 mm: F1.6
• Lens Mount - Integrated

• Illuminator
• IR Range - 2.8 to 12 mm: up to 50 m; 8 to 32 mm: up to 100 m
• Wavelength - 850 nm

• Video
• Max. Resolution - 1920 × 1080
• Main Stream - 50Hz: 50fps (1920 × 1080, 1280 × 960, 1280 × 720) ,60Hz: 60fps (1920 × 1080, 1280 × 960, 1280 × 720)
• Sub-Stream - 50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)
• Third Stream - 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480)
• Fourth Stream - 50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
• Fifth Stream - 50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)
• Custom Stream - 50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
• Video Compression - Main stream: H.265+/H.265/H.264+/H.264 Sub stream/third stream/fourth stream/fifth stream/custom stream: H.265/H.264/MJPEG
• Video Bit Rate - 32 Kbps to 16 Mbps
• H.264 Type - Baseline Profile/Main Profile/High Profile
• H.265 Type - Main Profile
• H.264+ - Main stream support
• H.265+ - Main stream support
• Scalable Video Coding (SVC) - H.264 and H.265 encoding
• Region of Interest (ROI) - 4 fixed regions for main stream, sub stream, third stream, fourth stream, and fifth stream, and dynamic tracking

• Audio
• Environment Noise Filtering - No
• Audio Sampling Rate - No
• Audio Compression - No
• Audio Bit Rate - No

• Network
• Simultaneous Live View - Up to 20 channels
• API - ONVIF (PROFILE S, PROFILE G), ISAPI, SDK
• Protocols - TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
• User/Host - Up to 32 users. 3 user levels: administrator, operator and user
• Security - Password protection, HTTPS encryption, IEEE 802.1x port-based network access control, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF
• Network Storage - microSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS,SMB/CIFS), ANR ,Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
• Client - iVMS-4200, Hik-Connect, iVMS-5200, Hik-Central
• Web Browser - Plug-in required live view: IE8+, Chrome31.0-44, Mozilla Firefox30.0-51, Safari8.0+ Plug-in free live view: Chrome45+, Mozilla Firefox52+

• Image
• Day/Night Switch - Day/Night/Auto/Schedule/Triggered by Alarm In/ Triggered by video
• Target Cropping - Yes
• Picture Overlay - LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
• Image Enhancement - BLC, HLC, 3D DNR, Defog, EIS, distortion correction
• Image Settings - Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser

• Interface
• Audio - No
• Alarm - 2 inputs, 2 outputs (up to 24 VDC 1A or 110 VAC 500 mA)
• Video Output - 1Vp-p composite output (75 Ω/CVBS), only for adjustment
• On-board Storage - Built-in micro SD/SDHC/SDXC slot, up to 256 GB
• Communication Interface - 1 RJ45 10M/100M/1000M Ethernet port, 1 RS-485 interface (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
• Heater - -H: yes

• Event
• Counting - No
• Exception Detection - Scene change detection, defocus detection

• Deep Learning Function
• Premier Protection - Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
• Accuracy - Capture rate > 98% Vehicle moving direction recognition accuracy > 96% Mistaken capture rate < 2% (entrance/exit), < 5% (checkpoint)
• No License Plate Detection - Yes
• Motorcycle LPR - Yes (only applicable to checkpoint)
• Whitelist and Blacklist - Max. 10,000 records

• General
• Firmware Version - 5.5.60
• General Function - One-key reset, anti-flicker, five streams and custom stream, heartbeat, password protection, privacy mask, watermark, IP address filter
• Startup and Operating Conditions - -30 °C to 60 °C (-22 °F to 140 °F), -H: -40 °C to 60 °C (-40 °F to 140 °F) Humidity 95% or less (non-condensing)
• Power Supply - 12 VDC ± 20%, two-core terminal block；PoE (802.3at, class 4）
• Power Consumption and Current - -IZS: 12 VDC, 1.2 A, max. 14 W; PoE (802.3at, 42.5 V to 57 V), 0.4 A to 0.3 A -IZHS: 12 VDC, 1.4 A, max. 16.5 W; PoE (802.3at, 42.5 V to 57 V), 0.4 A to 0.3 A
• Camera Dimension - Camera: Φ140 × 351 mm (Φ5.5″ × 13.8″) With package: 405 × 190 × 180 mm (15.9″ × 7.5″ × 7.1″)
• Camera Weight - Camera: approx. 2.5 kg (5.51 lb.) With package: approx. 2.75 kg (6.06 lb.)

• Approval
• Protection - IP67, IK10
