| Descripción |
|

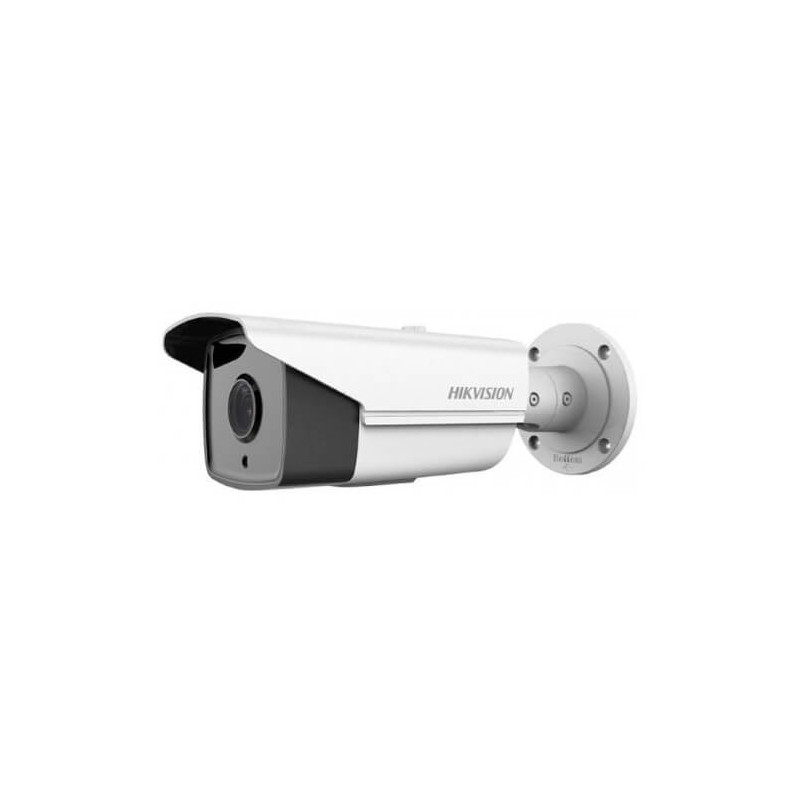

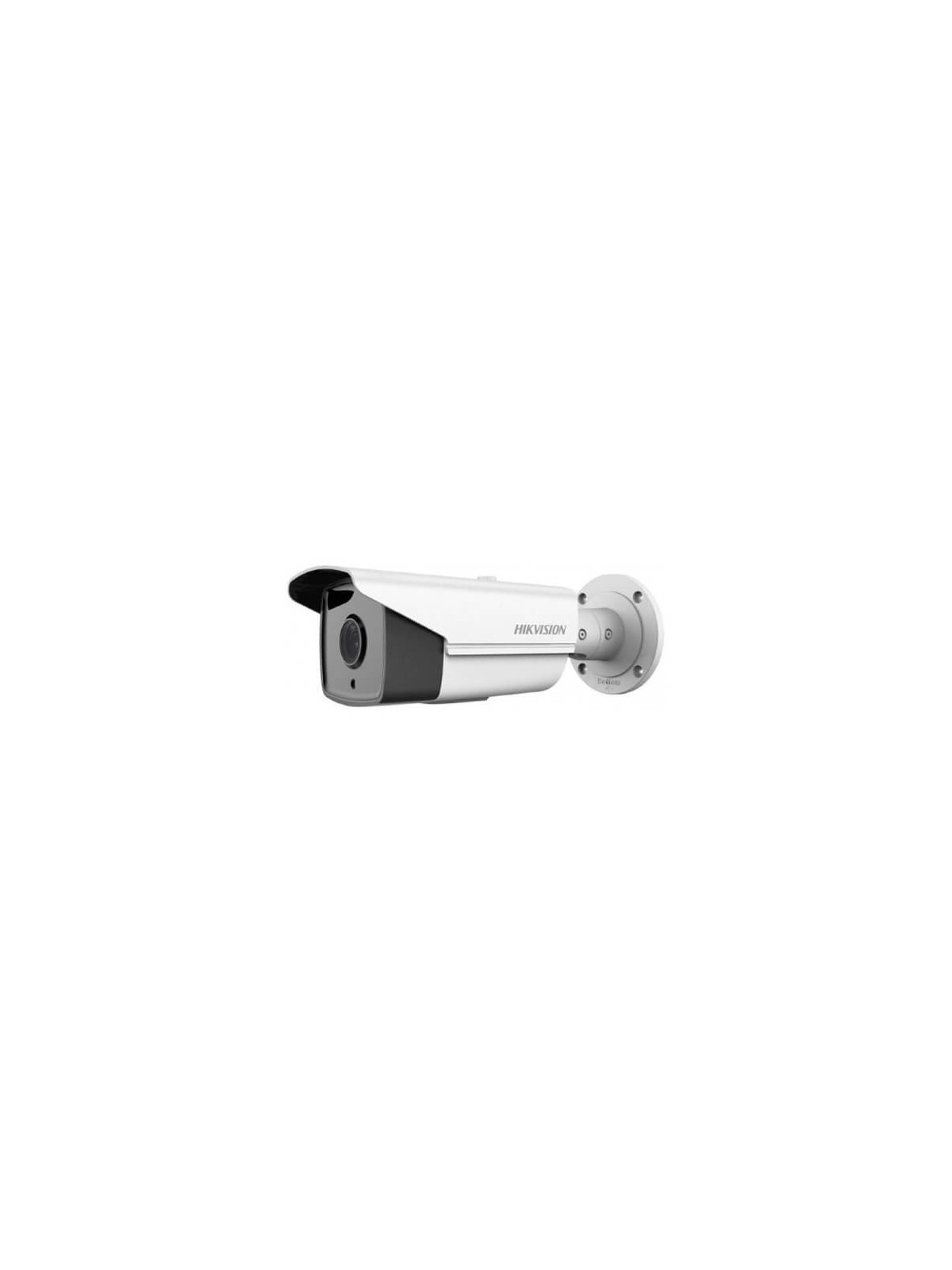

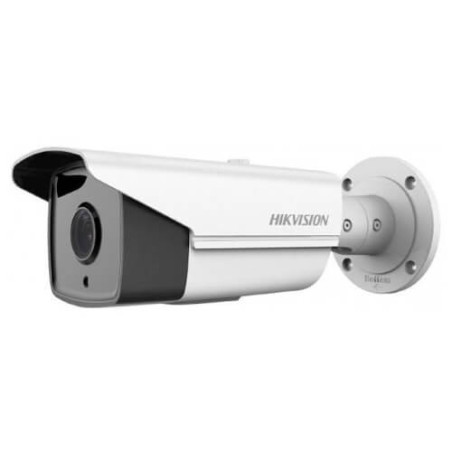

Cámara IP Hikvision DS-2CD2T63G0-I5 6MP PRO IR50m 2.8mm H265+ POE SD WDR
Cámara bullet de tecnología IP y resolución 6 Megapixeles (3072x2048 20IPS). Óptica fija 2.8 mm. Compresión H.265+/H.265/H.264+/H.264.
Sensor CMOS 1/2.8" con conmutación día/noche mediante filtro mecánico.
Sensibilidad en color 0,01 Lux.
LEDS IR EXIR alcance 50m.
WDR real 120dB, BLC, Defog, EIS, 3D DNR, ROI.
-Especificaciones de red:
Salida Ethernet 10/100M
Triple streaming de video
Servidor Web integrado Internet Explorer
Compatible con ONVIF, ISAPI.
Hasta 6 usuarios simultáneos
Soporta tarjeta SD hasta 128GB ( tarjeta no incluida).
-Detección:
Básica: movimiento, tamper de vídeo, desconexión de red, conflicto IP, excepción de grabación.
Avanzada: intrusión, cruce de línea, detección de rostro básica.
- Especificaciones generales:
Nivel de protección: IP67.
Instalación en exterior.
Alimentación 12 VDC max 600 mA y PoE (802.3 af).
Dimensiones: Ø 105 × L 300 mm.
|
|
| Características técnicas |
- Camera
- Image Sensor - 1/2.9" Progressive Scan CMOS
- Min. Illumination - Color: 0.01 lux @(F1.2, AGC ON), 0.028 lux @(F2.0, AGC ON), 0 lux with IR
- Shutter Speed - 1/3 s to 1/100,000 s
- Slow Shutter - Yes
- Wide Dynamic Range - 120dB
- Day & Night - IR cut filter
- Angle Adjustment - Pan: 0° to 360°, tilt: 0° to 100°, rotate: 0° to 360°
- Lens
- Focus - Fixed
- Lens Type - 2.8/4/6/8 mm, horizontal FOV: 97°, vertical FOV: 63°, diagonal FOV: 120°;4 mm, horizontal FOV: 78°, vertical FOV: 50°, diagonal FOV: 97°;6 mm, horizontal FOV: 60°, vertical FOV: 39°, diagonal FOV: 75°;8 mm, horizontal FOV: 39.5°, vertical FOV: 26°, diagonal FOV: 48°
- Aperture - F2.0
- Lens Mount - M12
- Illuminator
- IR Range - -I5: Up to 50 m,-I8: Up to 80 m
- Wavelength - 850 nm
- Video
- Max. Resolution - 3072 × 2048
- Main Stream - 50Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720);60Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 30fps (2560 × 1440, 1920 × 1080, 1280 × 720)
- Sub Stream - 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240);60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
- Third Stream - 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288);60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
- Video Compression - Main stream: H.265/H.264;Sub-stream: H.265/H.264/MJPEG;Third stream: H.265/H.264
- Video Bit Rate - 32 Kbps to 16 Mbps
- H.264 Type - Main Profile/High Profile
- H.265 Type - Main Profile
- H.264+ - Main stream supports
- H.265+ - Main stream supports
- Network
- Simultaneous Live View - Up to 6 channels
- API - ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
- Protocols - TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
- User/Host - Up to 32 users,3 levels: Administrator, Operator and User
- Security - Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
- Network Storage - Support micro SD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR
- Client - iVMS-4200, Hik-Connect, Hik-Central
- Web Browser - Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+
- Alarm Trigger - Motion detection, tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
- Image
- Day/Night Switch - Day/Night/Auto/Schedule
- DNR - 3D DNR
- Image Enhancement - BLC/3D DNR/HLC
- Image Settings - Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
- Interface
- On-board Storage - Built-in micro SD/SDHC/SDXC slot, up to 128 GB
- Hardware Reset - Yes
- Communication Interface - 1 RJ45 10M/100M self-adaptive Ethernet port
- Event
- Basic Event - Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
- Smart Event - Line crossing detection, intrusion detection, face detection
- Face Detection - Yes
- General
- Linkage Method - Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, Email
- Firmware Version - 5.6.3
- Web Client Language - 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
- General Function - Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
- Startup and Operating Conditions - -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
- Power Supply - 12 VDC ± 25%, 5.5 mm coaxial power plug,PoE (802.3af, class 3)
- Power Consumption and Current - -I5:12 VDC, 0.6 A, max. 7.5 W, PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 9.5 W ;-I8: 12 VDC, 0.95 A, max. 11.5 W, PoE (802.3af, 36 V to 57 V), 0.35 A to 0.1 A, max. 12.5 W
- Camera Dimension - Camera: Φ 104.8 × 299.7 mm (Φ 4.1" × 11.8");Package: 386 × 156 × 155 mm (15.2" × 6.1" × 6.1")
- Camera Weight - Camera: 1200 g (2.7 lb.)
- Approval
- Protection - IP67
|
|
|
