Descripción |
Cámara IP Hikvision DS-2CD2443G0-IW 4MP PRO IR10m 2.8mm H265+ Wifi POE PIR SD WDR Audio Alarmas

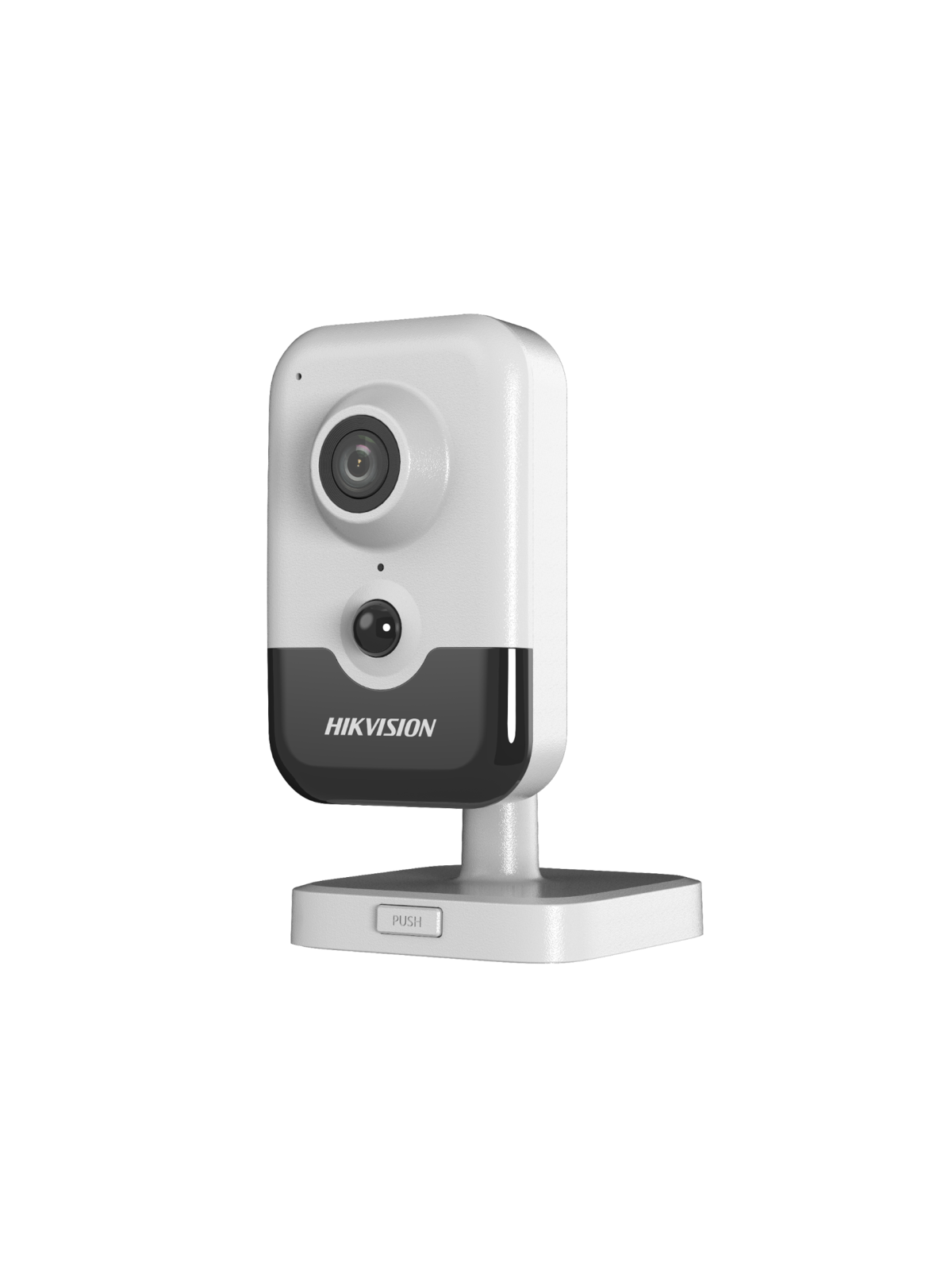

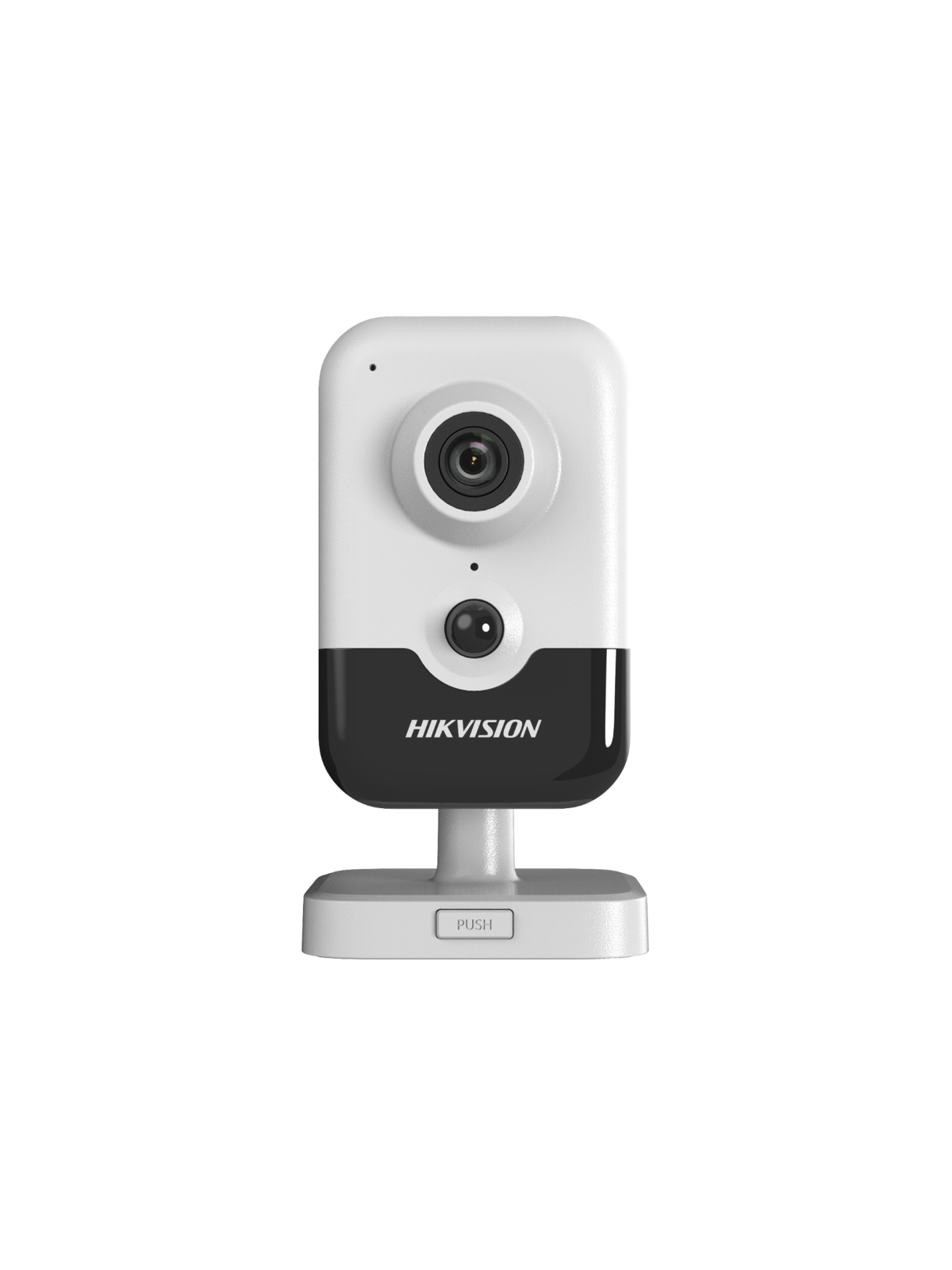

Cámara compacta CUBE de tecnología IP WIFI, con micrófono y sensor PIR incorporado. Resolución 4 Megapixeles (2688x1520 20IPS). Óptica fija 2.8mm. Compresión H.265+/H.265/H.264+/H.264.
-Serie EasyIP 2.0.
-Función día/noche conmutación mecánica.
-Sensor CMOS 1/2.7" con escaneo progresivo.
-Óptica 2.8 mm. Sensibilidad: 0,01 lux (F1.2, AGC ON), 0 lux con IR. Incluye LEDS EXIR IR alcance 10m.
-Resolución 4 Megapixels. Ratio de imágenes 25IPS (2688 x 1520, 1920x1080, 1280x720).
-Rango dinámico expandido real 120dB.
-1 salida de video IP Ethernet 10/100Mbps. Servidor Web integrado. Triple streaming de video
-Codificación H265+, H265, H264+, H264.
-Detección SMART : Intrusión, Cruce de línea, Detección rostro básica.
-BLC/3D DNR/ROI.
-Acepta tarjeta SD hasta 128GB.
-Sin alarmas. Micrófono y altavoz integrado.
-Detector PIR integrado cobertura 10m, 90º.
-Conexión Wifi (802.11bn).
-Instalación interior.
|
|
Características técnicas |
- Camera
- Image Sensor - 1/3" Progressive Scan CMOS
- Min. Illumination - Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 lux @(F1.6, AGC ON), 0 lux with IR
- Shutter Speed - 1/3 s to 1/100,000 s
- Slow Shutter - Yes
- Wide Dynamic Range - 120dB
- Day & Night - IR Cut Filter
- Angle Adjustment - Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
- Lens
- Lens Type - 2.8/4 mm
- FOV - 2.8 mm, horizontal FOV: 98°, vertical FOV: 55°, diagonal FOV: 114°,4 mm, horizontal FOV: 78°, vertical FOV: 42°, diagonal FOV: 93°
- Aperture - F1.6
- Lens Mount - M12
- Illuminator
- IR Range - 10 m
- Wavelength - 850nm
- Video
- Max. Resolution - 2688 × 1520
- Main Stream - 50Hz:25fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)
60Hz: 30fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)
- Sub-Stream - 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
- Third Stream - 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288),60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
- Video Compression - Main stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
- Video Bit Rate - 32 Kbps to 16 Mbps
- H.264 Type - Main Profile/High Profile
- H.265 Type - Main Profile
- H.264+ - Main stream supports
- H.265+ - Main stream supports
- Scalable Video Coding (SVC) - Support H.264 and H.265 encoding
- Audio
- Environment Noise Filtering - Yes
- Audio Sampling Rate - 8kHz/16kHz/32kHz/44.1kHZ/48kHz
- Audio Compression - G722.1/G711ulaw/G711alaw/G726/MP2L2/PCM
- Audio Bit Rate - 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)
- Network
- Simultaneous Live View - Up to 6 channels
- API - ONVIF (PROFILE S, PROFILE G), ISAPI
- Protocols - TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
- User/Host - Up to 32 users,3 levels: Administrator, Operator and User
- Network Storage - Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
- Client - iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
- Web Browser - Plug-in required live view:,IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11,Plug-in free live view:,Chrome 45.0+, Firefox 52.0+
- Alarm Trigger - Motion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error, PIR, illegal login
- Wi-Fi
- Encryption Mode - WPA, WPA2
- Wi-Fi Protocol - IEEE 802.11b/g/n
- Frequency Range - 2.412 GHz to 2.4835 GHz
- Channel Bandwidth - 20M/40M
- Transfer Rate - 11b: 11Mbps, 11g: 54Mbps, 11n: up to 150Mbps
- Wireless Range - 50 m
- Image
- Day/Night Switch - Day/Night/Auto/Schedule
- DNR - 3D DNR
- Image Enhancement - BLC/3D DNR/HLC
- Image Settings - Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
- PIR
- PIR Angle - Horizontal: 90°, Vertical: 80°
- PIR Range - 10 m
- Interface
- Audio - 1 built-in mic, 1 built-in speaker, mono sound
- On-board Storage - Built-in Micro SD/SDHC/SDXC slot, up to 128G
- Hardware Reset - Yes
- Communication Interface - 1 RJ45 10M/100M self-adaptive Ethernet port
- Event
- Basic Event - Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
- Smart Event - Line crossing detection, intrusion detection, face detection
- Face Detection - Yes
- General
- Linkage Method - Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, Email
- Firmware Version - 5.6.3
- General Function - One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
- Startup and Operating Conditions - -10 °C to +40 °C (14 °F to +104 °F), Humidity 95% or less (non-condensing)
- Power Supply - 12 VDC ± 25%, PoE (802.3af, class 3)
- Power Consumption and Current - 12 VDC, 0.5 A, max. 6 W, Φ 5.5 mm coaxial plug power,PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 7 W
- Camera Dimension - 102.8 mm × 65.2 mm × 32.6 mm (4.1" × 2.6" × 1.3")
- Camera Weight - Camera: Approx. 128 g (0.3 lb.)
|
|
|
