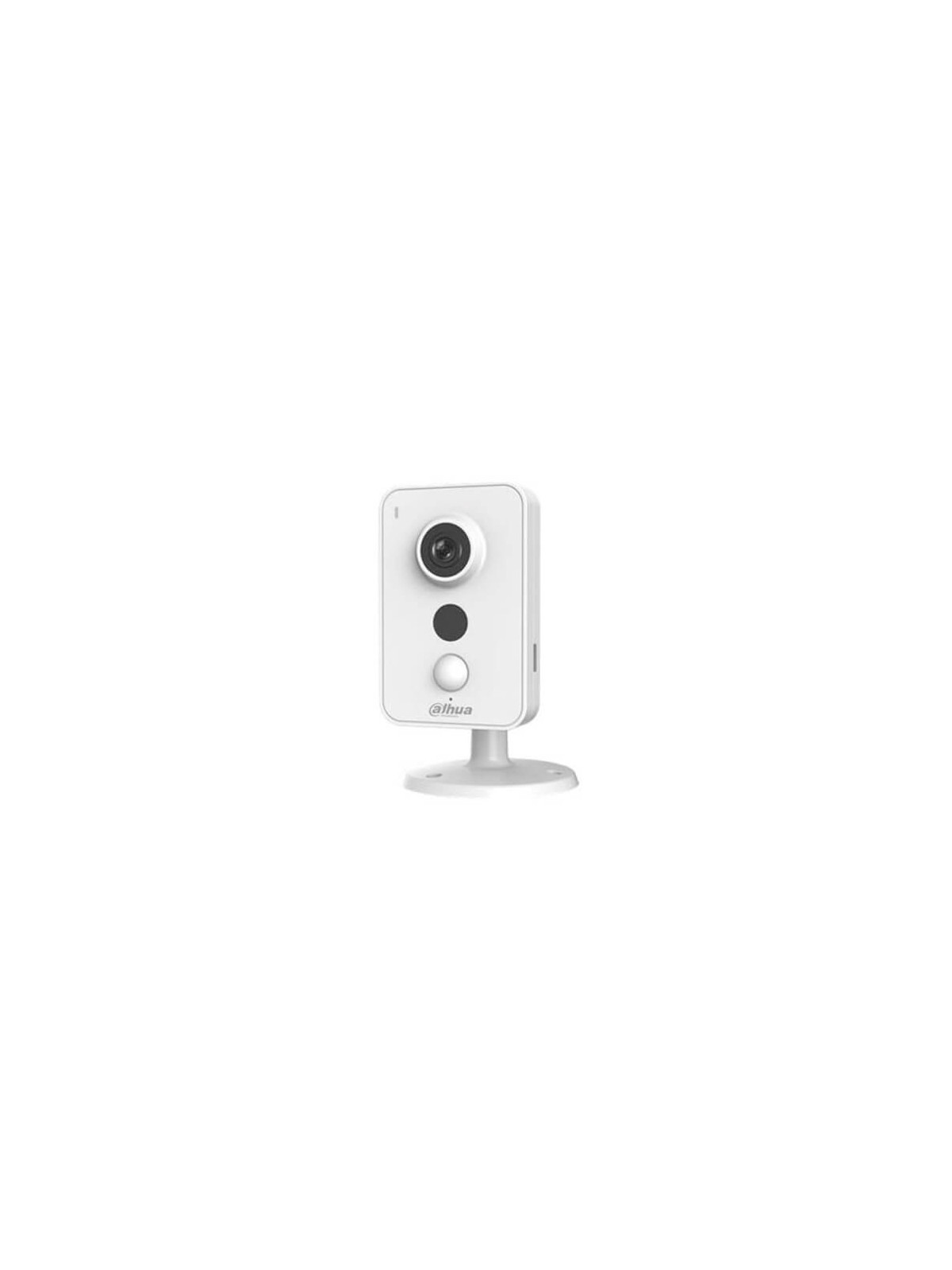

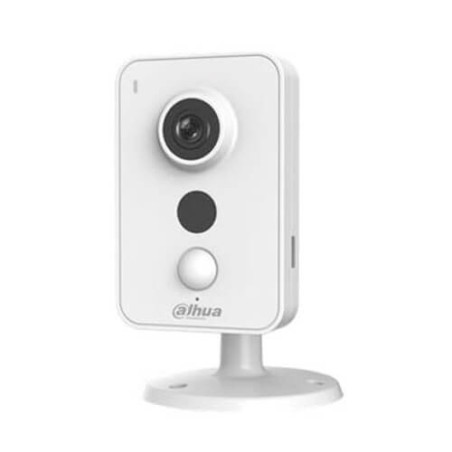

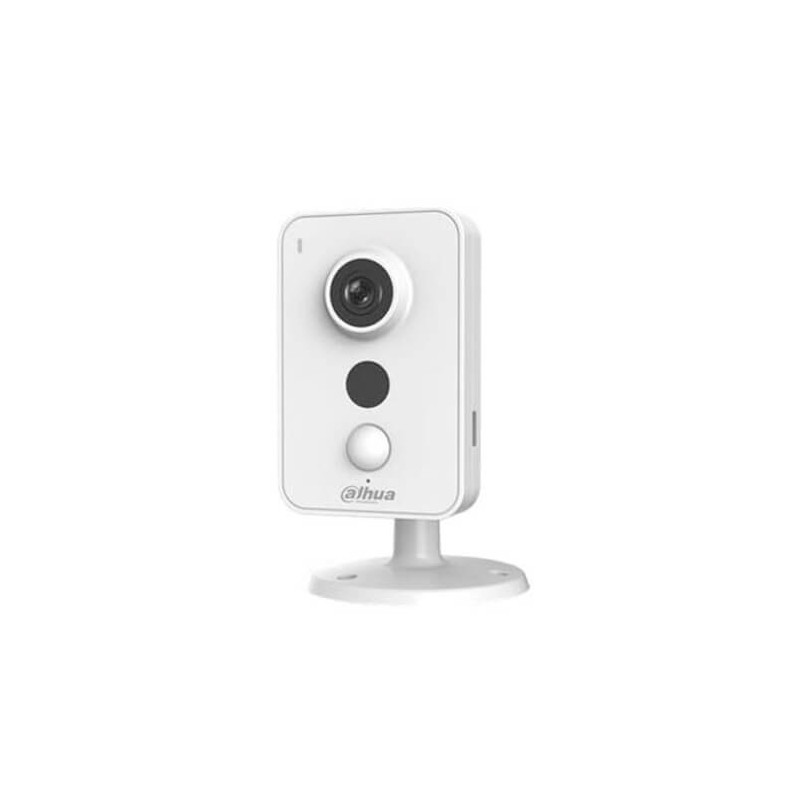

Camera
|
Image Sensor
|
1/3” 3Megapixel progresive CMOS
|
Effective Pixels
|
2304(H) x1536(V)
|
RAM/ROM
|
256MB/16MB
|
Scanning System
|
Progressive
|
Minimum Illumination
|
0.78Lux/F2.0(Color), 0Lux/F2.0(IR on)
|
S/N Ratio
|
More than 50dB
|
IR Distance
|
Distance up to 10m(33ft)
|
IR On/Off Control
|
Auto/ Manual
|
IR LEDs
|
1
|
Lens
|
Lens Type
|
Fixed
|
Mount Type
|
Board-in
|
Focal Length
|
2.8mm
|
Max. Aperture
|
F2.0
|
Angle of View
|
H:100°;V:54.5°
|
Focus Control
|
Fixed
|
Close Focus Distance
|
N/A
|
PTZ
|
Pan/Tilt Range
|
Pan:0° ~360° ;Tilt:-10° ~90° ;Rotation:0° ~360°
|
Video
|
Compression
|
H.264/H.264B/H.264H.MJPEG
|
Streaming Capability
|
2 Streams
|
Resolution
|
3M(2048×1536)/3M(2304×1296)/
1080P(1920×1080)/1.3M(1280×960)/
720P(1280×720)/VGA(640 ×480)/
QVGA(320×240)
|
Frame Rate
|
3M(1~20fps)/2M(1~25/30fps)
|
VGA/QVGA(1~25/30fps)
|
Bit Rate Control
|
CBR/VBR
|
Bit Rate
|
H264:32K ~ 10240Kbps
|
Day/Night
|
Auto(ICR) / Color / B/W
|
BLC Mode
|
BLC / HLC / DWDR
|
White Balance
|
Auto/Natural/Street Lamp/Outdoor/Manual
|
Gain Control
|
Auto/Manual
|
Noise Reduction
|
3D DNR
|
Motion Detetion
|
Off / On (4 Zone, Rectangle)
|
Region of Interest
|
Off / On (4 Zone)
|
Electronic Image
|
Support
|
Smart IR
|
Support
|
Digital Zoom
|
16x
|
Flip
|
0°/90°/180°/270°
|
Mirror
|
Off / On
|
Privacy Masking
|
Off / On (4 Area, Rectangle)
|
Audio
|
Compression
|
G.711A;G.711Mu;AAC
|
Network
|
Ethernet
|
RJ-45 (10/100Base-T)
|
Wi-Fi
|
Wi-Fi(IEEE802.11b/g/n),50m(open field)
|
Protocol
|
HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP;
DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP;
Bonjour;802.1x;Multicast;ICMP;IGMP;
|
Interoperability
|
ONVIF, PSIA, CGI
|
Streaming Method
|
Unicast / Multicast
|
Max. User Access
|
10 Users/20 Users
|
Edge Storage
|
NAS(Network Attached Storage)
Local PC for instant recording, 128GB
|
Web Viewer
|
IE, Chrome, Firefox, Safari
|
Management Software
|
Smart PSS, DSS,Easy4ip
|
Smart Phone
|
iPhone, iPad, Android Phone
|
Certifications
|
Certifications
|
CE (EN 60950:2000)
UL:UL60950-1
FCC: FCC Part 15 Subpart B
|
Interface
|
Video Interface
|
N/A
|
Audio Interface
|
Built-in Mic & Speaker
|
RS485
|
N/A
|
Alarm
|
1/1,PIR
|
Electrical
|
Power Supply
|
DC12V
|
Power Consumption
|
<4.85W
|
Environmental
|
Operating Conditions
|
-10°C ~ +45°C (14°F ~ +113°F) / Less than 95% RH
|
Strorage Conditions
|
-10°C ~ +45°C (14°F ~ +113°F) / Less than 95% RH
|
Ingress Protection
|
N/A
|
Vandal Resistance
|
N/A
|
Construction
|
Casing
|
Plastic
|
Dimensions
|
F78.5mm×127.8mm(3.09’ x5.03’’)
|
Net Weight
|
0.31Kg (0.68lb)
|
Gross Weight
|
0.45Kg (0.99lb)
|
