Descripción |

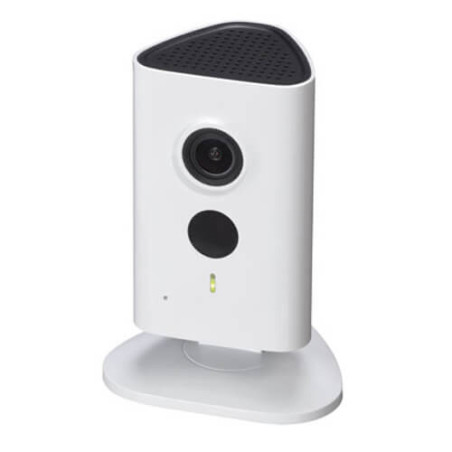

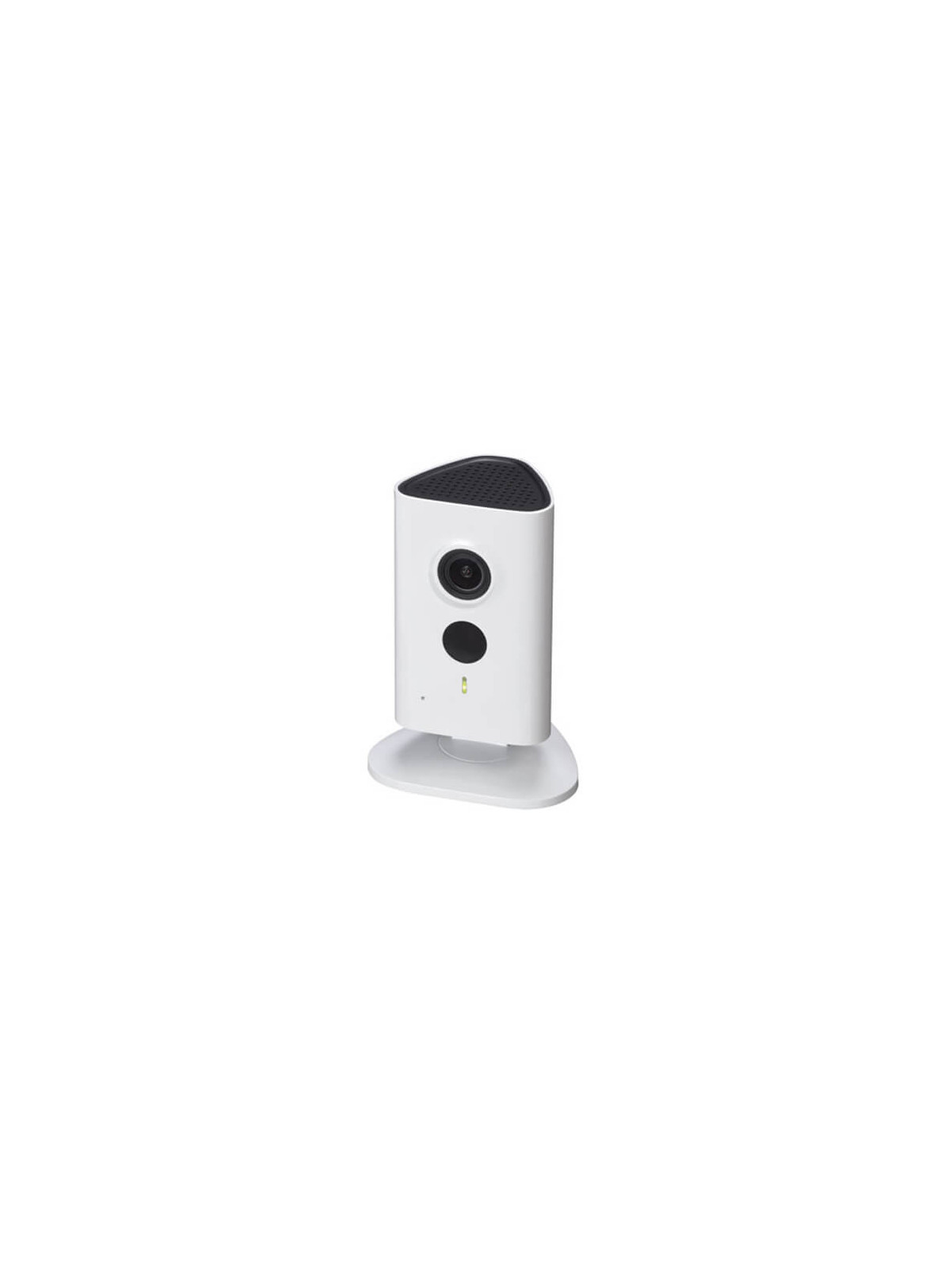

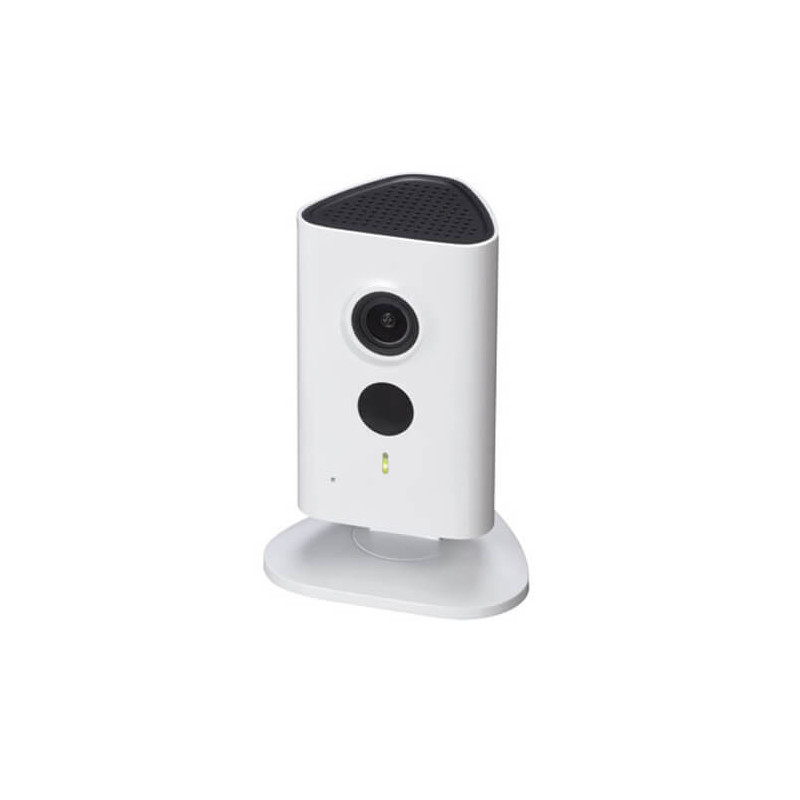

Cámara IP Dahua C15 1.3MP IR10m 2.3mm H264 Wifi SD Audio

- Resolución Megapíxel hasta 1.3MP a 25IPS con dWDR.
- Cámara IP Cubo diseñada para mercado residencial con Wifi.
- Micrófono y altavoz integrados.
- Instalación mediante iman.
- Visor web 3.0 compatible con IExplorer, Chrome, Firefox y Safari.
- Cliente móvil DMSS Lite/Plus/HD para Android, iOS (iPhone/iPad)
- Cliente SmartPSS compatible con XP, W7 y W8 / Mac OS.
- Servicio DDNS y P2P (Sin apertura de puertos en Router)
|
|
Características técnicas |
|
Model
|
DH-IPC-C15
|
Camera
|
Image Sensor
|
1/3” 1.3Megapixel CMOS
|
Effective Pixels
|
1280(H)x960(V)
|
Scanning System
|
Progressive
|
Electronic Shutter Speed
|
Auto/Manual, 1/3(4)~1/30000s
|
Min. Illumination
|
1.96lux/F1.2(color),0lux/F1.2(IR on)
|
S/N Ratio
|
More than 50dB
|
Video Output
|
N/A
|
Camera Features
|
Max. LEDs Length
|
10m
|
Day/Night
|
Auto(ICR) / Color / B/W
|
Backlight Compensation
|
BLC / HLC / DWDR
|
White Balance
|
Auto/Manual
|
Gain Control
|
Auto/Manual
|
Noise Reduction
|
3D
|
Lens
|
Focal Length
|
2.3mm
|
Max Aperture
|
F1.2
|
Focus Control
|
Manual
|
Angle of View
|
125°
|
Lens Type
|
Fixed Lens
|
Mount Type
|
Board-in Type
|
Video
|
Compression
|
H.264/H.264B/H.264H/MJEPG
|
Resolution
|
1.3MP/720P/VGA/QVGA
|
Frame Rate
|
Main Stream
|
1.3MP/720P(1~30fps)
|
Sub Stream
|
VGA/QVGA(1~30fps)
|
Bit Rate
|
H.264: 32Kbps~8192Kbps
|
Audio
|
Compression
|
G.711a;G.711Mu;AAC
|
Interface
|
Built-in Mic/Speaker
|
Network
|
Ethernet
|
NA
|
Wi-Fi
|
Wi-Fi(IEEE802.11b/g/n)
50m(open field)
|
Protocol
|
IPv4/IPv6, HTTP, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS,FTP, QoS,
|
Compatibility
|
ONVIF CGI
|
Max. User Access
|
20 users
|
Smart Phone
|
iPhone, iPad, Android, Windows Phone
|
Auxiliary Interface
|
Memory Slot
|
Micro SD, up to 128GB
|
RS485
|
N/A
|
Alarm
|
N/A
|
PIR Sensor Range
|
N/A
|
USB
|
Micro USB
|
General
|
Power Supply
|
DC 5V
|
Power Consumption
|
<4.5W
|
Working Environment
|
-10°C~+45°C, Less than 95%RH
|
Ingress Protection
|
N/A
|
Vandal Resistance
|
N/A
|
Dimensions(W×D×H)
|
76mm*65mm*107mm
|
Weight
|
0.14Kg(0.36Kg with package)
|
|
|
