Descripción |

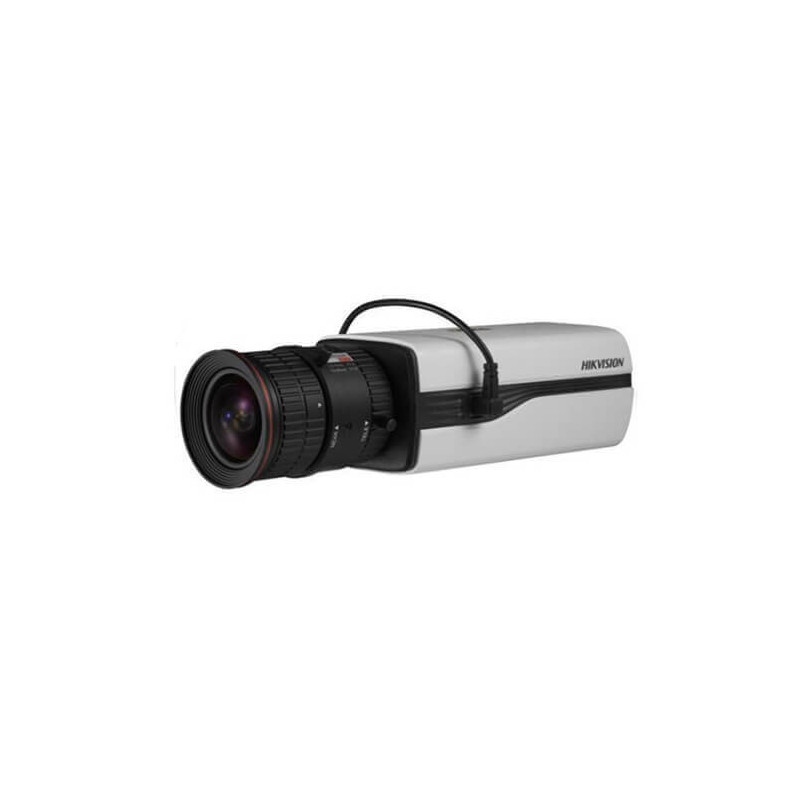

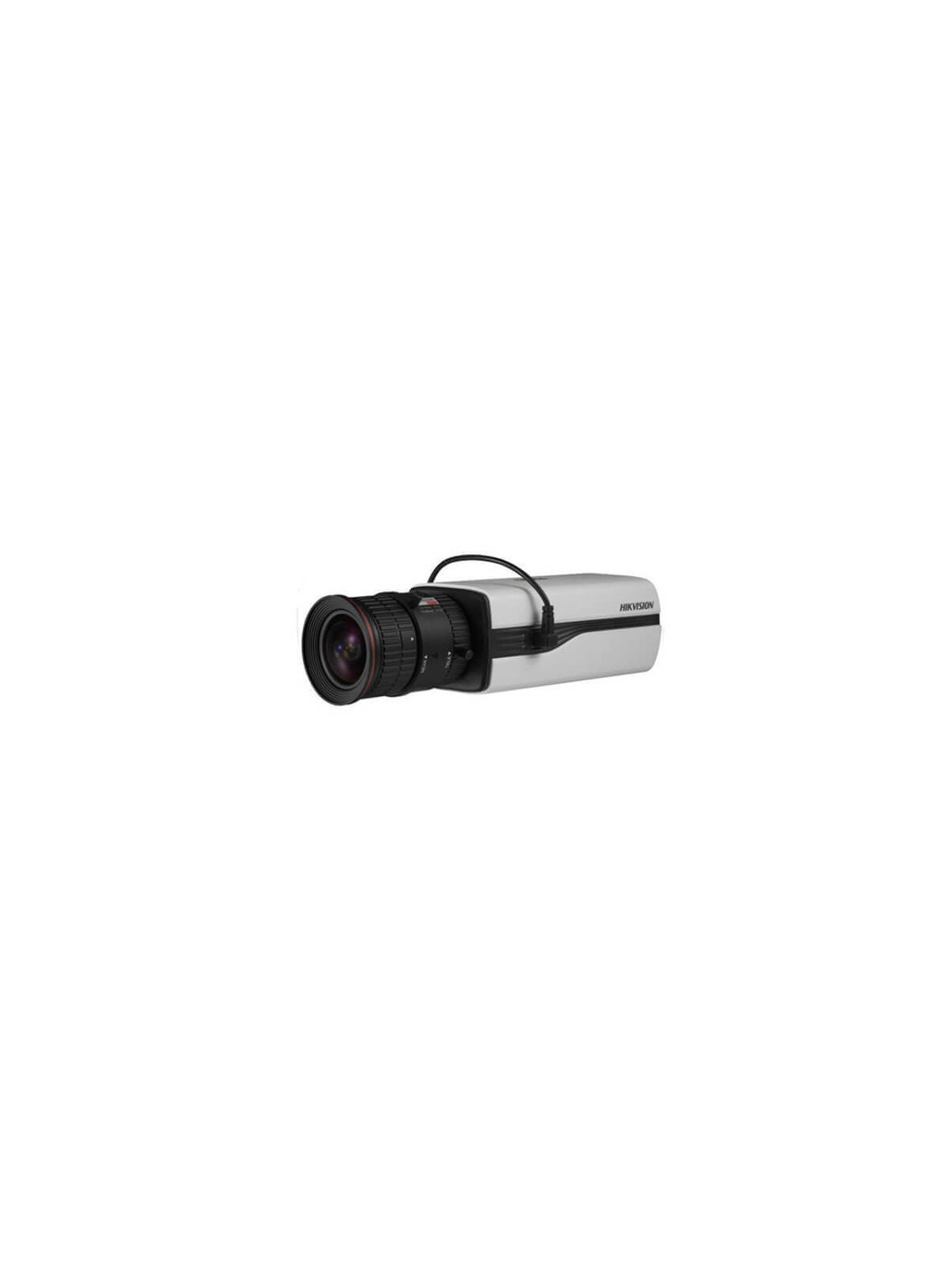

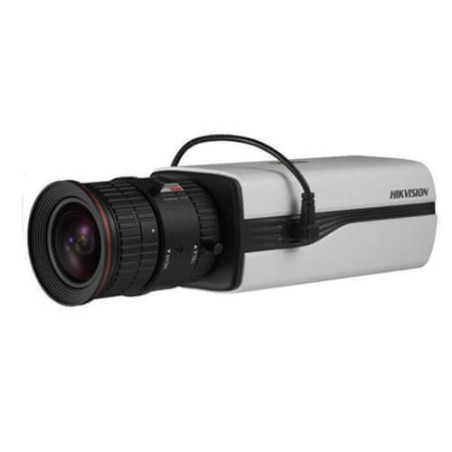

Cámara Hkvision DS-2CC12D9T-A HDTVI 2MP (1080p) 0.001Lux WDR

Cámara tecnología HD-TVI formato box. Sensor CMOS. Lente no incluida, montura C/CS. Autoiris DC. Conmutación mecánica. Resolución 1080P. Sensibilidad de 0.01 lux en color, y 0.001 lux en blanco y negro (F1.2 AGC ON). WDR 120dB. Funciones BLC, balance de blancos, 8 máscaras de privacidad, detección de movimiento, reducción digital de ruido, mirror, corrección pixel. Salida de vídeo HD y video compuesto. Alimentación: 12VDC/24VAC max 400mA (Fuente no incluida). Dimensiones(WxHxL): 69.2 x 57.3 x 148.7 mm. Instalación interior, para exterior requiere cabina..
|
|
Características técnicas |
| Camera |
---|
Image Sensor: | | | 1/3" Progressive Scan CMOS | Effective Pixels: | | | 1920(H)*1080(V) | Min. Illumination: | | | Color : 0.01 Lux @(F1.2,AGC ON) B/W : 0.001 Lux @(F1.2,AGC ON) | Shutter Time: | | | 1/25(1/30) s to 1/50,000 s | Lens Mount: | | | C/CS Mount | Auto Iris: | | | DC Drive | Day& Night: | | | IR cut filter with auto switch | Video Frame Rate: | | | 1080p@25fps/1080p@30fps | Synchronization: | | | Internal Synchronization | Video Output: | | | 1Vp-p Composite Output (75Ω/BNC) | S/N Ratio: | | | More than 52dB | Up the Coax: | | | Support | Menu |
---|
Camera ID: | | | On/off (15 characters, position programmable) | D/N Mode: | | | Color/ BW/ EXT | Auto White Balance: | | | ATW/ AWC-SET/ Indoor/ Outdoor/ Manual | Private Mask: | | | On/Off, maximum 8 zones | Motion Detection: | | | On/Off, maximum 4 zones | BLC: | | | On/Off | AGC: | | | Support | Anti-flicker: | | | On/ Off | Language: | | | English/ Japanese/ CHN1/ CHN2/ Korean/ German/ French/ Italian/ Spanish/ Polish/ Russian/ Portuguese/ Dutch/ Turkish/ Hebrew/ Arabic | Function: | | | Eclipse, Digital noise reduction, Digital zoom(62x), Slow shutter, Mirror, Defog, Defect pixel correction, SMART D-ZOOM | General |
---|
Operating Conditions: | | | -30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 90% or less (non-condensing) | Power Supply: | | | 12 V DC ± 10%, 24 V AC ± 10% | Power Consumption: | | | Max. 4W, -A: Max. 4.5W | Dimension: | | | 69.2×57.3×148.7mm(2.7” × 2.3” × 5.85”) | Weight: | | | 400g |
|
|
