| Descripción |
|

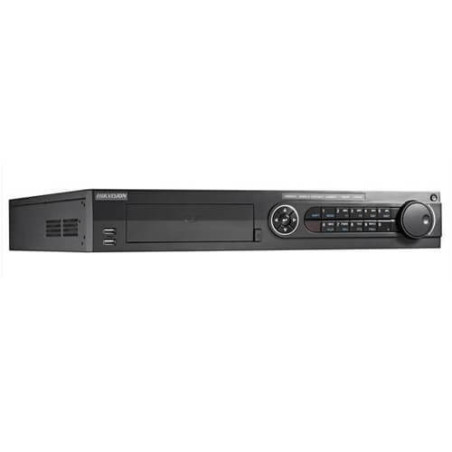

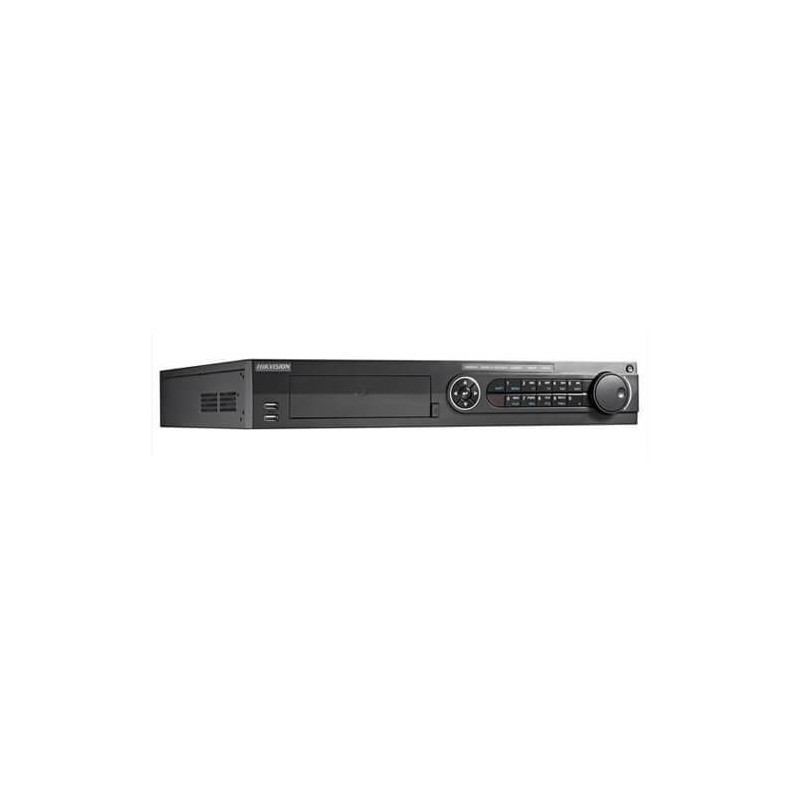

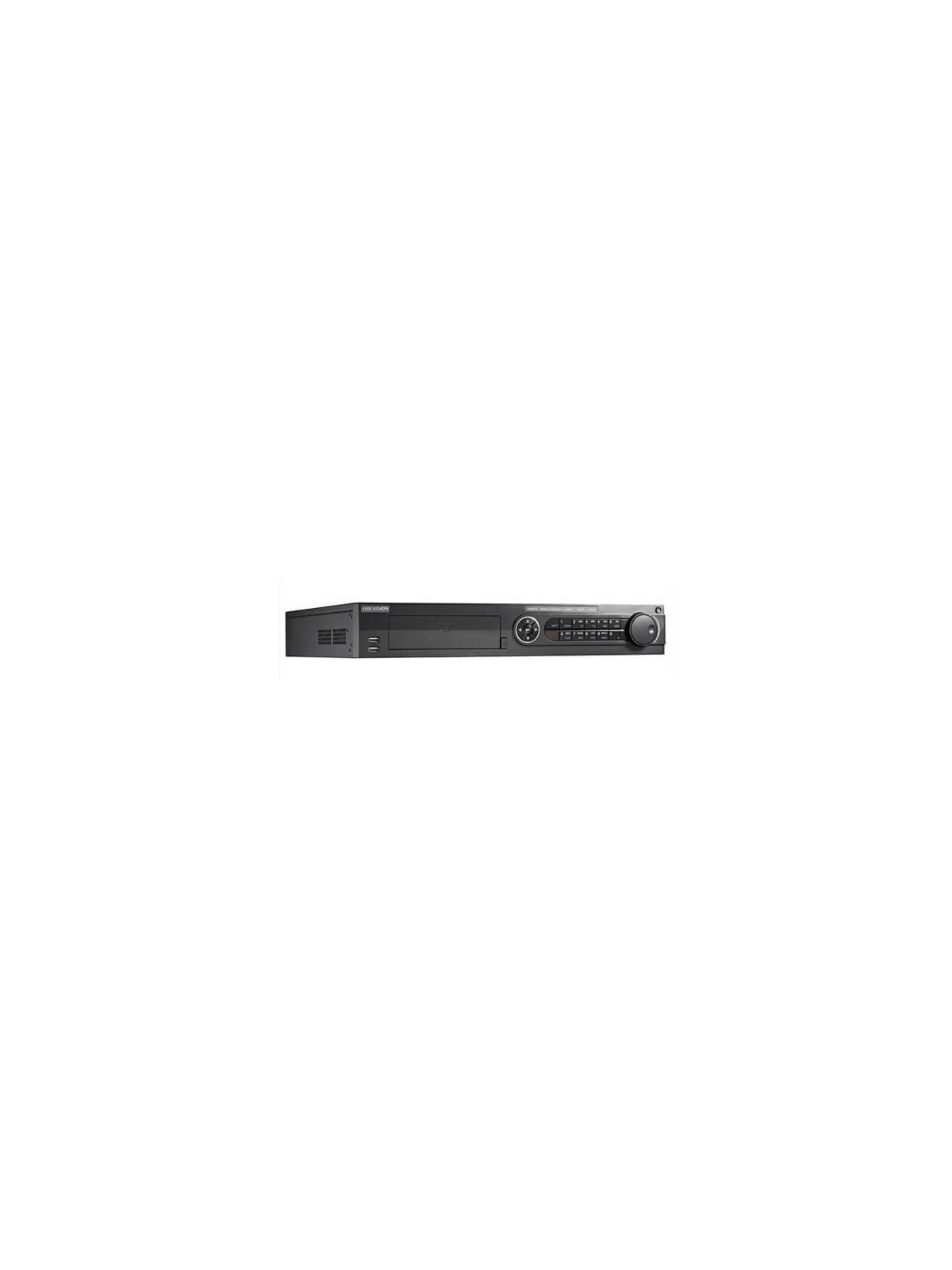

Grabador 5en1 Hikvision DS-7324HQHI-K4 24ch Video (4MP 300fps) 8ch IP 6MP 4ch Audio H265+ HDMI SATAx4 Alarmas
Grabador DVR Hikvision Turbo HD 4.0 de 24 canales hasta 4MP (canales 1,2,3 y 4 a 3MP) + hasta 32 canales IP hasta 6MP + Formatos H.265+ / H.265 / H.264+ / H.264, Salidas HDMI1/VGA simultáneas, HDMI2 independiente hasta 4K y salida CVBS.
-Codificación H.265+ / H.265 / H.264+ / H.264.
-Entrada de señal HDTVI / HDCVI / AHD / CVBS autoadaptable.
-Puede conectarse a cámaras IP H.265 + / H.265 / H.264 + / H.264.
-Hasta 4 MP de resolución para la grabación.
-Transmisión de larga distancia sobre cable UTP y coaxial.
-Reproducción sincronizada de 16 canales.
-Capacidad para 4 HDD 10TB.
-16 entrada y 4 salida de alarma.
-Teclado remoto DS-1003KI a través de puerto RS485.
-Teclado remoto DS-1005KI a través de puerto USB.
|
|
| Características técnicas |
- Analog Video Input
- Analog video input - 24-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- HDTVI input - 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60,*: The 3 MP signal input is only available for channel 1/2/3/4.,
- AHD Input - 4 MP, 1080p25, 1080p30, 720p25, 720p30
- HDCVI input - 1080p25, 1080p30, 720p25, 720p30
- CVBS input - PAL/NTSC
- CVBS output - 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
- HDMI1/VGA output - 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- HDMI2 output - 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- Audio input - 4-ch, RCA (2.0 Vp-p, 1 KΩ)
- Audio output - 1-ch, RCA (Linear, 1 KΩ)
- Two-way audio - 1-ch, RCA (2.0 Vp-p, 1 KΩ) (independent)
- Synchronous playback - 16-ch
- Recording
- Video compression - H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Encoding resolution - When 1080p Lite mode not enabled: ,4 MP lite/3 MP/1080p/1080p lite/720p/WD1/4CIF/VGA/CIF,When 1080p Lite mode enabled: ,4 MP lite/3 MP/1080p lite/720p/720p lite/WD1/4CIF/VGA/CIF,
- Frame rate - Main stream: ,When 1080p Lite mode not enabled: ,For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N),For 3 MP stream access: 3 MP/1080p/720p/WD1/4CIF/VGA/CIF@15fps,For 1080p stream access: 1080p/720p@15fps; WD1/4CIF/VGA/CIF@25fps (P)/30fps (N),For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N),When 1080p Lite mode enabled: ,For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p lite/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N),For 3 MP stream access: 3 MP/1080p lite/720p lite/WD1/4CIF/VGA/CIF@15fps,For 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N),For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N),Sub-stream:,WD1/4CIF@12fps; CIF@25fps (P)/30fps (N),
- Video bit rate - 32 Kbps to 6 Mbps
- Dual stream - Support
- Stream type - Video, Video & Audio
- Audio compression - G.711u
- Audio bit rate - 64 Kbps
- Video and Audio
- IP video input - 16-ch (up to 40-ch);Up to 6 MP resolution;Support H.265+/H.265/H.264+/H.264 IP cameras
- Network
- Remote connections - 128
- Network protocols - TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, SNMP
- Network interface - 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface
- Auxiliary interface
- SATA - 4 SATA interfaces
- Capacity - Up to 10 TB capacity for each disk
- Alarm in/out - 16/4
- USB interface - Front panel: 2 × USB 2.0;,Rear panel: 1 × USB 3.0
- Serial interface - RS-232, RS-485 (full-duplex), Keyboard
- eSATA - Support
- General
- Power supply - 100 to 240 VAC
- Consumption (without HDD) - ≤ 45 W
- Working temperature - -10 °C to +55 °C (+14 °F to +131 °F)
- Working humidity - 10% to 90%
- Dimensions (W × D × H) - 440 × 390 × 70 mm (17.3 × 15.4 × 2.8 inch)
- Weights (without HDD) - ≤ 7 kg (15.4 lb)
|
|
|
